Description
Product details
The award-winning Tow-Pro Elite is suitable for both 12 volt and 24 volt vehicles and is the only brake controller on the market that offers two types of braking options in one dash mounted unit.
Looking for the best brake controller on the market?
The REDARC Tow-Pro Elite is the only brake controller on the market with 2 braking modes at the turn of a dial and comes with a free universal pig-tail wiring harness and universal switch insert panel (TPSI-001).
All-weather, all-terrain performance
Manual Off-road Mode- Provides user-controlled braking, allowing you to independently manage the trailer’s speed separate from your vehicle. Perfect for more challenging conditions such as steep descents, deep snow, mud, and sand.
Everyday Mode- Using proportional braking, the trailer adjusts its braking force in sync with the vehicle’s brakes, ensuring a smooth and controlled experience. Perfect for day-to-day towing.
You can choose what braking type best suits the road conditions, vehicle type or driver preference, and the Tow-Pro Elite is suitable for 12 and 24-volt systems.
Advanced brake controller technology
This model features a three-axis accelerometer which can measure acceleration in any direction. The main unit can be mounted in any orientation, out of sight and still sense the brake level accurately.
The SEMA Global Media Award winning Tow-Pro Elite also comes with self-levelling technology, so it can sense the rate of deceleration and features active calibration, which constantly monitors the vehicles direction of travel, with or without a trailer attached.

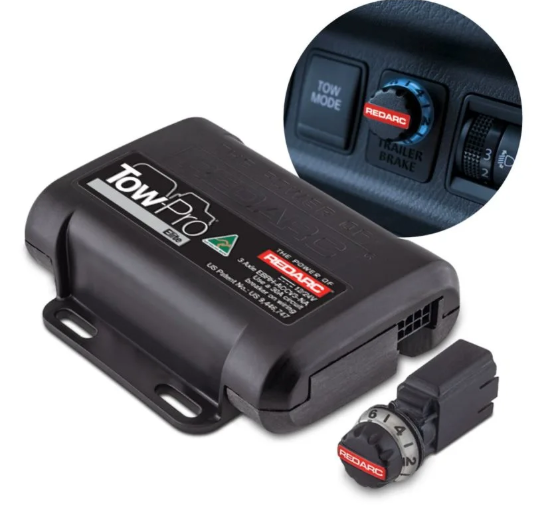

The REDARC Tow-Pro Elite control knob is designed with low profile and shock-absorbing elastomers ensuring it can be installed in crash impact zones, and all Tow-Pro Elite purchases come with a free universal pig-tail wiring harness included as standard.
Tested in the toughest conditions
REDARC is an Australian company that’s 40 years old and is a world-class advanced electronics manufacturer providing high quality trailer accessories. All REDARC products are designed, developed, engineered and tested in the toughest conditions.
The Tow-Pro Elite has undergone years of testing in some of the harshest conditions to become one of the best brake controllers for trailers the world over.
Benefits of a Tow-Pro Elite Electronic Brake Controller
Two braking modes
SwayStop Control to stop trailer sway with one touch

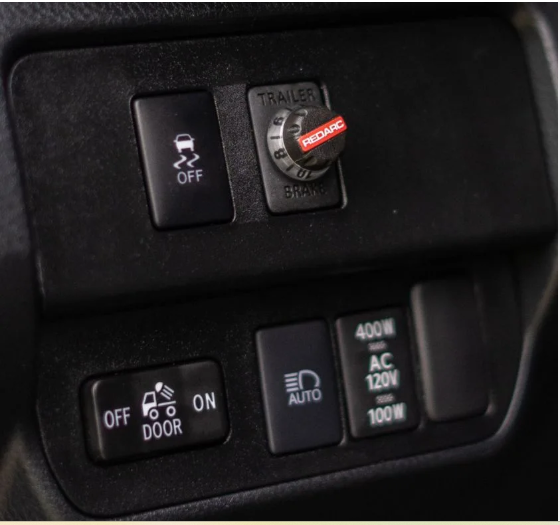

Factory look, dash mounted remote head for ultimate control at your fingertips

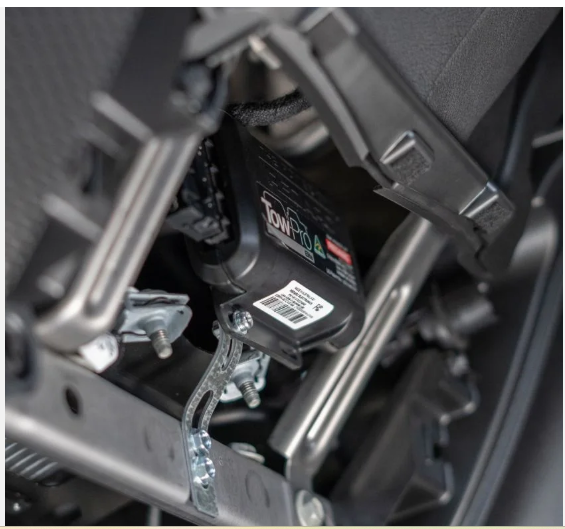

Main unit mounted behind the dash keeping the drivers leg space clear and no interference with airbags.
Suitable for 12V and 24V vehicles
Active calibration for easy setup
Operates both electric and electric/hydraulic trailer brakes.
* Note: Tow-Pro Elite may not be suitable for some electric/hydraulic systems that require their own specific controller.
Simplify Setup
With simple, one time calibration as soon as you start driving - with or without a trailer connected - the Tow-Pro is always ready for any family getaway or last minute trip. Tow the RV, trailer or boat without needing to worry about setup every time. Combine our Tow-Pro range with our wiring harnesses and switch inserts for the ultimate electric brake controller setup or get everything you need for a Tow-Pro installation with our brake controller kits.
Specifications
| Warranty | 2 Years |
|---|---|
| gtin_barcode | 9338628006649 |
| brand | REDARC |
| Remote head meets UNECER21 and FMVSS 201 safety standards | Yes |
| Active Calibration | Yes |
| Proportional Mode (inertia sensing) for highway driving | Yes |
| User-Controlled Mode for off-road driving | Yes |
| Weight | 7oz (200g) |
| operating voltage | 9 - 32V |
| Dash mounted remote head | Yes |
| Dexter & Tuson Sway Control System approved | Yes |
| Operates electric and electric/hydraulic brakes | Yes |
| Brake Input Signal Voltage | ON: +12V nominal OFF: 0V (12V vehicles) | ON: +24V nominal OFF: 0V (24V vehicles) |
| Suitable For 12V Systems | Yes |
| Suitable for 24 volt systems | Yes |
| Cable Length | 1 m (remote head cable) |
| Operating Temperature | -4°C to 140°C |
| 1-2 trailer axles | Yes |
| 1-3 trailer axles | Yes |
| Input Voltage | 12V | 24V |
| Max Power Current | 25A (12V vehicles) | 30A (24V vehicles) |

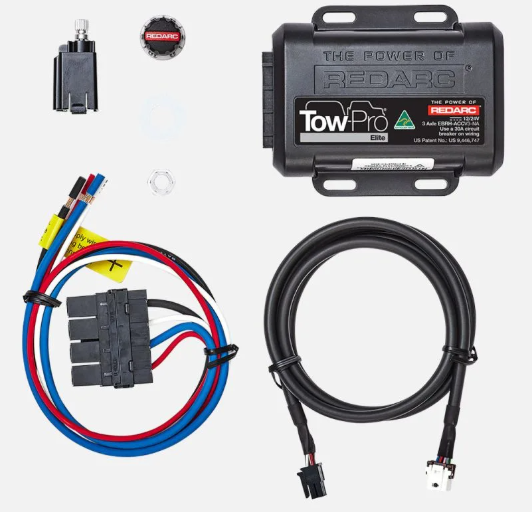

| Includes Universal Bare Cable Harness | Yes |
| Includes TPSI-001 Universal Switch Insert | Yes |
