REDARC | Smart Start SBI 24V 200A (SBI224)
SELECT OPTIONS
Description
This product may require additional parts to complete installation:
- 100A Fuse Kit
- 60A Fuse Kit
Product details

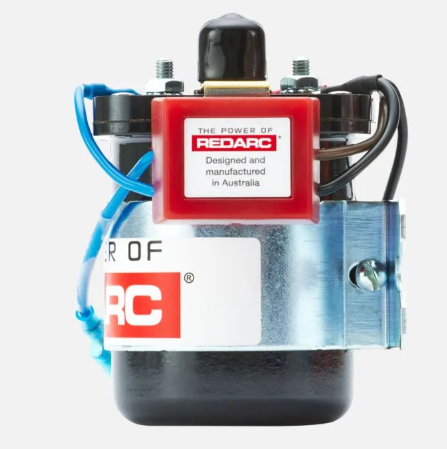

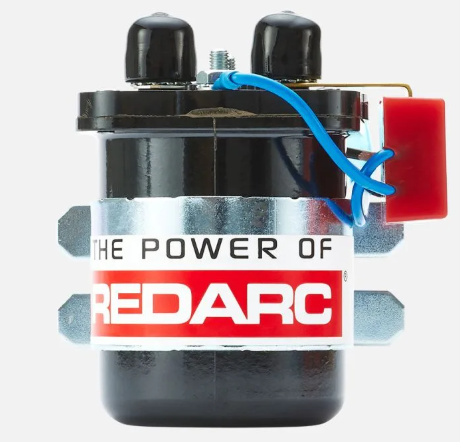

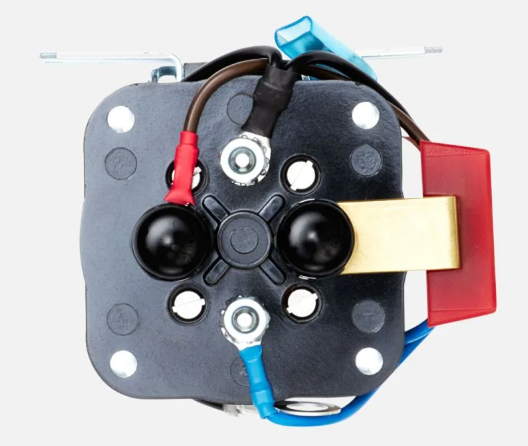

Smart Start® SBI224 protects the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads in dual battery systems.
The REDARC Smart Start® SBI224 protects the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads in dual battery systems. The SBI224 provides 24 volt DC incorporating 200A of continuous ratings. The 200A battery isolator is suited best for heavy-duty operations.
Power saving technology
The Smart Start SBI224 battery isolator is mostly used in commercial vehicle dual battery systems. It incorporates electronic components preventing the solenoid from generating high voltage transients. It's used instead of a diode battery isolator due to reduced voltage drop associated with diode type isolation. Sophisticated fault detection and LED indication of operation warns the user of faults including over-voltage, voltage drop, and excessive current draw conditions.
Perfect for heavy-duty dual battery systems
The Smart Start SBI224 battery isolator is a safe way to charge heavy-duty dual battery systems.
Features
Overmold design
Compact size
Easy to install
Silver contacts for longer life (suitable for marine applications)
Power saving technology
Fault indication
Fully surge protected
Specifications
| gtin_barcode | 9338628000036 |
|---|---|
| brand | REDARC |
| Max. Inrush Current | 600A |
| Max. Continous Current | 200A |
| Turn On Voltage | 26.4V |
| Turn Off Voltage | 25.4V |
| Turn On Delay | 5 seconds |
| Turn Off Delay | 10 seconds |
| Standby Current | <5mA |
| Weight | 1.3 lb (600 g) |
| height | 3.54" (90 mm) |
| width | 3.74" (95 mm) |
| depth | length | 3.94" (100 mm) |
| Warranty | 2 Years |
| System Voltage | 24V |
| Output Voltage | 24V DC |
| Input Fuse Rating | 200A |
| Output Fuse Rating | 200A |
