REDARC | Smart Start SBI 24V 100A (SBI24)
SELECT OPTIONS
Description
This product may require additional parts to complete installation:
60A Fuse Kit
100A Fuse Kit
Product details

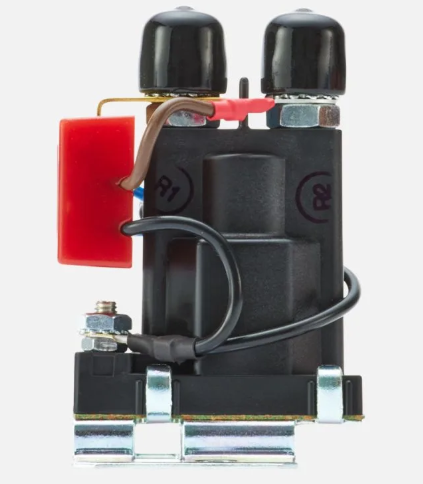

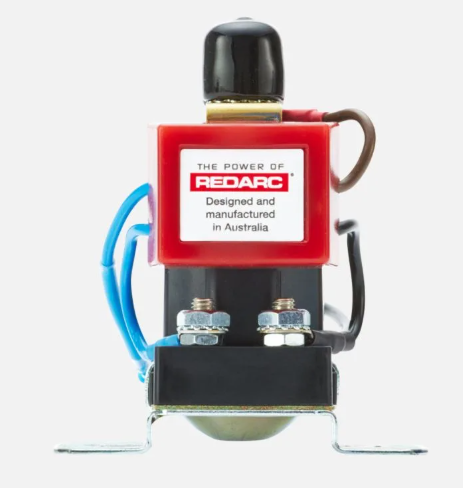

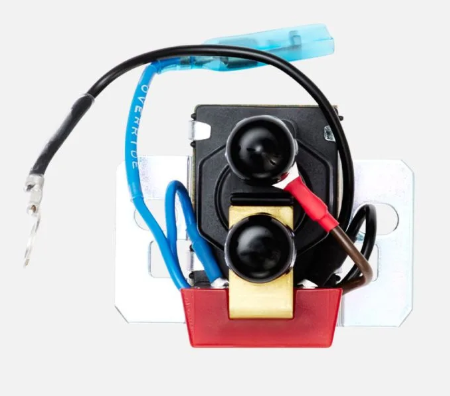

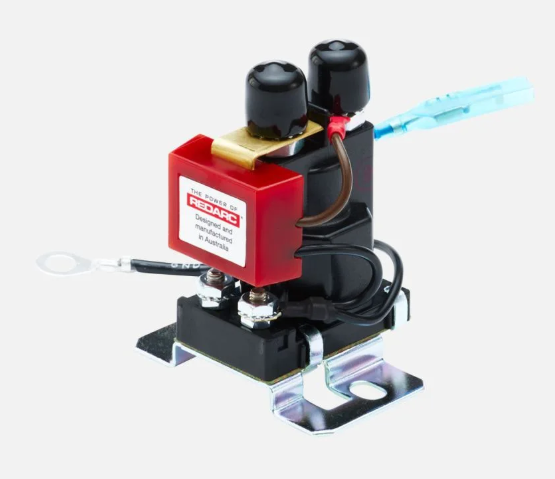

The REDARC Smart Start® SBI24 is a 24V 100A dual battery isolator used to isolate the start and auxiliary batteries in a dual battery system.
The REDARC Smart Start® SBI24 is a dual battery isolator used to isolate the start and auxiliary batteries in a dual battery system. The microprocessor-controlled smart battery isolator protects the primary battery from a low charge in the secondary battery so it won’t drain the primary battery, at the same time allowing the auxiliary battery to supply non-essential loads. The SBI24 provides 24V DC incorporating 100A of continuous ratings.
Power saving technology
Used mainly in commercial vehicle dual battery systems, the Smart Start SBI24 battery isolator incorporates components that prevent the solenoid from generating high voltage transients. It’s used in place of a diode battery isolator due to the voltage drop associated with diode type isolation.
Fault detection
The sophisticated fault detection and LED indication of operation alerts users of over-voltage or voltage drops. It is compact, easy to install, and provides full surge protection. The Smart Start SBI24 Battery Isolator is a safe way to charge a dual battery system.
Features
Overmold design
Compact size and easy installation
Silver contacts for longer life and suitable for marine applications
Power saving technology
Fault indication
Fully surge protected
Specifications
| gtin_barcode | 9338628000029 |
|---|---|
| brand | REDARC |
| Max. Inrush Current | 400A |
| Max. Continous Current | 100A |
| Turn On Voltage | 26.4V |
| Turn Off Voltage | 25.4V |
| Turn On Delay | 5 seconds |
| Turn Off Delay | 10 seconds |
| Standby Current | <5mA |
| Weight | 7 oz (200 g) |
| height | 2.48" (70 mm) |
| width | 2.95" (75 mm) |
| depth | length | 3.15" (80 mm) |
| Warranty | 2 Years |
| System Voltage | 24V |
| Output Voltage | 24V DC |
| Input Fuse Rating | 100A |
| Output Fuse Rating | 100A |
