REDARC | Smart Start SBI 12V 200A (SBI212)
SELECT OPTIONS
Description
This product may require additional parts to complete installation:
60A Fuse Kit
100A Fuse Kit
Product details

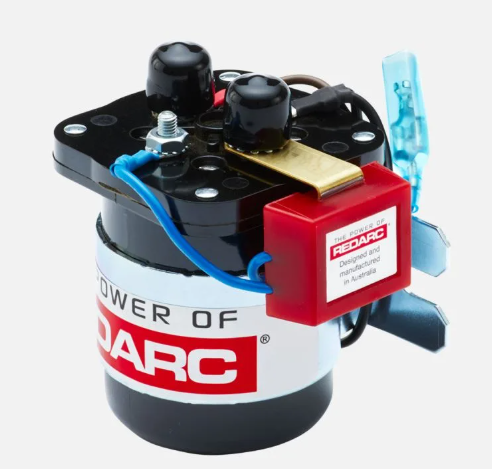

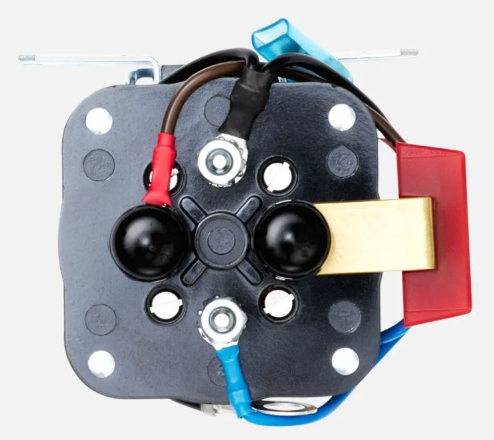

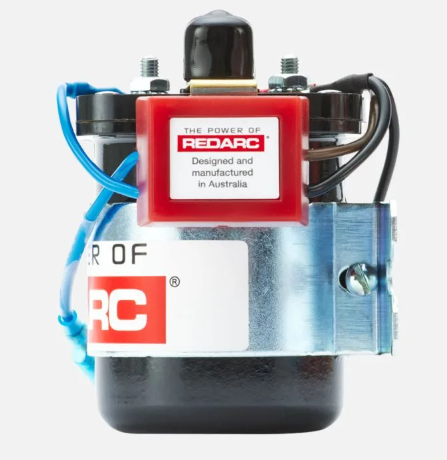

The REDARC Smart Start® SBI212 is a 200A 12V battery isolator used as a solenoid priority system to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads.
The REDARC Smart Start® SBI212 is a battery isolator used as a solenoid priority system to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. It provides 12-volt DC with the incorporation of 200A of continuous ratings.
Power saving technology
The SBI212 is designed for extremely heavy-duty operations. It’s primarily used in commercial vehicle dual battery systems. It incorporates electronic components to prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation.
Fault detection
Its low standby current draw and sophisticated fault detection and LED indication of operation warns the user of faults including over-voltage, voltage drop, and excessive current draw conditions.
Best dual battery isolator
The Smart Start SBI battery isolator is a safe way to top-up your secondary battery in your dual battery system with its power saving technology for the ultimate performance.
Features
Overmold design
Compact size and easy installation
Silver contacts for longer life and suitable for marine applications
Power saving technology
Fault indication
Fully surge protected
Specifications
| gtin_barcode | 9338628000043 |
|---|---|
| brand | REDARC |
| Max. Inrush Current | 600A |
| Max. Continous Current | 200A |
| Turn On Voltage | 13.2V |
| Turn Off Voltage | 12.7V |
| Turn On Delay | 5 seconds |
| Turn Off Delay | 10 seconds |
| Standby Current | <5mA |
| Weight | 1.3 lb (600 g) |
| height | 3.54" (90 mm) |
| width | 3.74" (95 mm) |
| depth | length | 3.94" (100 mm) |
| Warranty | 2 Years |
| System Voltage | 12V |
| Output Voltage | 12V DC |
| Input Fuse Rating | 200A |
| Output Fuse Rating | 200A |
