REDARC | Smart Start SBI 12V 100A (SBI12)
SELECT OPTIONS
Description
This product may require additional parts to complete installation:
100A Fuse Kit
60A Fuse Kit
Product details

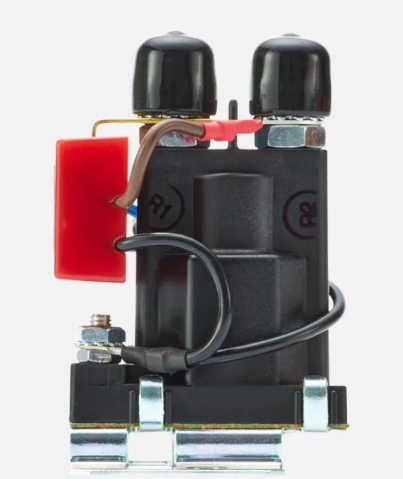

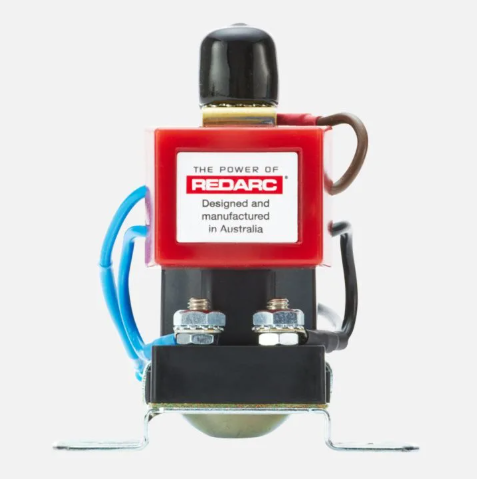

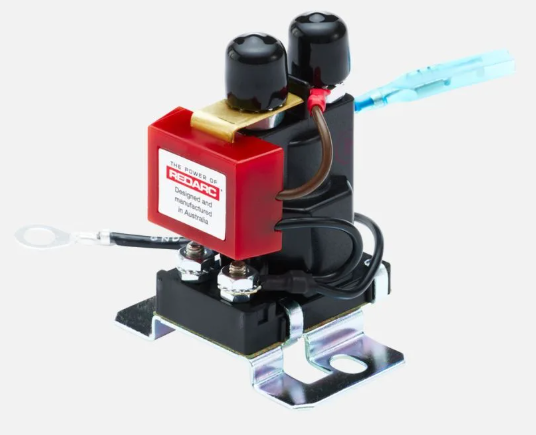

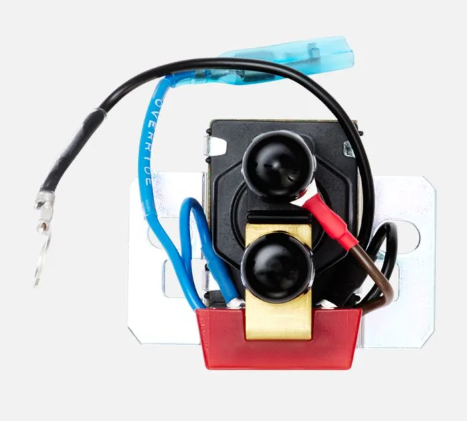

The REDARC Smart Start® SBI12 is a 100A 12V microprocessor-controlled battery isolator which protects the start battery from excessive discharge, while allowing the auxiliary battery to supply charge to non-essential loads.
The REDARC Smart Start® SBI12 is a microprocessor-controlled battery isolator which protects the start battery from excessive discharge, while allowing the auxiliary battery to supply charge to non-essential loads. It is used as a solenoid priority system in dual battery systems and provides 12V DC incorporating 100A of continuous ratings. The SBI range manages battery charge for your secondary battery while on the move.
Power saving technology
The battery isolator is mostly used in 4WD and commercial vehicles. It incorporates electronic components that prevents the solenoid from generating high voltage transients. Due to the voltage drop associated with diode type isolation, it’s better than a diode battery isolator. A low standby current draw and fault detection and LED indication of operation warns users of faults such as voltage drops, over-voltage, and excessive current draw conditions. Safely maintain the charge your dual battery system with the Smart Start SBI12 battery isolator.
Features:
Overmold design
Compact size and easy to install
Silver contacts ensure longer life and suitable for marine applications
Power saving technology
Fault indication
Fully surge protected
HAVE A QUESTION?
Specifications
| gtin_barcode | 9338628000005 |
|---|---|
| brand | REDARC |
| Max. Inrush Current | 400A |
| Max. Continous Current | 100A |
| Turn On Voltage | 13.2V |
| Turn Off Voltage | 12.7V |
| Turn On Delay | 5 seconds |
| Turn Off Delay | 10 seconds |
| Standby Current | <5mA |
| Weight | 7 oz (200 g) |
| height | 2.48" (70mm) |
| width | 2.95" (75mm) |
| depth | length | 3.15" (80mm) |
| Warranty | 2 Years |
| System Voltage | 12V |
| Output Voltage | 12V DC |
| Input Fuse Rating | 100A |
| Output Fuse Rating | 100A |
