REDARC | Smart Start Load Disconnect Isolator (SBI12-LLD)
SELECT OPTIONS
Description
Product details

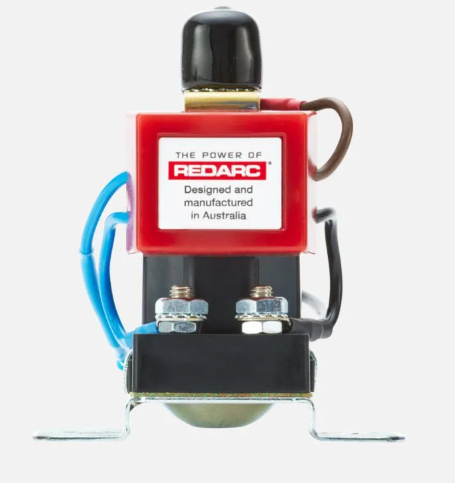

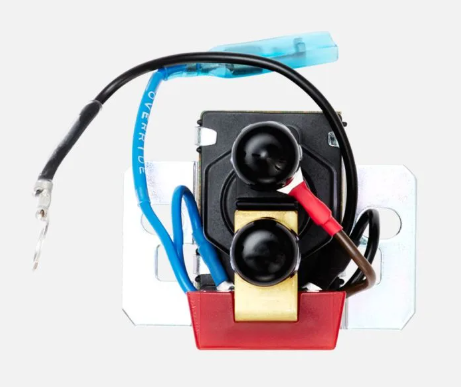

The SBI12-LLD is a microprocessor-controlled Load Disconnect Isolator. The SBI12-LLD is designed specifically for use in LiFePO4 battery applications as a system to protect the lithium battery from being excessively discharged by auxiliary loads.
The SBI12-LLD is a microprocessor-controlled Load Disconnect Isolator. The SBI12-LLD is designed for use in lithium battery applications (LiFePO4) as a system to protect the battery from being excessively discharged by auxiliary loads, enabling the auxiliary battery to remain above the level at which internal protection circuitry would activate. Falling below this threshold would prevent many chargers from recharging the battery.
Put simply, once the auxiliary battery has been overly discharged, the Load Disconnect Isolator will turn off any connected loads. Similarly, if the battery climbs back above a suitable level, the Load Disconnect Isolator will restore power to the connected loads.
Spike protection
The SBI12-LLD Smart Start battery isolator incorporates a number of spike protection components specifically designed to reduce the risk of damaging the unit. It is also designed to prevent any spikes generated by the solenoid coil from affecting vehicle equipment.
Features
Overmould design
Compact in size and easy to install
Silver contacts for longer life and suitable for marine applications
Power saving technology
Fault indication
Fully surge protected
California residents: see Proposition 65 information.
REDARC recommends that our products are installed by a qualified auto electrician or technician.
HAVE A QUESTION?
Specifications
| gtin_barcode | 9338628005598 |
|---|---|
| brand | REDARC |
| Max. Inrush Current | 400A |
| Max. Continous Current | 100A |
| Turn On Voltage | 11V |
| Turn Off Voltage | 10.5V |
| Turn On Delay | 10 seconds |
| Turn Off Delay | 2 seconds |
| Standby Current | <5mA |
| Operating Current | <0.1A |
| Weight | 7 oz (200 g) |
| height | 2.48" (70 mm) |
| width | 2.95" (75 mm) |
| depth | length | 3.15" (80 mm) |
| Warranty | 2 Years |
| System Voltage | 12V |
| Output Voltage | 12V DC |
| Input Fuse Rating | 100A |
| Output Fuse Rating | 100A |
