REDARC | Smart Start Battery Isolator & Wiring Kit 12V (SBI12KIT)
SELECT OPTIONS
Description
Product details

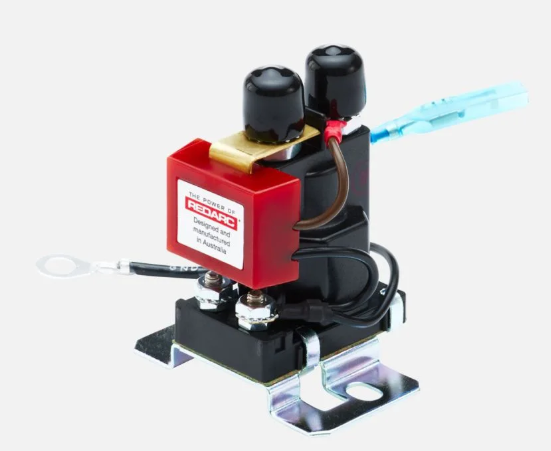

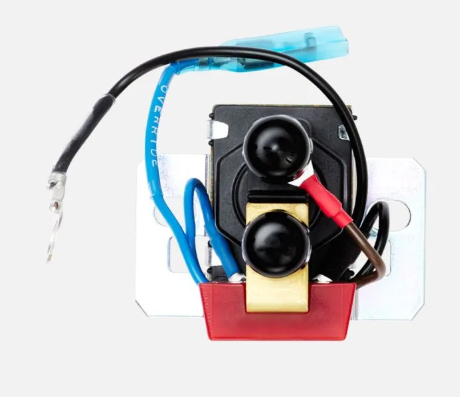

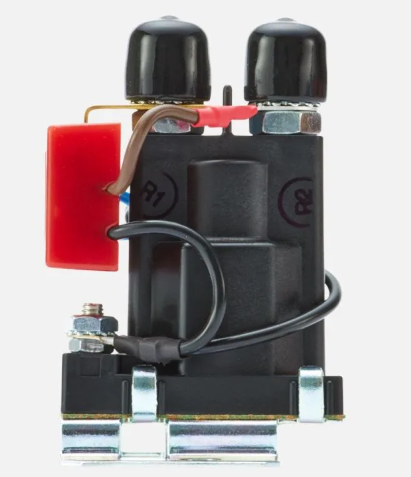

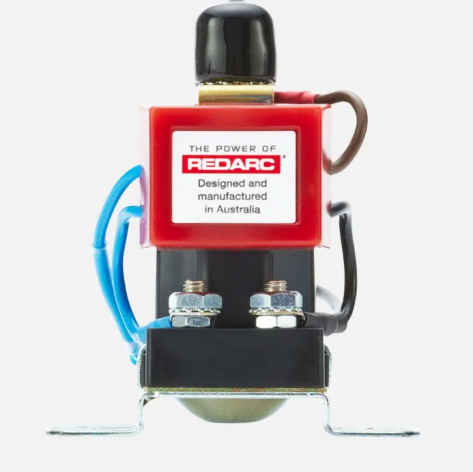

The REDARC Smart Start® SBI12 is a 100A 12v dual battery isolator used in a dual battery system. It protects the start battery from excessive discharge while allowing the auxiliary battery to supply non-essential loads.

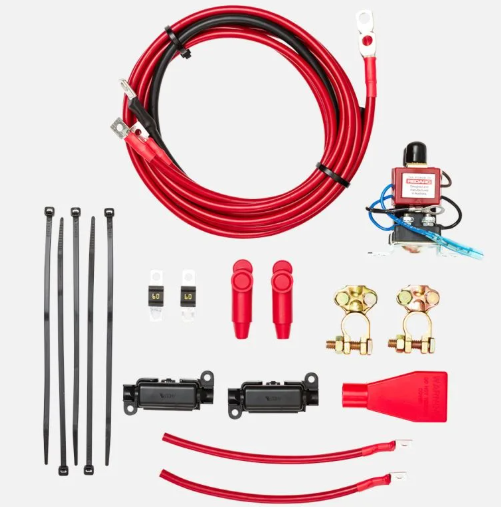

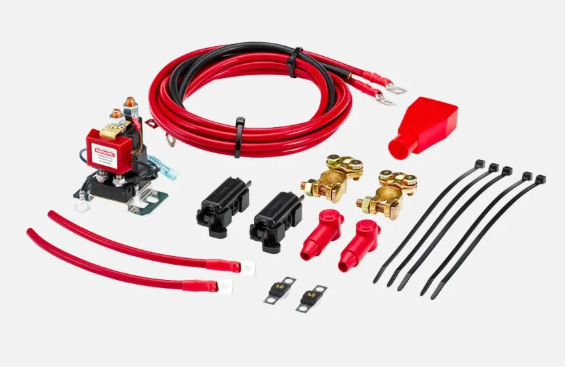

The Smart Start® Dual Battery Isolator and Wiring Kit (SBI12KIT) is equipped with everything needed to install a Smart Start® Dual Battery Isolator including the Smart Start® itself.
High-quality MTA 60 amp fuses and fuse holders with the corresponding ring terminals are already attached to the wires.
The SBI12KIT prevents your secondary battery from draining your main battery. It works for harsh automotive or marine environments. And, it significantly extends your battery life, proving to be cost-effective and efficient.
Features
Overmold design
Compact size and easy installation
Silver contacts for longer life and suitable for marine applications
Power saving technology
Fault indication
Fully surge protected
Not sure what dual battery system is best for your vehicle? Let Shaun Whale explain more.
Specifications
| gtin_barcode | 9338628002566 |
|---|---|
| brand | REDARC |
| Max. Inrush Current | 400A |
| Max. Continous Current | 100A |
| Turn On Voltage | 13.2V |
| Turn Off Voltage | 12.7V |
| Turn On Delay | 5 seconds |
| Turn Off Delay | 10 seconds |
| Standby Current | <5mA |
| Weight | 7 oz (200 g) SBI only |
| height | 2.48" (70 mm) |
| width | 2.95" (75 mm) |
| depth | length | 3.15" (80 mm) |
| Warranty | 2 Years |
| System Voltage | 12V |
| Output Voltage | 12V DC |
| Input Fuse Rating | 100A |
| Output Fuse Rating | 100A |
