REDARC | Rogue RedVision System (TVMSKIT07-NA)
SELECT OPTIONS
Description
Product details
The Rogue RedVision System is a compact RedVision System with light dimming, ideal for powering lighting and fridges and measuring up to two water tanks levels.
- TVMS Rogue Manual
- Manager30 Manual
- RedVision Configuration Guide
- RedVision Brochure
- Additional documents
Manage your power anywhere, anytime with RedVision from REDARC. Smart battery charging and accessory control in one powerful package.
At just 25mm thick and with in-built smart fusing, the included TVMS Rogue offers a small footprint, great for vehicles with limited space. Dimmable outputs make the Rogue RedVision system ideal for lighting and low powered devices such as fridges and fans. The Rogue RedVision System includes the main components you need to power your next build, just add batteries, cables and fuses.

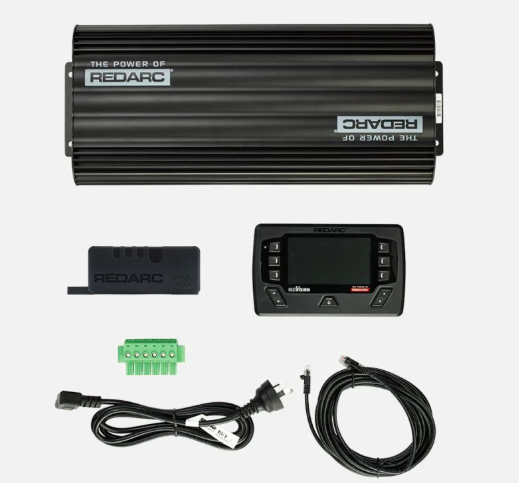

KIT INCLUDES

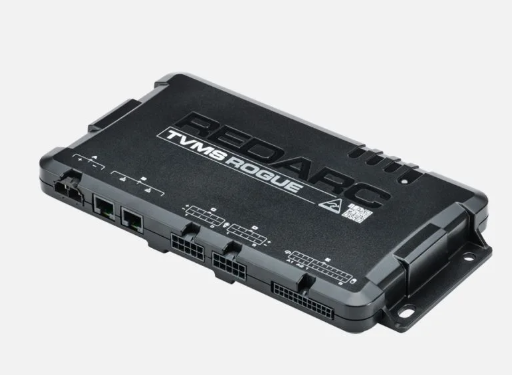

TVMS Rogue RedVision Control Module
Manager30 Battery Management System
RedVision Display
CHARGING
Whether you’re free camping or on a powered site, each RedVision system has the smarts to keep your secondary batteries charged while you travel, from solar, or from a power point at home.
Each RedVision system includes the Manager30 battery manager. This state-of-the-art 30A charger measures your battery levels and adjusts its charge rate on the fly, ensuring your secondary batteries are kept charged and healthy.
MONITORING
Relax knowing your power is in good hands. The included Manager30 battery manager helps you keep track of your essentials in real time. State of charge, charge remaining, charge/discharge current and battery temps are all available on the included RedVision display or connected phone app. Two analogue sensor inputs on the included TVMS Rogue can be used to measure ambient temperature, water tank levels and voltage.
CONTROL
The Rogue RedVision system allows complete control of multiple on-board devices including lights, fans, fridges, and pumps. Each of its 10 output channels include dimming and the built-in switch inputs make the Rogue perfect for lighting circuits. With the Rogue connecting to up to 8 physical switches, control is not just limited to the RedVision screen or app. It enables lights to be controlled from each room of a RV or for the addition of reed switches to trigger lights when opening a door for example.
AUTOMATION
Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.
FEATURES
10x 10A dimmable outputs
8x inputs allow for use with physical switches
Compact size
On-board smart fuses
Streamlined installation and configuration
Fully programmable*
Accurate analogue tank level inputs
Multi-Stage AC-DC battery charger
Multi-Stage DC-DC battery charger
Maximum Power Point Tracking Solar Regulator
Dual Battery Isolator
Load Disconnect Controller
Quiet operation
Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
Tested to mains power safety standards in Australia
Made in Australia
APP AVAILABILITY
*The configurator app is only required for initial installation and set up. The user app is available now for both iOS and Android.

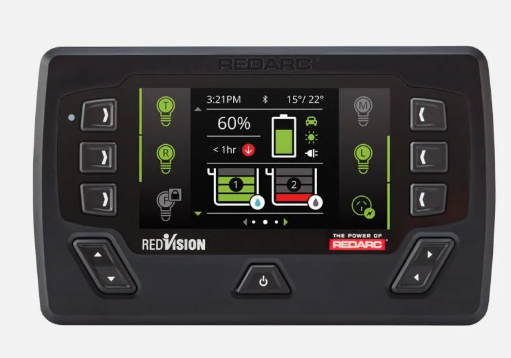

REDVISION DISPLAY
TVMS Rogue is compatible with RedVision Display units (DISP4300-RC) manufactured from January 2023, serial numbers beginning with 23. Displays manufactured from July 22 to Jan 23 (serial numbers beginning 2207 - 2212) are upgradable.
REDARC recommends that our products are installed by a qualified auto electrician or technician.
