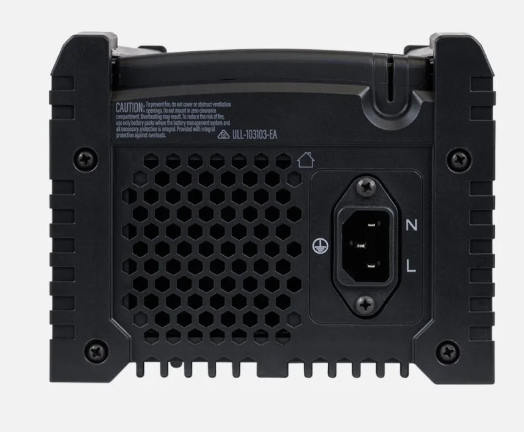

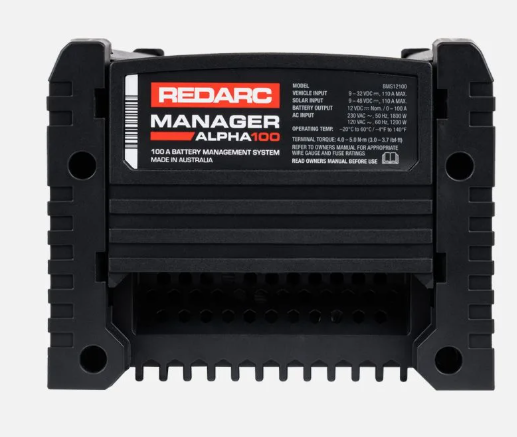

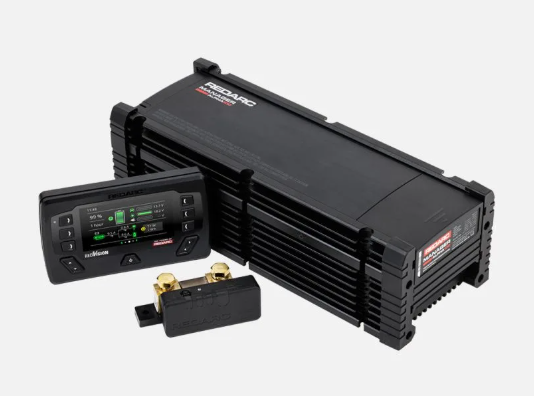

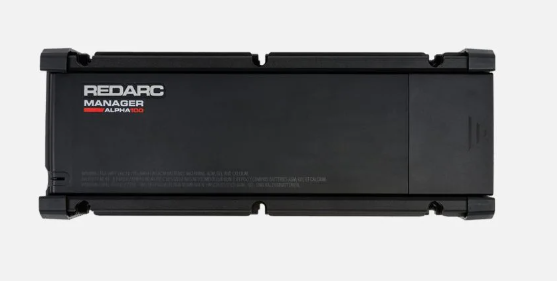

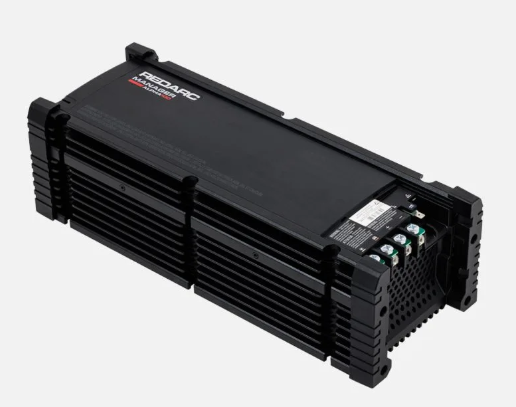

With a combination of DC, AC and solar charging, the Manager Alpha100 is a complete battery management system perfect for charging auxiliary batteries used in trucks, RVs, and camper trailers to achieve the best charge for your secondary battery.
Charge secondary batteries used in recreational vehicles, trucks and camper trailers, with REDARC’s Manager Alpha100 battery management system. Effortlessly power high demand appliances with a combination of DC, AC and solar charging. No matter where your adventures take you, the Alpha100 achieves the best charge for your secondary batteries.
The Manager Alpha's built in Green Power Priority™ will prioritise solar input, minimising the load on your alternator and saving fuel. No matter whether you’re driving, plugged in at camp or soaking up the sun, run everything from induction cooktops to fridges and air conditioners without skipping a beat.
Maximise your vehicle's capacity with the Manager Alpha, which is up to 55% smaller and 28% lighter than competing systems that require multiple parts to deliver the same features, leaving more room for adventure essentials.
The Manager Alpha100 features a Start Battery Charge function which is able to use excess solar power to keep your start battery charged. As well as a Start Battery Recovery mode to bring flat start batteries back to life.
MONITOR
Incorporating latest Bluetooth 5.1 technology, the Smart Battery Monitor delivers reliability over distances up to 42m so you can stay connected anywhere at camp.
BUILT TOUGH
FEATURES
Features
NOT SURE WHICH MODEL IS RIGHT FOR YOU?
Compare the features side by side to find the perfect match for your power needs.
Features
REDARC recommends that our products are installed by a qualified auto electrician or technician.
California residents: see Proposition 65 information
HAVE A QUESTION?
Specifications
| gtin_barcode | 9338628010219 |
|---|---|
| Nominal Voltage | 12V |
| Current Measurement Range | ± 500A |
| Start Battery Input Voltage Range | 9-32VDC |
| Solar Input Voltage Range | 9-32VDC |
| Nominal Output Voltage | 12V |
| Compatible Battery Types | Gel, AGM, Calcium, Standard Lead Acid, Lithium |
| Nominal Current Rating | 100A |
| AC Input Voltage Range | 95 – 264 VAC rms / 45 – 65 Hz |
| Operating Temperature | –4°F to 140°F |
| Weight | 13.4lbs (6.1kg) |
| height | 4.72” (120mm) |
| width | 6.06” (154mm) |
| depth | length | 15.75” (400mm) |
| Warranty | 2 Years |
