REDARC | BCDC Alpha100 R DC Battery Manager (BCDC12100R)
SELECT OPTIONS
Description
Product details
The BCDC Alpha100 R is a 12v, 100A DC-DC battery charger perfect for charging batteries used in a range of recreational vehicles. With a combination of DC and solar charging, it’s the perfect solution for caravan, camper trailer and 4x4 power so you can adventure for longer.
Featuring 100A of advanced charging technology, stay powered up wherever your adventure takes you with REDARC’s BCDC Alpha100 R. Always charged, never stranded, this DC-to-DC charger keeps your start and secondary batteries charged. Using power from your vehicle’s alternator or solar, the BCDC Alpha’s built in Green Power Priority™ minimises the load on your alternator, prioritising solar input and saving fuel.

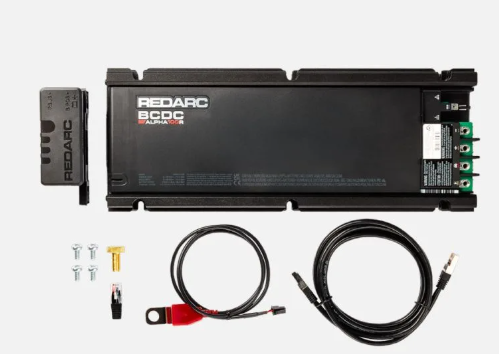

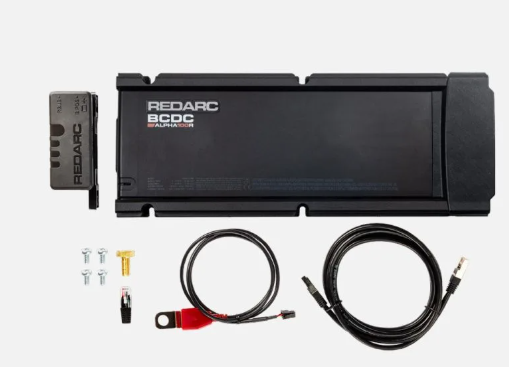

When paired with the included Smart Battery Monitor, the BCDC Alpha100 R can distinguish between current sent to your battery and to the loads in your system.
If the Charge Current is set below maximum, the charger taps into this unused current to supply your system’s loads directly, minimising reliance on your battery. The result? Less demand on your battery and an extended lifespan for worry-free adventures.
INTELLIGENT CHARGING
Unlike standard DC chargers, the BCDC Alpha100 R adjusts its charge mode in real time to meet your battery’s needs, maximising efficiency and extending lifespan. It functions as a true battery manager. The BCDC Alpha100 R also features the capability to seamlessly revive and charge a fully flattened lithium battery.
START BATTERY CHARGING
Recover a flat start battery, giving you the power to safely start your vehicle and get you back on the road in no time. Don’t let excess solar power go to waste, utilise solar to automatically top up the start battery when the secondary battery is full.
SIMPLIFIED INSTALL
The BCDC Alpha100 R’s screw connections allow for a simple installation. There’s no solder or tricky wiring configurations making installation a breeze.
ADVANCED MONITORING
Stay on top of your system with state of charge percentage, time remaining, and charger performance – delivered straight to your mobile device.
TOTAL SYSTEM CONNECTIVITY
Add the TVMS Rogue or TVMS Prime to achieve seamless integration with RedVision, offering a fully connected power management system.
FEATURES
100A Charging from DC and solar power
Charge all common automotive battery types including heated and standard Lithium (LiFePO4)
Screw connections for easy installation
Use excess solar to charge back to your start battery
Recover a flat start battery in just 15 minutes remotely from the smartphone app
Remote monitoring and control from the RedVision app with Bluetooth
Limit input current to protect vehicle alternators—making it suitable for vehicles with low surplus current or small DC converters like hybrid and electric vehicles.
Future proof charging with over-the-air updates
NOT SURE WHICH MODEL IS RIGHT FOR YOU?
FEATURES
MONITORING
REDARC recommends that our products are installed by a qualified auto electrician or technician.
California residents: see Proposition 65 information
HAVE A QUESTION?
Specifications
| gtin_barcode | 9338628010585 |
|---|---|
| Solar Input Voltage Range | 9 – 48 VDC |
| Nominal Output Voltage | 12V |
| Nominal Current Rating | 100A |
| Operating Temperature | –20°C to 60°C (–4°F to 140°F) |
| Weight | 2.2kg (4.85lbs) |
| height | 50mm (2") |
| width | 146mm (5.57") |
| depth | length | 385mm (15.15") |
| Warranty | 2 Years |
