REDARC | 24V 20A In-Vehicle DC Battery Charger

Description

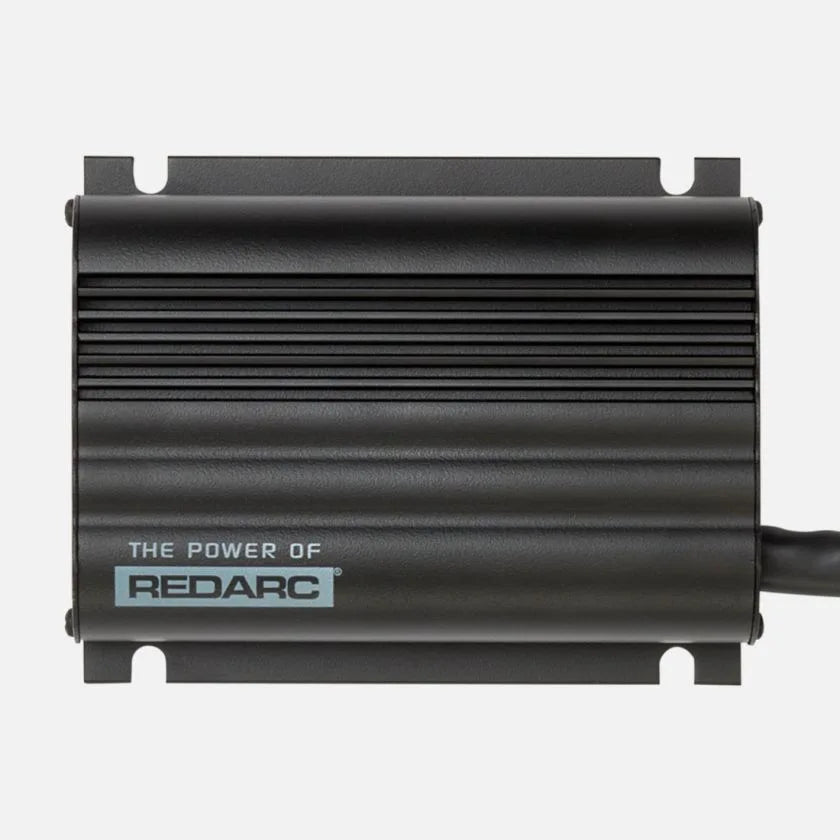

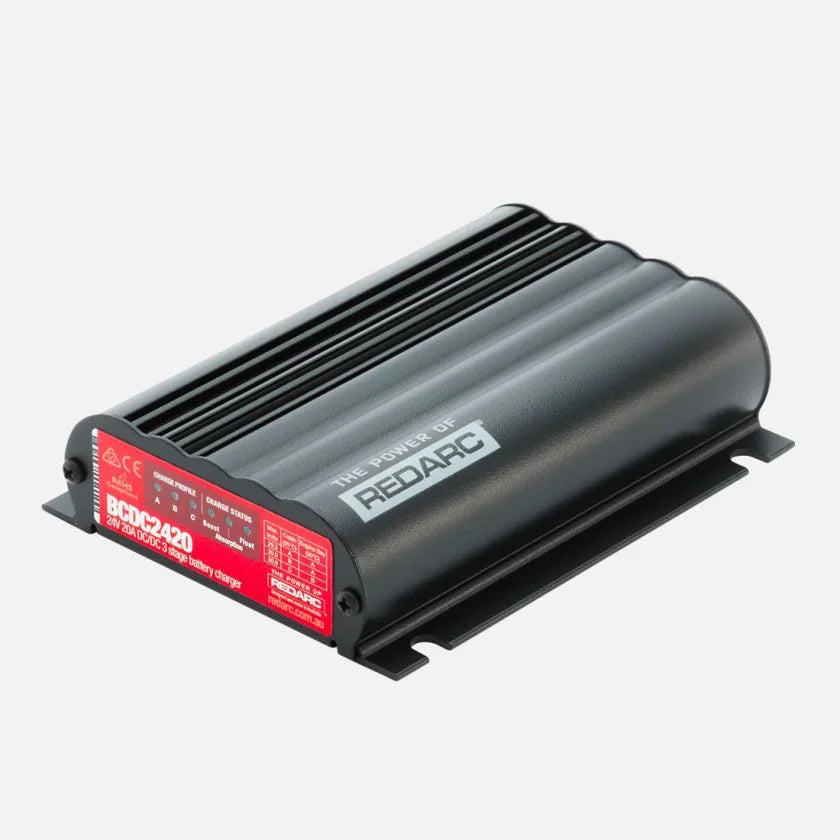

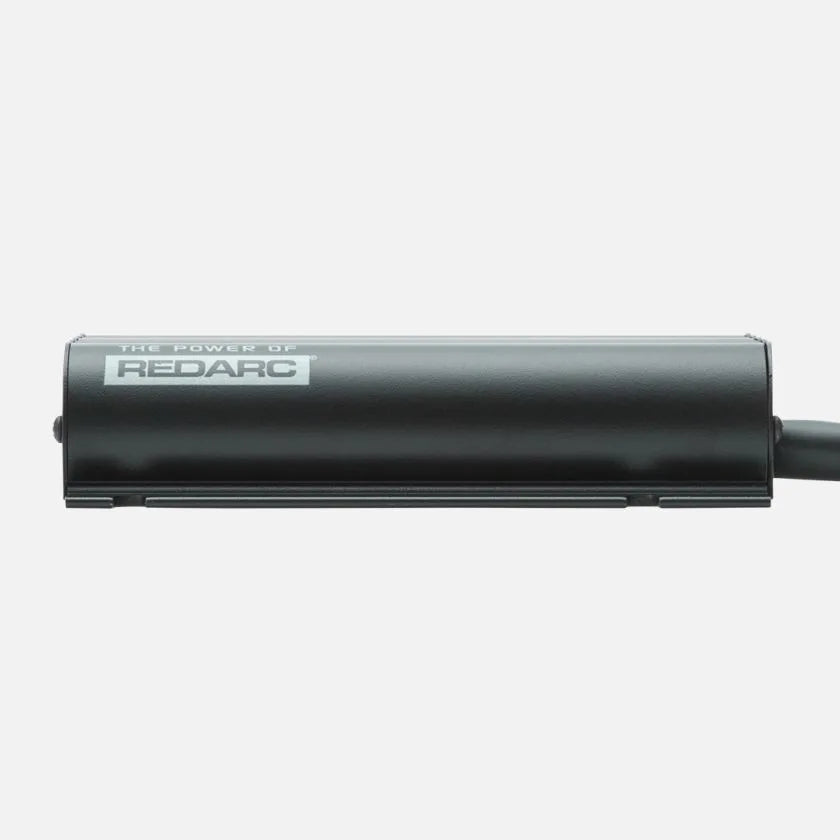

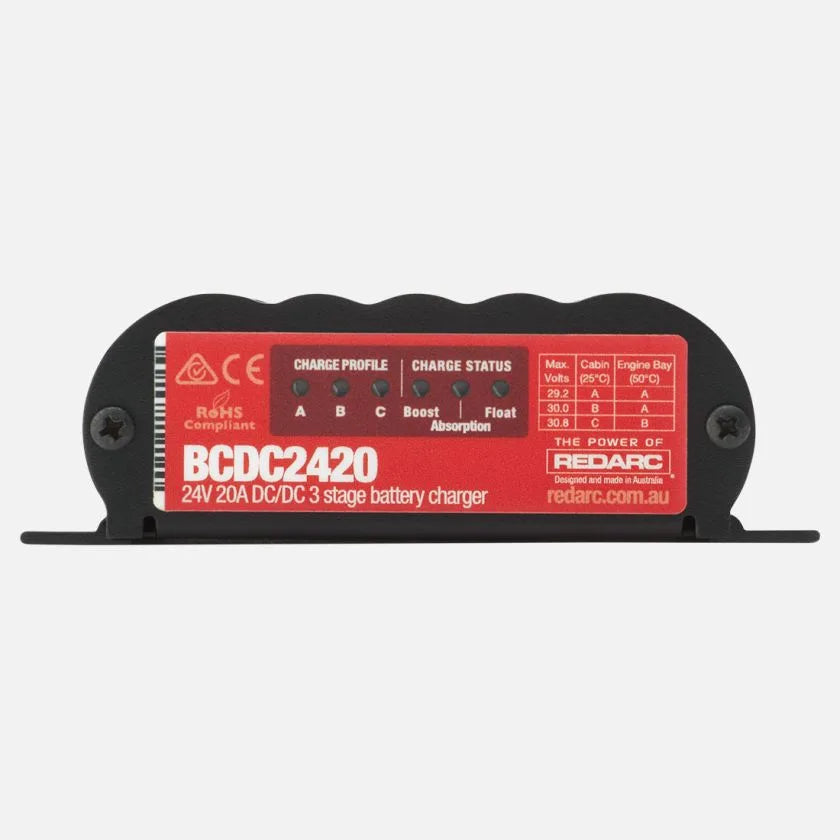

The REDARC BCDC2420 In-vehicle Dual Battery Charger is a 3-stage, 24V, 20A, DC to DC charger that operates from a vehicle input between 9 and 32 Volts DC.

Its multi-stage charging algorithm works well for trucking applications such as charging battery banks for tailgate lifters and side curtains. Its design is suited to charge commonly operated automotive 24V battery systems to optimal levels.

INNOVATIVE DUAL BATTERY CHARGER
The DC to DC charger also features a MPPT Solar Regulator, which uses 12V solar panels to charge your 24V auxiliary batteries. It’s compact and fully sealed to block out water, dust, and vibration. The in-vehicle dual battery charger is equipped to handle the roughest roads and rockiest terrains, and is built to work in extreme heat, functioning in temperatures up to 176°F.

BUILT TOUGH FOR ALL CONDITIONS
It charges AGM, gel, calcium content, VRLA, and standard lead acid batteries. The durability and reliability of the in-vehicle dual battery charger are benefits you can count on to keep you up and running even during the most tumultuous conditions. The BCDC range charges your auxiliary battery banks to 100% while on the move from one adventure to the next.*

Specifications

GTIN_BARCODE: 9338628003334
BRAND: REDARC
BATTERY CHEMISTRY: Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
CONTINUOUS RATING: 20A
POWER TYPE - AC DC: DC TO DC
NOMINAL OUTPUT POWER: 600W
INPUT FUSE RATING: 60A (Not supplied) REDARC FK60 recommended
BLUETOOTH COMPATIBLE: No
SOLAR SWITCH ON VOLTAGE: 17.5V
SUITABLE FOR 12V SYSTEMS: Yes
SUITABLE FOR 24V SYSTEMS: Yes
SOLAR INPUT VOLTAGE: 9 - 32V
MPPT SOLAR REGULATOR: Yes
CABIN/ CANOPY INSTALL: Yes
NO LOAD CURRENT: <100mA
TRAILER INSTALL: Yes
ENGINE BAY INSTALL: Yes
MAX. CHARGING VOLTAGE: 30.6V
OUTPUT FUSE RATING: 40A (Not supplied) REDARC FK40 recommended
OPERATING TEMPERATURE: -4°F to 176°F
OUTPUT VOLTAGE: 24V DC
MAX. RATED OUTPUT CURRENT: 20A
INPUT VOLTAGE: 9 - 32V
STANDBY CURRENT: <8mA
CONNECTOR TYPE: Bare wire
WEIGHT: 22 oz (650 g)
WIDTH: 4.7" (120 mm)
HEIGHT: 1.5" (37 mm)
DEPTH | LENGTH: 5.9" (150 mm)
