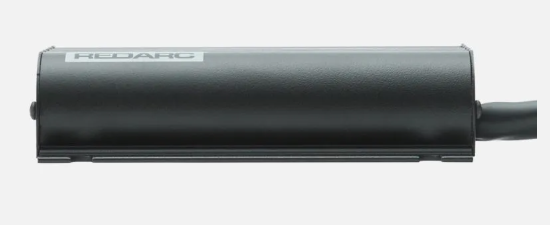

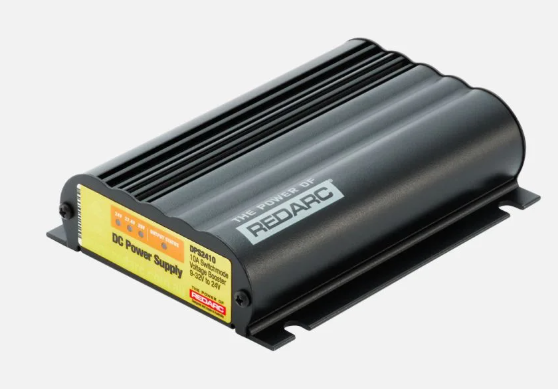

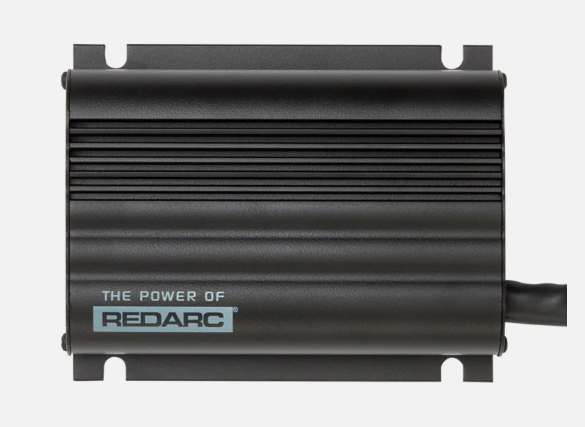

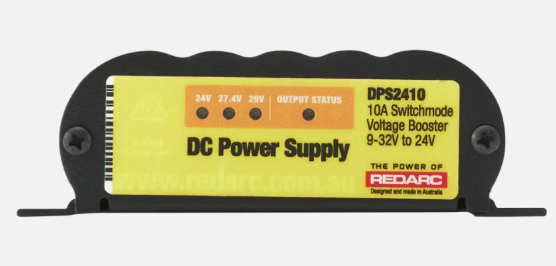

REDARC | 24V 10A In-Vehicle DC Power Supply (DPS2410)
SELECT OPTIONS
Description
Product details
The REDARC 24V 10A DC Power Supply (DPS2410) provides regulated power for a wide input voltage range (9 to 32 volts) for a number of load requirements.
The REDARC 24V 10A DC Power Supply (DPS2410) provides regulated power for a wide input voltage range (9 to 32 volts) for a number of load requirements, such as radios, lamps, computers, refrigerators, pumps, and TVs, all from a 24V automotive power system.
Robust and flexible installation option
The power supply protects against surges, spikes, reverse polarity and incorrect connections, while providing improved efficiency and functionality. It is fully encapsulated by REDARC’s silicone elastomer and can be mounted externally on the vehicle and used in marine applications, if necessary. Plus, the fan free model means less noise to prevent interference when powering hi-tech radio systems.
HAVE A QUESTION?
Specifications
| gtin_barcode | 9338628003822 |
|---|---|
| brand | REDARC |
| No Load Current | <100mA |
| Standby Current | <5mA |
| Conversion Efficiency | >94% |
| Operating Temperature | -58°F to 122°F |
| Weight | 1.5 lb (680 g) |
| height | 1.46" (37 mm) |
| width | 4.72" (120 mm) |
| depth | length | 5.91" (150 mm) |
| Warranty | 2 Years |
| Input Voltage | 9 - 32V |
| Output Voltage | 24V DC |
| Max. Rated Output Current | 10A |
| Input Fuse Rating | 40A |
| Output Fuse Rating | 40A |
