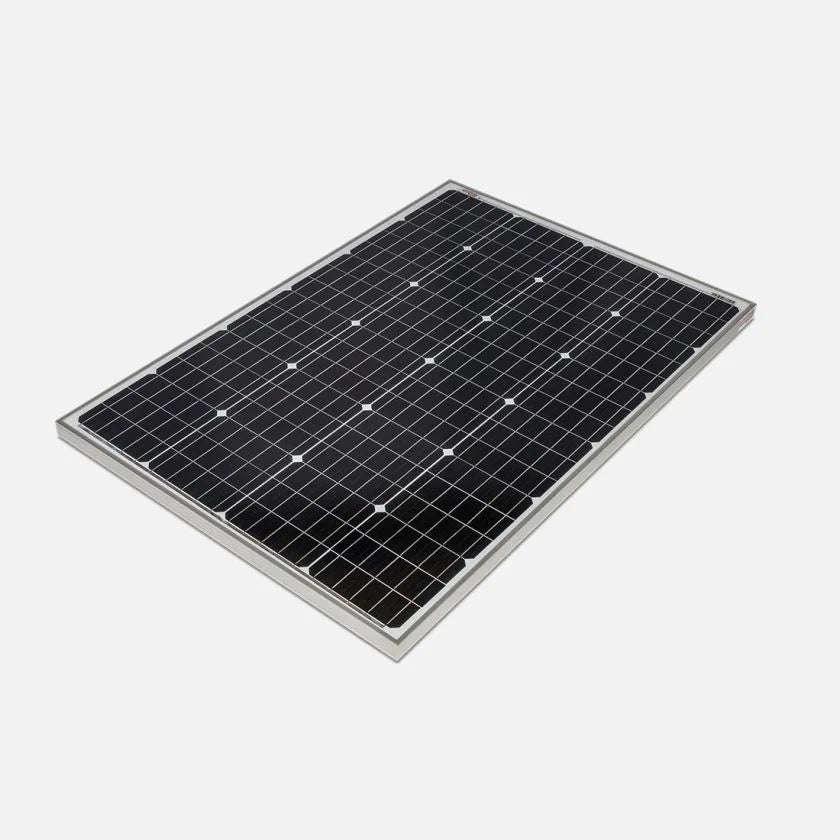

REDARC | 120W Monocrystalline Solar Panel

Description

The REDARC 120W Monocrystalline Solar Panel is a standard monocrystalline flat solar panel designed to capture solar energy to keep batteries charged throughout the day.

Looking for the best 120w solar panel for camping? REDARC's monocrystalline flat panels are highly efficient with a robust design. A tempered glass coating and a sturdy aluminium frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.

These are designed for a fixed installation, typically on the roof area of RV’s, motorhomes, as well as some camper trailer and 4x4 vehicle applications.

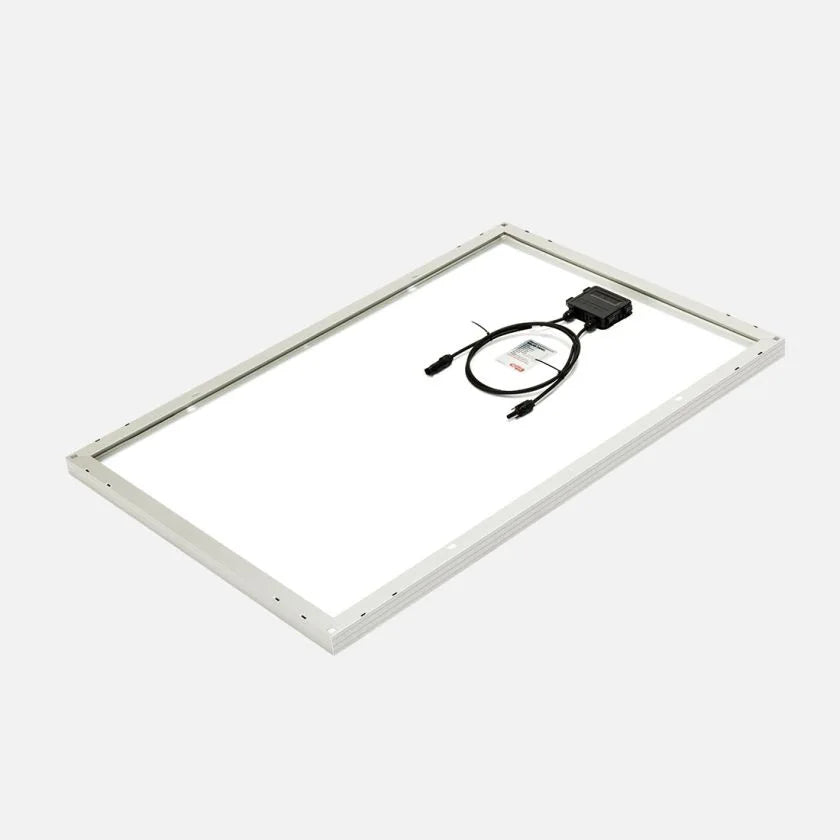

Featuring an anodised aluminium frame and tempered glass coating they are well suited for outdoor use and employ MC4 style connectors for easy installation.

Fixed Solar Panels feature a weight improvement and smaller footprint design for their power output, effectively contributing to a lighter, smaller design with greater cell efficiency.

The Fixed Solar Panels will integrate into the REDARC product line and will be supported by existing Solar Regulator and Solar Accessory products.

Features

• Monocrystalline construction
• Anodised Aluminium Frame
• Robust tempered glass coating

Specifications

GTIN_BARCODE

9338628006526

BRAND

REDARC

SOLAR CELL TYPE

Monocrystalline

WATTS

120W

FRAME OR MATERIAL
Anodized aluminium

MAX. POWER VOLTAGE

20V

RECOMMENDED REGULATOR


SRP Bare Wire Regulator

SHORT CIRCUIT CURRENT

6.48A

CONVERSION EFFICIENCY
20.60%

OPERATING TEMPERATURE

−40°F to +185°F

CABLE LENGTH

3' (900 mm)

WEIGHT

16.5 lb (7.5 kg)

HEIGHT

39.6" (1005 mm)

WIDTH 26.4" (670 mm)
DEPTH | LENGTH

1.4" (35 mm)

POWER TOLERANCE

± 3%

MAX POWER CURRENT

6A

CONNECTOR TYPE

MC4-style

PEAK POWER
120W
