RAM MOUNTS | RAM X-Grip with RAM Tough-Claw Small Clamp & RAM Roto-View

Description

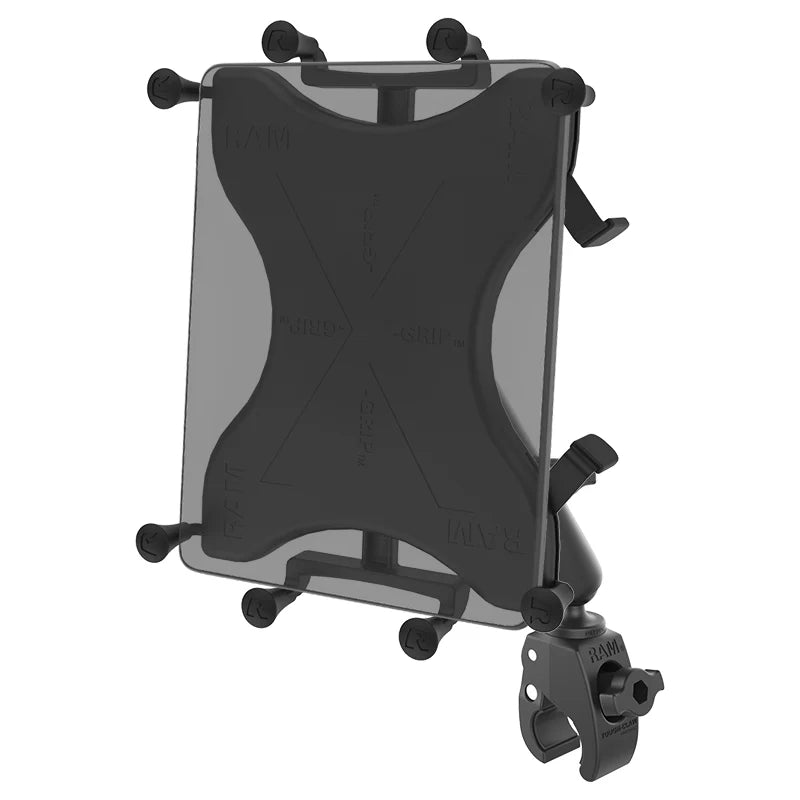

The RAM-B-400-C-UN9-ROTO1U consists of the Tough-Claw™ rail clamp base, medium length double socket arm and universal spring loaded X-Grip® cradle for tablets. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy toolless installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, the handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your collection of mounting options. The RAM-B-400-C-UN9-ROTO1U comes equipped with Roto-View technology that lets you rotate your tablet up to 90 degrees for easy viewing in either portrait or landscape mode. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

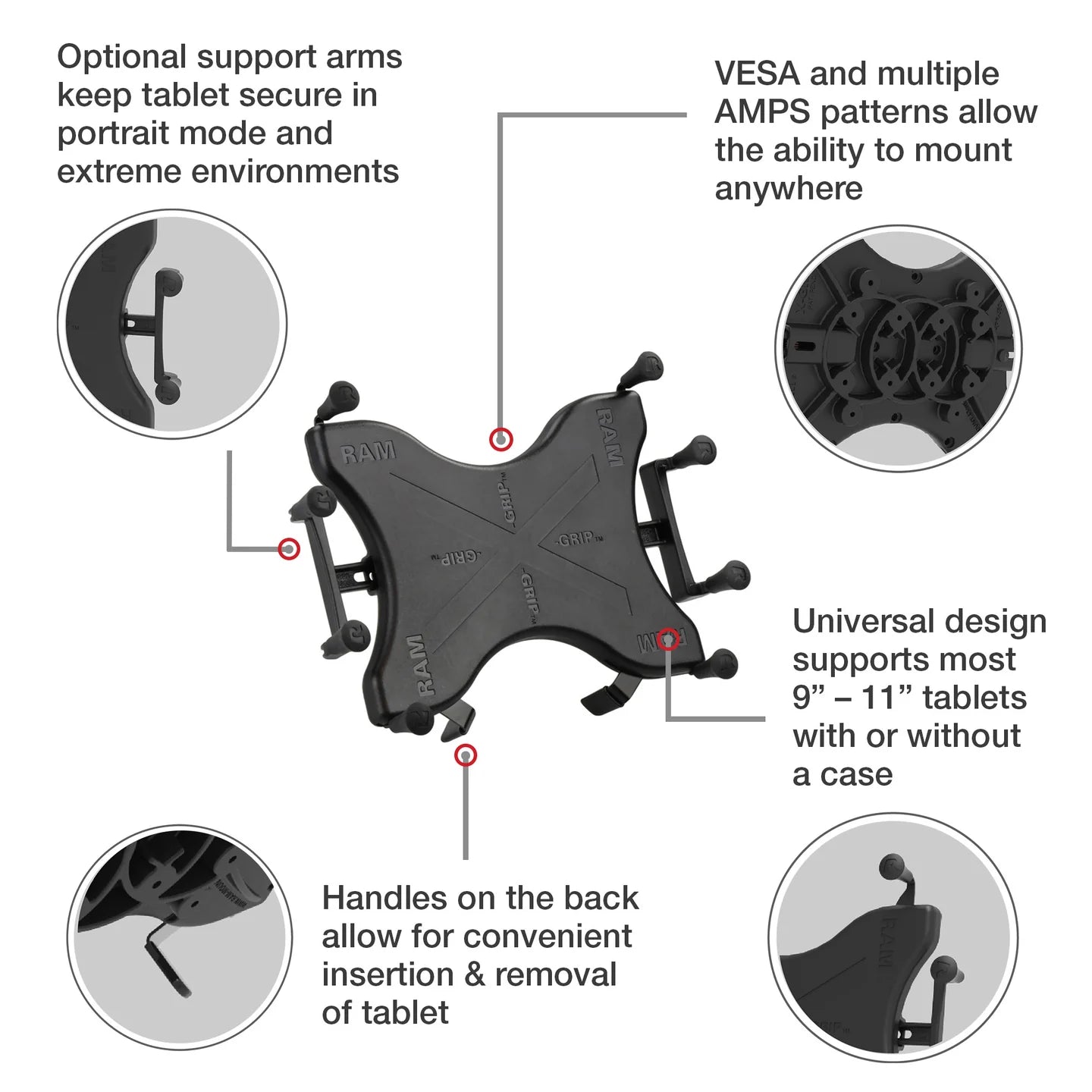

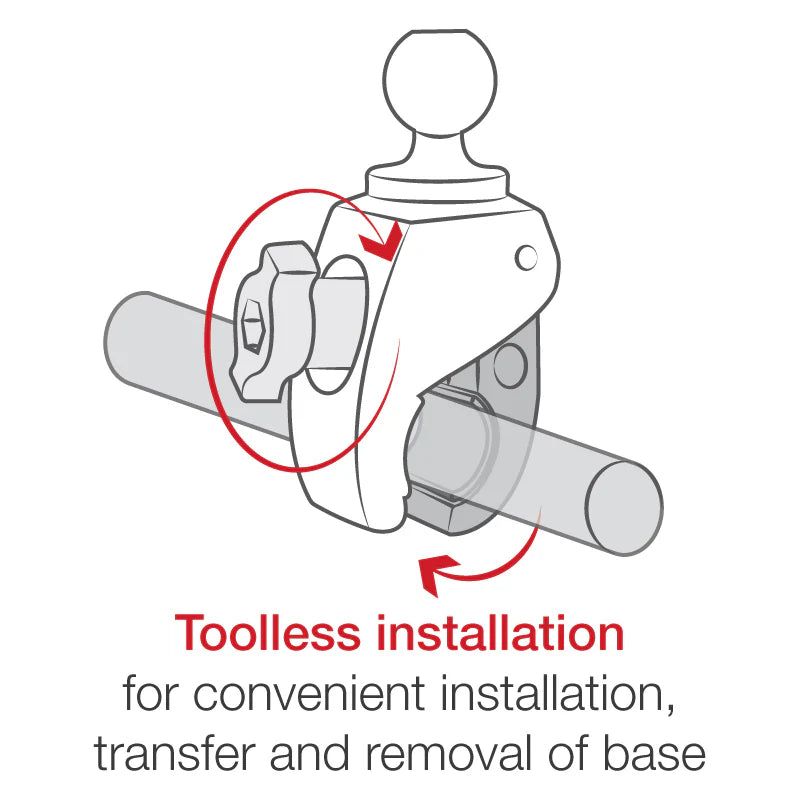

Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets

RAM® Roto-View™ allows for viewing tablet in portrait or landscape mode

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware

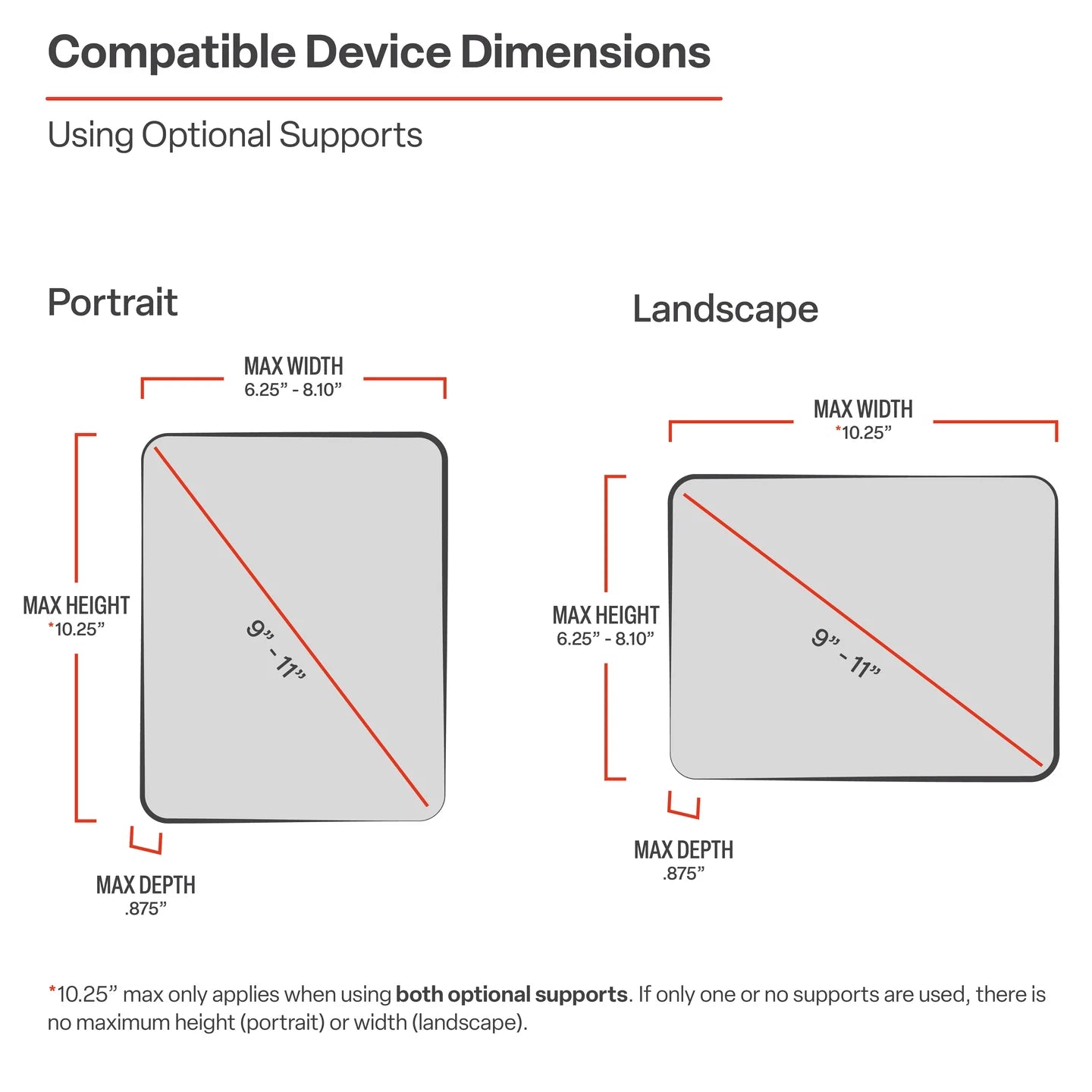

Holder dimensions:

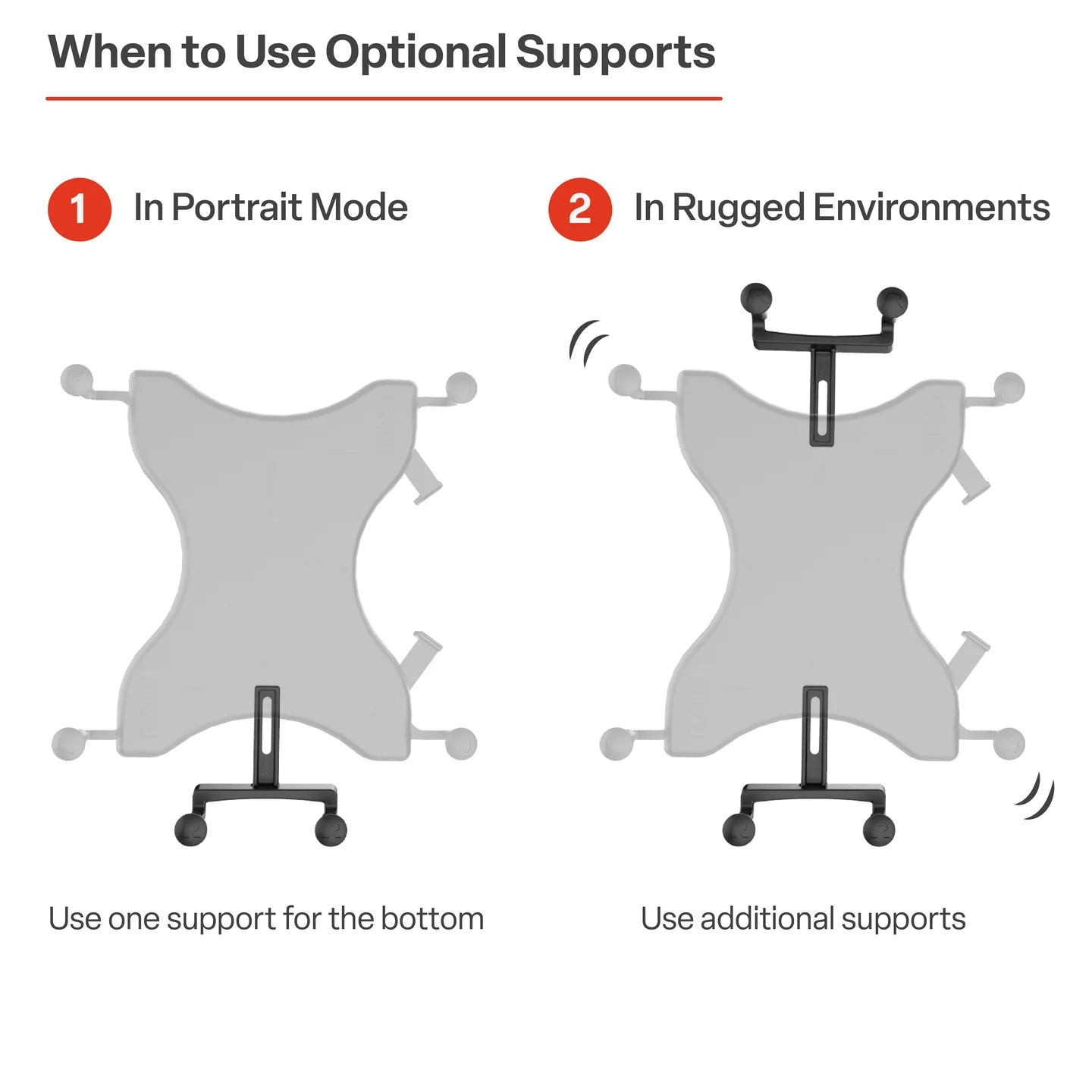

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

Clamp range:
.625" - 1.14" diameter

Socket to socket length:
5.31"

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Weight:
2.28 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).

Resources

Instructions

Documents
