RAM MOUNTS | RAM X-Grip Phone Mount with Twist-Lock Suction Cup

Description

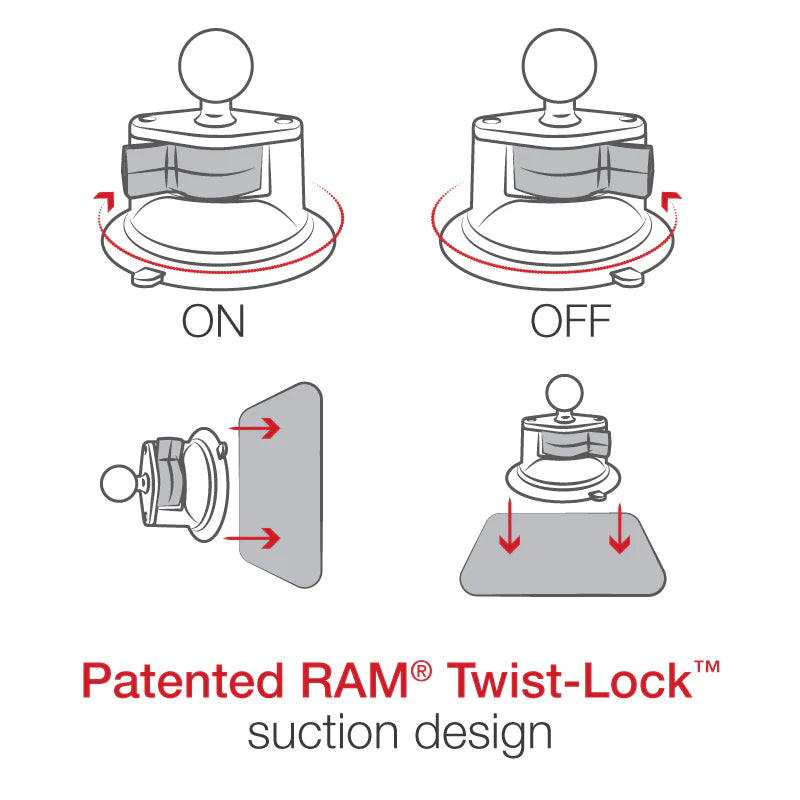

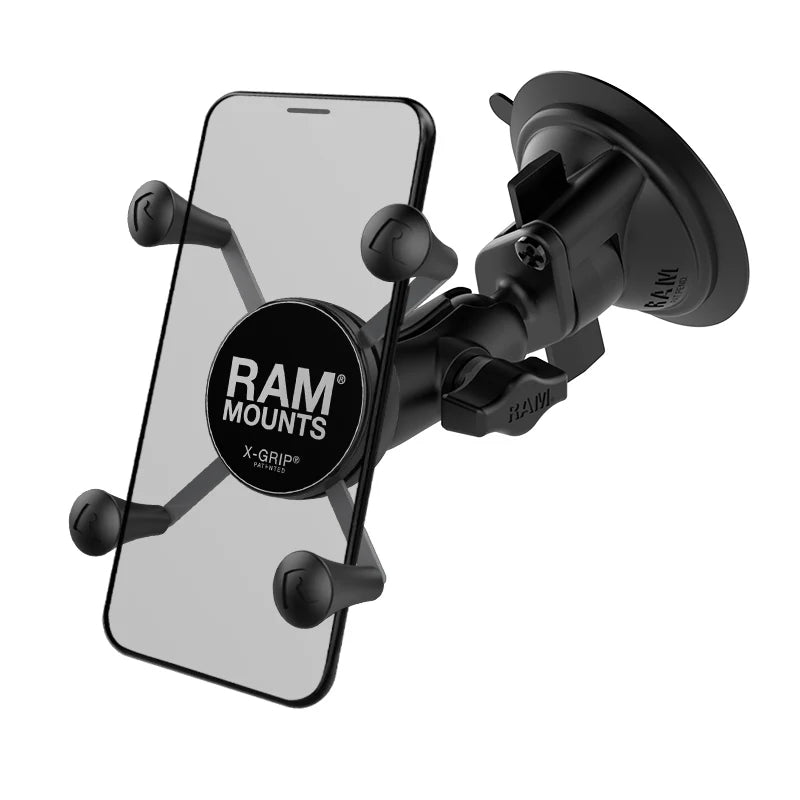

The RAM-B-166-A-UN7U consists of a 3.3" diameter suction cup twist lock base, SHORT length double socket arm and universal spring loaded X-Grip® cradle for cell phones. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved.

Specifications

Hardware included:

Assembly Hardware

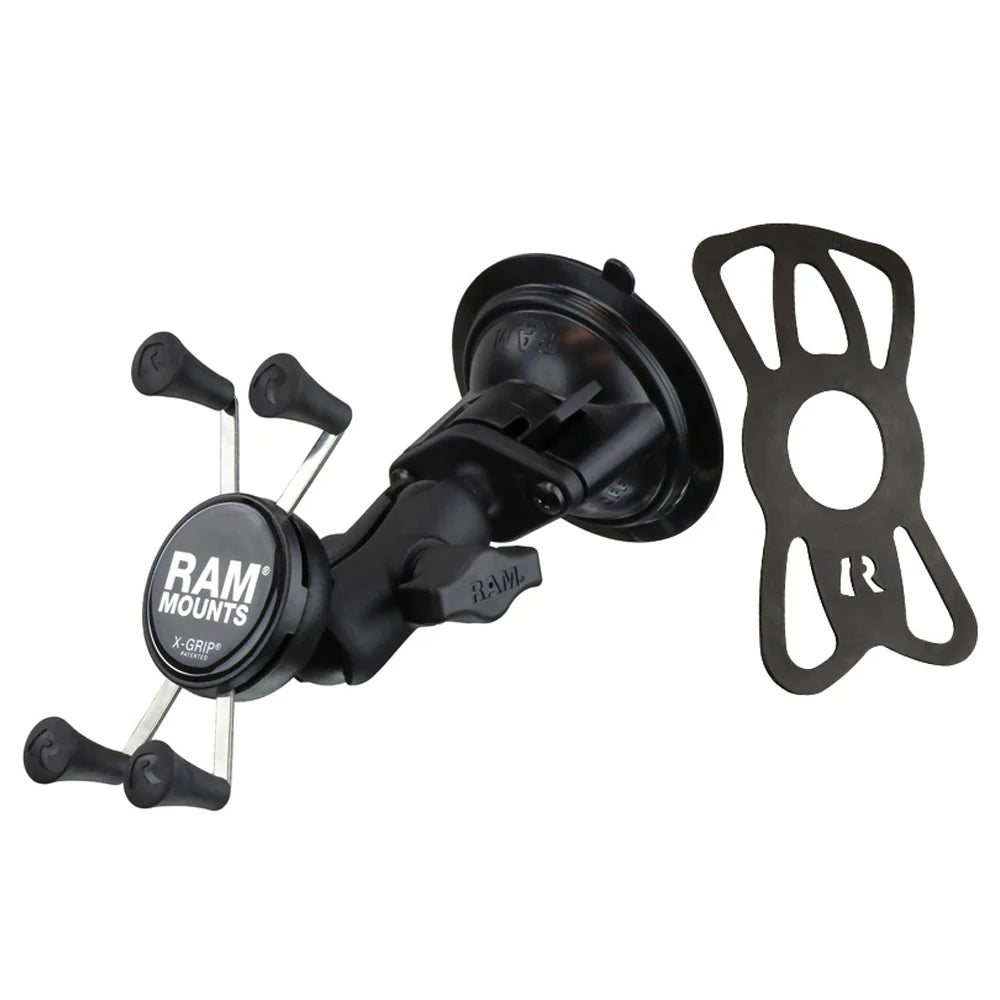

(1) Optional Tether
(1) Glue Tube for Rubber Caps

Holder dimensions:

Width Range: 1.875" - 3.25"
Depth Range: .875" max

Suction size:

3.3" Diameter

Socket to socket length:

1.75"

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite
Stainless steel

Packaging type:

Poly Bag

Weight:

0.67 lb

Additional Information:

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).

Resources

Instructions
