RAM MOUNTS | RAM X-Grip Phone Mount with RAM Tough-Wedge Base

Description

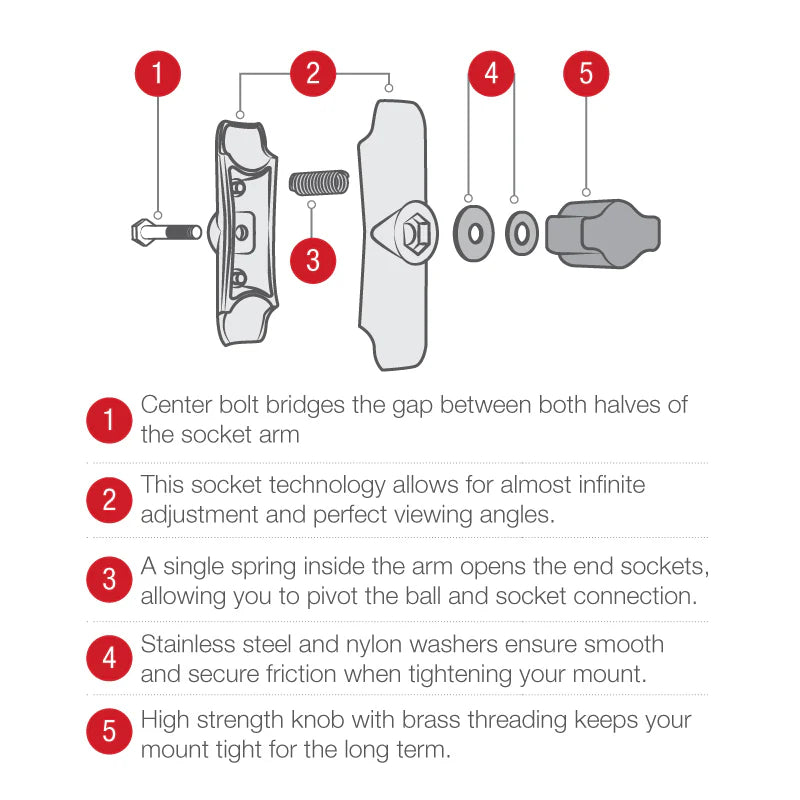

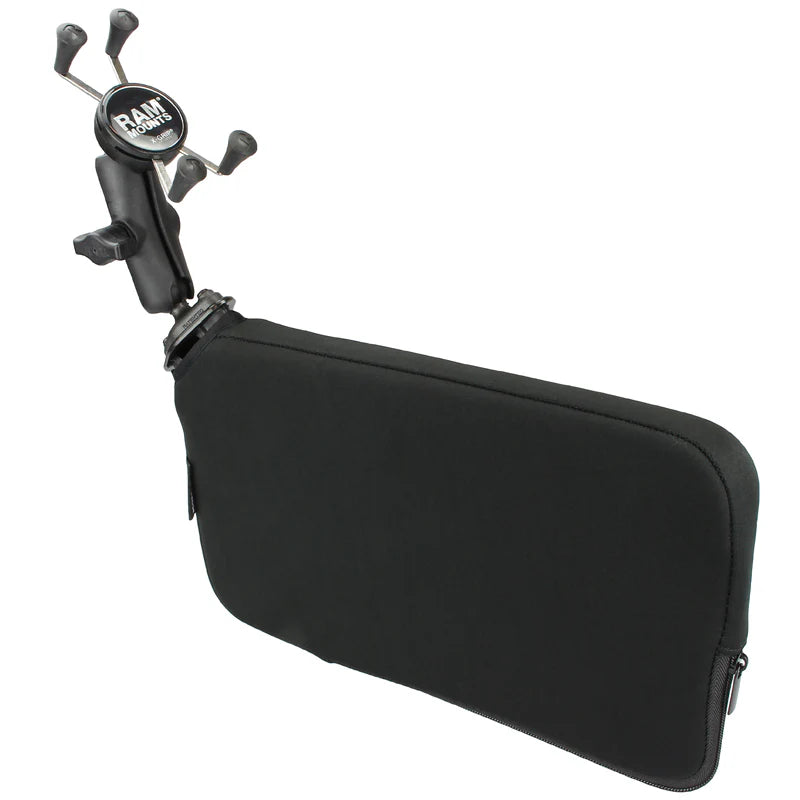

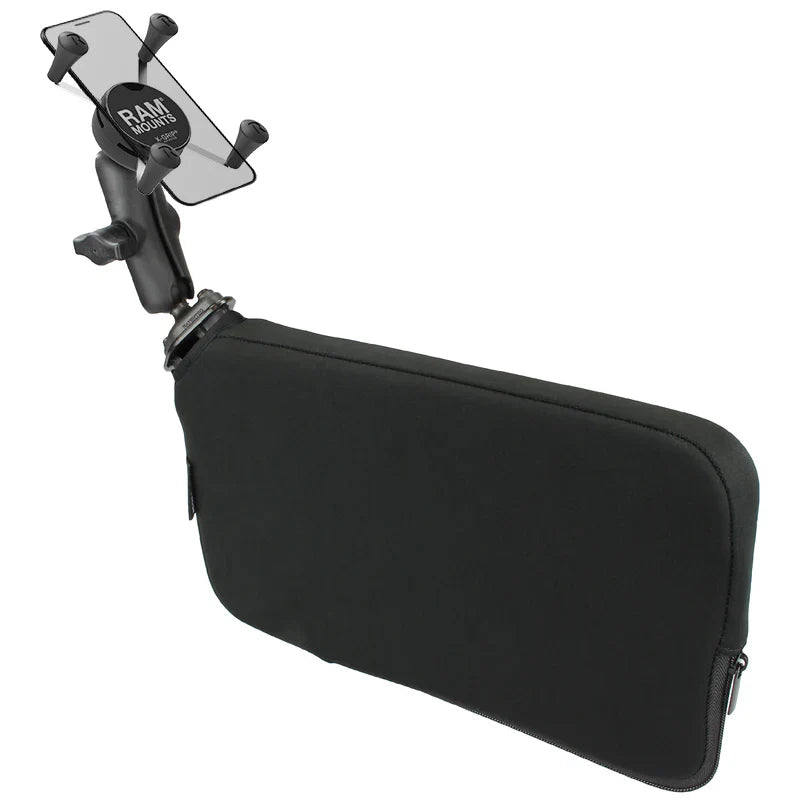

The RAP-B-407-UN7U consists of the Tough-Wedge vehicle seat wedge base, composite double socket arm, and X-Grip universal phone holder. This mount fits conveniently in the gap between your vehicle's passenger seat and center console, creating a temporary but also very rugged mounting platform for your phone. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. With the turn of a knob you can set your phone to the perfect viewing and operating angle. The X-Grip is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications

Hardware included:

Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

Holder dimensions:

Width Range: 1.875" - 3.25"
Depth Range: .875" max

Wedge dimensions:

Length: 13.25"
Height: 8.25"
Thickness: 1"

Socket to socket length:

3"

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

High strength composite
Stainless steel

Packaging type:

Poly Bag

Weight:

1.75 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).

Resources

Instructions
