RAM MOUNTS | RAM X-Grip Phone Mount with Large Gas Tank Base

Additonal Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 4".

Description

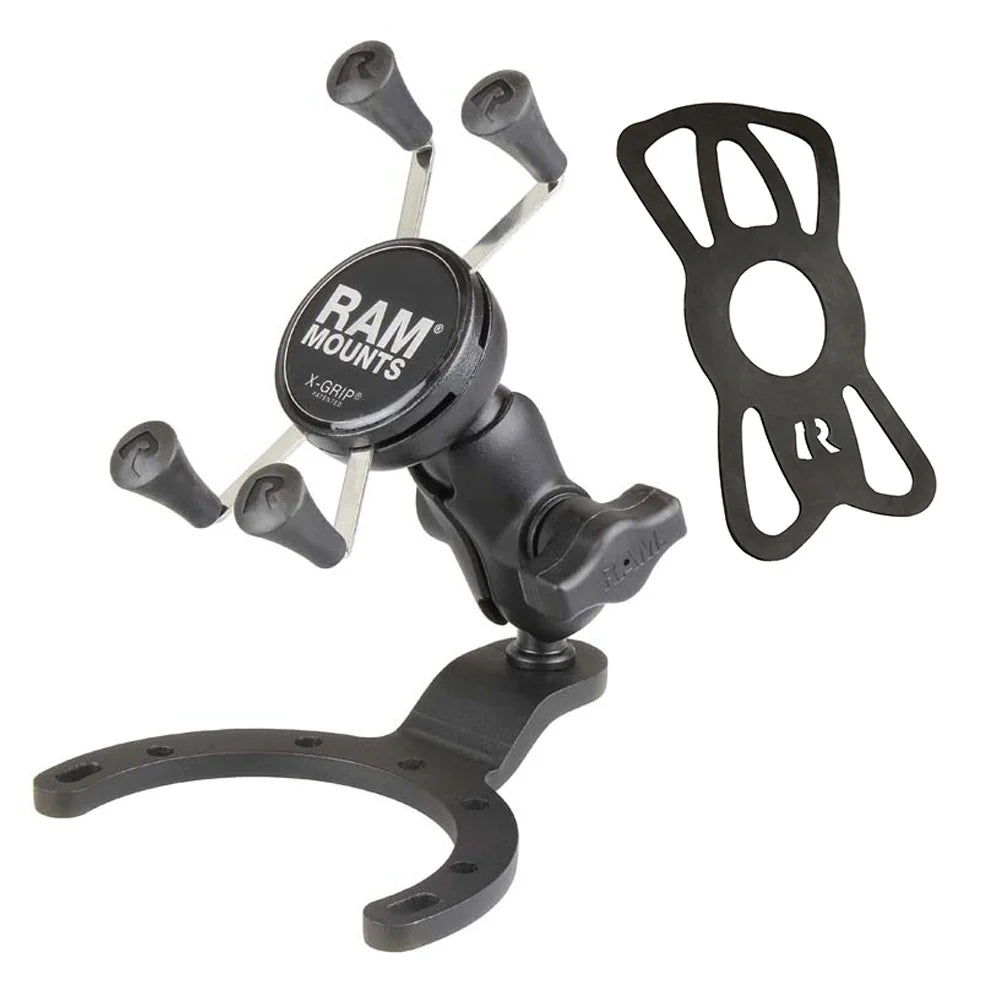

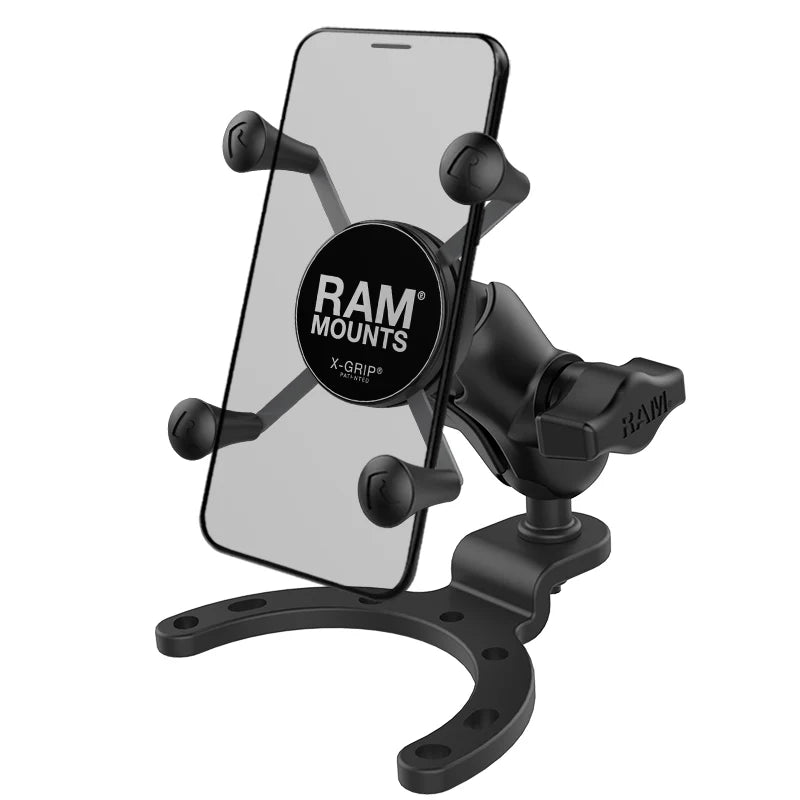

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications

Hardware included:
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(4) M5-.8 x 40mm Socket Head Cap Screws
(3) M5-.8 x 25mm Socket Head Cap Screws
(4) M5 Stainless Steel Washers

Holder dimensions:
Width Range: 1.875" - 3.25"
Depth Range: .875" max

Socket to socket length:
1.75"

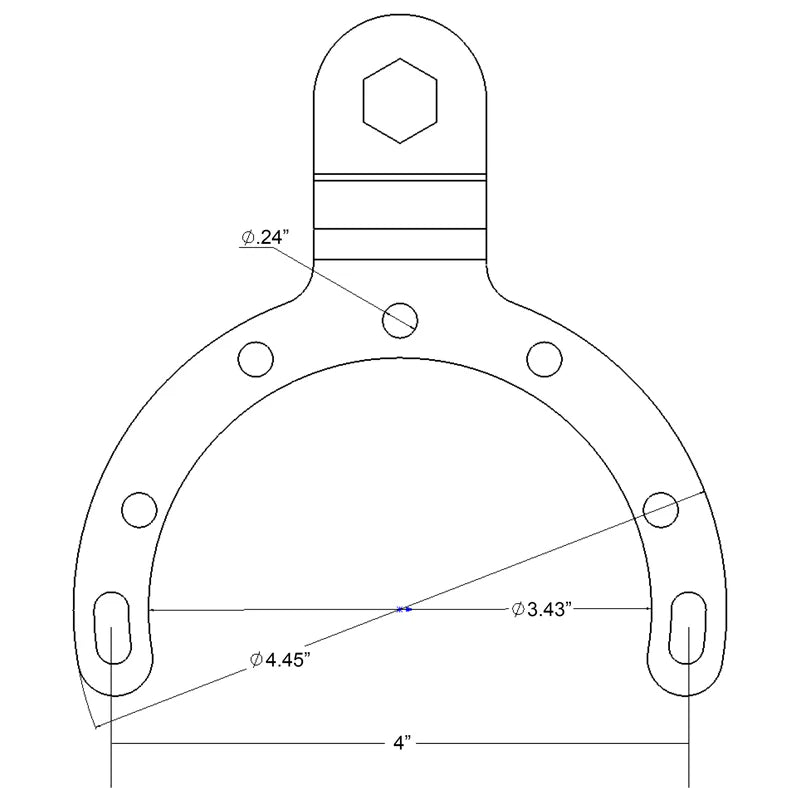

Hole pattern:
See Drawing

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum
High strength composite
Stainless steel

Packaging type:
Poly Bag

Weight:
0.68 lb

Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 4".

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
