RAM MOUNTS | RAM X-Grip Mount with Glare Shield Clamp Base for 9"-11" Tablets
Options
SELECT OPTIONS
Options
Options
Compatibility
Compatible Devices
Amazon
Fire HD 10
Apple
iPad (1st-11th Gen)
iPad 2
iPad 9.7 (2017)
iPad 9.7 (2018)
iPad Air
iPad Air 2
iPad Air 3
iPad Air 4
iPad Air 5
iPad Pro 9.7 (1st Generation)
iPad Pro 10.5 (2nd Generation)
iPad Pro 11
ASUS
MeMO Pad FHD 10
Transformer Pad
ZenPad 10
ZenPad 3S 10
ZenPad Z10
Dell
Venue 10 7000
Venue 11 Pro
Venue 11 Pro 7000
Google
Nexus 10
Pixel C
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Pro Slate 10.1
Huawei
MediaPad M2 10.0
MediaPad M3 Lite 10.0
MediaPad T3 10
Lenovo
Miix 3
Tab K11
Tab P12 Pro
S6000
Tab 2 A10-70
Tab 4 10
Tab 4 10 Plus
Tab A10
Tab3 10 Business
ThinkPad 10
ThinkPad Tablet 2
Yoga Book
Yoga Tab 3 10
Yoga Tab 3 Pro
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
LG
G Pad 10.1
G Pad II 10.1
G Pad X 10.1
G Pad X II 10.1
Microsoft
Surface 2
Surface Pro
Surface Pro 2
Surface Go
Surface Go 2
Nokia
T21
Samsung
Galaxy Book 10.6
Galaxy Tab 10.1
Galaxy Tab 2 10.1
Galaxy Tab 3 10.1
Galaxy Tab 4 10.1
Galaxy Tab A 9.7
Galaxy Tab A 10.5
Galaxy Tab A8 10.5
Galaxy Tab A9 Plus
Galaxy Tab Active5 Pro
Galaxy Tab Active4 Pro
Galaxy Tab Active Pro
Galaxy Tab Pro 10.1
Galaxy Tab S 10.5
Galaxy Tab S2 9.7
Galaxy Tab S3 9.7
Galaxy Tab S4 10.5
Galaxy Tab S5e
Galaxy Tab S6
Galaxy Tab S7
Galaxy Tab S7 FE
Galaxy Tab S7 Plus
Galaxy Tab S8
Galaxy Tab S8 Plus
Galaxy Tab S9
Galaxy Tab S9 FE
Galaxy Tab S9 FE Plus
Galaxy Tab S9 Plus
Galaxy Tab S10 Plus
Galaxy Tab S10 FE
Social
Mobile Rhino T100
Sony
Vaio Tap 11
Xperia Tablet S
Xperia Tablet Z
Vankyo
MatrixPad Z4 10"
Zebra
ET50 10"
ET55 10"
Description

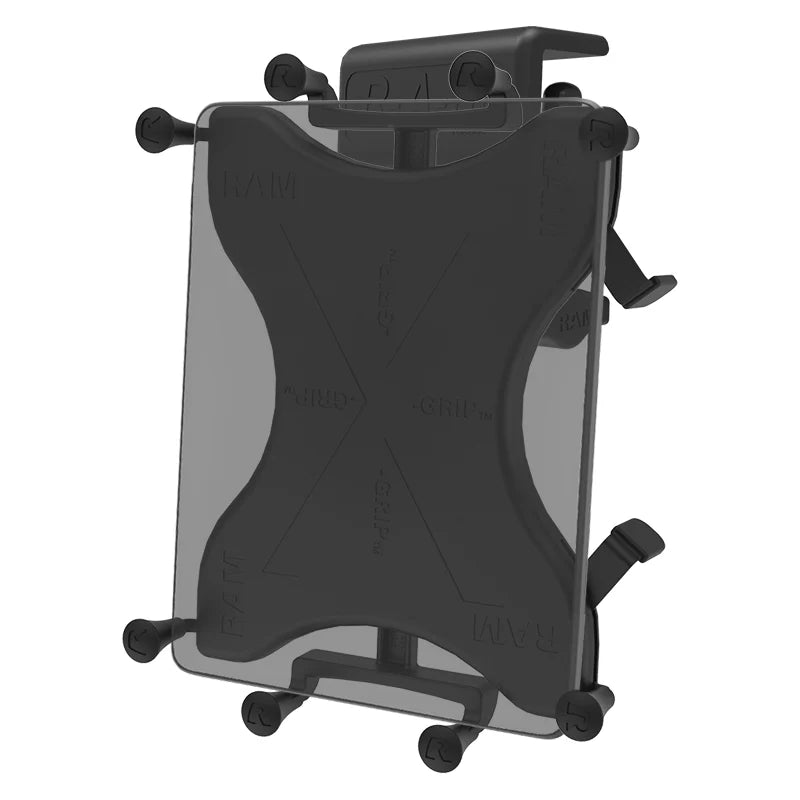

The RAM-B-177-UN9U consists of a glare shield clamp base, double socket arm, round base adapter and universal X-Grip® cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® III clamping cradle expands and contracts for perfect fit of most 9"-11" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.
Specifications
Hardware included:
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

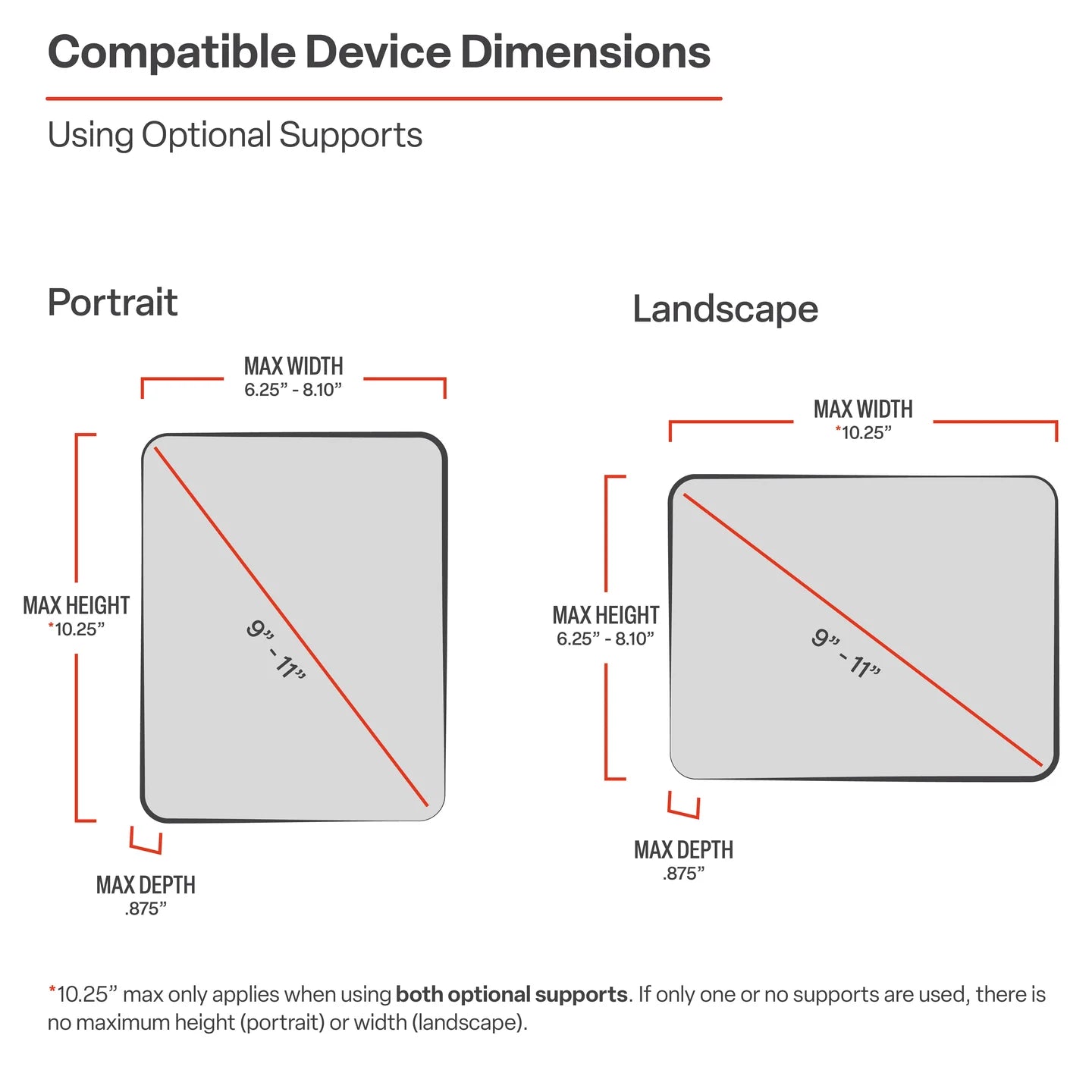

Holder dimensions:

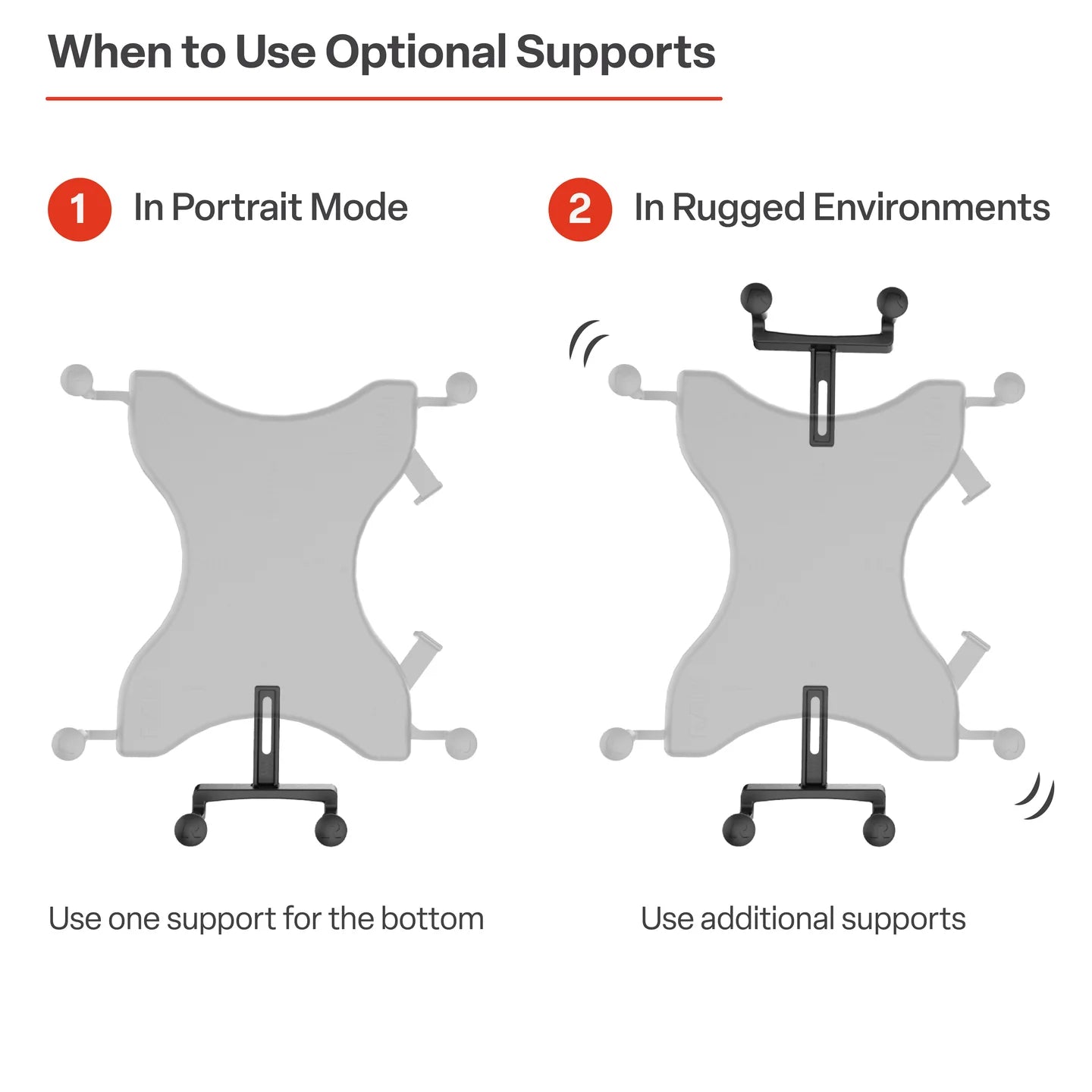

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
Clamp range:
.625" max
Socket to socket length:
1.75"
Ball size:
B Size (1")
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
1.74 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
