RAM MOUNTS | RAM X-Grip Large Phone Mount with Handlebar U-Bolt Base - Short

Description

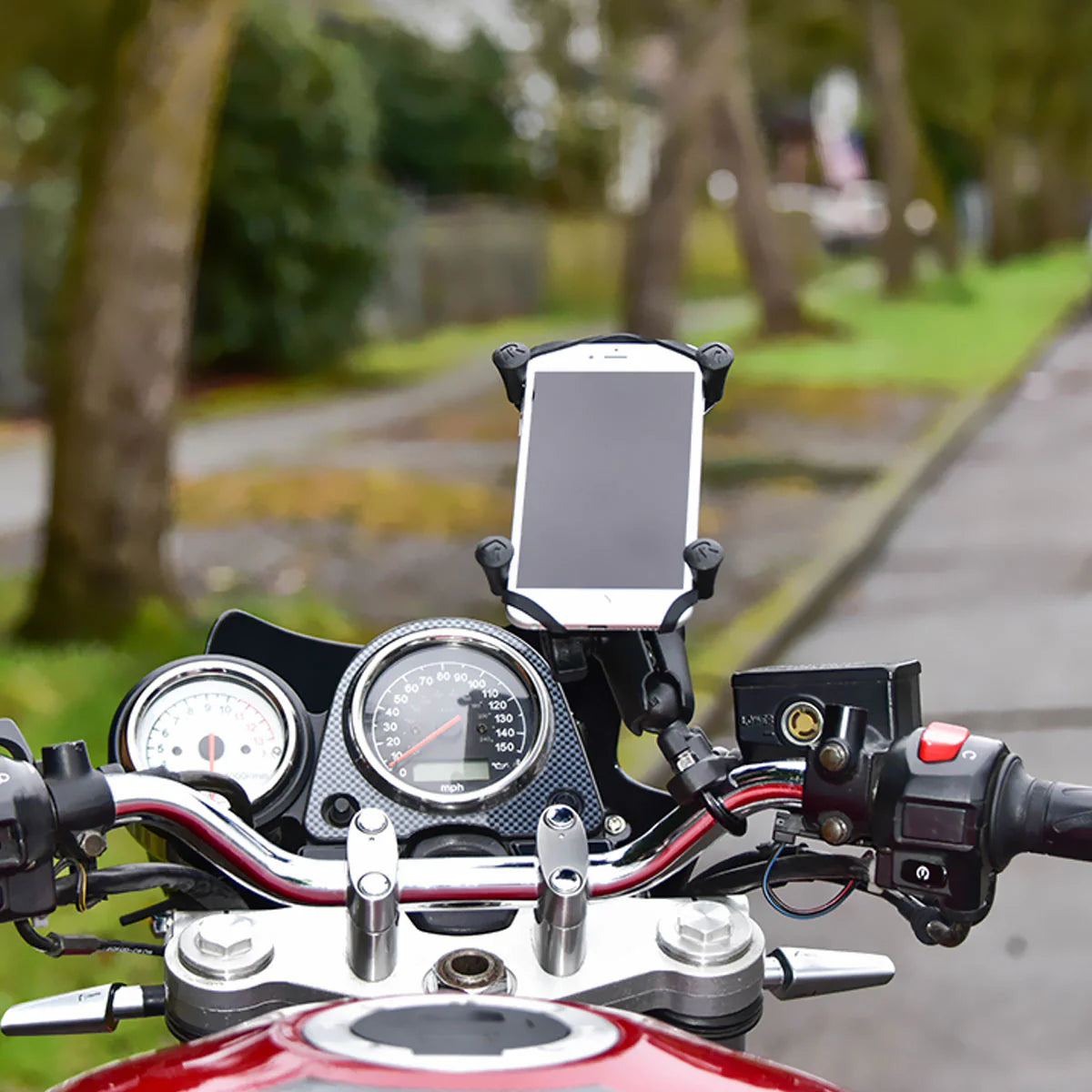

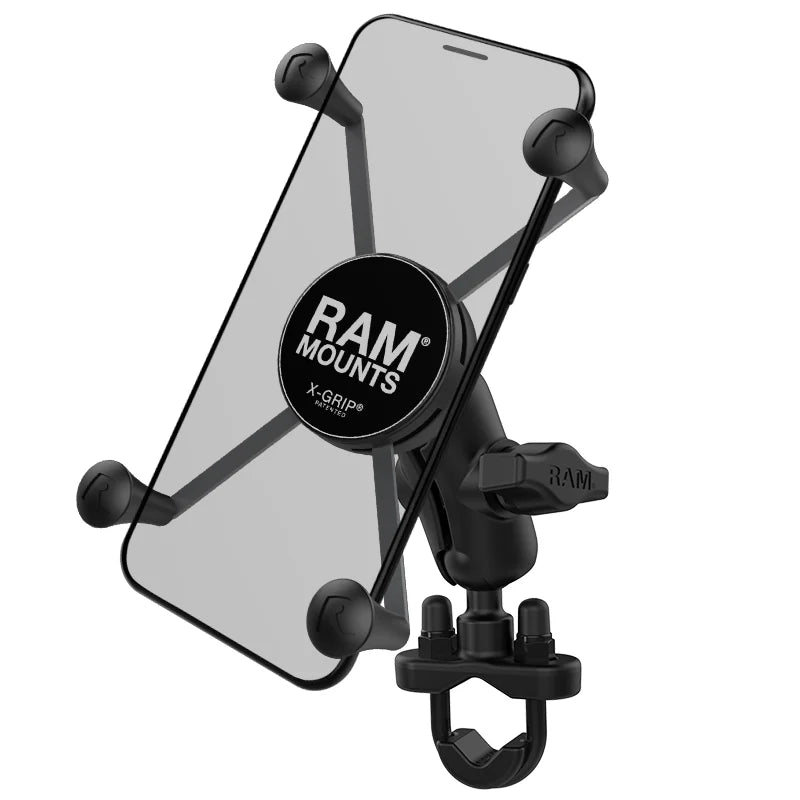

The RAM-B-149Z-A-UN10U consists of a zinc coated u-bolt base, short double socket arm and universal spring loaded X-Grip IV cradle for large phones and phablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

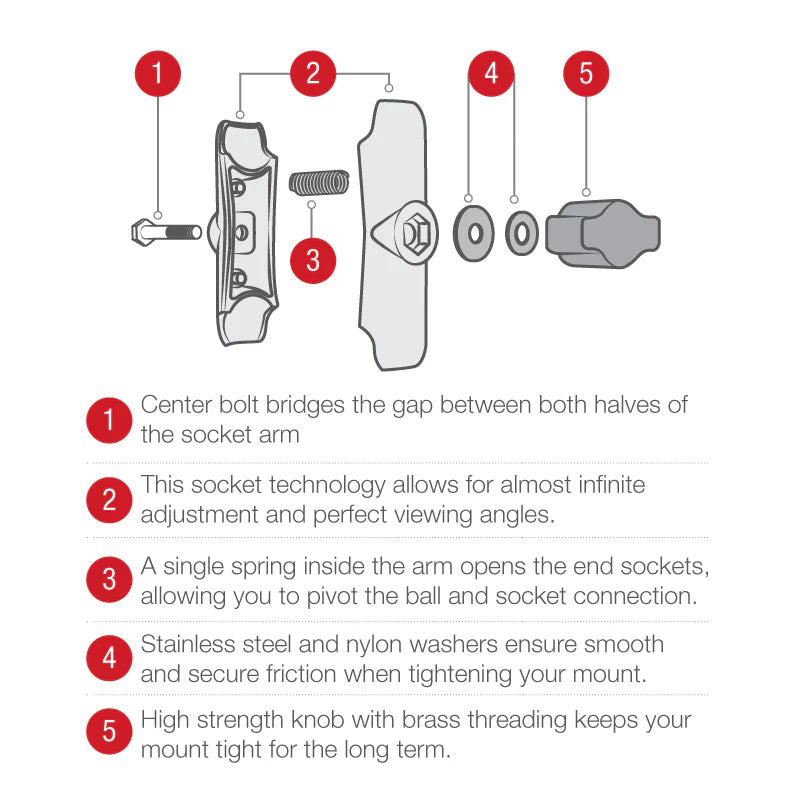

Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

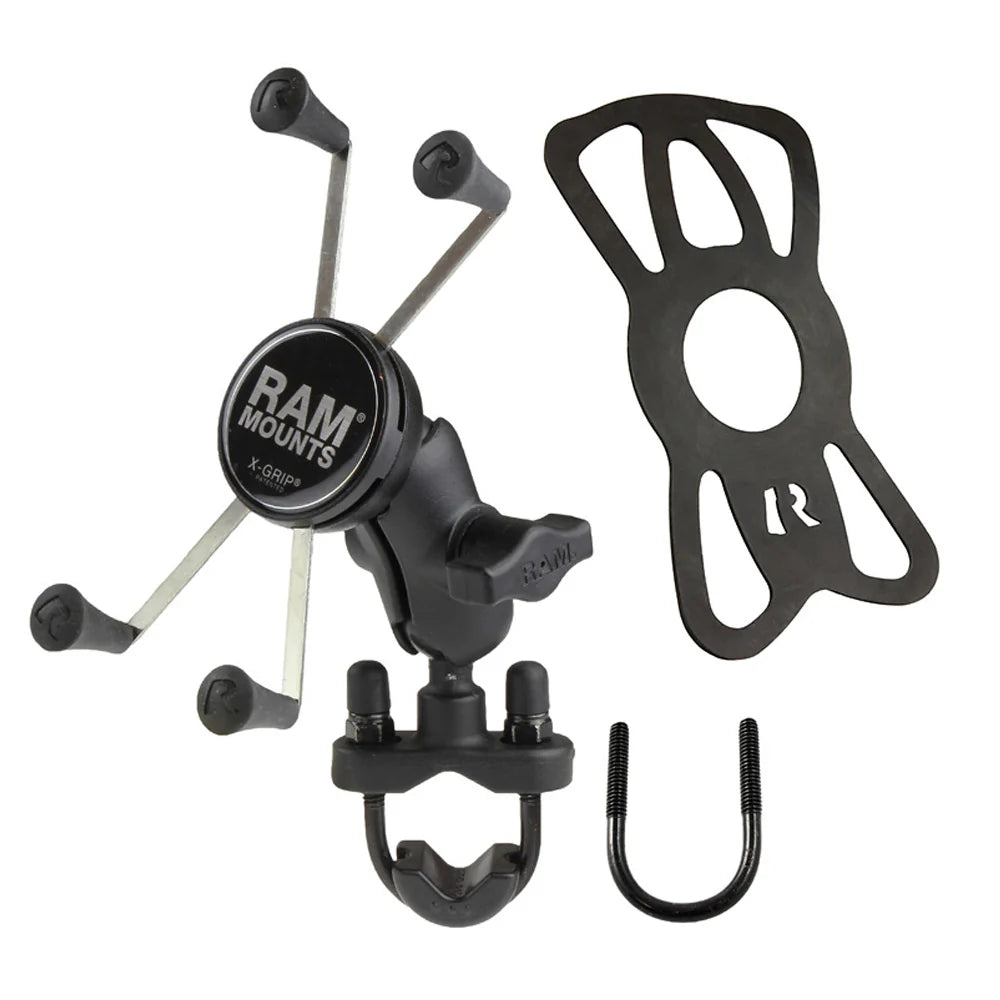

Hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Holder dimensions:

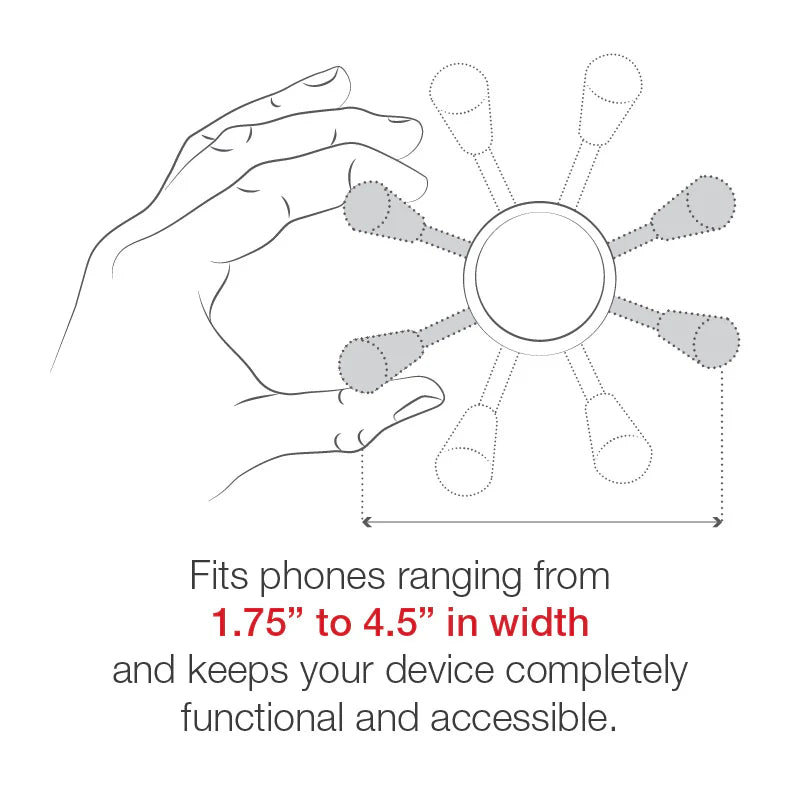

Width Range: 1.75" - 4.5"
Depth Range: .875" max

Clamp range:

.5" - 1.25" diameter

Socket to socket length:

1.75"

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum
High strength composite
Stainless steel

Packaging type:

Poly Bag

Weight:

0.68 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
