RAM MOUNTS | RAM X-Grip Large Phone Mount with Drill-Down Base

Description

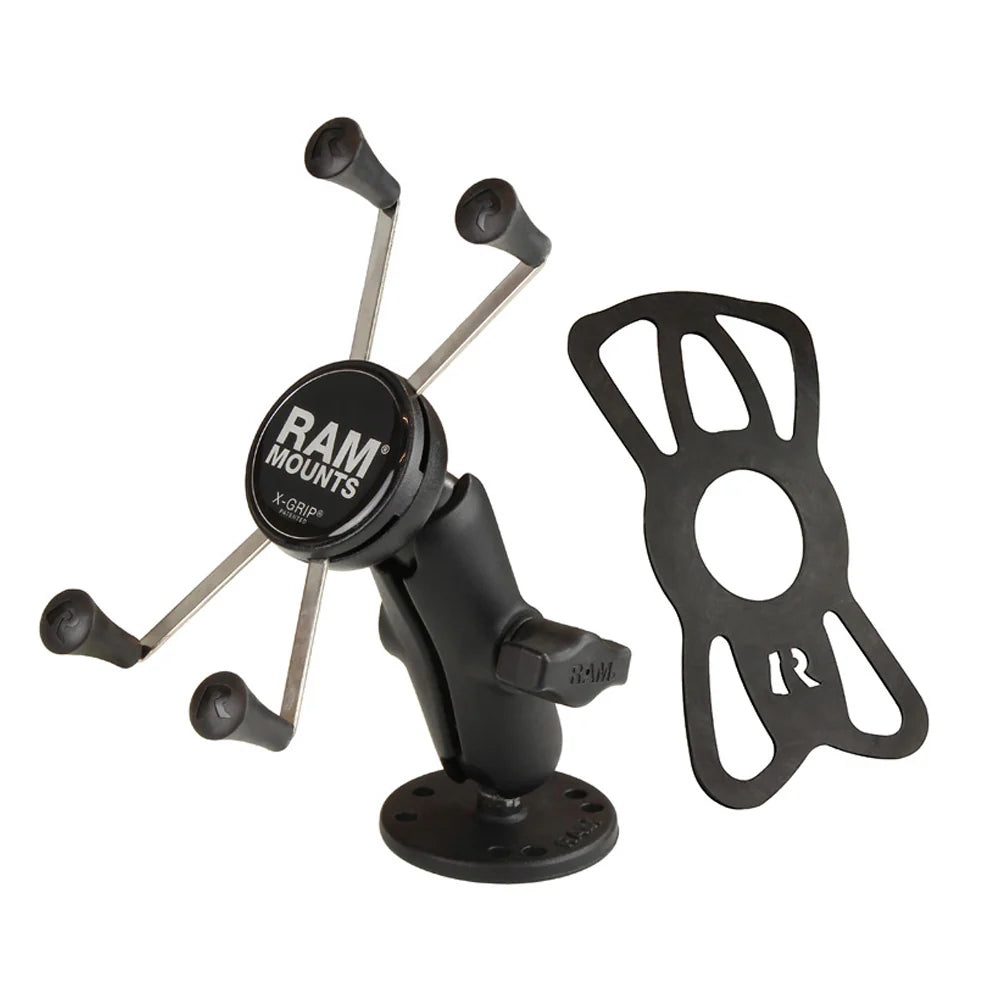

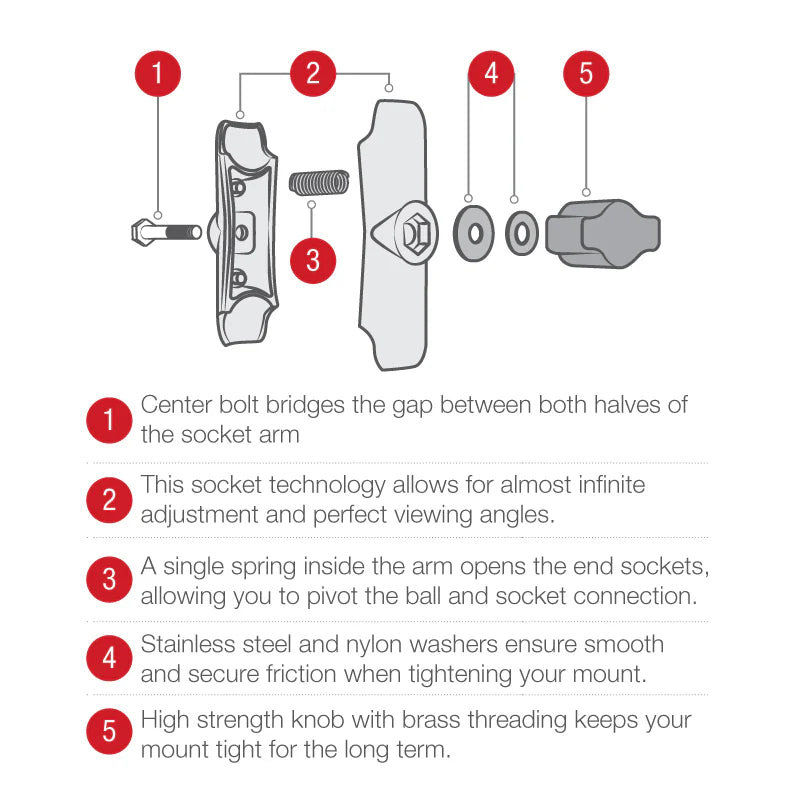

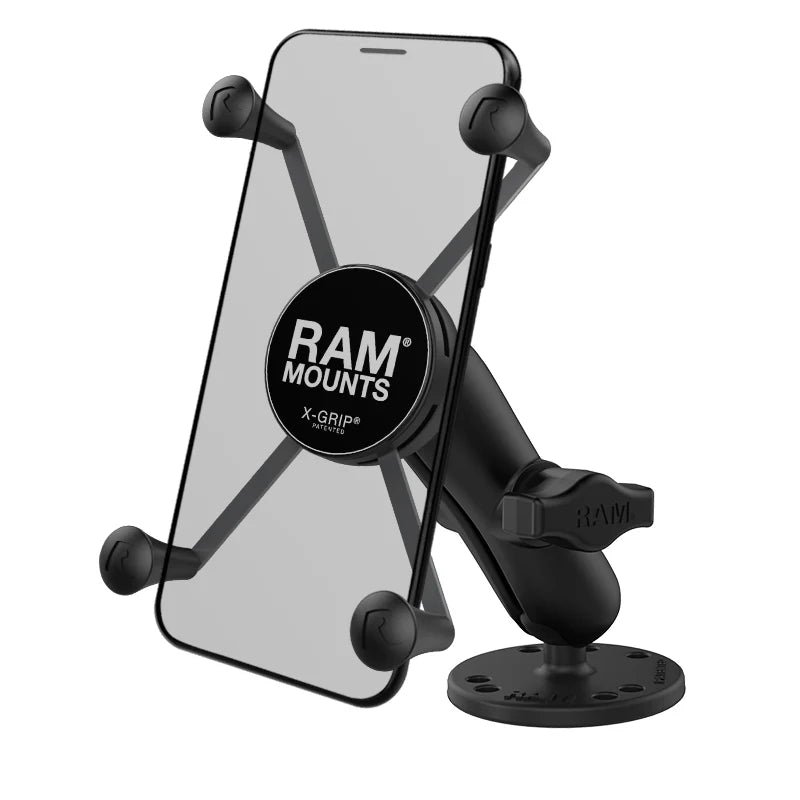

The RAM-B-138-UN10 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

Spring-loaded 'X' design for large phones features rubber caps and sports great holding power; includes optional device tether for peace of mind during rugged use

Includes drill-down 2.5" round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps

Holder dimensions:

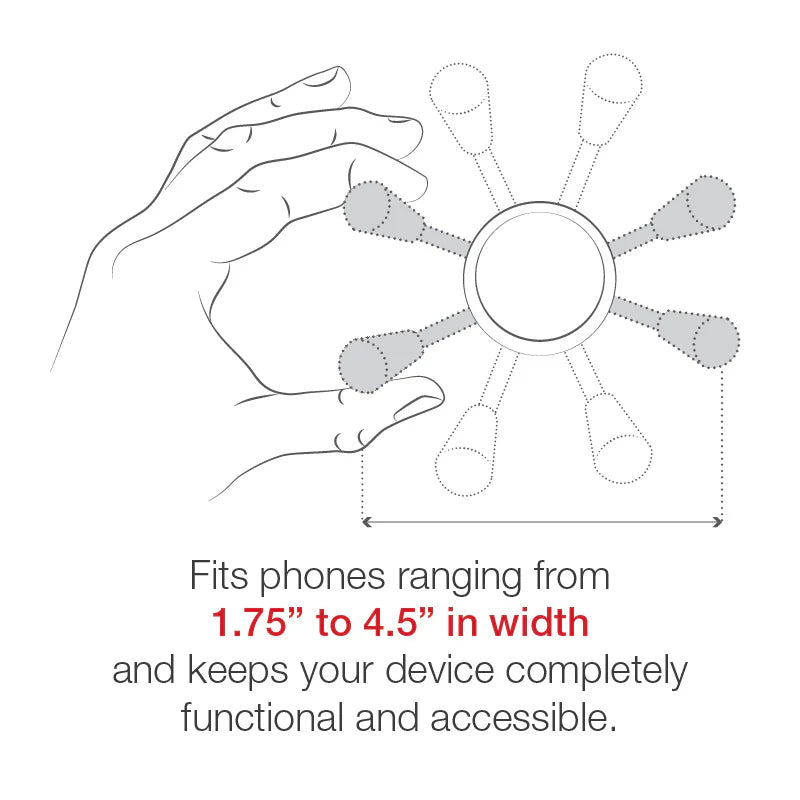

Width Range: 1.75" - 4.5"
Depth Range: .875" max

Socket to socket length:

3"

Hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate size:

2.5" Diameter

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite
Stainless steel

Packaging type:

Retail Bag

Weight:

0.7 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).

Resources

Instructions
