RAM MOUNTS | RAM X-Grip Large Phone Mount with Diamond Base

Description

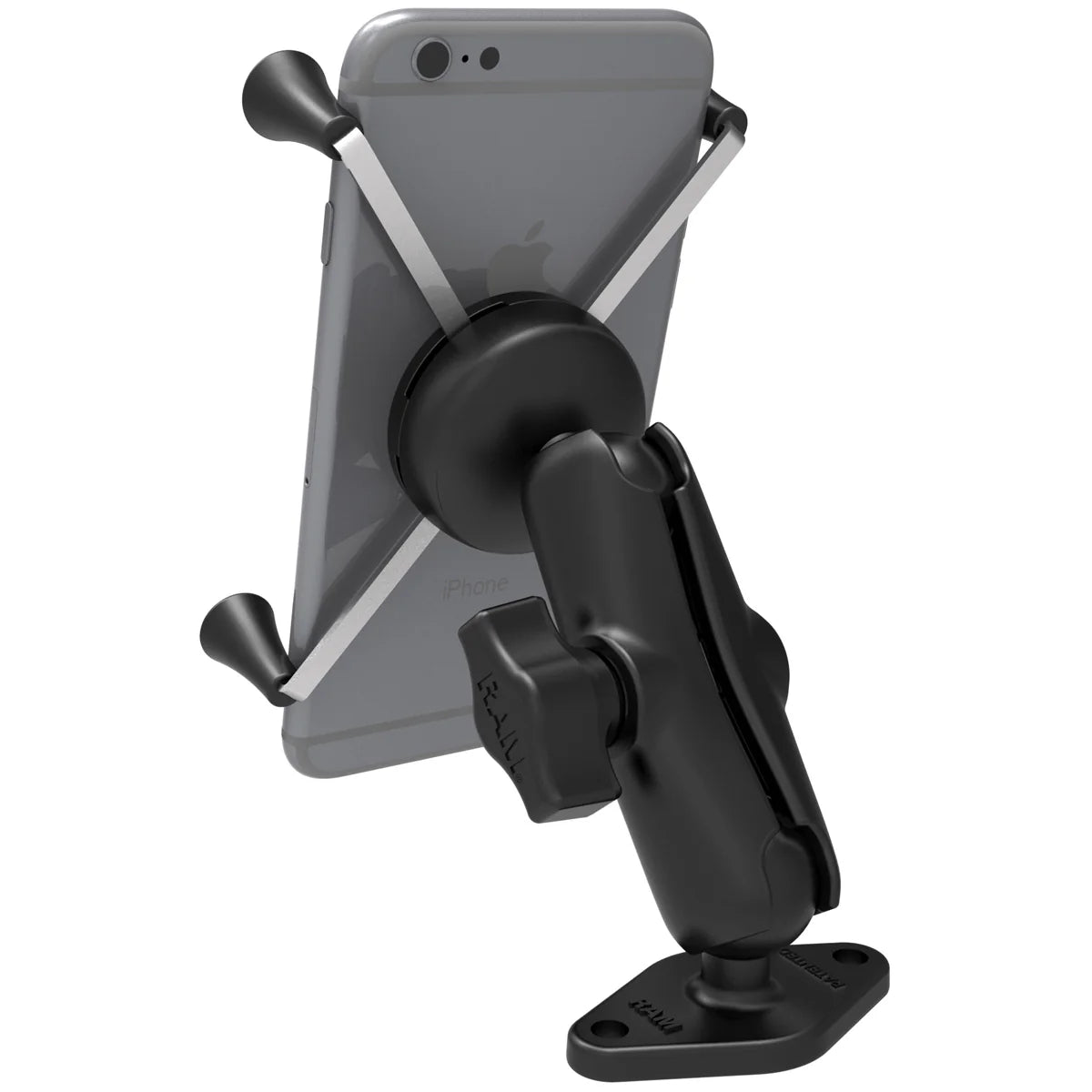

The popular spring-loaded RAM® X-Grip® phone holder features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. This large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. The included diamond ball base features the industry-standard AMPS hole pattern, while RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – and helps to extend the life of your phone by providing shock and vibration damping. For outdoor applications – like being used as a motorcycle phone mount – the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

Features

Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

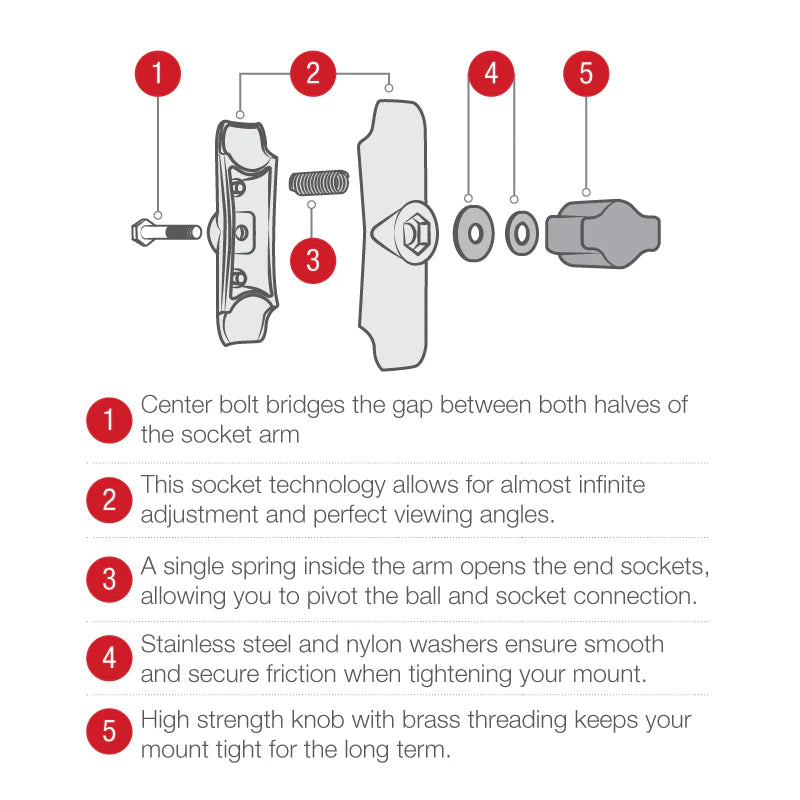

Diamond ball base featuring universal AMPS hole pattern included; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x .75" Screws
(2) #8-32 Nylock Nuts

Holder dimensions:

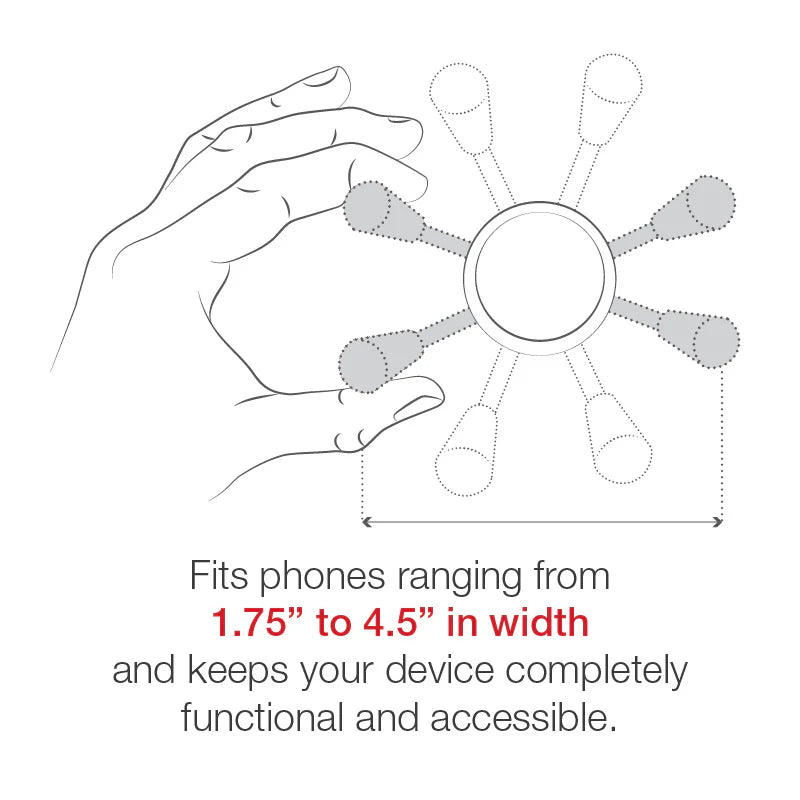

Width Range: 1.75" - 4.5"
Depth Range: .875" max

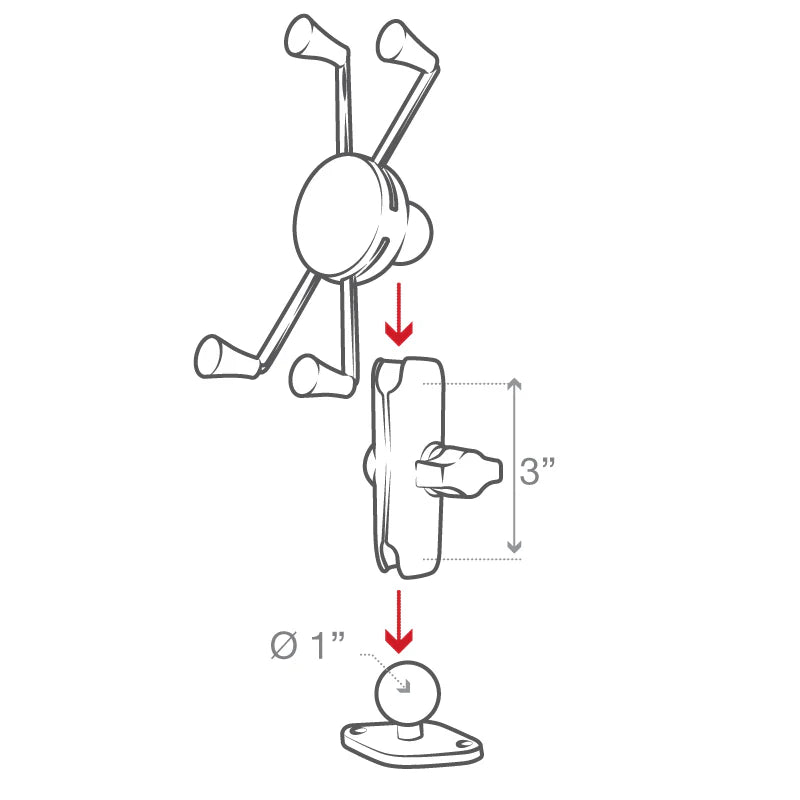

Socket to socket length:

3"

Hole pattern:

2-Hole AMPS: 1.912"

Plate size:

2.43" x 1.31"

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite
Stainless steel

Packaging type:

Poly Bag

Weight:

0.62 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
