RAM MOUNTS | RAM X-Grip Drill-Down Double Ball Mount for 12"-13" Tablets
Options
SELECT OPTIONS
Options
Options
Compatibility
Apple
iPad Air 13 (M2 & M3)
iPad Pro 12.9 (1st-6th Gen)
iPad Pro 13 (M4 & M5)
Dell
Latitude 5285
Latitude 7320
Google
Pixelbook
HP
Elite X2 1012 G1
Elite X2 1012 G2
Pro X2 612
Pro X2 612 G1
Lenovo
IdeaTab Lynx K3011
Miix 720
Yoga A12
Microsoft
Surface 3
Surface Book
Surface Pro (2017)
Surface Pro 3
Surface Pro 4
Surface Pro 5
Surface Pro 6
Surface Pro 7
Surface Pro 8
Surface Pro X
Samsung
Galaxy Book 12"
Galaxy Pro 12.2
Galaxy TabPro S
Galaxy Tab S8 Ultra
Galaxy Tab S10 Ultra
Galaxy Tab S10 FE Plus
Zebra
R12 XSLATE
Additonal Information:
This holder is compatible with the iPad Pro 12.9 without case only.
Description

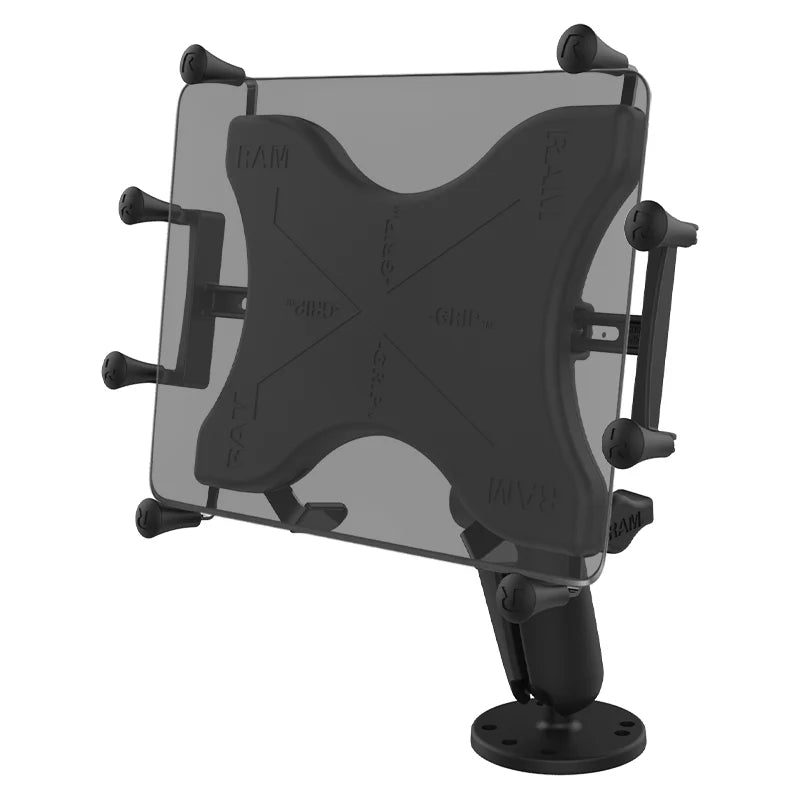

The RAM-B-101-C-UN11U consists of (2 QTY) 2.5" diameter round bases with the universal AMPS hole pattern, long double socket arm and universal X-Grip® clamping cradle for 12"-13" tablets. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 12"-13" tablets with or without sleeves, as well as some smaller tablets. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
Complete flat surface, drill-down mounting solution for the RAM® X-Grip® 12" - 13" tablet holder
Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; easy access grip knobs on the back of the holder allow for the quick release of your device
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
Specifications
Hardware included:
Assembly Hardware

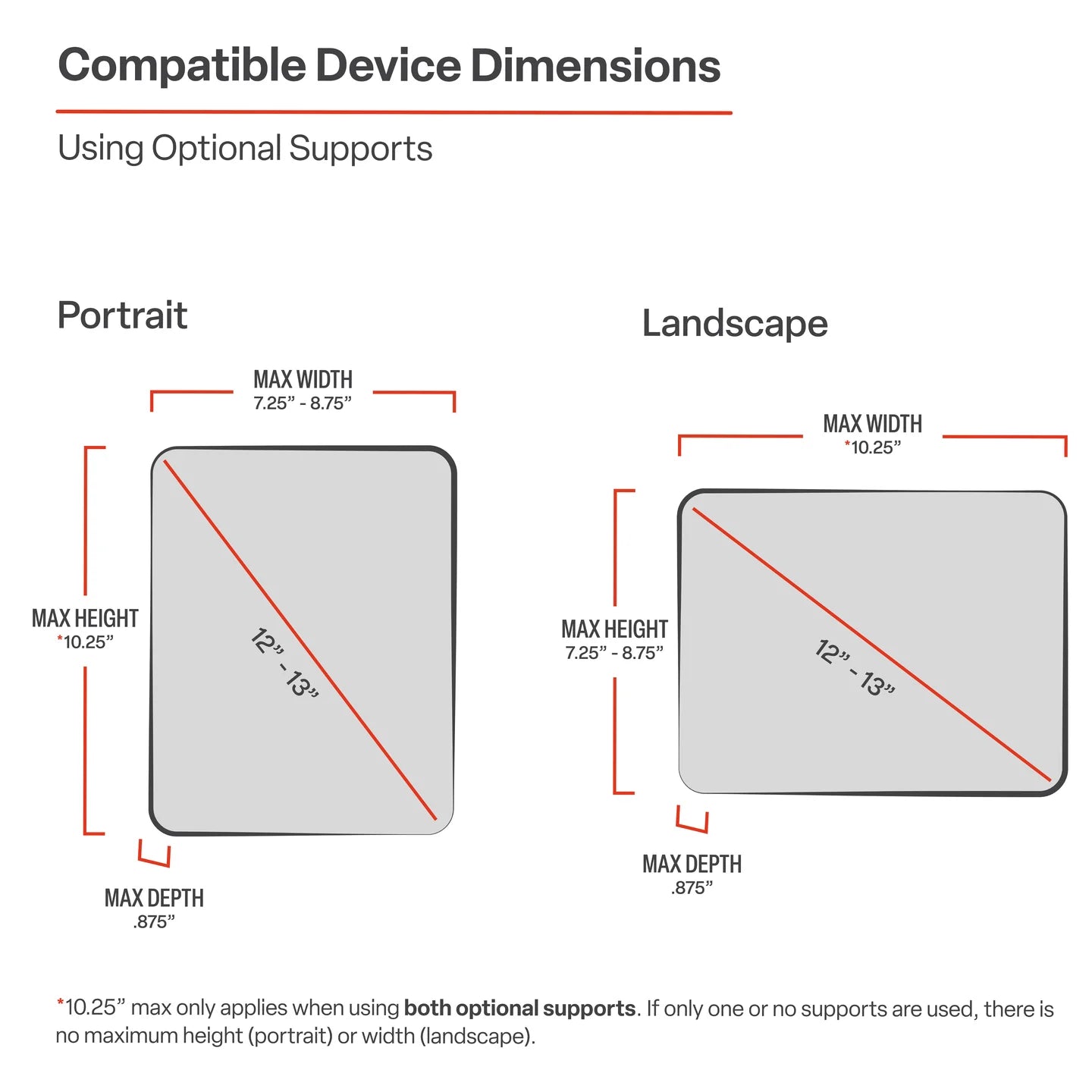

Holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"
Socket to socket length:
5.31"
Hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Ball size:
B Size (1")
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
1.91 lb
Additional Information:
This holder is compatible with the iPad Pro 12.9 without case only.
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
