RAM MOUNTS | RAM USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger
SELECT OPTIONS
Compatibility
Compatible Devices
Samsung
Tab Active5
Tab Active3
Tab Active2
Additonal Information:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
This product will not support the "No Battery Mode" function of the Tab Active3.
Description

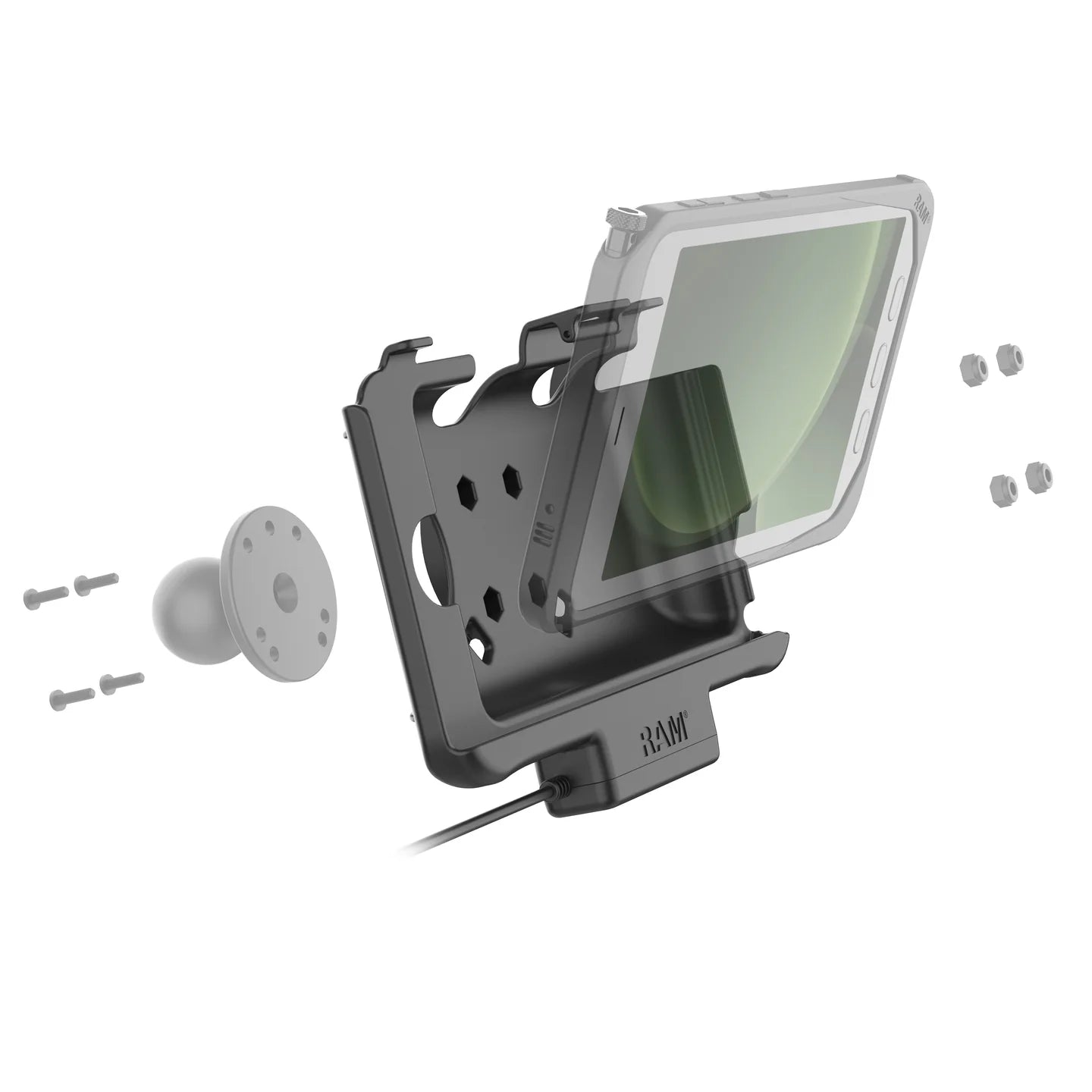

The RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU) meets the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. The dock delivers power via the USB Type-C female pigtail and Modular 10-30V Hardwire Charger. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern and USB-C cable clamp with zip ties for cable management and retention.
Features

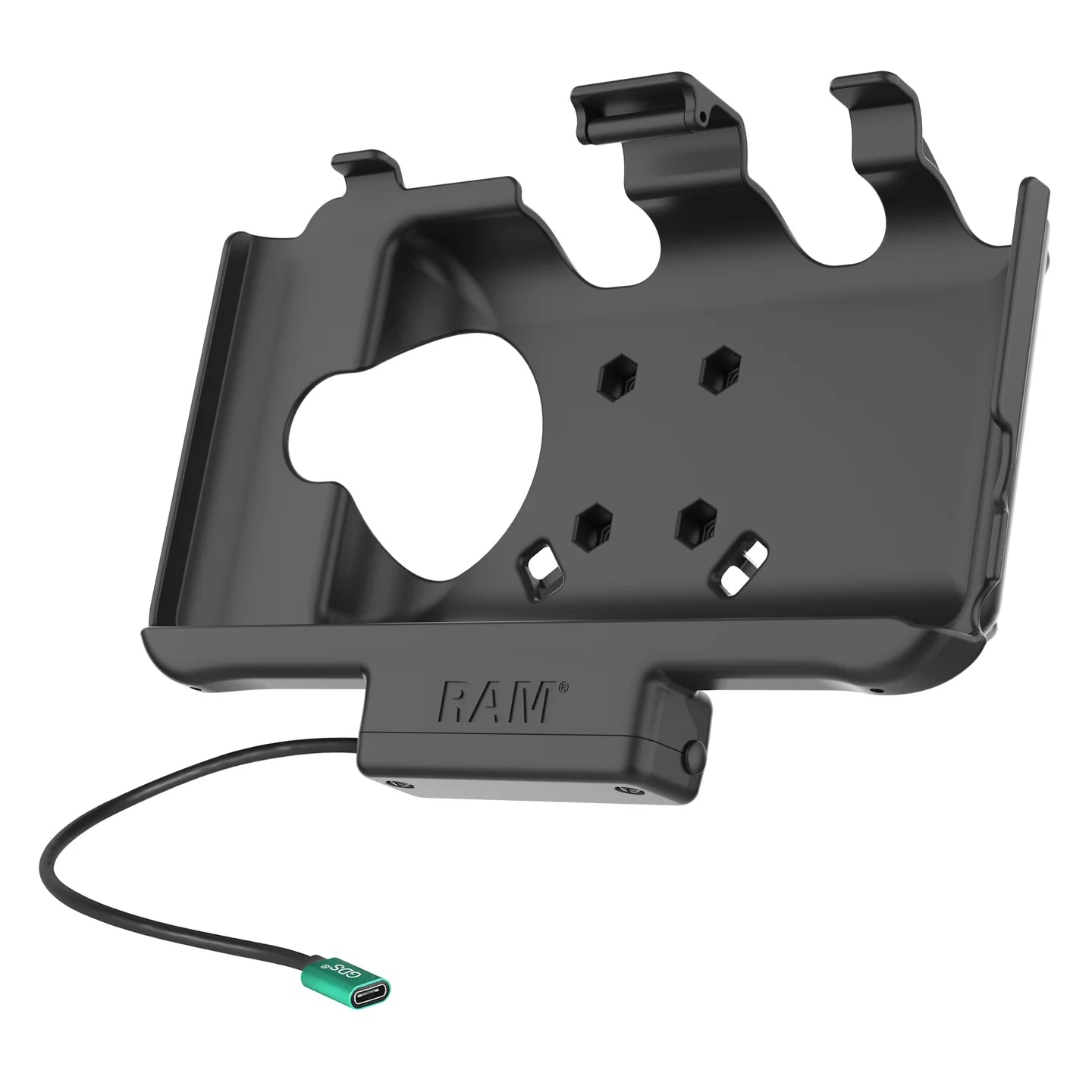

RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
Vehicle hardwire charger included
Back by a 3-year warranty
Specifications

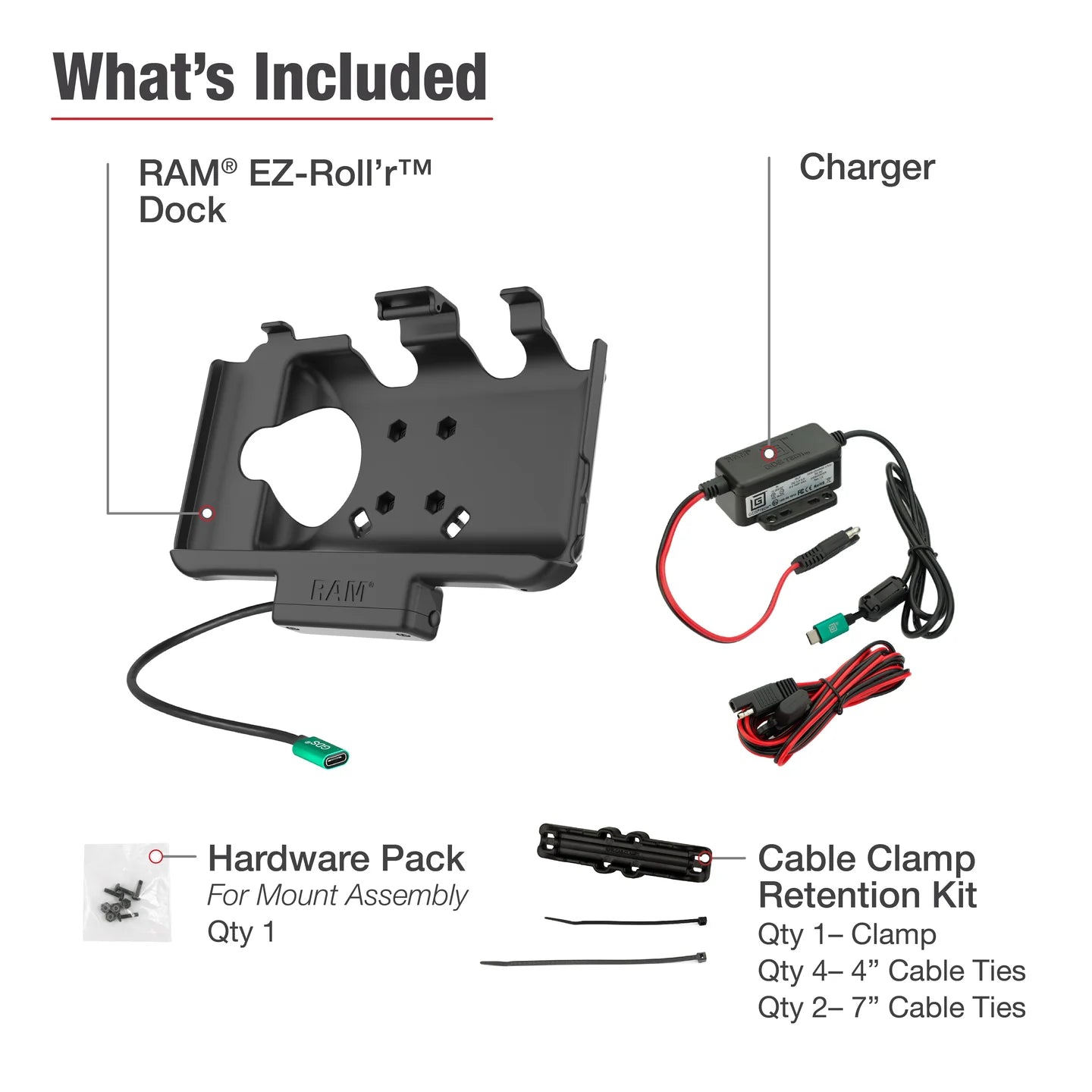

Hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(1) Hardwire Charger
Product dimensions:
Width: 9.24"
Height: 6.34"
Depth: 2.57"
Hole pattern:
4-Hole AMPS: 1.181" x 1.496"
Materials:
High strength composite
Packaging type:
Poly Bag
Input voltage:
5.3-5.4VDC
Output voltage:
5VDC
Power output:
500mA
Input connector:
USB Type-C Female
Input cable length:
215mm
Warranty:
3 year warranty
Weight:
1.13 lb
Additional Information:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
This product will not support the "No Battery Mode" function of the Tab Active3.
