RAM MOUNTS | RAM USB-C Powered Dock for Samsung Tab Active5 Pro & 4 Pro

Compatibility

Compatible Devices
Samsung
Galaxy Tab Active5 Pro

Galaxy Tab Active4 Pro

Galaxy Tab Active Pro

Additonal Information:
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This holder is intended only for light-duty applications in landscape mode.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro

Description

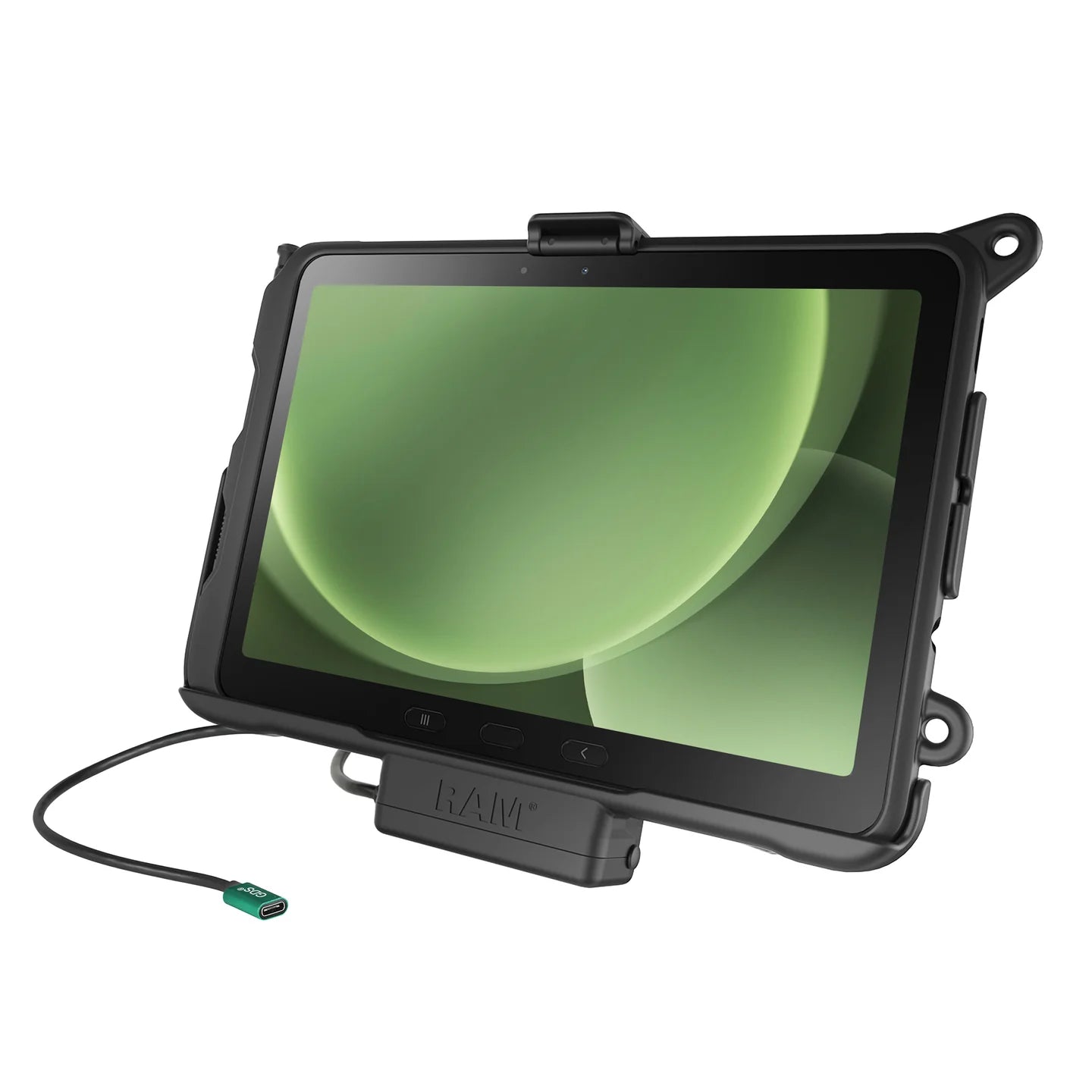

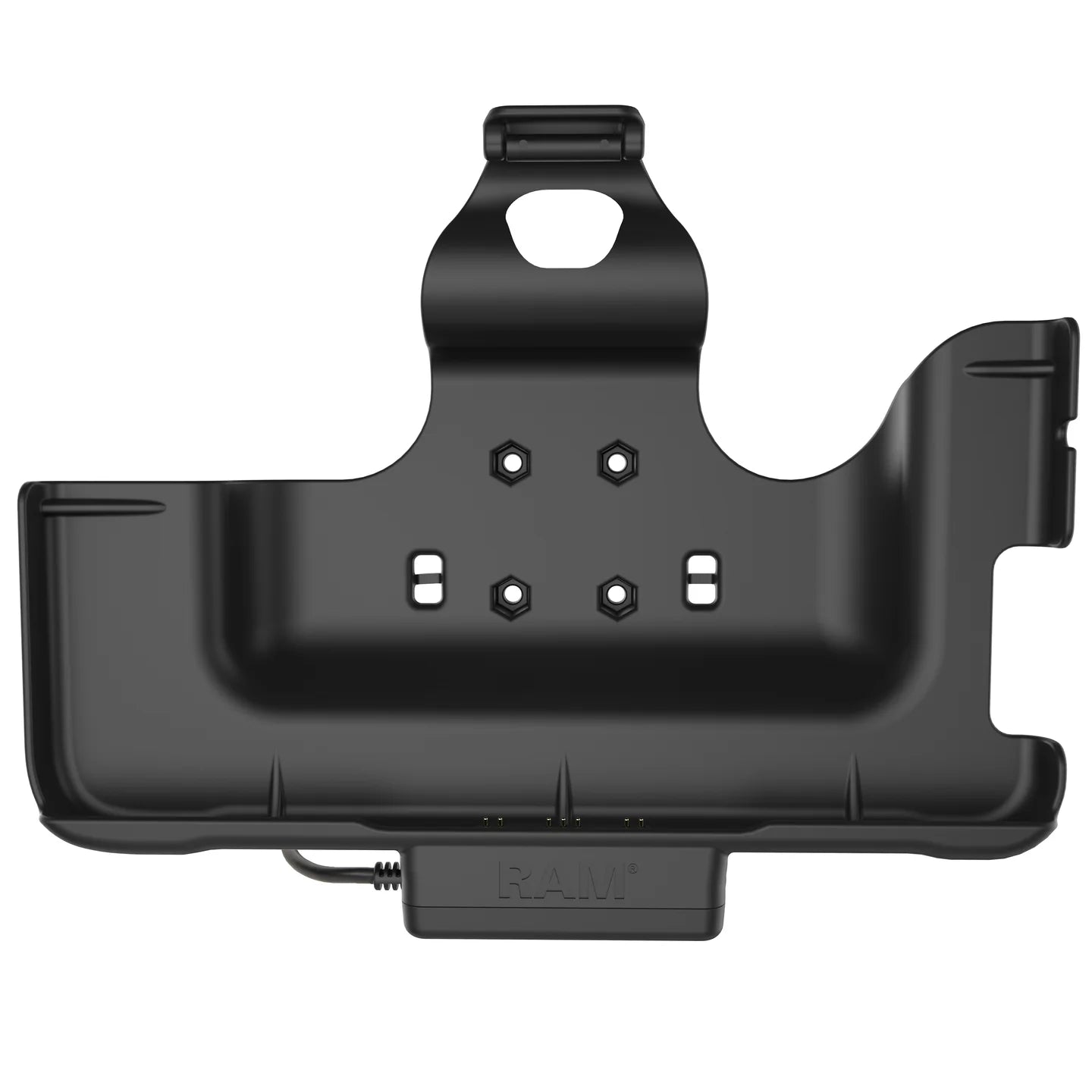

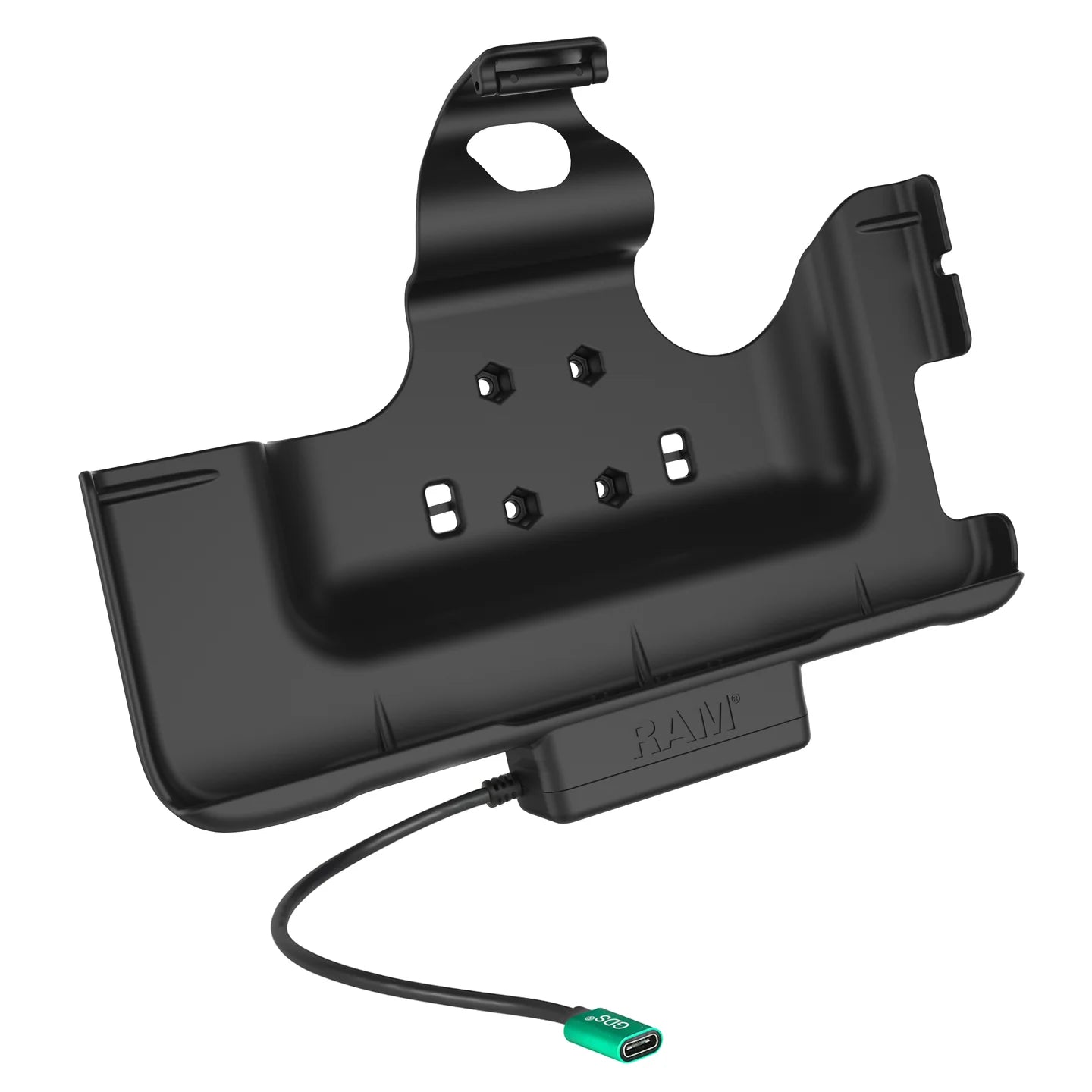

The RAM® USB-C Powered Dock for Samsung Tab Active5 Pro & Tab Active4 Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.

Features

Powered dock provides charging capabilities for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only (Non-Power Delivery charger required)

Access to speakers, mics, and headphone jack remain while device is docked

Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand

Compatible with the Samsung OEM skin as well as the RAM® Skin™

Backed by a 3-year warranty

Specifications

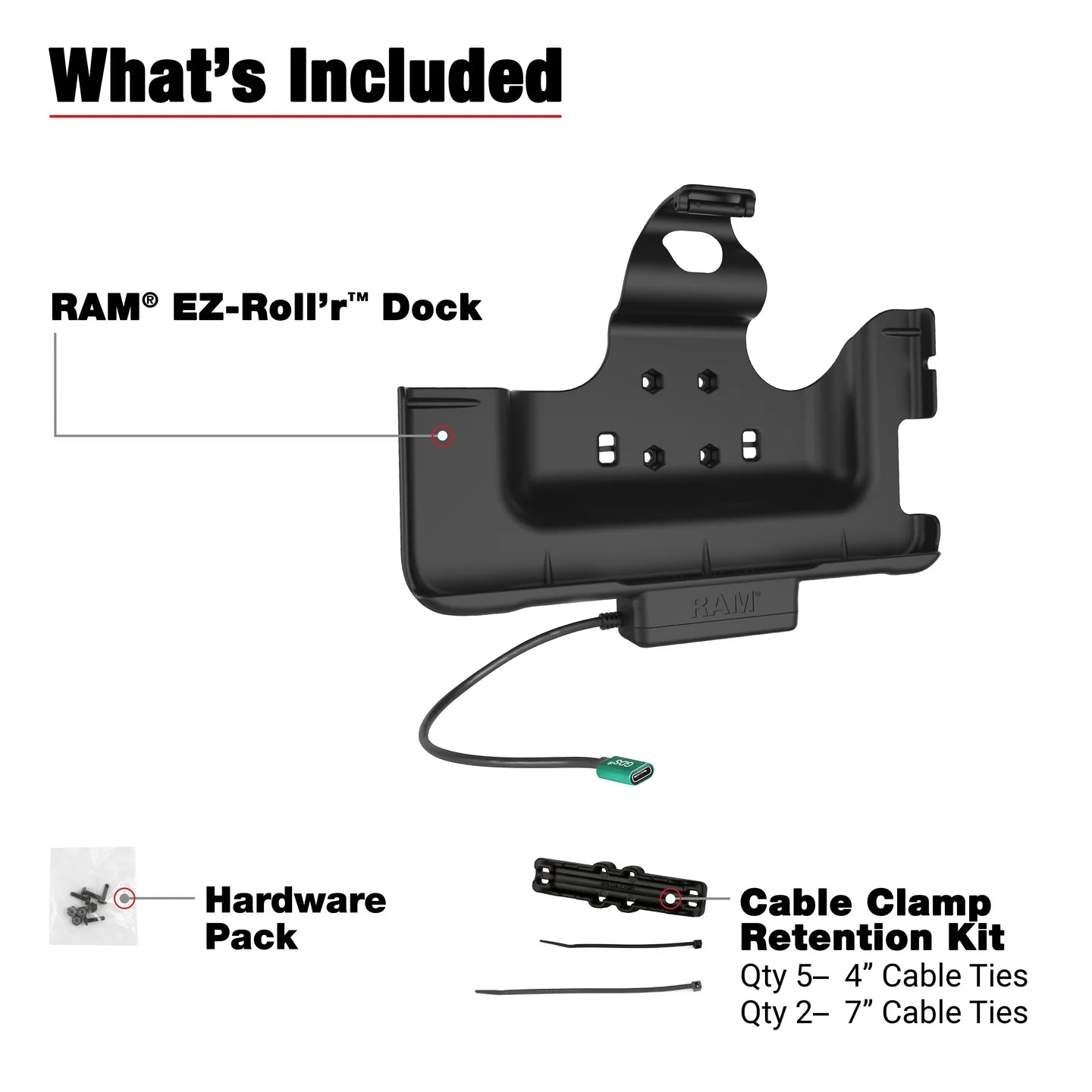

Hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"

Materials:
High strength composite

Packaging type:
Poly Bag

Input voltage:
5.3-5.4VDC

Output voltage:
5VDC

Power output:
500mA

Input connector:
USB Type-C Female

Input cable length:
215mm

Warranty:
3 year warranty

Weight:
0.71 lb

Additional Information:
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This holder is intended only for light-duty applications in landscape mode.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro.

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
