RAM MOUNTS | RAM Twist-Lock Suction Cup Mount with RAM Qi2 15W Wireless Charger

Description

Additonal Information:
The included wireless charger will support up to 8mm charging distance between puck and device.

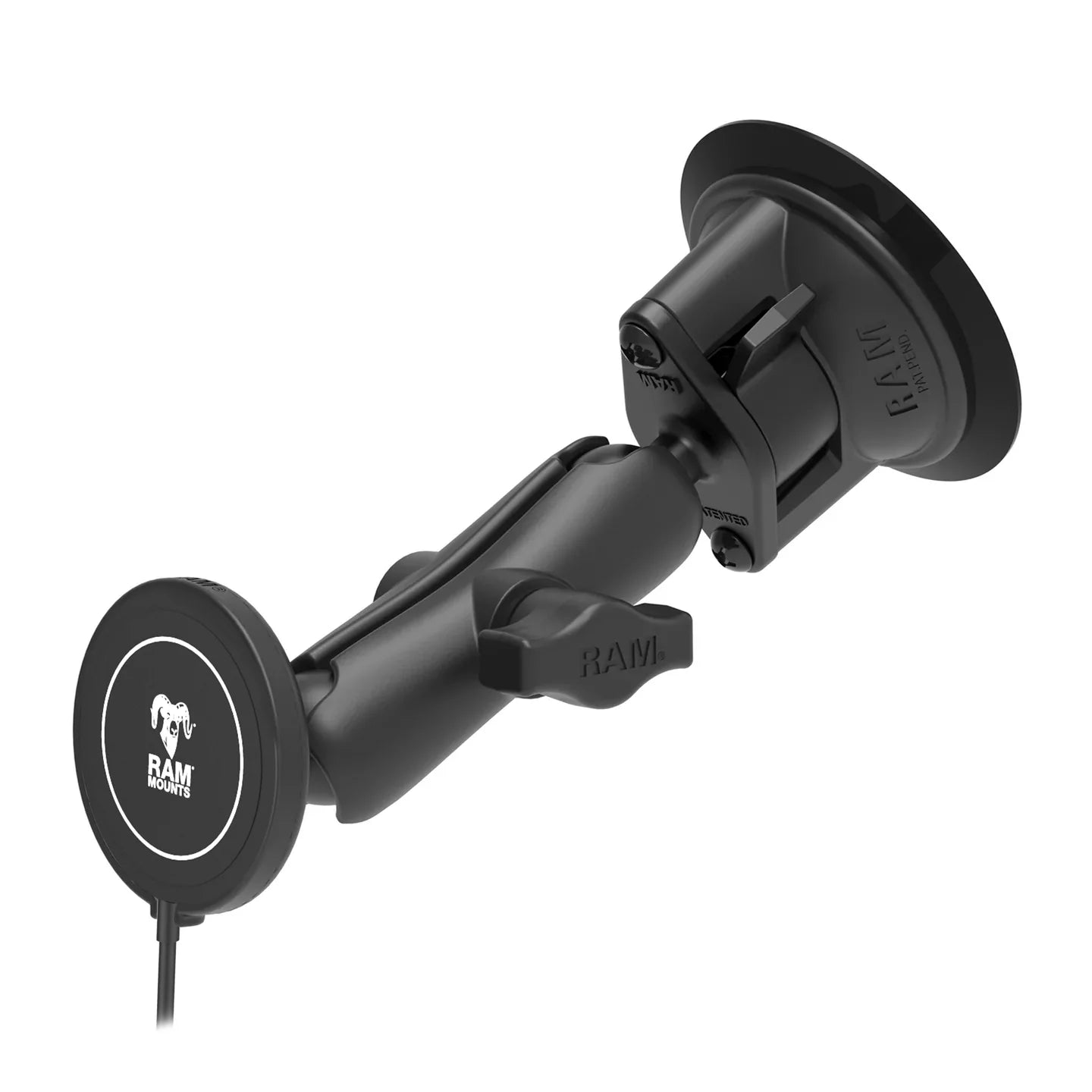

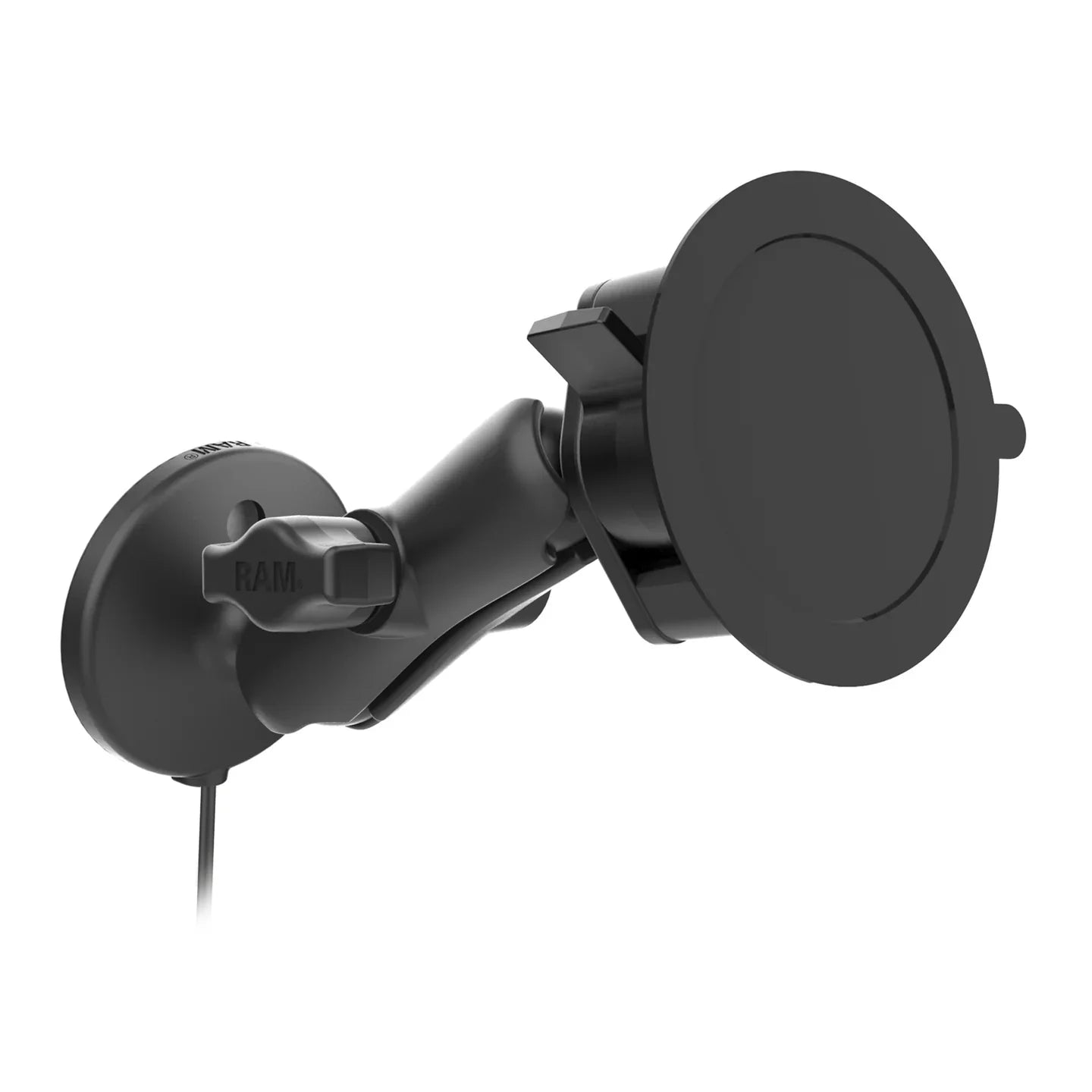

The RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger (RAM-B-166-AP-MAG-1-W2MU) is your all-in-one solution for mounting and charging on the go. Just secure the Twist-Lock™ with the flick of a lever for a no-tools installation, it’s that easy. This kit includes the RAM® Qi2 15W Wireless Charger, ball adapter, Twist-Lock™ suction cup base, and B size medium socket arm—designed to secure to any non-porous surface like windshields. With IP67 waterproof protection and a durable woven USB-C cord, you’ll get a reliable charge every time. Plus, harness your iPhone’s MagSafe® magnetic charging for a seamless, secure connection, no fumbling with cables.

Features

Wireless charging bundle built for windshields and other non-porous surfaces

15W Qi2 fast charging for efficient power delivery

Includes RAM® Twist-Lock™ suction cup base and medium length B size RAM® double socket arm

Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods

Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

Specifications

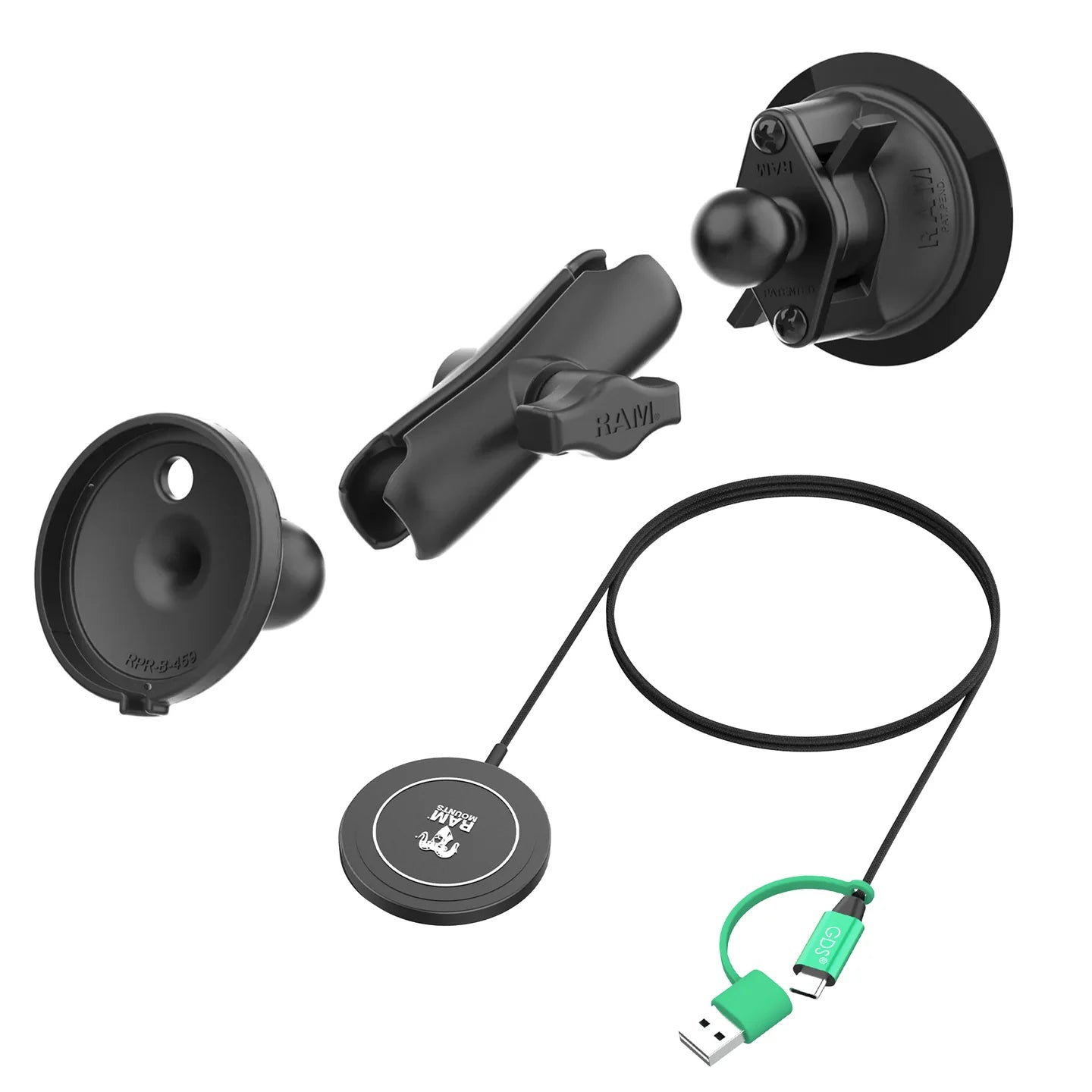

Hardware included:
Assembly Hardware
(1) RAM® Qi2 Wireless Charging Puck

Suction size:
3.3" Diameter

Socket to socket length:
3"

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Power specifications:
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

Input voltage:
USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

Power output:
BPP - 5W
EPP - 7.5W
MPP - 15W

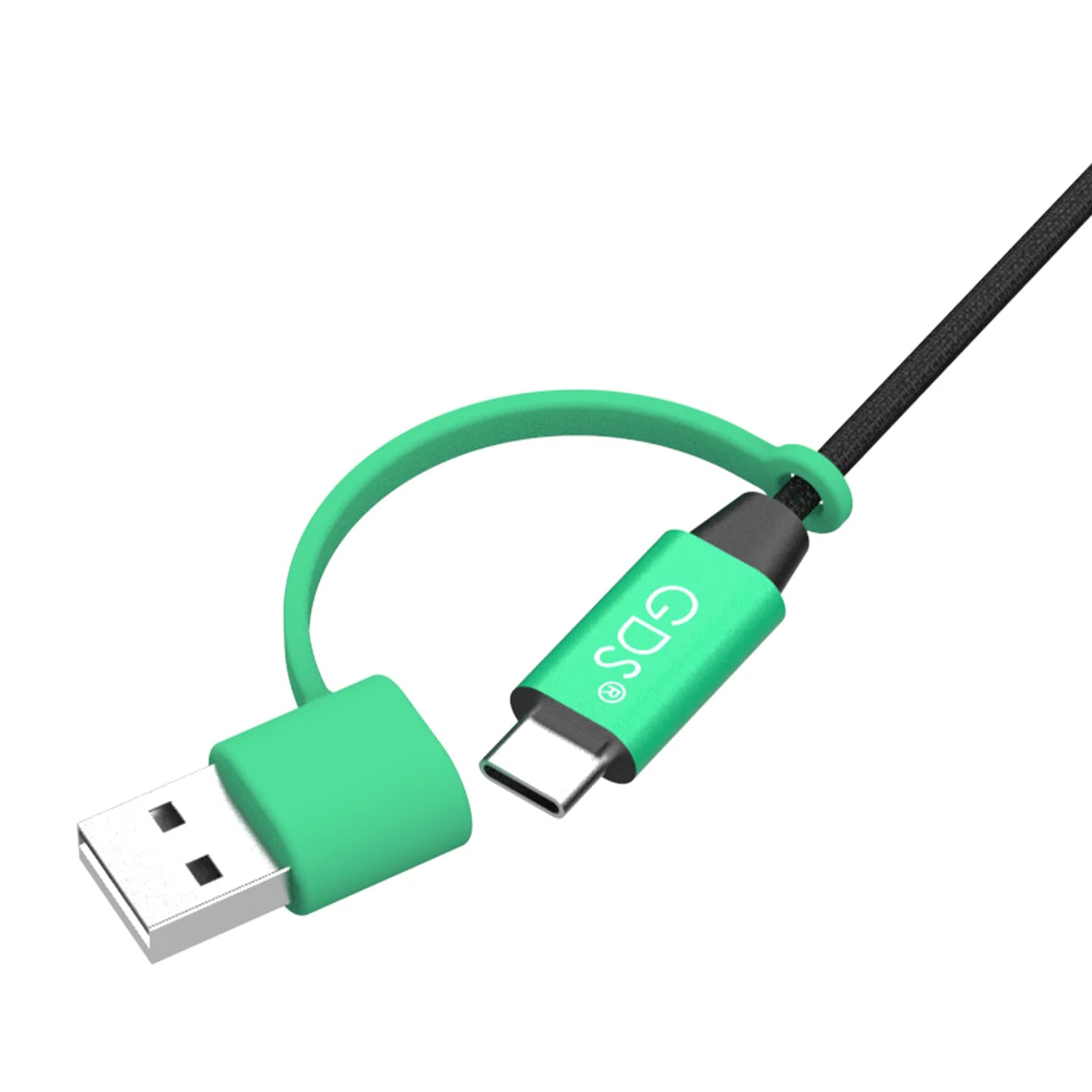

Output connector:
USB Type-C Male with USB-A Adapter

Output cable length:
1 Meter

Operating temperature:
0°C to +40°C

Storage temperature:
-20°C to +80°C

Regulatory:
Over Current Protection
Short Cirtcuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

Certifications:
IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Additional Information:
The included wireless charger will support up to 8mm charging distance between puck and device.
