RAM MOUNTS | RAM Tab-Tite Yoke Clamp Mount for iPad mini with Heavy Duty Cases

Compatibility

Compatible Devices
Apple
iPad mini (A17 Pro) with Case

iPad mini 6 with Case

Amazon
Fire 7 Kids

Fire HD 8 Kids

Fire HD 8 with Case

ASUS
MeMO Pad 8 with Case

VivoTab 8 with Case

Dell
Venue 8 with Case

Venue 8 (2014) with Case

Venue 8 7840 with Case

Venue 8 Pro with Case

Huawei
MediaPad M3 with Case

MediaPad M3 Lite with Case

MediaPad T1 8.0 with Case

MediaPad T3 8 with Case

Lenovo
Ideapad Miix 300 with Case

IdeaTab A2107 with Case

Tab 2 A8 with Case

Tab 4 8 with Case

Tab 4 8 Plus with Case

Tab A8-50 with Case

Tab S8 with Case

Tab3 8 with Case

LG
G Pad F 8.0 (2nd Gen) with Case

G Pad F2 8.0 with Case

G Pad II 8.0 with Case

G Pad X II 8.0 with Case

Nvidia
Shield Tablet with Case

Panasonic
Toughpad FZ-M1

Samsung
Galaxy Tab 2 7.0 with Case

Galaxy Tab 3 8.0 with Case

Galaxy Tab A 8.4 with Case

Galaxy Tab A7 Lite 8.7 with Case

Galaxy Tab E 8.0 with Case

Galaxy Tab Pro 8.4 with Case

Social
Mobile Rhino T80

TCL
Tab 8 Gen2

Tab 8 NXTPAPER 5G

Tab 8 Plus

Description

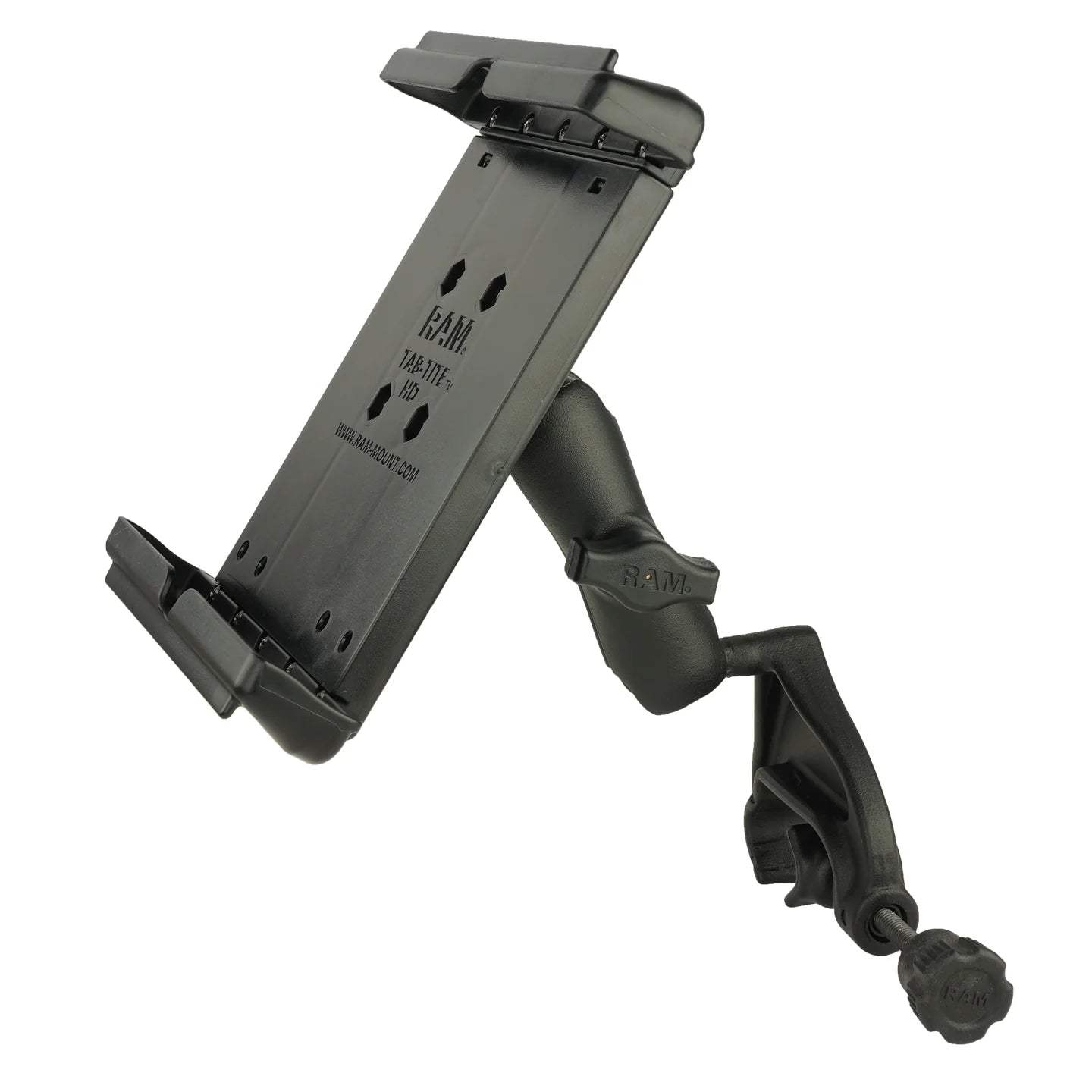

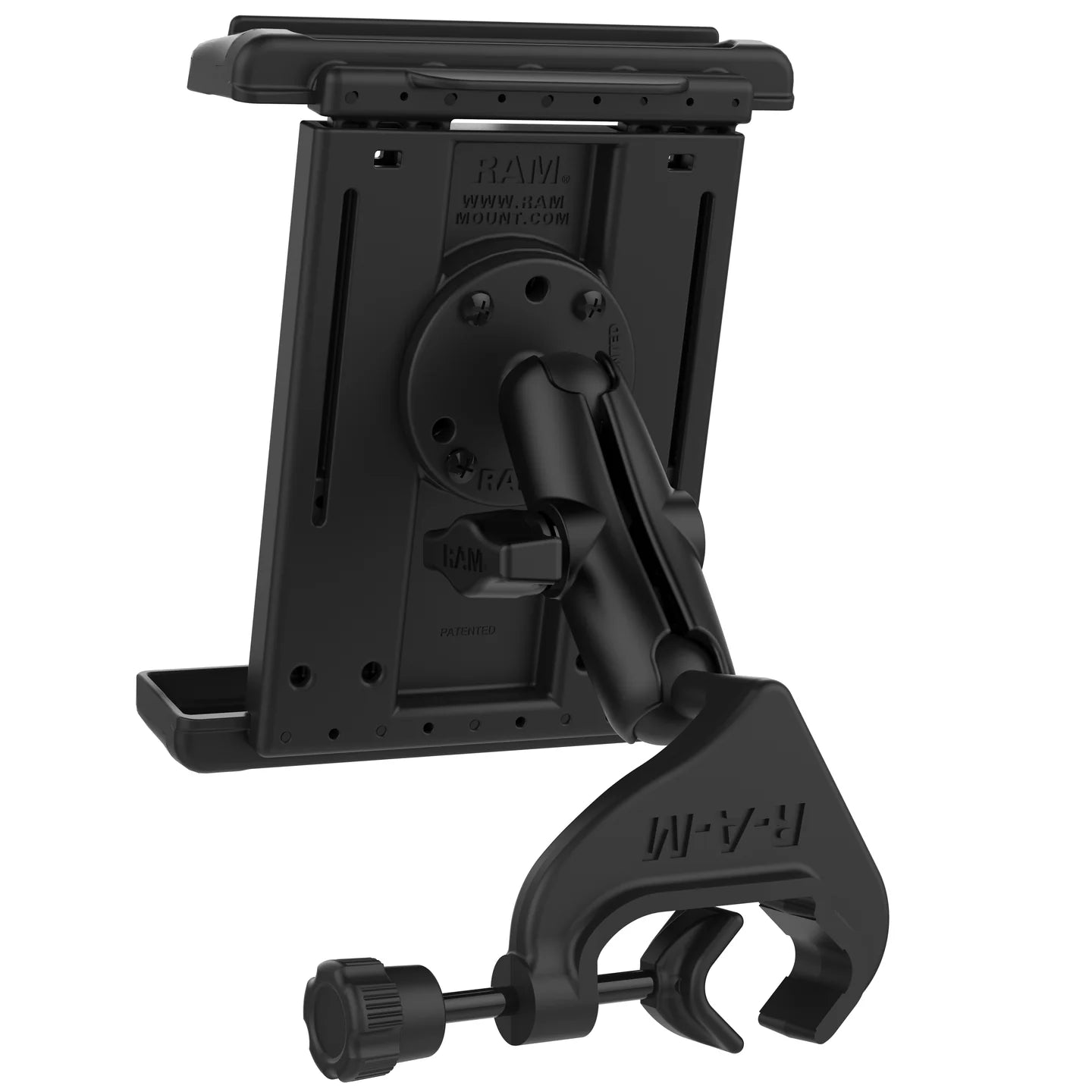

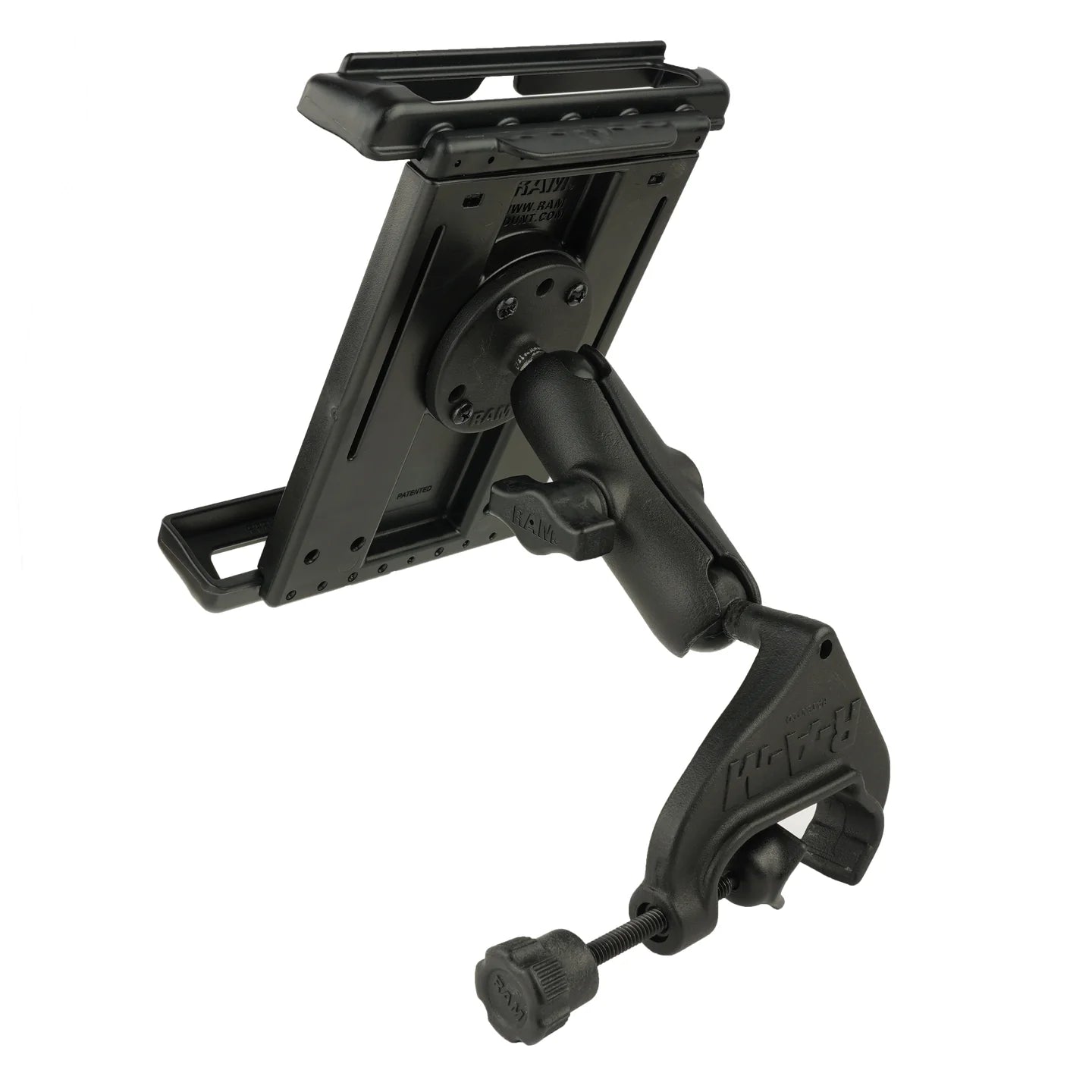

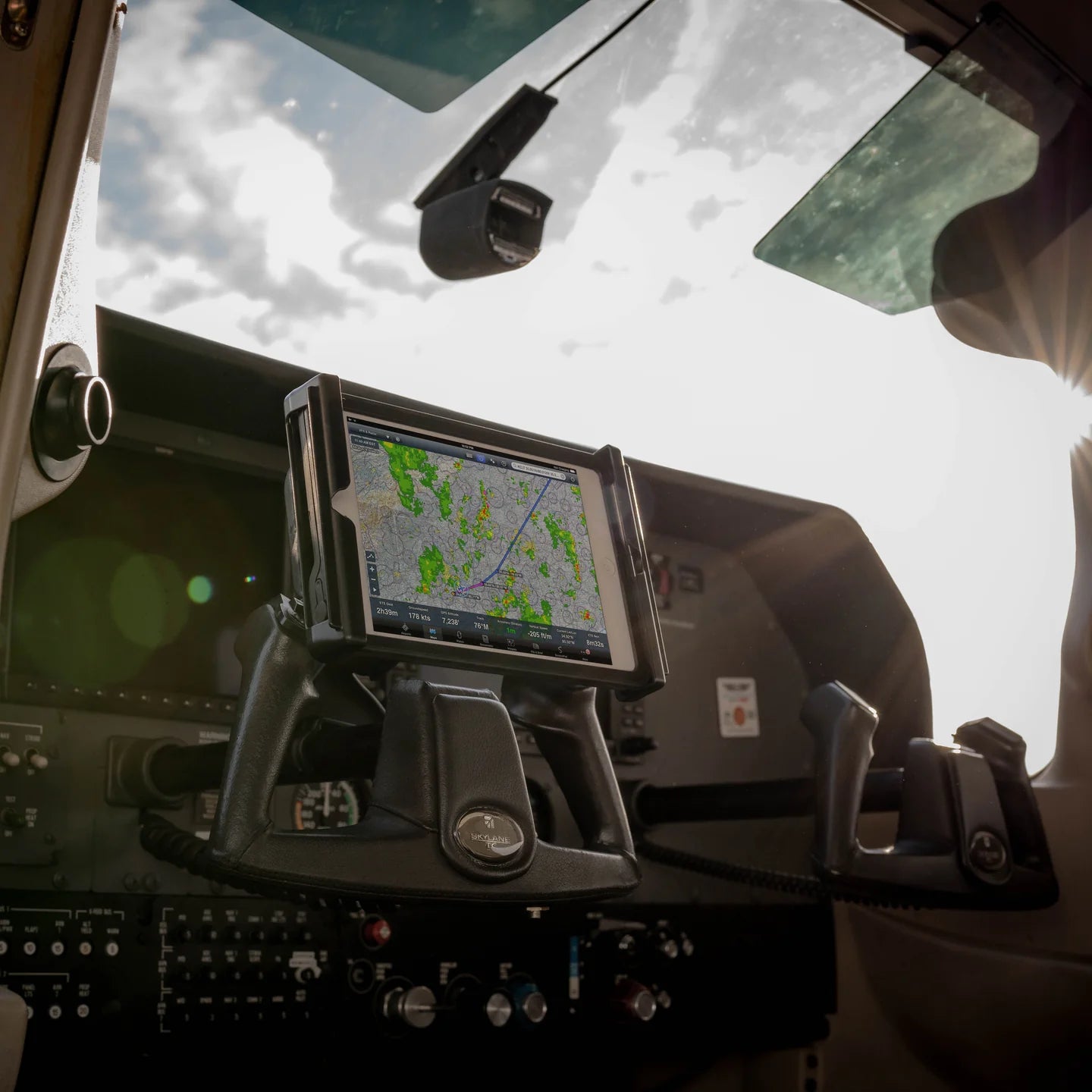

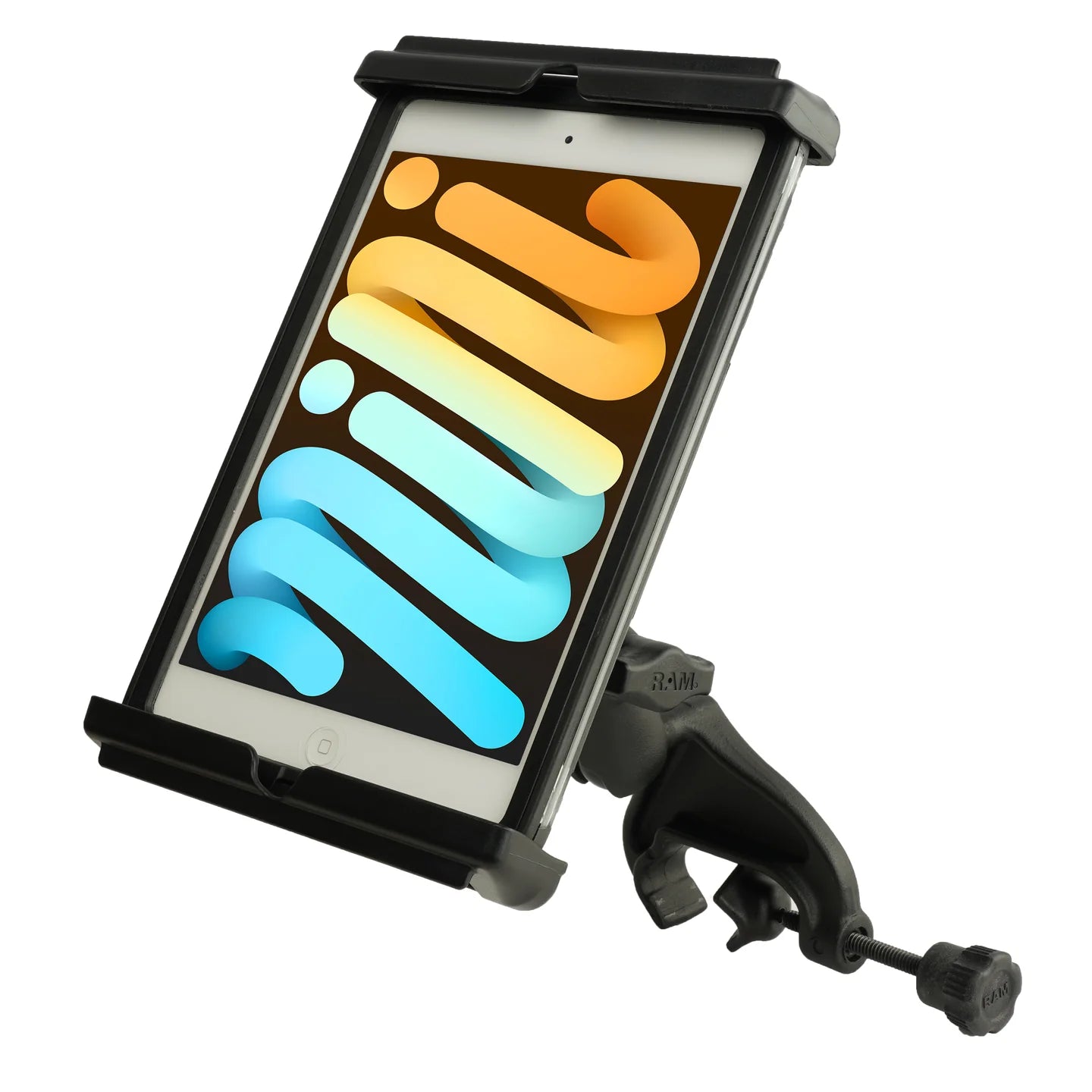

This ideal airplane yoke mount is designed specifically to hold any 8" tablet with a heavy duty case including the Apple iPad mini (A17 Pro), mini 6 as well as all previous iPad mini models, and consists of a RAM® Tab-Tite™, yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPS hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.

Features

Spring-loaded holder secures iPad mini (A17 Pro), mini 6 and previous mini models with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices

Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount

Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware

Holder dimensions:
Height Range: 7.125" - 9.5"
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"

Clamp range:
.625" - 1.25"

Socket to socket length:
3"

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Weight:
1.43 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
