RAM MOUNTS | RAM Tab-Tite with RAM Twist-Lock Dual Suction for 8" Tablets
Options
SELECT OPTIONS
Options
Options
Compatibility
Compatible Devices
Apple
iPad mini (A17 Pro) with Case
iPad mini 6 with Case
Amazon
Fire 7 Kids
Fire HD 8 Kids
Fire HD 8 with Case
ASUS
MeMO Pad 8 with Case
VivoTab 8 with Case
Dell
Venue 8 with Case
Venue 8 (2014) with Case
Venue 8 7840 with Case
Venue 8 Pro with Case
Huawei
MediaPad M3 with Case
MediaPad M3 Lite with Case
MediaPad T1 8.0 with Case
MediaPad T3 8 with Case
Lenovo
Ideapad Miix 300 with Case
IdeaTab A2107 with Case
Tab 2 A8 with Case
Tab 4 8 with Case
Tab 4 8 Plus with Case
Tab A8-50 with Case
Tab S8 with Case
Tab3 8 with Case
LG
G Pad F 8.0 (2nd Gen) with Case
G Pad F2 8.0 with Case
G Pad II 8.0 with Case
G Pad X II 8.0 with Case
Nvidia
Shield Tablet with Case
Panasonic
Toughpad FZ-M1
Samsung
Galaxy Tab 2 7.0 with Case
Galaxy Tab 3 8.0 with Case
Galaxy Tab A 8.4 with Case
Galaxy Tab A7 Lite 8.7 with Case
Galaxy Tab E 8.0 with Case
Galaxy Tab Pro 8.4 with Case
Social
Mobile Rhino T80
TCL
Tab 8 Gen2
Tab 8 NXTPAPER 5G
Tab 8 Plus
Additonal Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.
Description

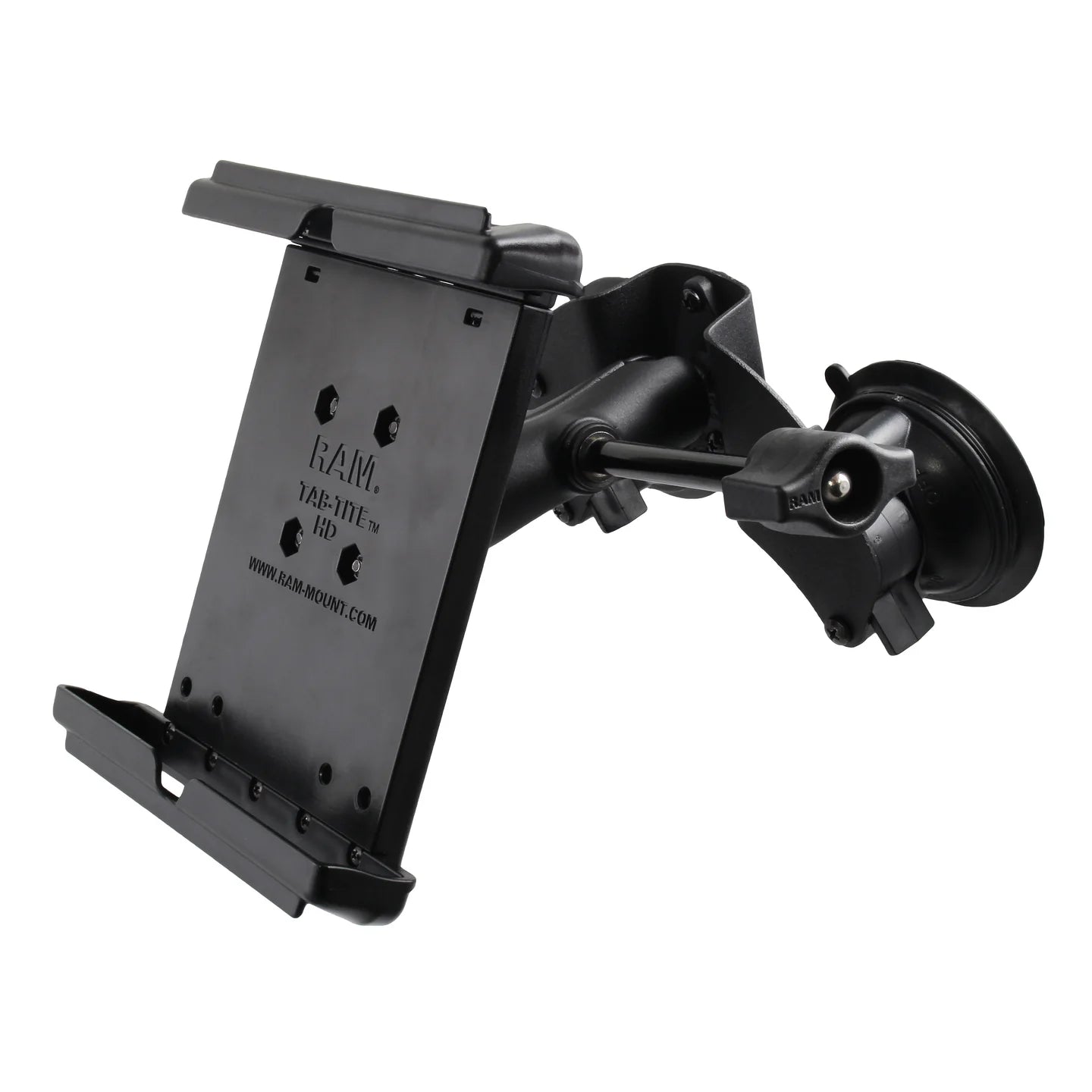

The RAM-B-189-TAB12-ALA1-KRU consists of a double twist lock suction cup base, diamond base adapter in a recessed pocket for a lower profile, double socket arm with aviation extended retention knob, and Tab-Tite™ universal clamping cradle. The Tab-Tite™ backplate features interchangeable end cups, making it modular making it compatible with numerous tablet models. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Specifications
Hardware included:
Assembly Hardware
Holder dimensions:
Height Range: 7.125" - 9.5"
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"
Suction size:
(2) 3.3" Diameter Bases, Total Width 7.95"
Socket to socket length:
3"
Ball size:
B Size (1")
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Powder coated steel
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
2.03 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.
