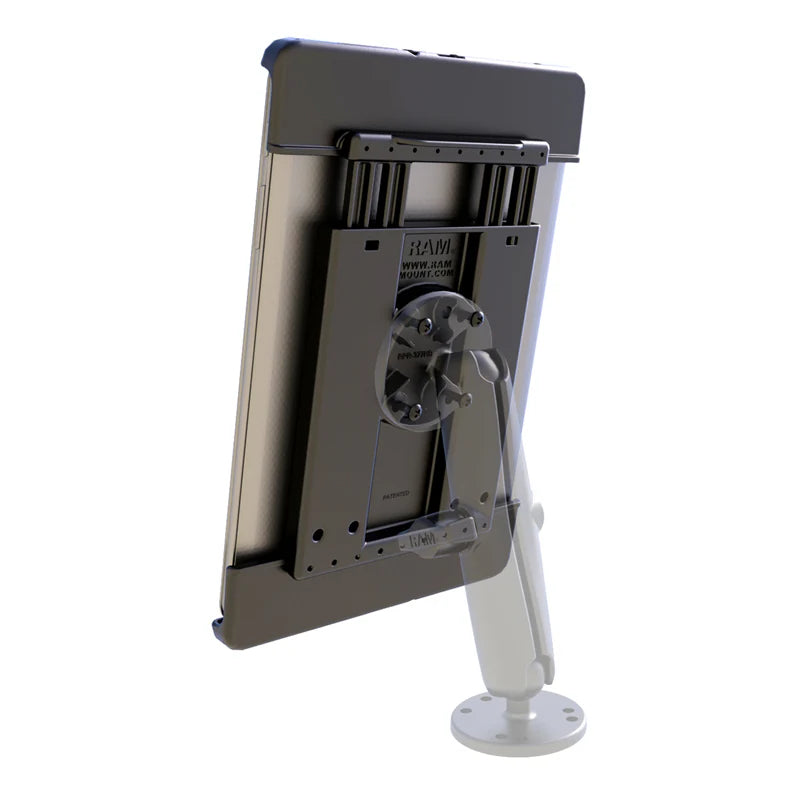

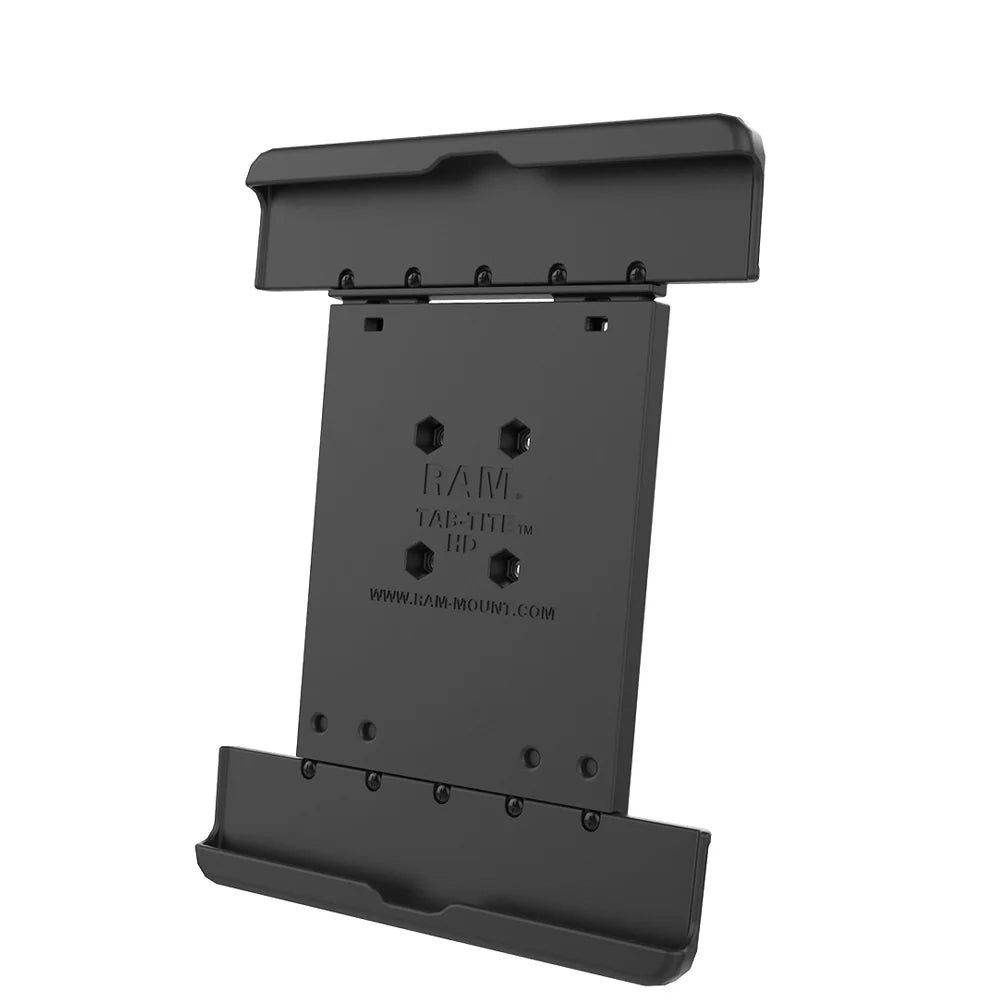

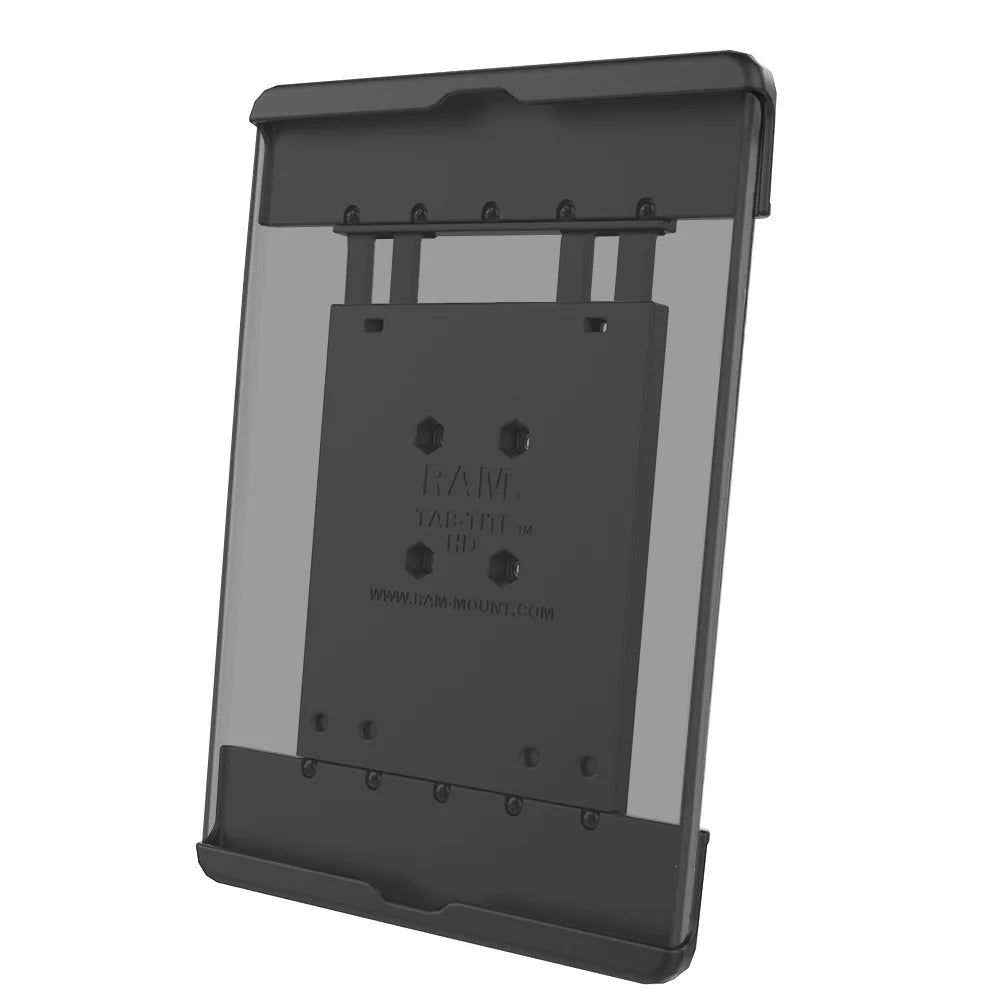

RAM MOUNTS | RAM Tab-Tite Spring Loaded Holder for 9.7" Tablets

Compatibility

Compatible Devices
Apple
iPad 9.7 (2017)

ASUS
ZenPad 3S 10

ZenPad Z10

Huawei
MediaPad T3 10

Lenovo
Tab K11

LG
G Pad II 10.1

G Pad X 10.1

G Pad X II 10.1

Samsung
Galaxy Tab A 9.7

Galaxy Tab A 10.5

Galaxy Tab A8 10.5

Galaxy Tab S2 9.7

Galaxy Tab S3 9.7

Galaxy Tab S4 10.5

Galaxy Tab S6

Galaxy Tab S7

Galaxy Tab S8

Galaxy Tab S9

Galaxy Tab S9 FE

Galaxy Tab S10 FE

Description

The RAM® Tab-Tite™ spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab A 9.7, with S Pen and Galaxy Tab S2 9.7. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features

Spring-loaded holder secures most 9.7" tablets; interchangeable end cups allow you to modify the holder when upgrading devices

Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

Holder dimensions:
Height Range: 9" - 11.75"
Width Range: 5.5" - 6.65"
Depth Range: .315" max

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"

Materials:
High strength composite

Packaging type:
Poly Bag

Weight:
0.55 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
