RAM MOUNTS | RAM Tab-Tite Spring Loaded Holder for 8" Tablets with Case

Compatibility

Compatible Devices
Apple
iPad mini 2 with Case

iPad mini 3 with Case

iPad mini 4 with Case

iPad mini 5 with Case

HP
Pro Tablet 408

Samsung
Galaxy Tab A 8.0 with Case

Galaxy Tab A 10.1 (2019)

Galaxy Tab S2 8.0 with Case

Description

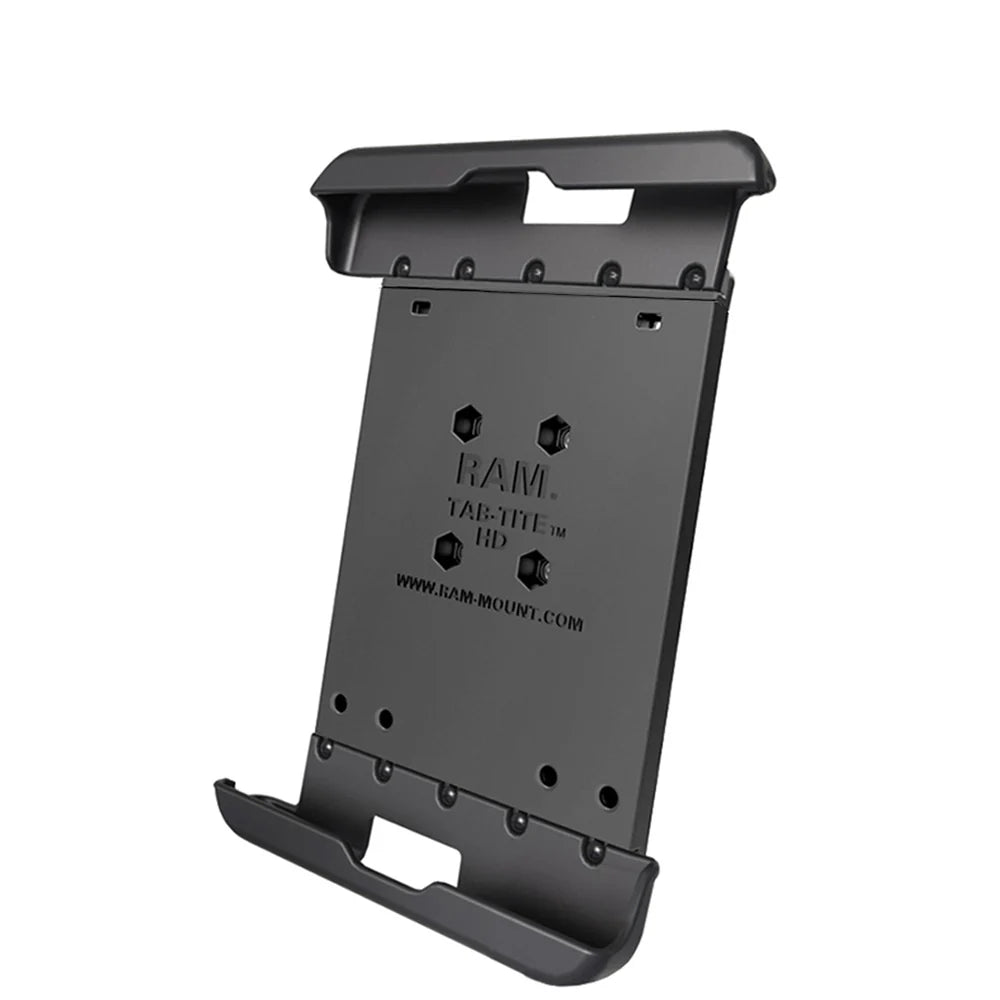

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab A 8.0, Tab A 8.0 with S Pen, and Tab S2 8.0 with Otterbox Defender case. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. For off road environments and use in open cockpit applications, we recommend the use of a tether to assist in securing your device. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions. In addition to most 8" tables with a cases, this holder can also accommodate the Samsung Galaxy Tab A 10.1 (2019).

Features

Spring-loaded holder secures most 8" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices

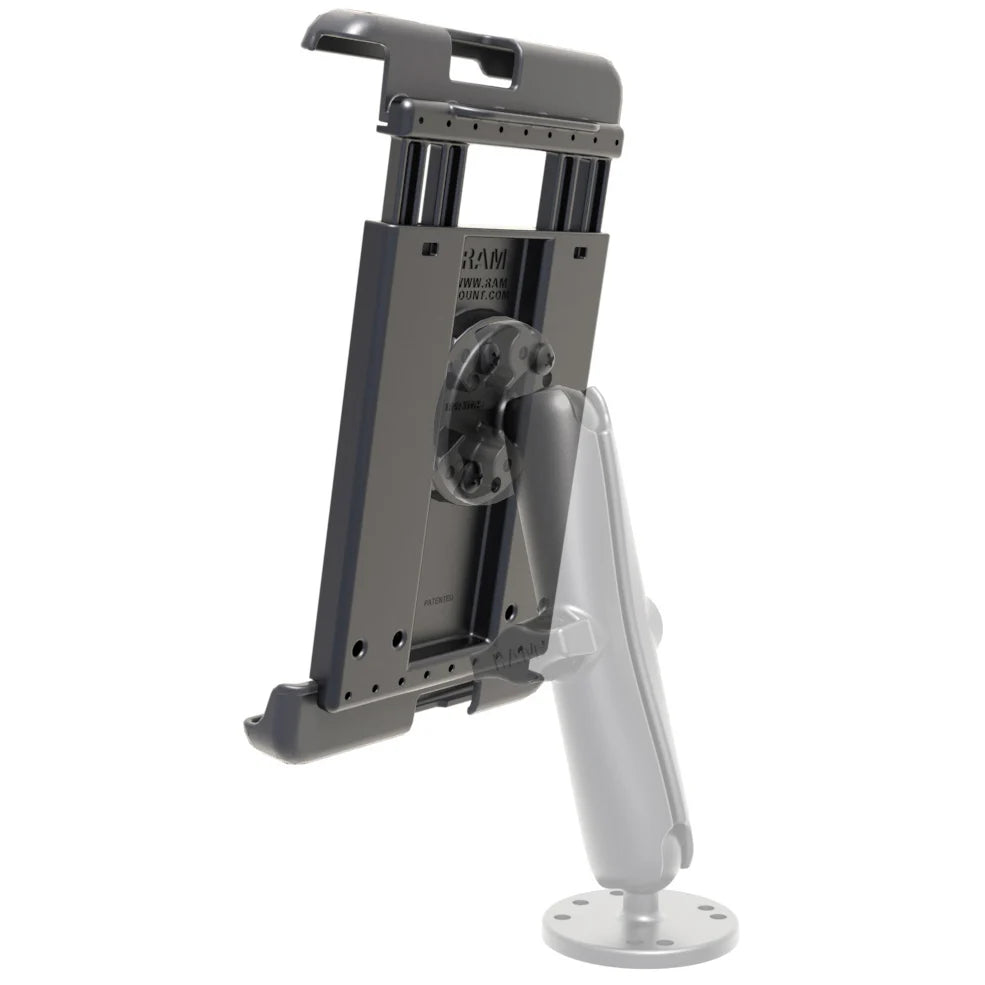

Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

Holder dimensions:
Height Range: 8.25" - 11"
Width Range: 5" - 5.88"
Depth Range: .3" - .67"

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"

Materials:
High strength composite

Packaging type:
Poly Bag

Weight:
0.54 lb
