RAM MOUNTS | RAM Tab-Tite Large Tablet Holder with Double U-Bolt Mount

Compatibility

Apple
iPad (1st Generation) with Case

iPad 2 with Case

iPad (3rd Generation) with Case

iPad (4th Generation) with Case

iPad Air 4 with Case

iPad Air 5 with Case

iPad Pro 11" with Case

iPad Pro 11" (2020) with Case

Dell
Venue 10 7000 with Case

Google
Nexus 10 with Case

HP
ElitePad 900 G1 with Case

Pro 610 with Case

Pro Slate 10.1 with Case

Lenovo
S6000 with Case

Yoga Tablet 2 (10 inch) with Case

Description

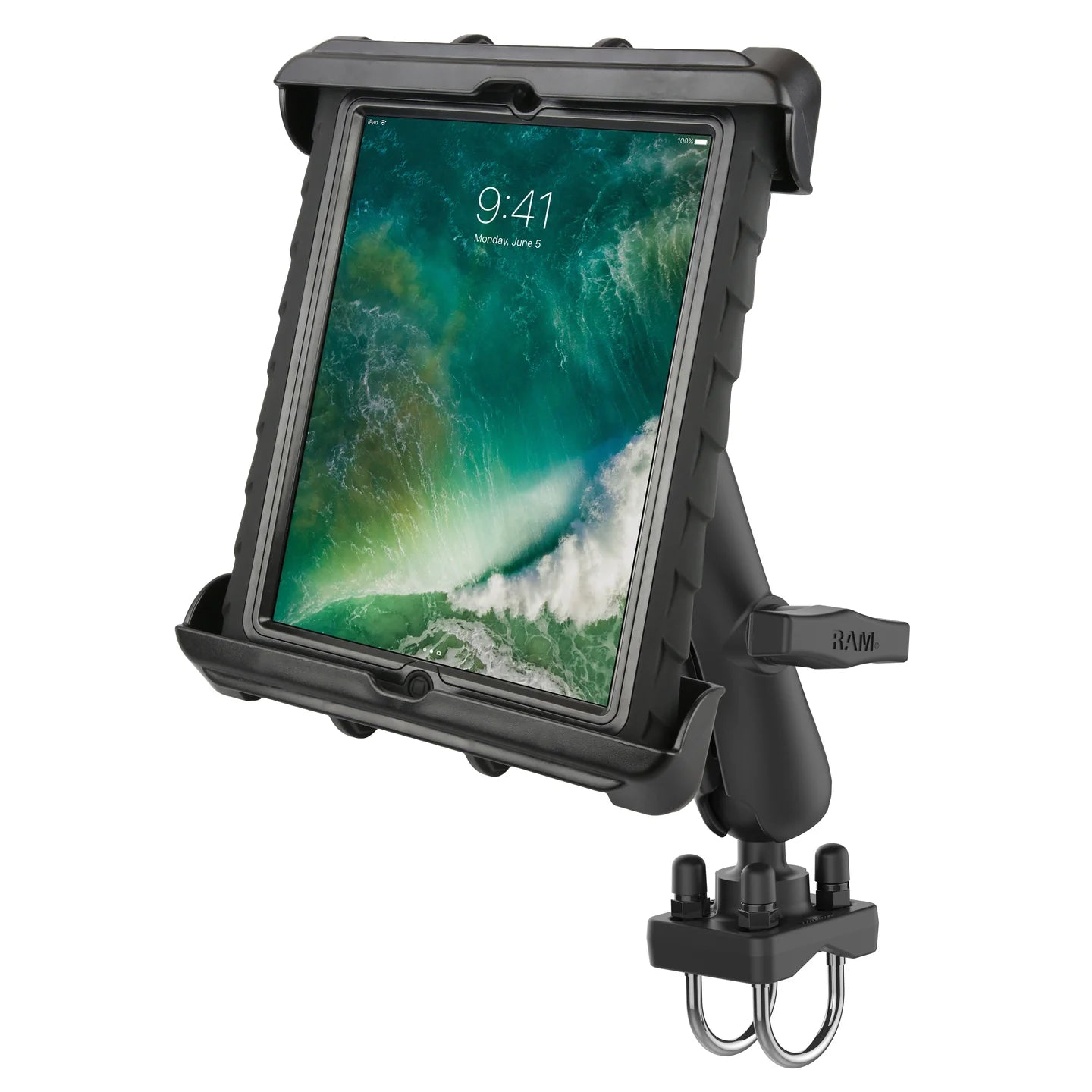

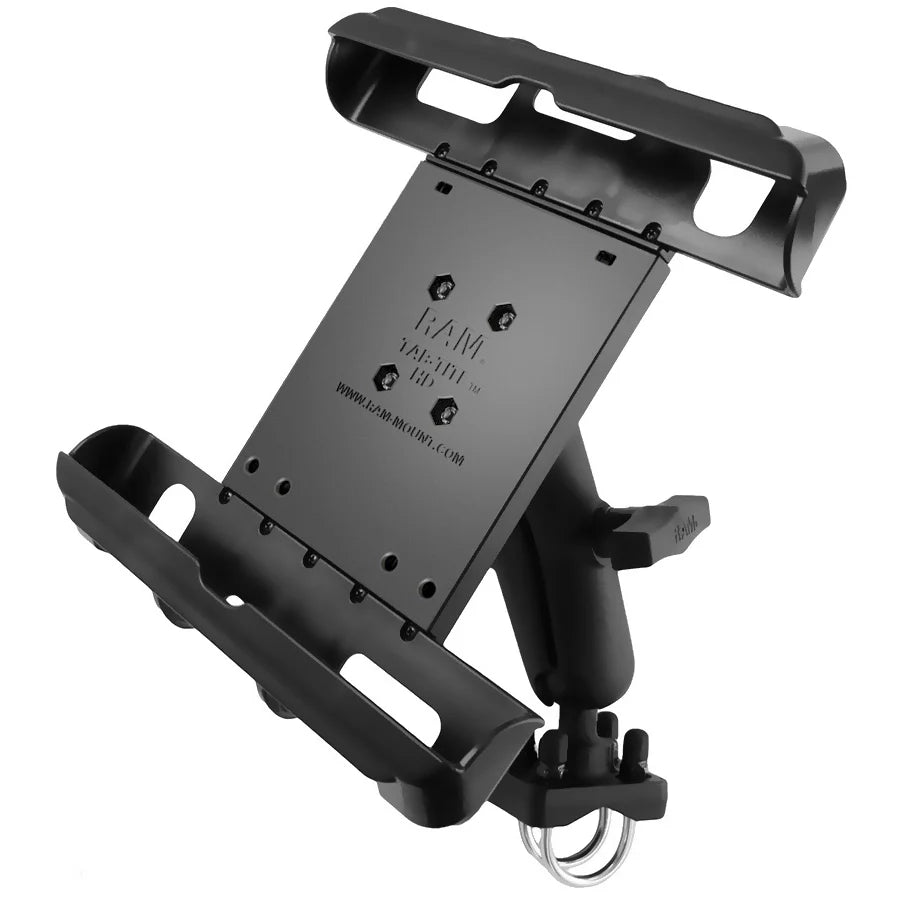

The RAM-138-235-TAB17U consists of a double u-bolt base with 1.5" dia. ball, double socket arm and Tab-Tite™ universal clamping cradle. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Specifications

Hardware included:
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

Holder dimensions:
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"

Clamp range:
1" - 1.25" diameter

Socket to socket length:
4.66"

Ball size:
C Size (1.5")

Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Weight:
1.58 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).

Resources

Instructions
