RAM MOUNTS | RAM Tab-Tite Holder for 10.1" - 10.5" Tablets with or without Case

Compatibility

Lenovo
K10 Tablet with or without case

Samsung
Tab A 10.1 (2016) with or without case

Tab A7 10.4 with or without case

Tab A8 10.5 with case

Tab A9+ with case

Tab S5e with or without case

Tab S6 Lite with or without case

Social
Mobile Rhino T100 with case

Description

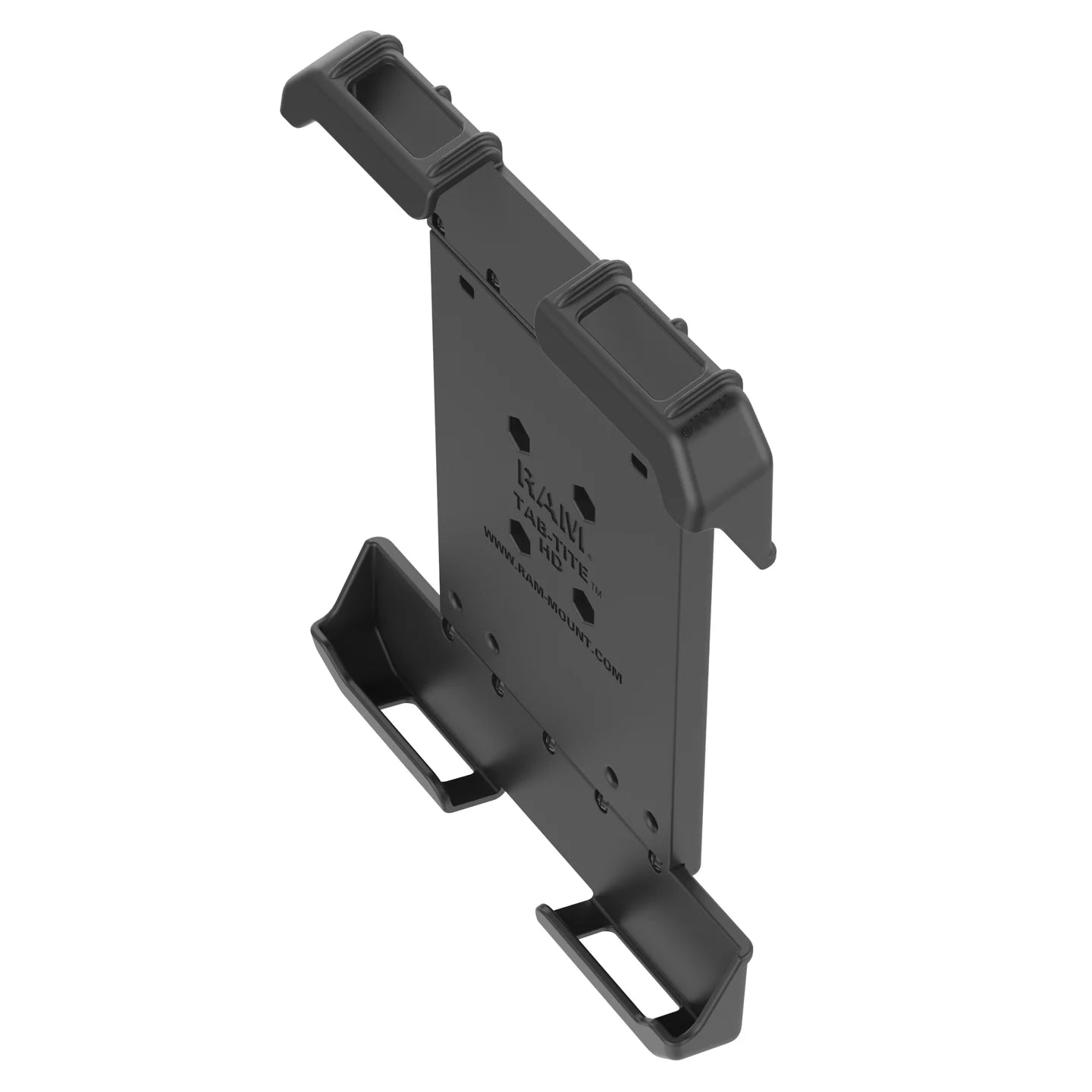

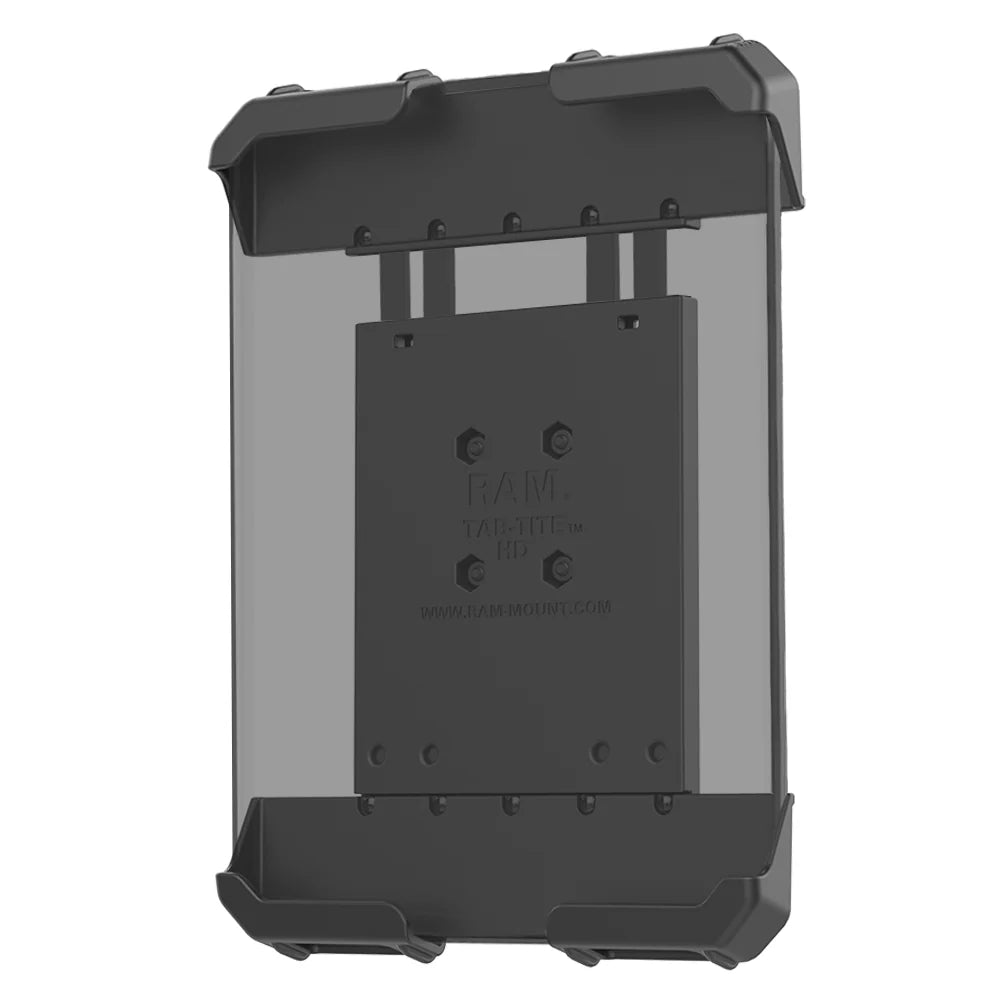

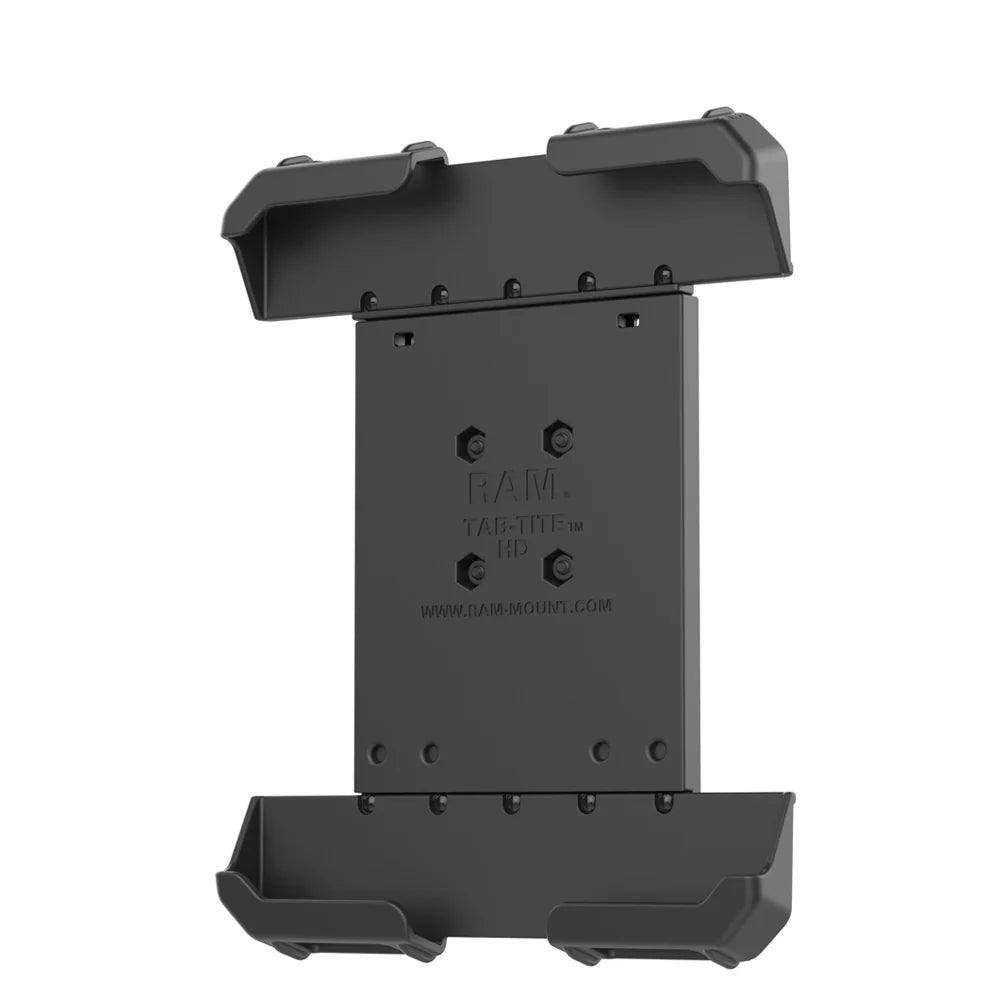

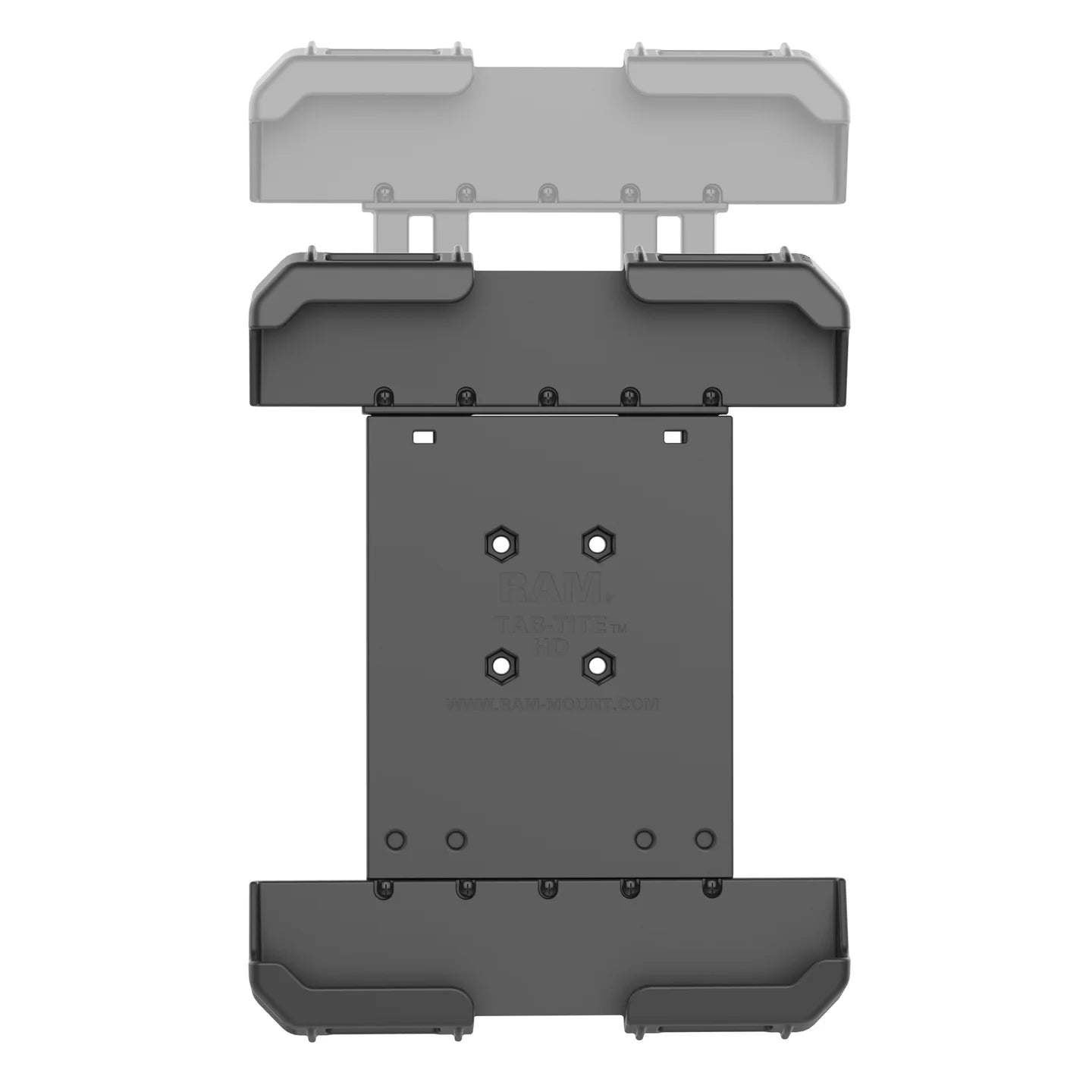

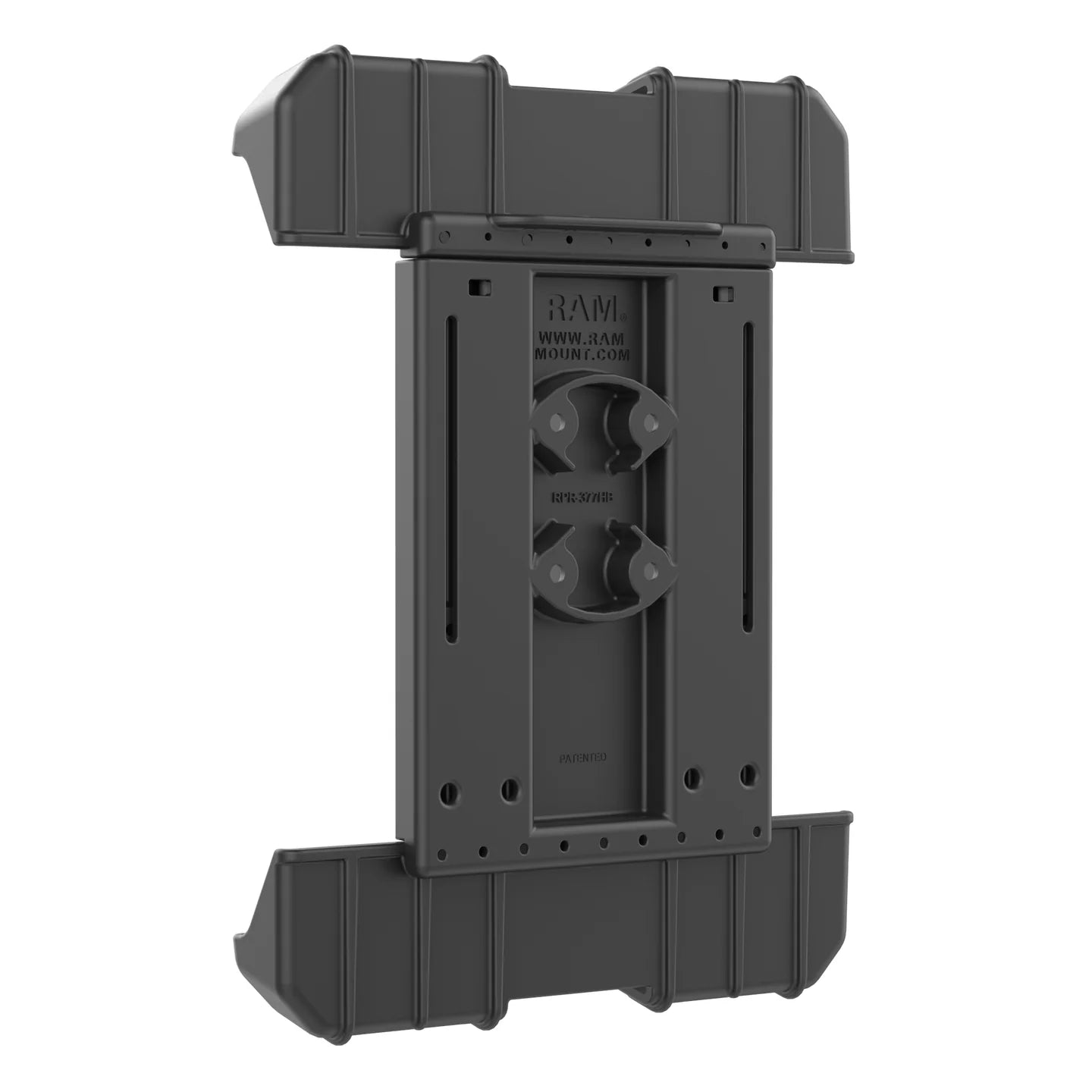

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted 9"-10" tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.

Features

Spring-loaded holder secures the Samsung Tab (S6 Lite, A7 10.4, S5e, and A 10.1) and Lenovo K10 Tablet with or without case; interchangeable end cups allow you to modify the holder when upgrading devices

Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

Holder dimensions:
Height Range: 9.55" - 11.8"
Width Range: 5.5" - 6.95"
Depth Range: .2" - .66" max

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"

Materials:
High strength composite

Packaging type:
Poly Bag

Weight:
0.62 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
