RAM MOUNTS | RAM Tab-Tite Handlebar U-Bolt Mount for Apple iPad Gen 1-4

Compatibility

Compatible Devices
Apple
iPad (1st Generation)

iPad (2nd Generation)

iPad (3rd Generation)

iPad (4th Generation)

iPad Air 4

iPad Air 5

iPad Pro 11"

iPad Pro 11" (2020)

iPad Pro 11" (2021)

ASUS
MeMO Pad FHD 10

Transformer Pad

Dell
Venue 10 7000

Venue 11 Pro 7000

HP
ElitePad 900

ElitePad 900 G1

Pro 610

Lenovo
S6000

Tab A10

ThinkPad 10

Yoga Tablet 10

Yoga Tablet 10 HD+

Yoga Tablet 2 (10 inch)

Description

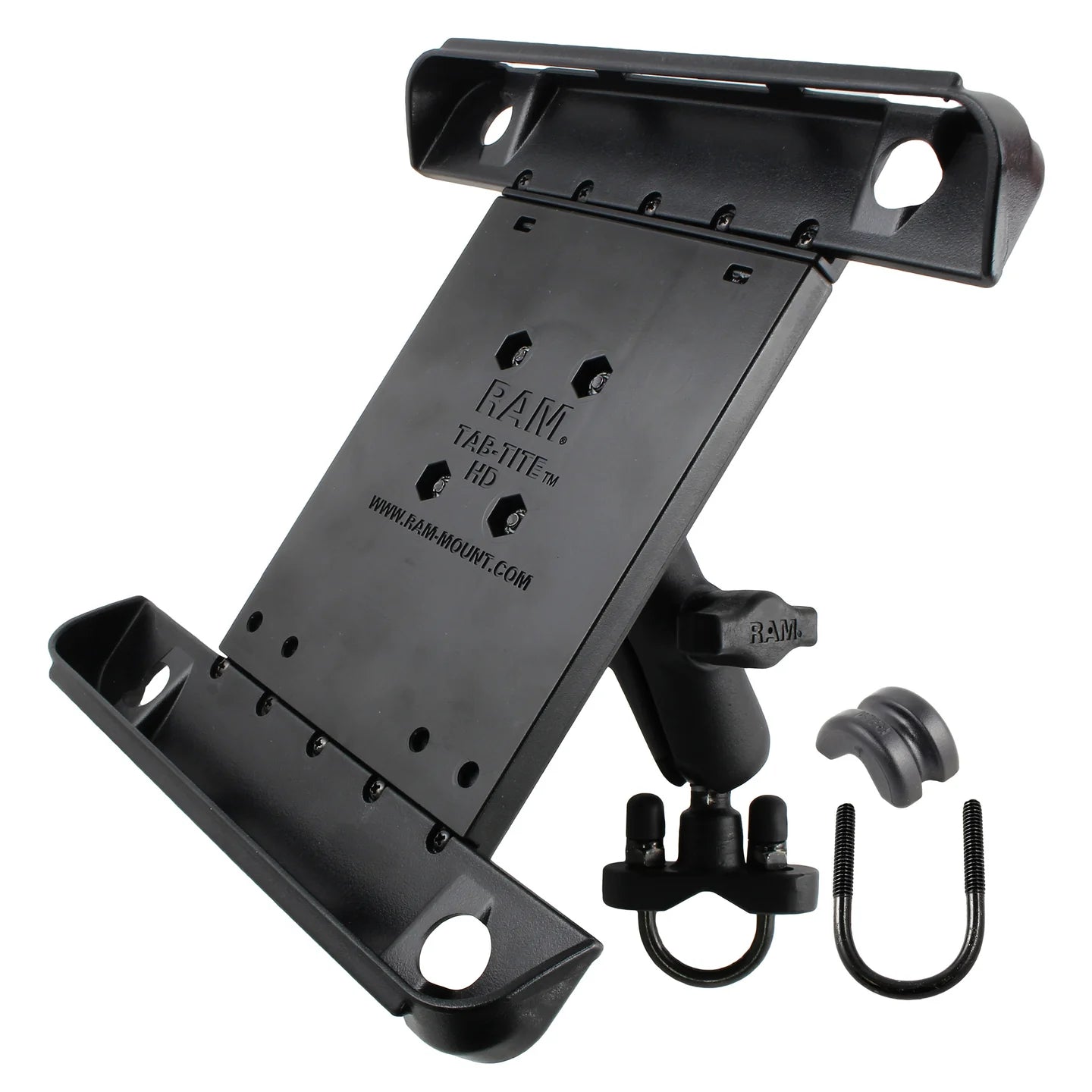

The RAM-B-149Z-TAB3U consists of a zinc coated u-bolt base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Specifications

Hardware included:
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Holder dimensions:
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

Clamp range:
.5" - 1.25" diameter

Socket to socket length:
3"

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Weight:
1.1 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided)
