RAM MOUNTS | RAM Tab-Tite Flat Surface Mount for iPad Gen 1-4 with Case + More

Compatibility

Apple
iPad (1st Generation) with Case

iPad 2 with Case

iPad (3rd Generation) with Case

iPad (4th Generation) with Case

iPad Air 4 with Case

iPad Air 5 with Case

iPad Pro 11" with Case

iPad Pro 11" (2020) with Case

Dell
Venue 10 7000 with Case

Google
Nexus 10 with Case

HP
ElitePad 900 G1 with Case

Pro 610 with Case

Pro Slate 10.1 with Case

Lenovo
S6000 with Case

Yoga Tablet 2 (10 inch) with Case

Description

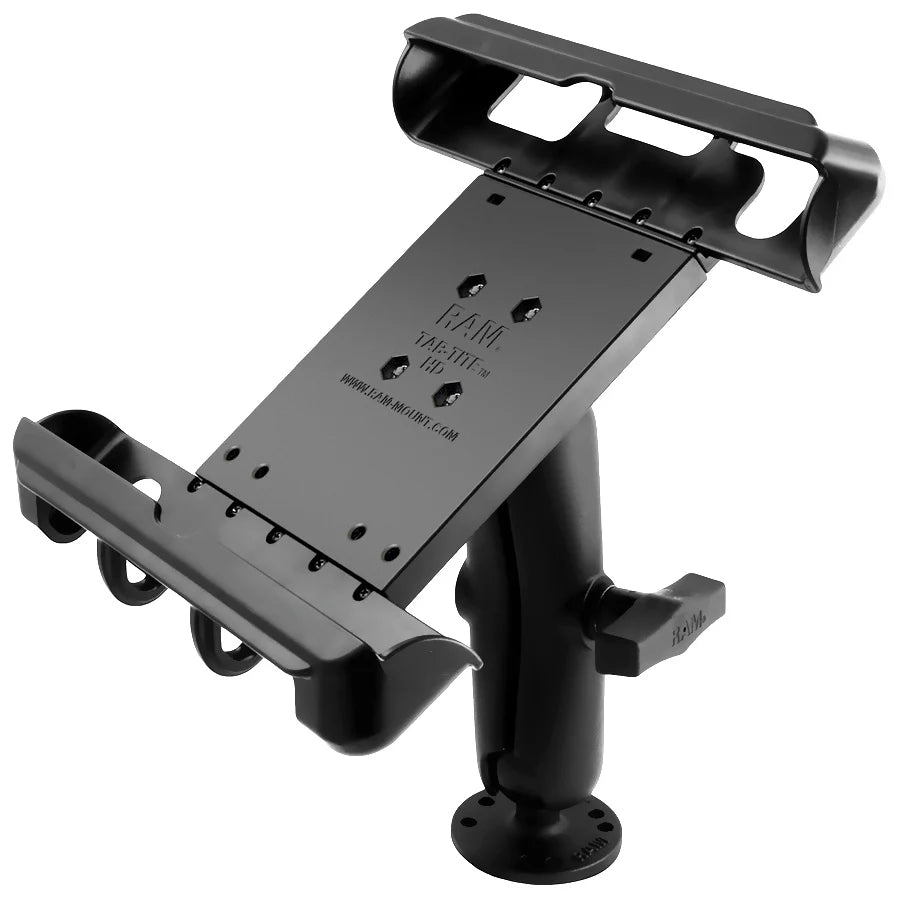

The RAM® Tab-Tite™ drill-down mount for large tablets consists of a 2.5" diameter C size round base with the universal AMPS hole pattern, double socket arm, round base adapter and RAM® Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The included RAM® Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets with heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The RAM® Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features

Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more; interchangeable end cups allow you to modify the holder when upgrading devices

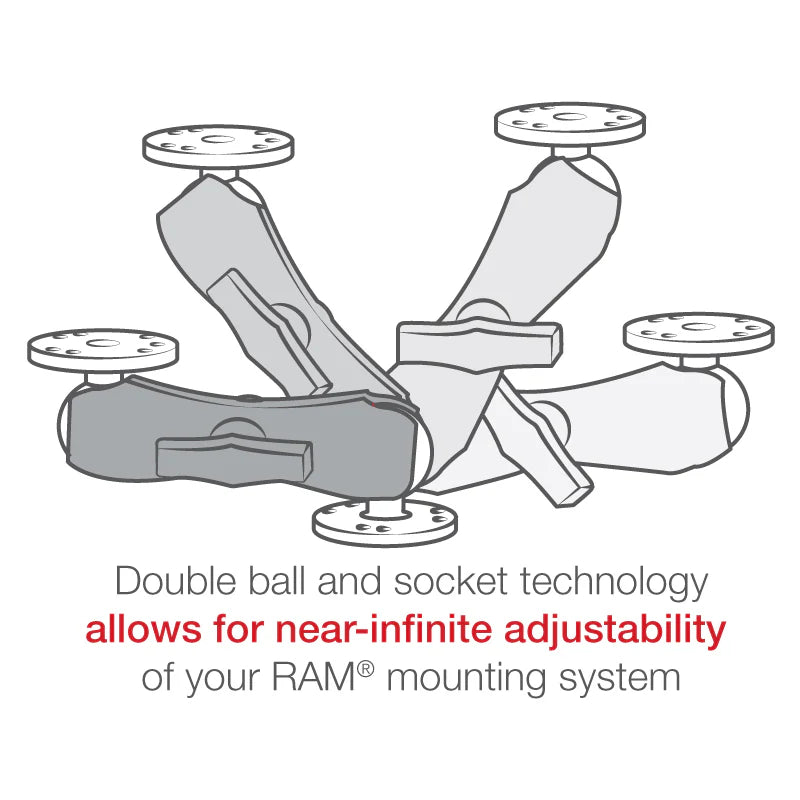

Includes C size medium length double socket arm and 2.5" diameter round base; ball and socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware

Holder dimensions:
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"

Socket to socket length:
4.66"

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate size:
2.5" Diameter

Ball size:
C Size (1.5")

Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Weight:
1.84 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
