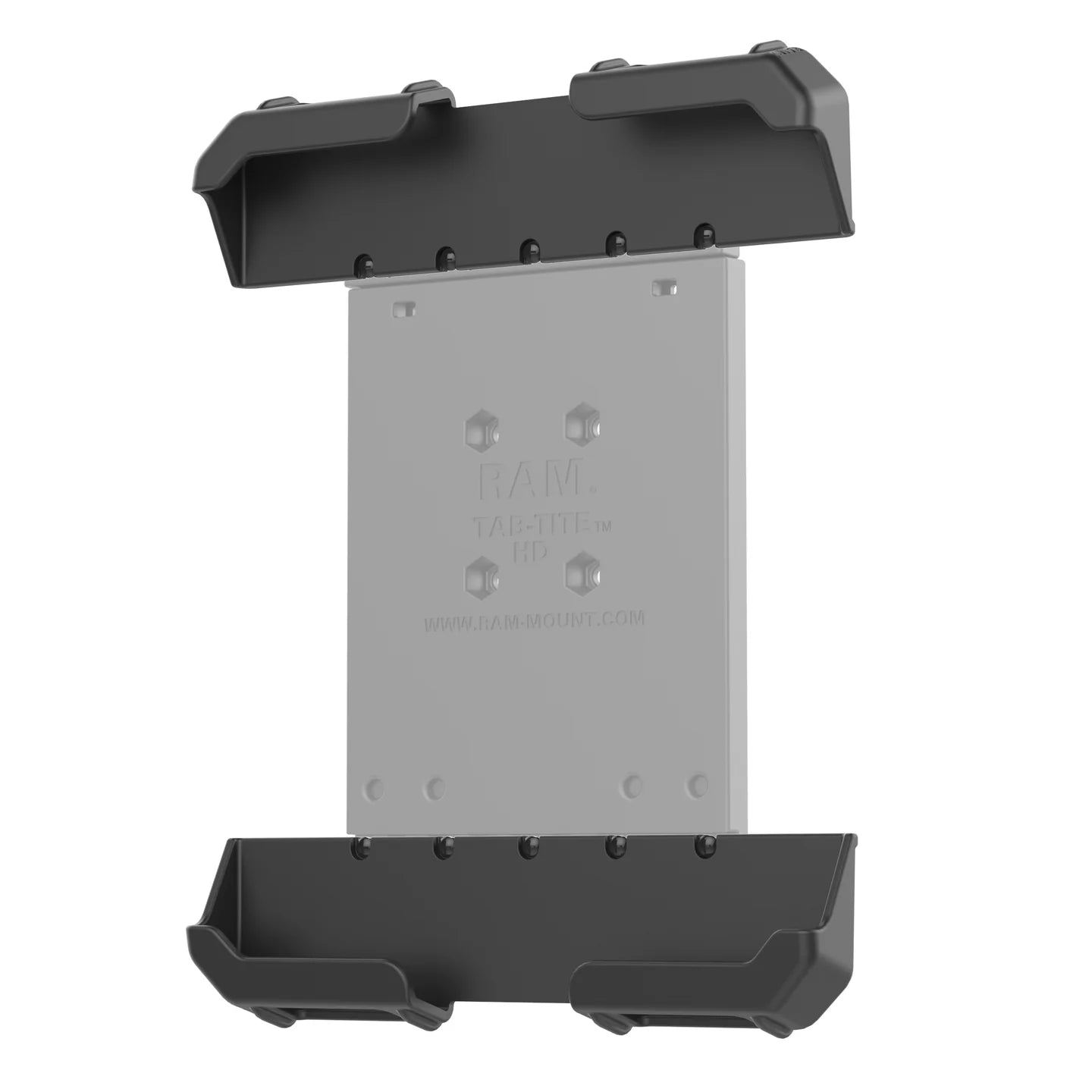

RAM MOUNTS | RAM Tab-Tite End Cups for 10.1" - 10.5" Tablets with or without Case

Compatibility

Compatible Devices
Lenovo
K10 Tablet with or without case

Samsung
Tab A 10.1 (2016) with or without case

Tab A7 10.4 with or without case

Tab A8 10.5 with case

Tab A9+ with case

Tab S5e with or without case

Tab S6 Lite with or without case

Social
Mobile Rhino T100 with case

Description

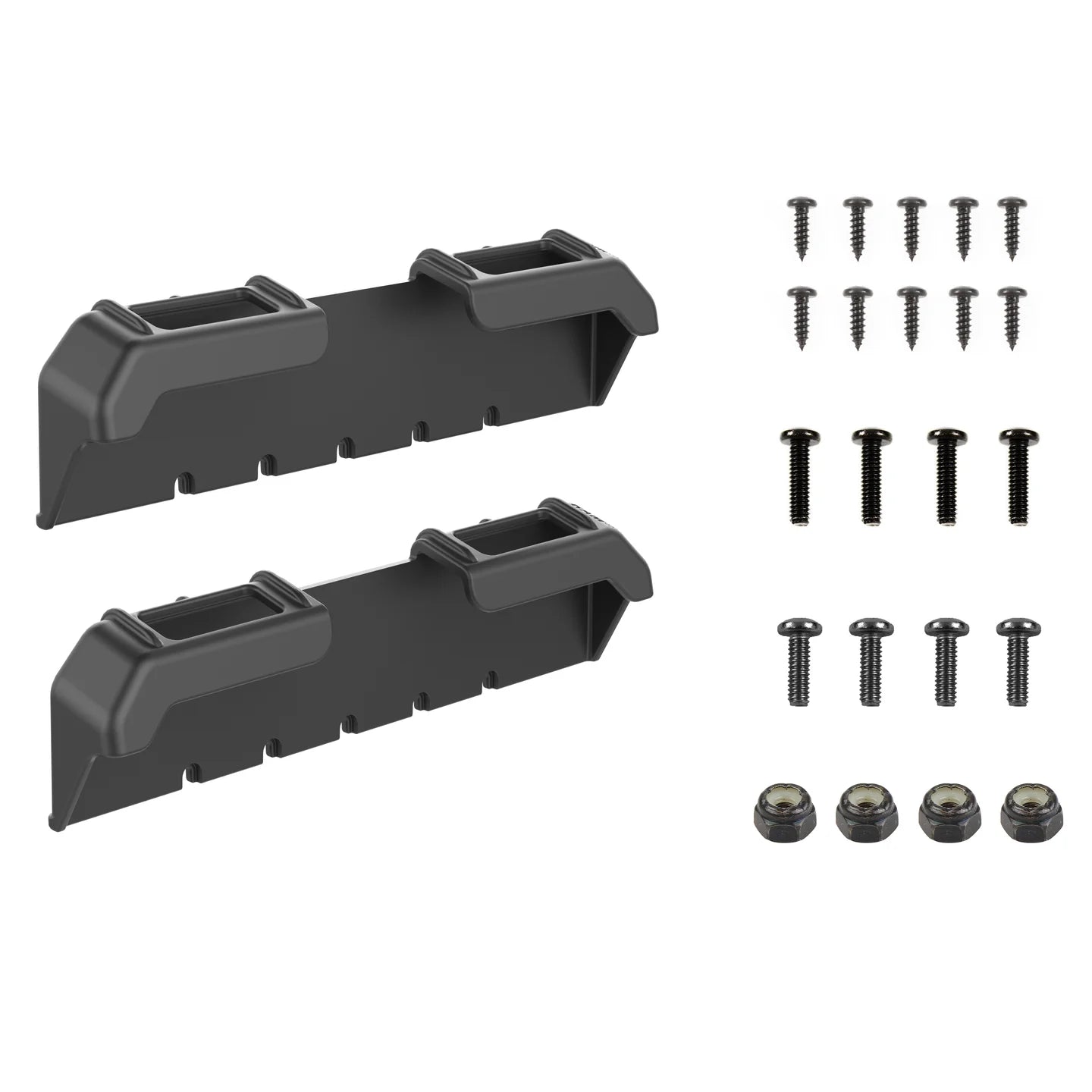

The RAM-HOL-TAB33-CUPSU includes (2 qty) Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite™ and Tab-Lock™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate.

Features

Interchangeable RAM® Tab-Tite™ end cups support the Samsung Tab (S6 Lite, A7 10.4, S5e, and A 10.1) and Lenovo K10 Tablet with light-duty cases

Included hardware allows for easy attachment to RAM® Tab-Lock™ and RAM® Tab-Tite™ backplates

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

Holder dimensions:
Width Range: 5.5" - 6.95"
Depth Range: .2" - .66" max

Materials:
High strength composite

Packaging type:
Poly Bag

Weight:
0.28 lb
