RAM MOUNTS | RAM Tab-Tite 9"-10.5" Tablet Holder with Flat Surface Mount

Description

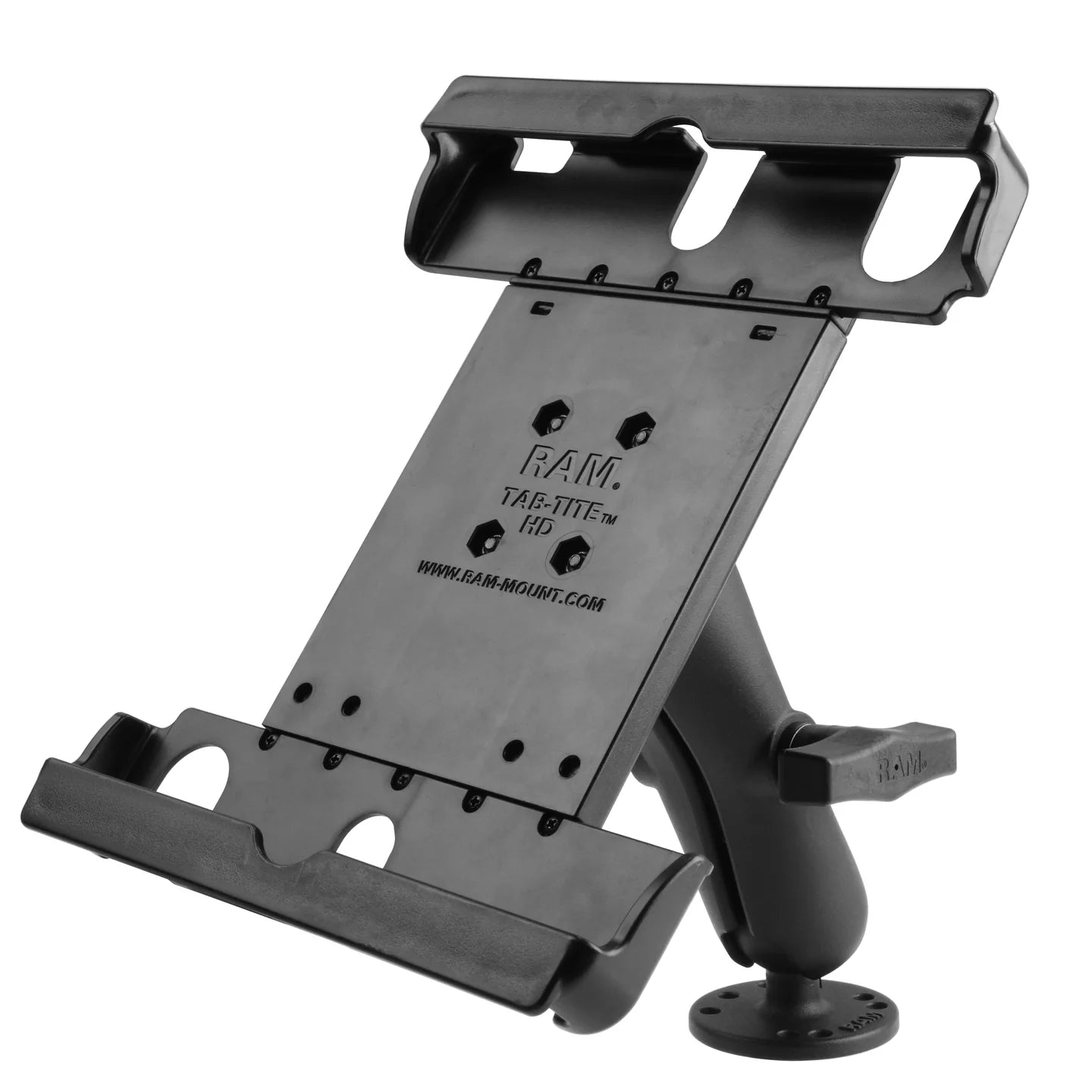

This C size drill-down mount comes equipped with the RAM® Tab-Tite™ holder for 9"-10.5" tablets with a case. This kit consists of two 2.5" diameter round bases that contains the universal AMPs hole pattern, and a C size double socket arm. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The rugged double ball and socket mounting system dampens shock and vibration, helping to extend the life of your device.

Features

Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices

Includes two C size drill-down round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware

Holder dimensions:
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

Socket to socket length:
4.66"

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate size:
2.5" Diameter

Ball size:
C Size (1.5")

Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Weight:
1.86 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
