RAM MOUNTS | RAM Tab-Lock Holder for Samsung Tab S7+, S7 FE, S8+ & S9+ with Case

Compatibility

Samsung
Galaxy Tab S10 FE+ with Case

Galaxy Tab S9 FE+ with Case

Galaxy Tab S9+ with Case

Galaxy Tab S8+ with Case

Galaxy Tab S7+ with Case

Galaxy Tab S7 FE with Case

Additonal Information:
This holder is intended for larger, heavy duty cases. Thin or light duty cases may sit relatively loosely in the holder. For a better solution to support lighter duty cases, see RAM® X-Grip® option RAM-HOL-UN11U.

Description

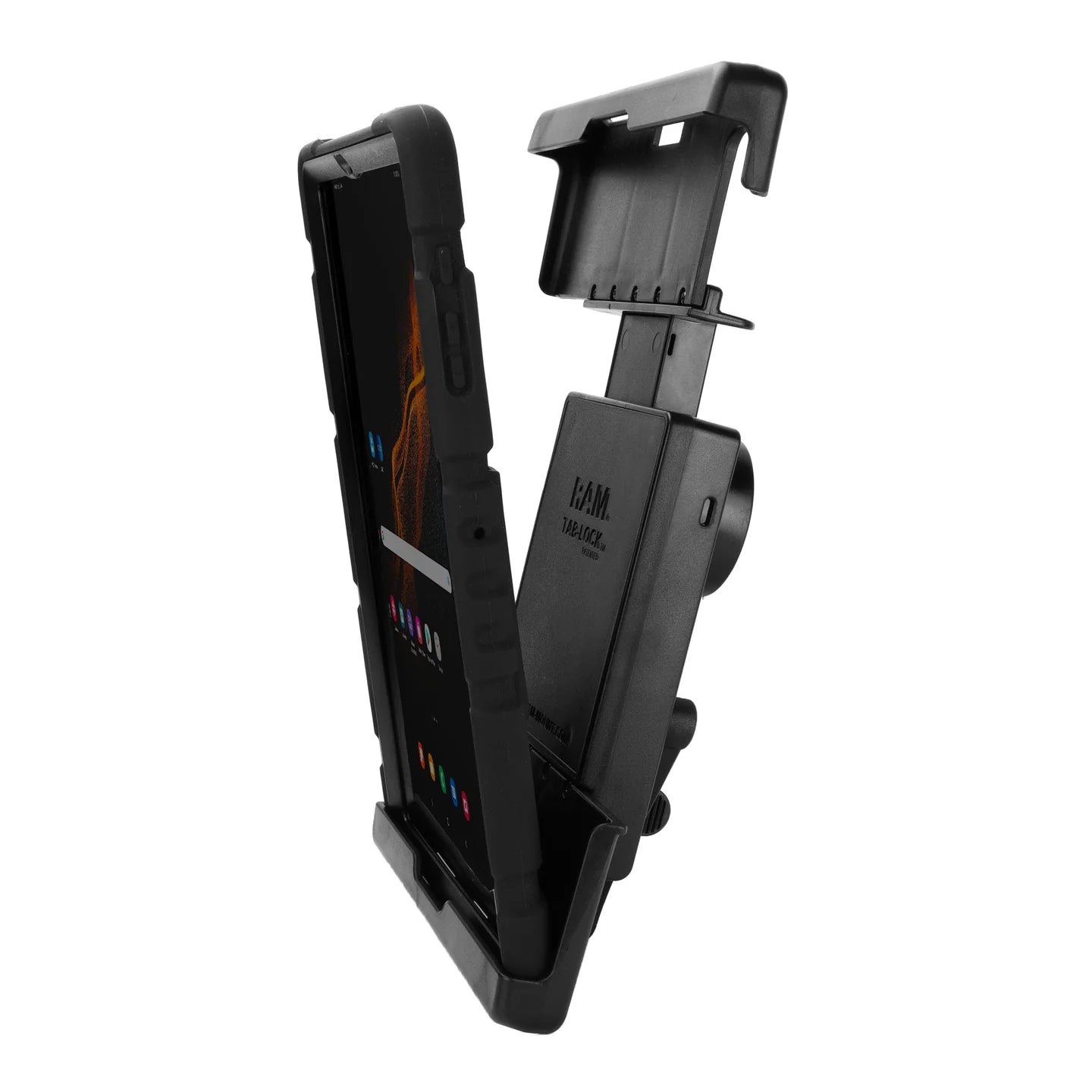

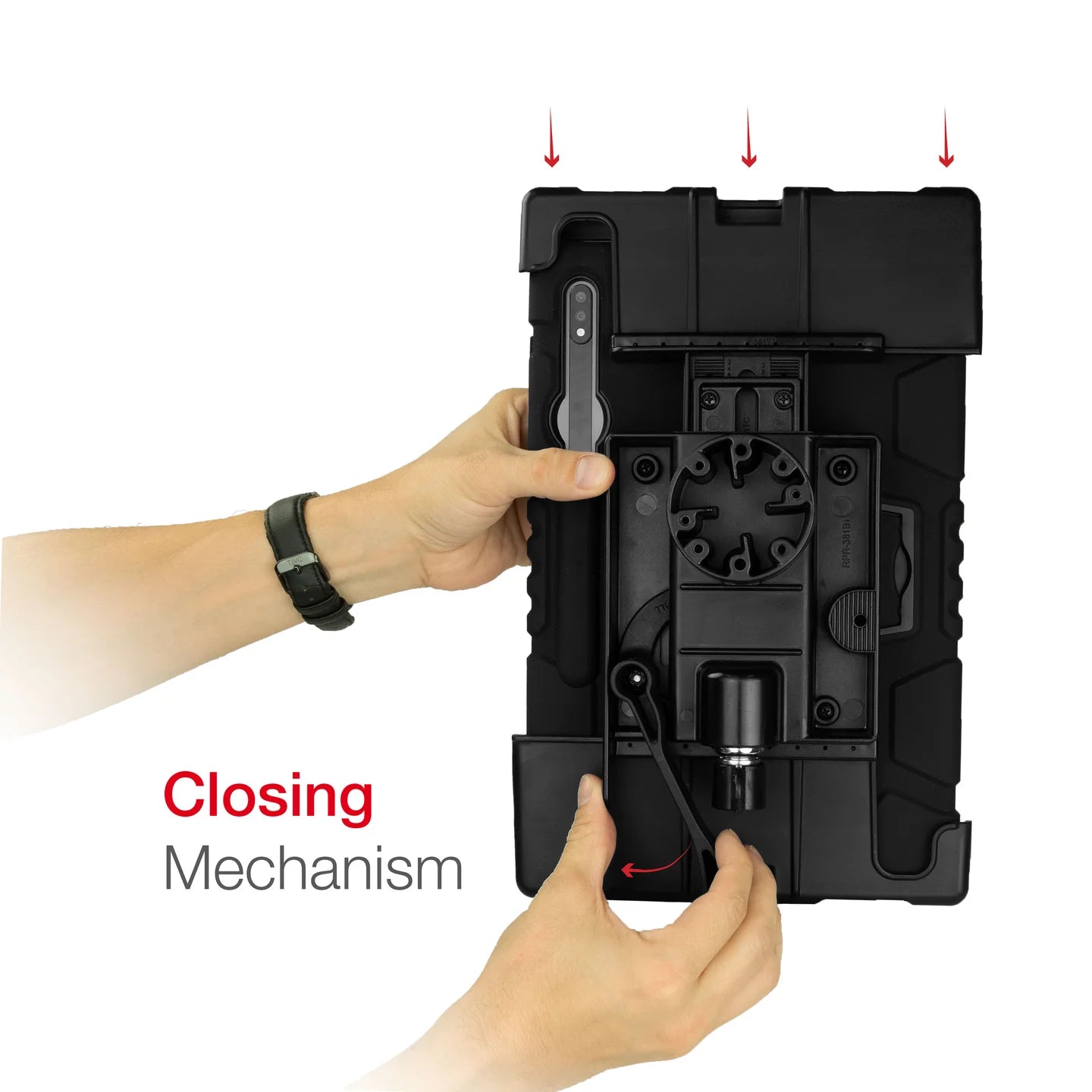

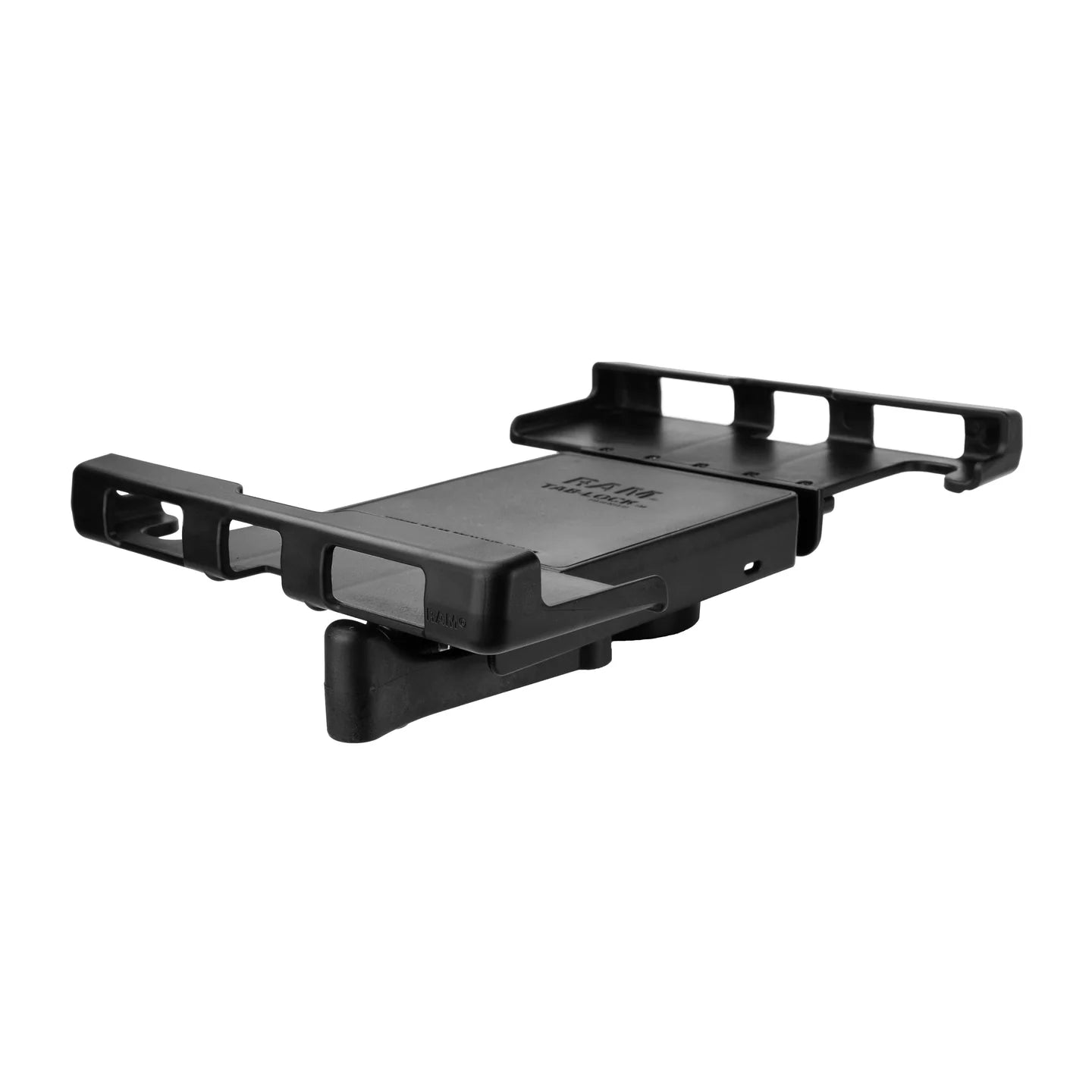

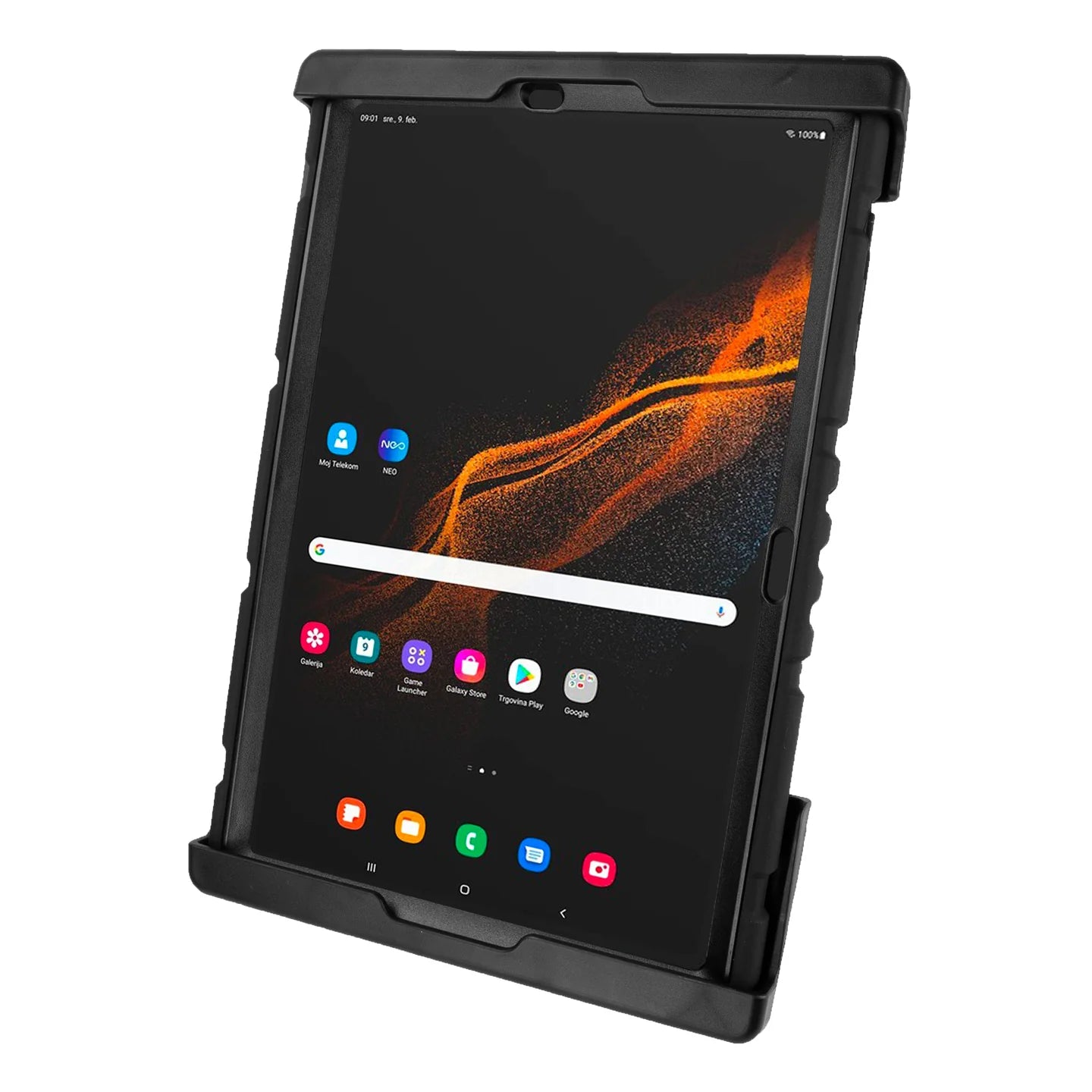

The RAM® Tab-Lock™ Holder for Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with Case (RAM-HOL-TABL36U) is a spring-loaded, quick-release device holder that features a key-lock for theft deterrance. The spring-loaded design makes it easy to insert and remove your tablet while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. This holder is compatible with the Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with a case.

Features

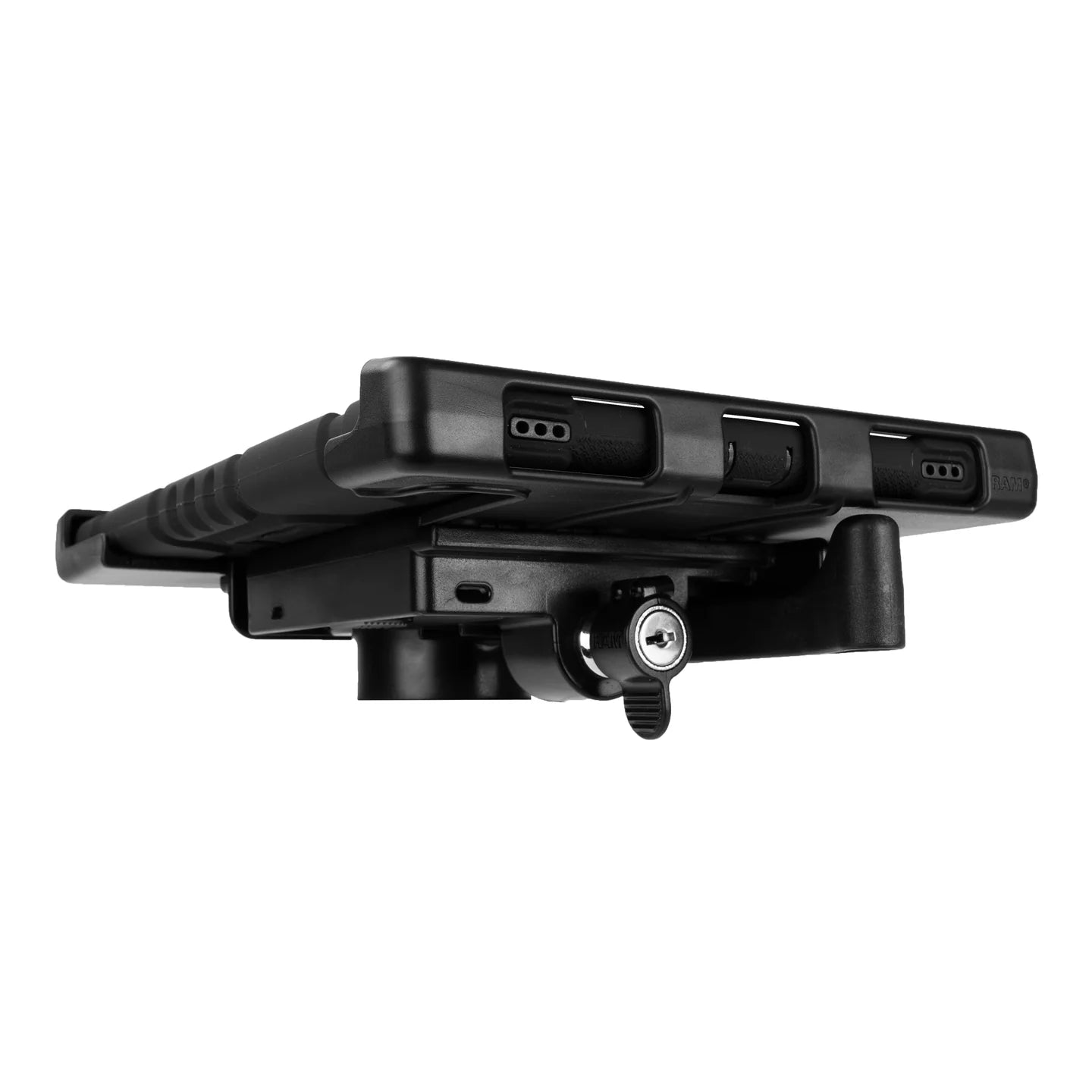

Spring-loaded, key-locking holder secures the Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with a case; interchangeable end cups allow you to modify the holder when upgrading devices

Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

Holder dimensions:
Height Range: 11.5" - 14"
Max Width: 8.125"
Max Depth: .79"

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"

Materials:
High strength composite

Packaging type:
Poly Bag

Weight:
1.27 lb

Additional Information:
This holder is intended for larger, heavy duty cases. Thin or light duty cases may sit relatively loosely in the holder. For a better solution to support lighter duty cases, see RAM® X-Grip® option RAM-HOL-UN11U.

If your case has a built-in hand strap or kickstand, offset risers may be required: RAM-HOL-TAB-RISER2U.

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
