RAM MOUNTS | RAM Suction Mount for iPad Pro 11" 1-4 Gen, Air 4, 5 & 11" (M2 & M3)

Compatibility

Compatible Devices
Apple
iPad Air 4

iPad Air 5

iPad Air 11 (M2)

iPad Air 11 (M3)

iPad Pro 11" (2020)*

iPad Pro 11" (2021)*

iPad Pro 11" (2022)*

Additonal Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.

Description

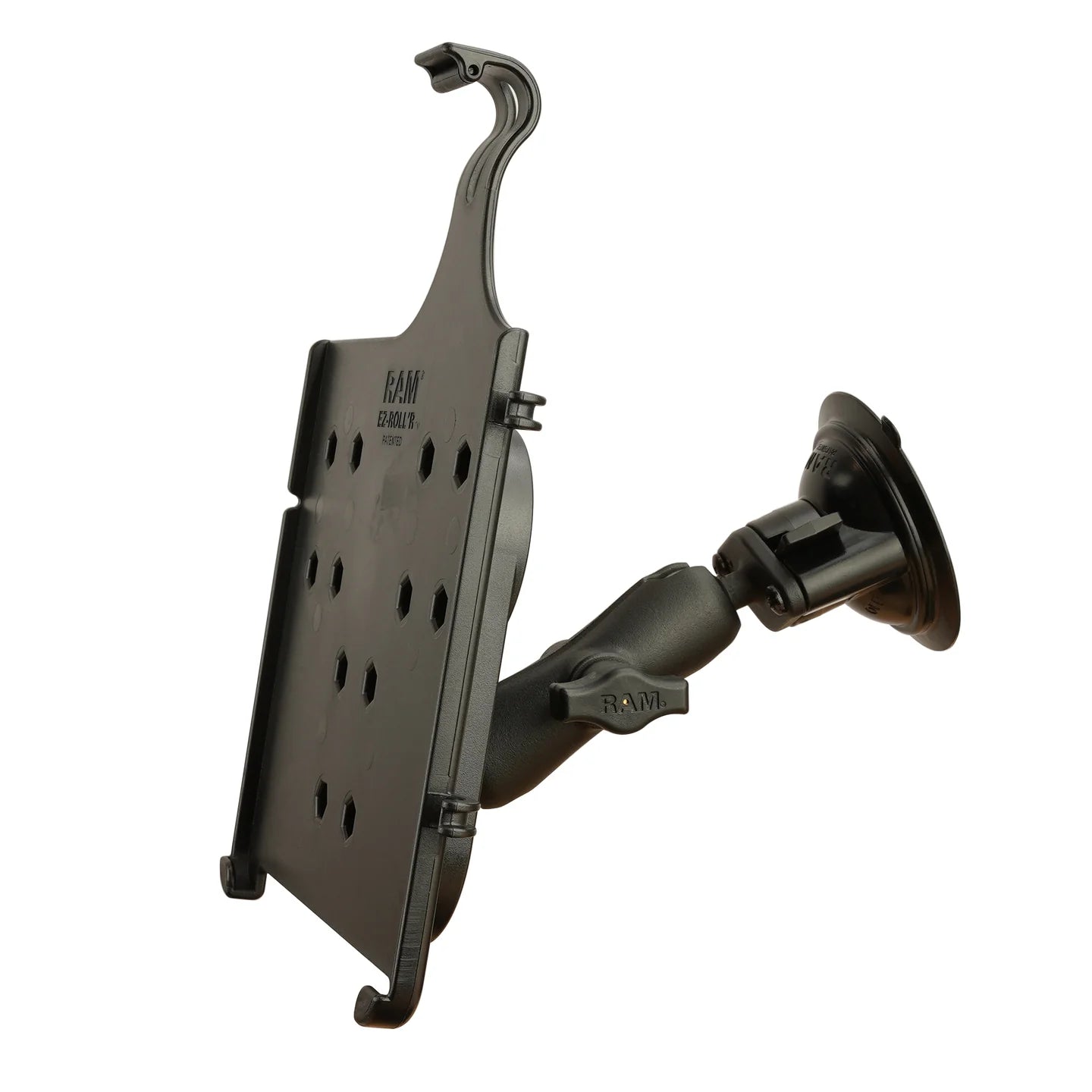

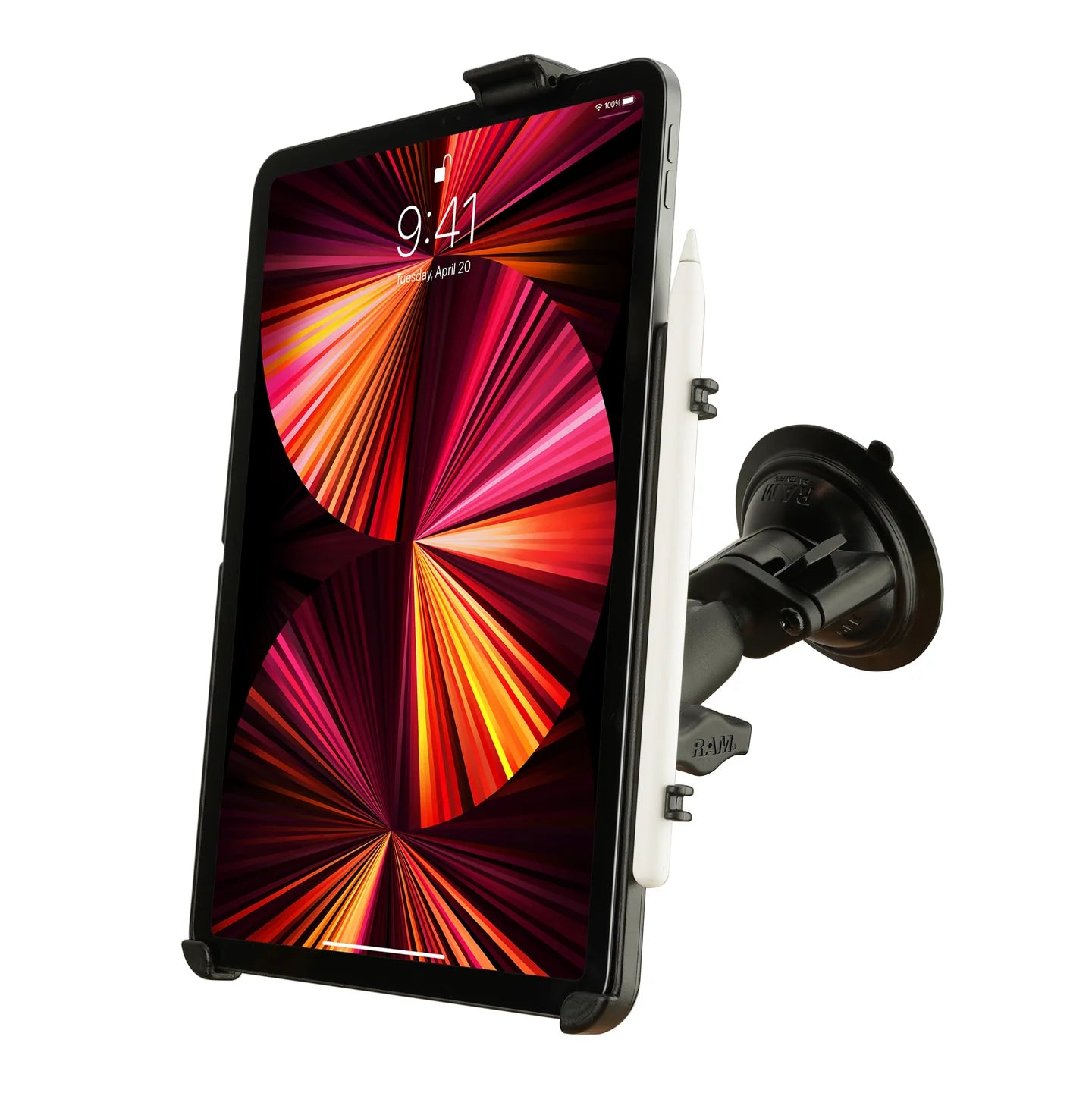

The RAM® EZ-Roll’r™ cradle for the iPad Pro 11”, iPad Air 4, Air 5 & Air 11 (M2 & M3) secures your device in a form-fit holder while keeping the entire screen visible. Included is the RAM-B-166-202U which consists of a 3.3" suction cup twist lock base, double socket arm and round base adapter that contains the universal AMPS hole pattern. Simply slide your iPad into the cradle and roll the top clip over the device to secure into place. The side buttons, camera, and charging port are conveniently exposed and accessible. This RAM® EZ-Roll’r™ cradle also features three attachment points on the back to attach a RAM® round ball base. An attachment point on the side of the cradle allows for the placement and removal of the Apple Pencil. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM® adhesive disks. The hole pattern found on the round base adapter will connect to most RAM® cradles and 3rd party cradles.

Features

Form-fit cradle for the iPad Pro 11" (1st - 4th Gen) & Air 4-5, Air 11 (M2 & M3) provides a perfect fit for your device without a case

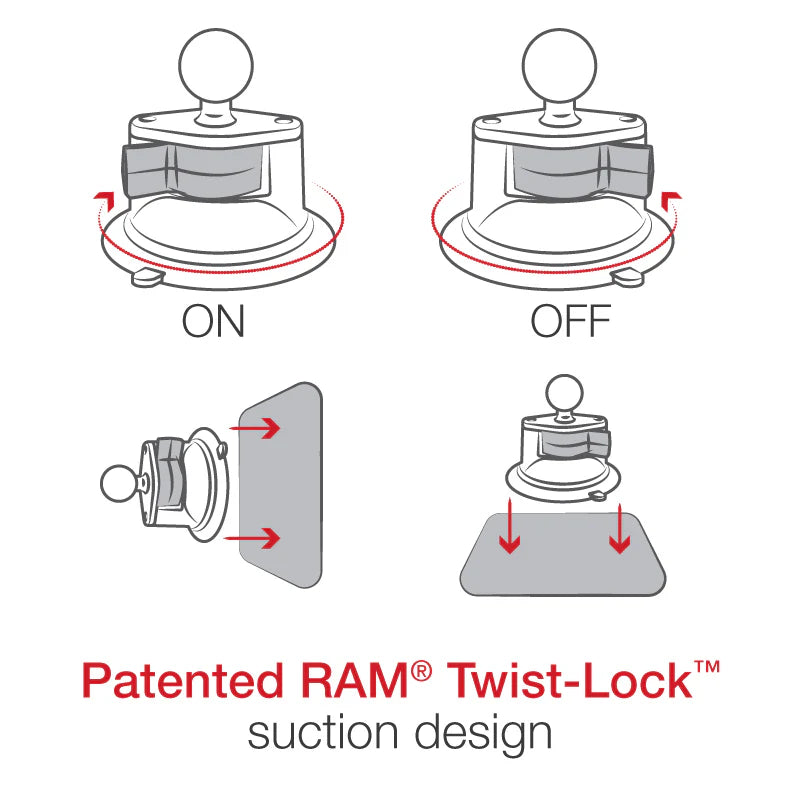

RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other non-porous surfaces

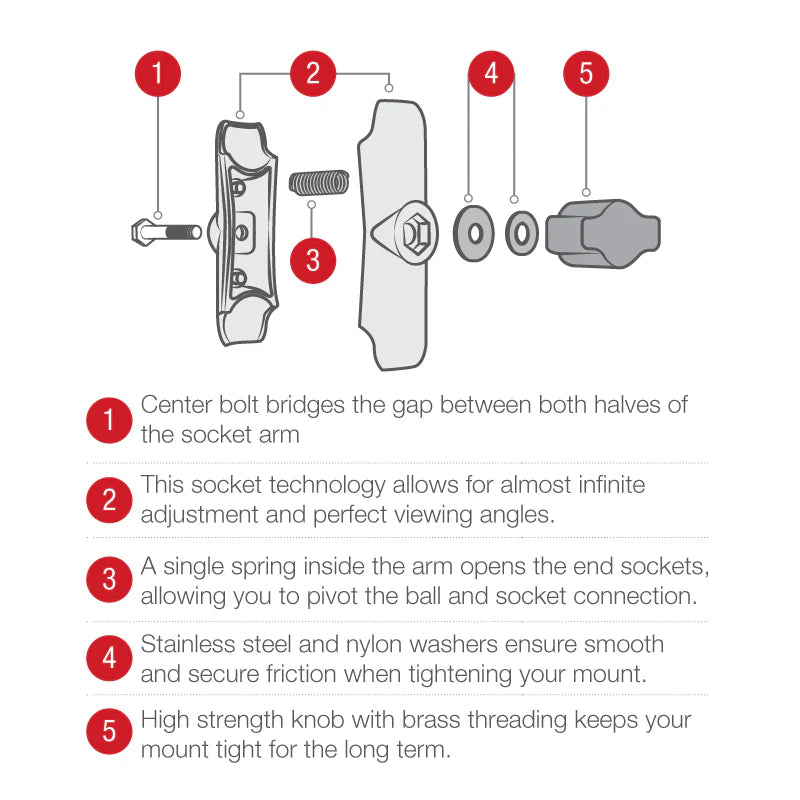

Includes B size medium length RAM® double socket arm and 2.5" round base with B size 1" rubber ball; ball and socket technology allows for near-infinite adjustability

Made of marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty*

Specifications

Hardware included:
Assembly Hardware

Suction size:
3.3" Diameter

Socket to socket length:
3"

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Weight:
1.14 lb

Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
