RAM MOUNTS | RAM Quick-Grip XL Phone Mount with Vibe-Safe & U-Bolt Base - Short

Description

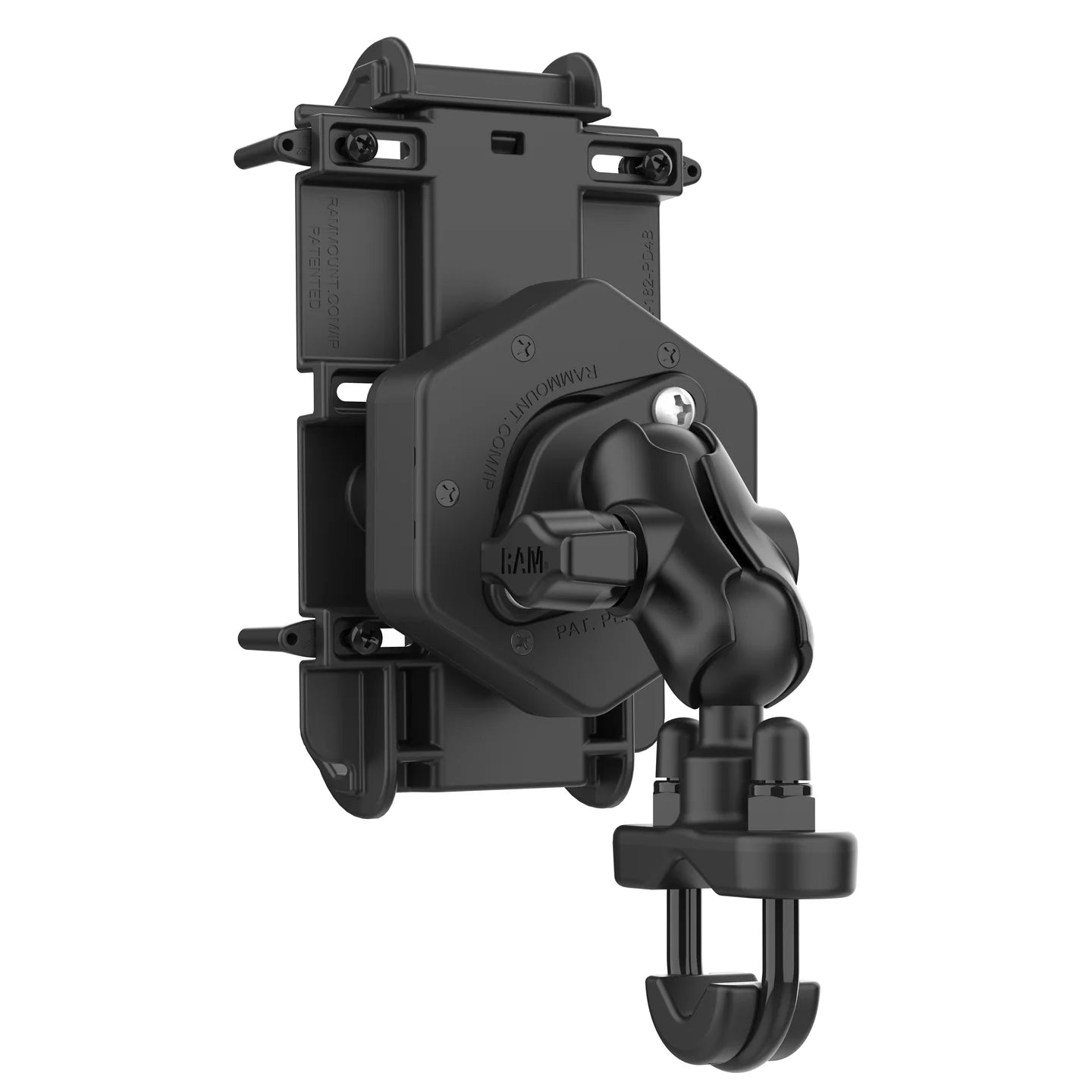

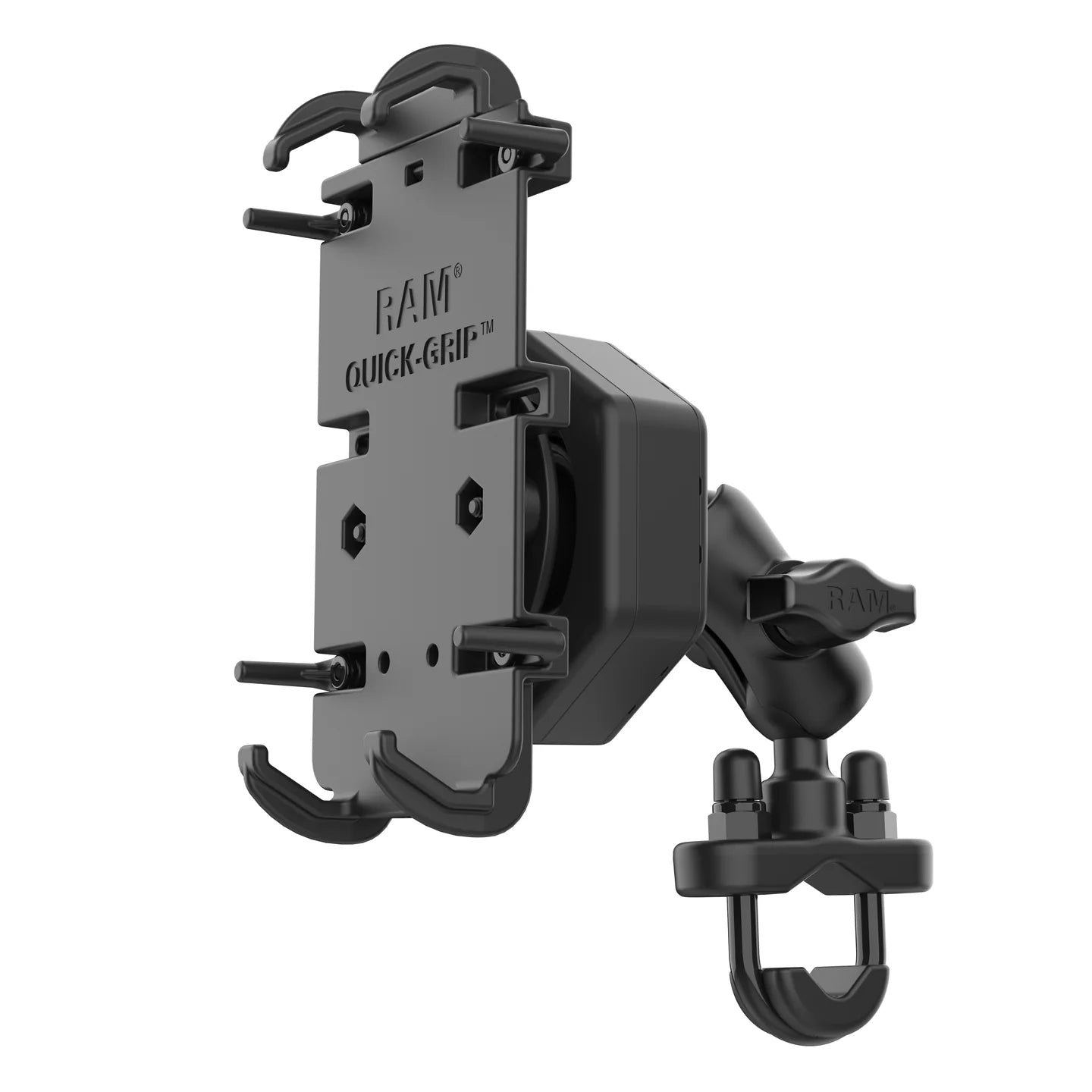

The RAM® Quick-Grip™ XL Phone Mount with RAM® Vibe-Safe™ & U-Bolt Base - Short (RAM-B-149Z-A-PD4-462) is a combination of the RAM® Quick-Grip™ XL Phone Mount and the RAM® Vibe-Safe™—our vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM® Vibe-Safe™ is based on an NPT connection point and boasts the versatility to rotate between portrait and landscape while keeping your device secure in rugged environments. This product includes one (1) short B size arm and one (1) RAM® U-Bolt Base that accommodates rails from .5" - 1.25" in diameter. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

RAM® Vibe-Safe™ dampens a wide range of vibration frequencies

NPT thread connection allows for rotation between portrait and landscape while remaining secure

Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments

Unique structure and thoughtfully designed with all industries in mind

Backed by a lifetime warranty

Specifications

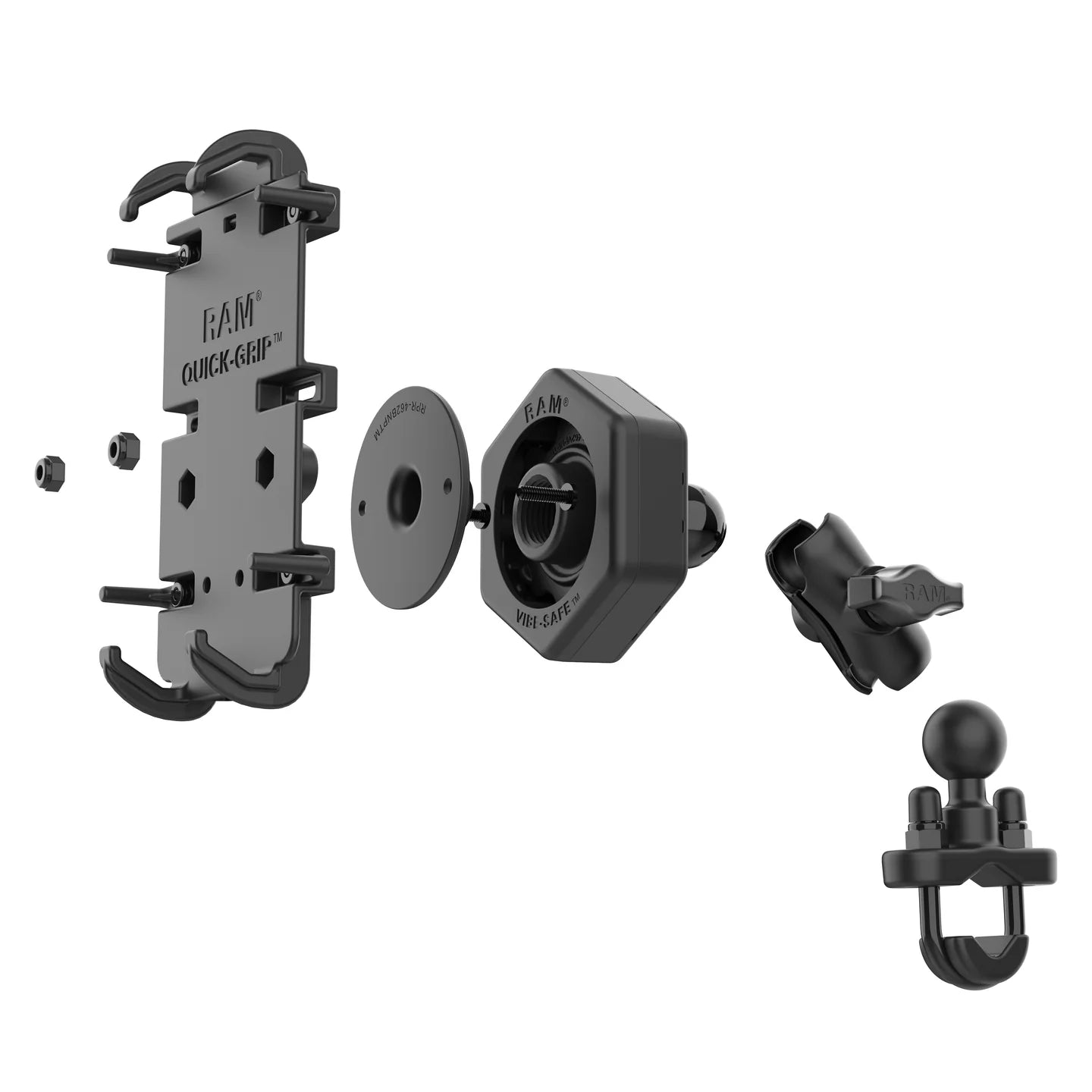

Hardware included:

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Holder dimensions:

Height Range: 5.75" - 8.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

Clamp range:

.5" - 1.25" diameter

Socket to socket length:

1.75"

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite

Packaging type:

Retail Bag

Weight:

1.13 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
