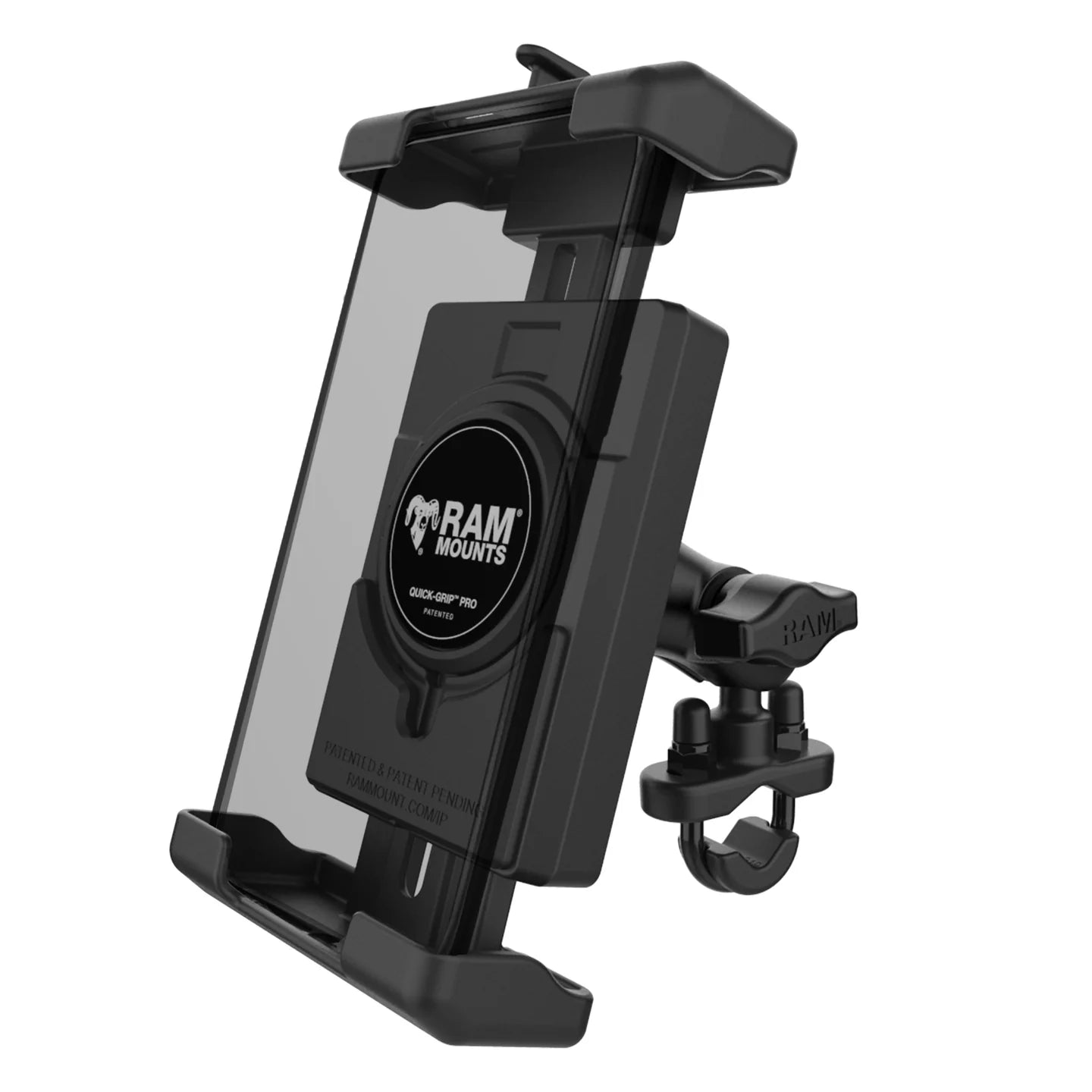

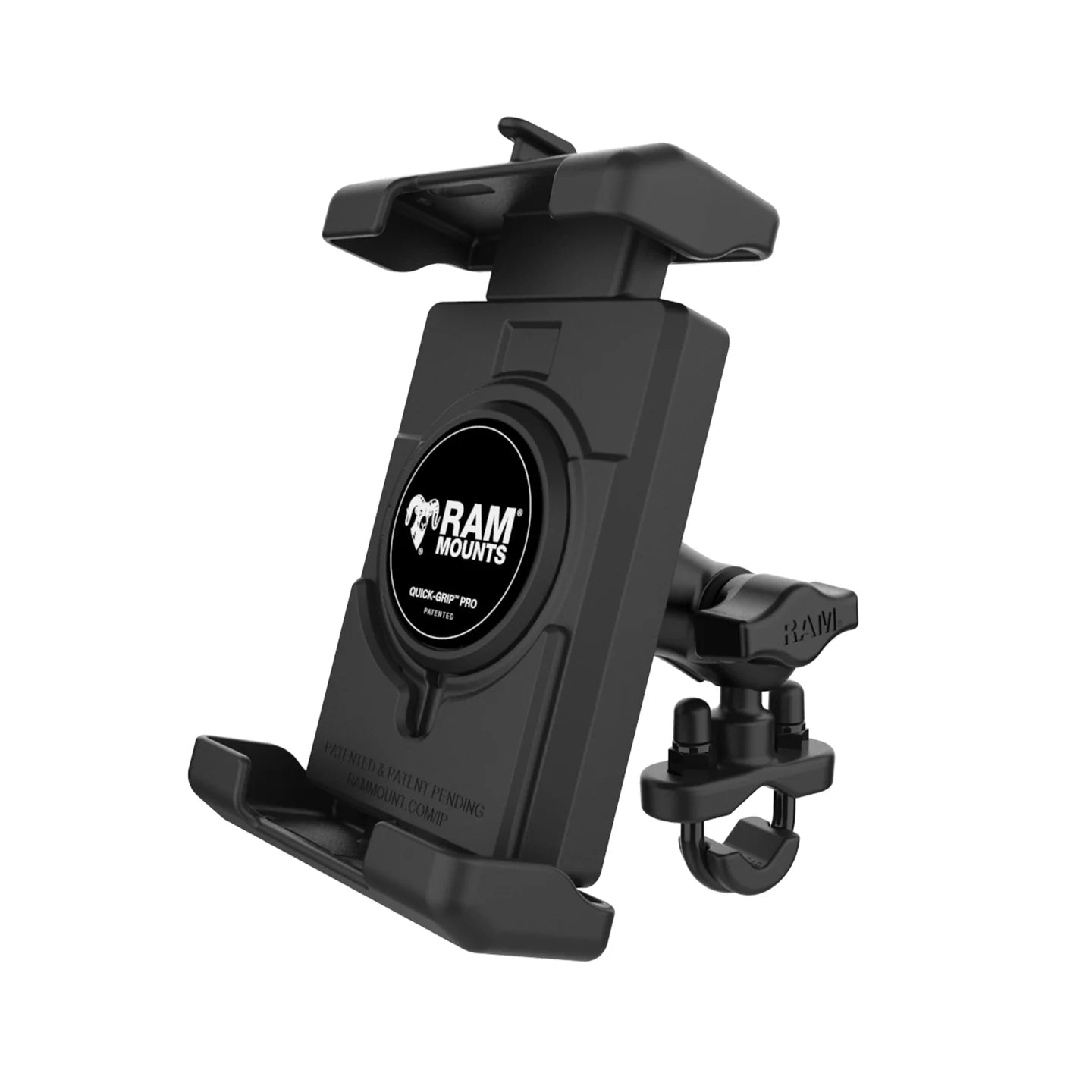

RAM MOUNTS | RAM Quick-Grip Pro XL Phone Mount with Handlebar U-Bolt Base - Short

Description

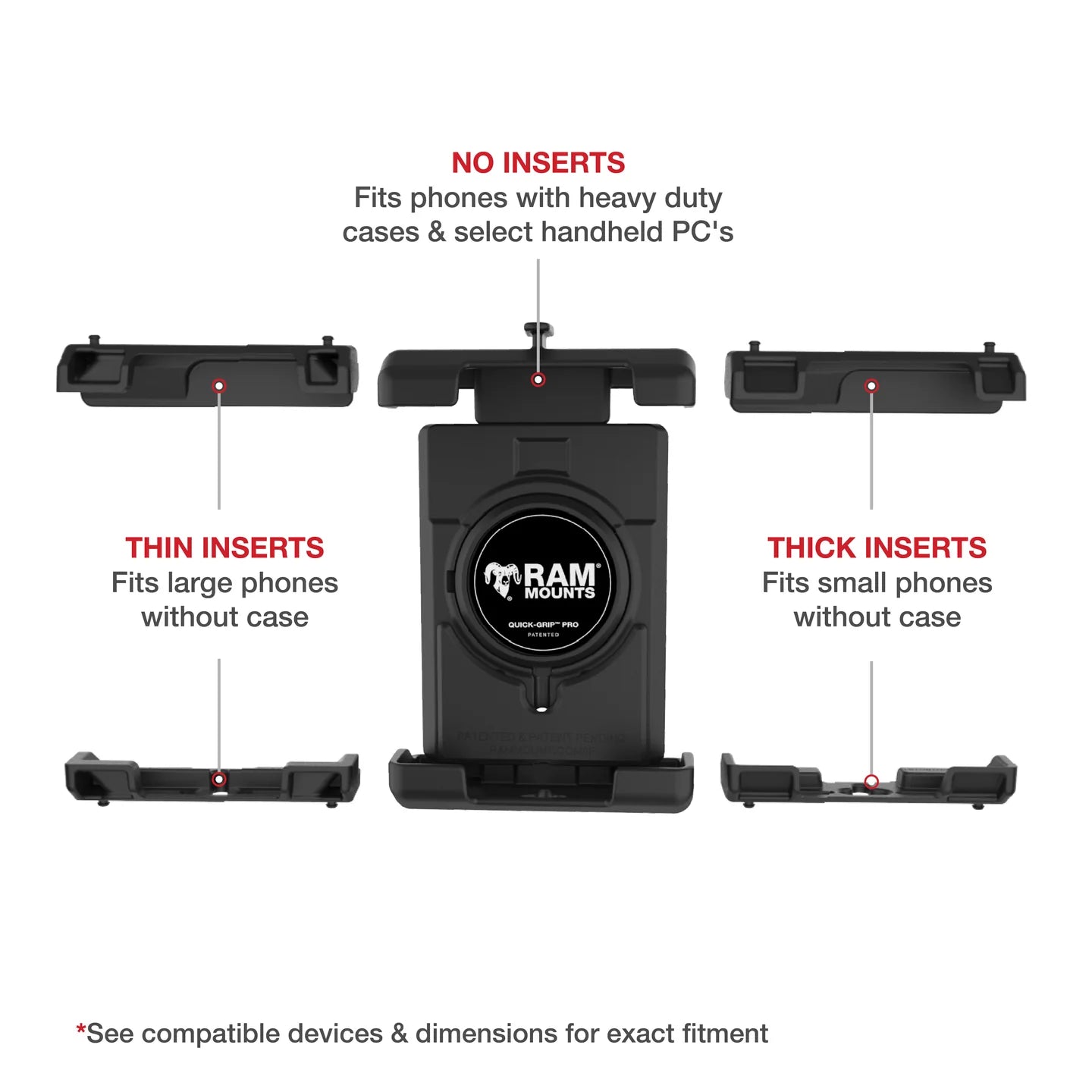

The RAM® Quick-Grip™ Pro XL Phone Mount with Handlebar U-Bolt Base - Short (RAM-B-149Z-A-PD7U) is the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Features

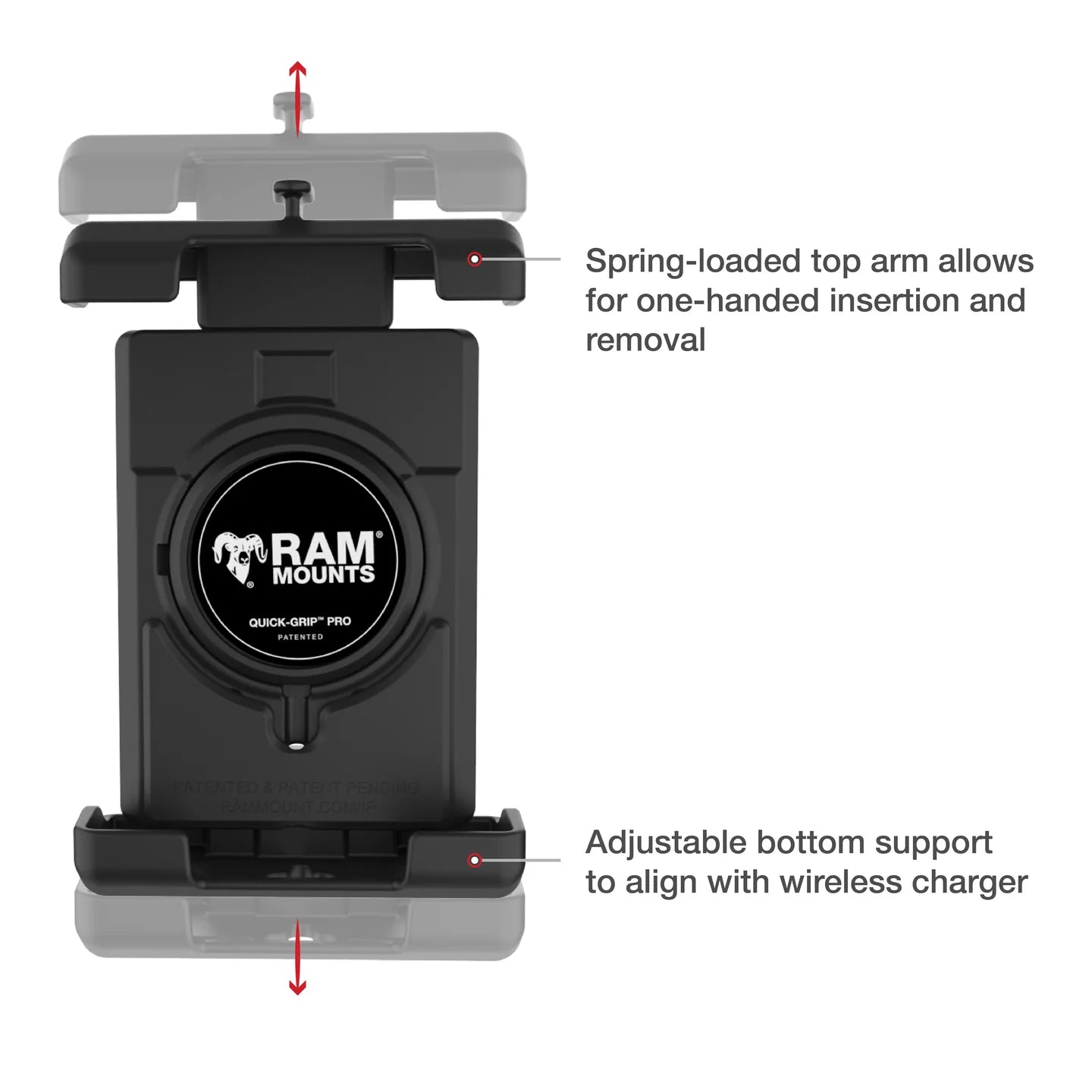

Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

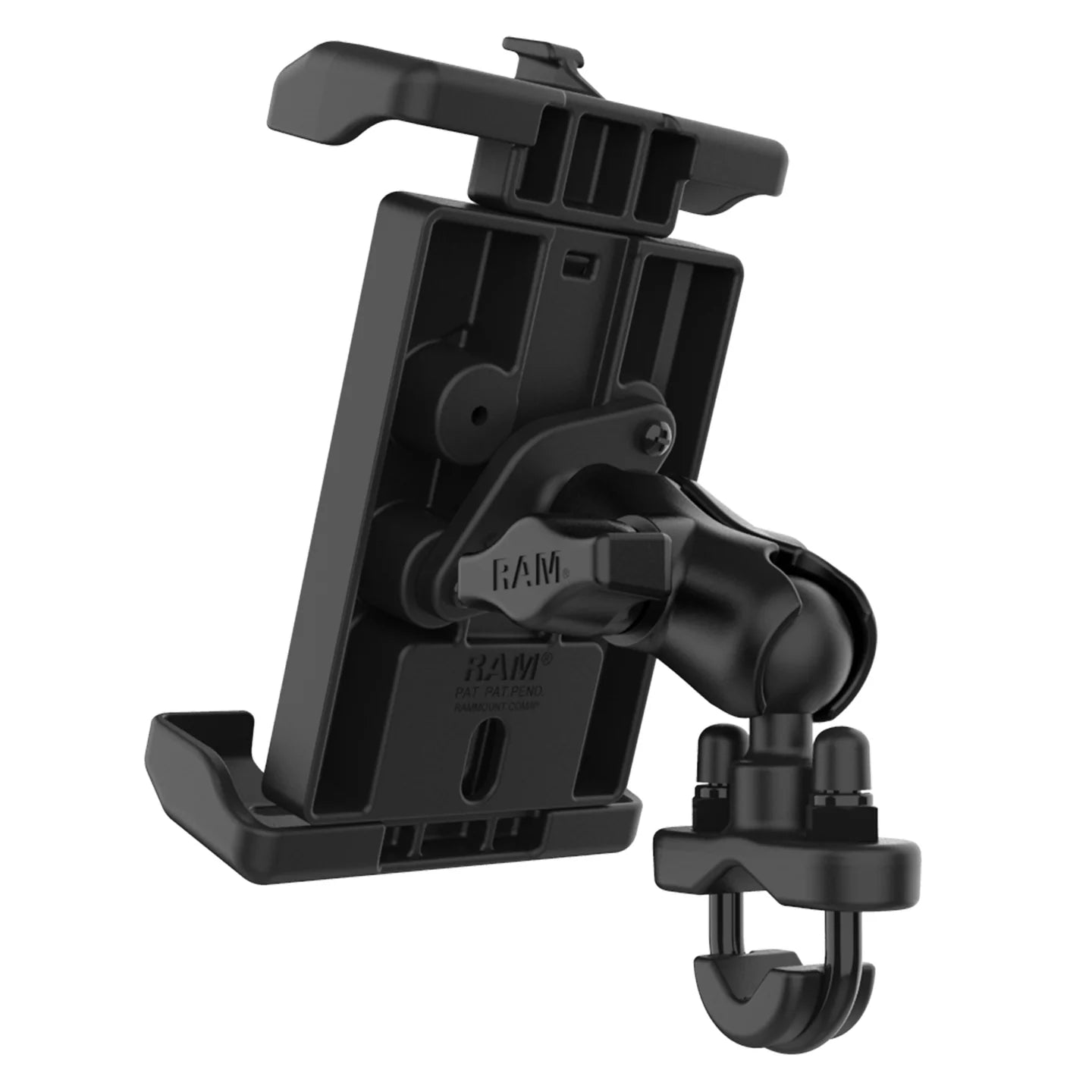

Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

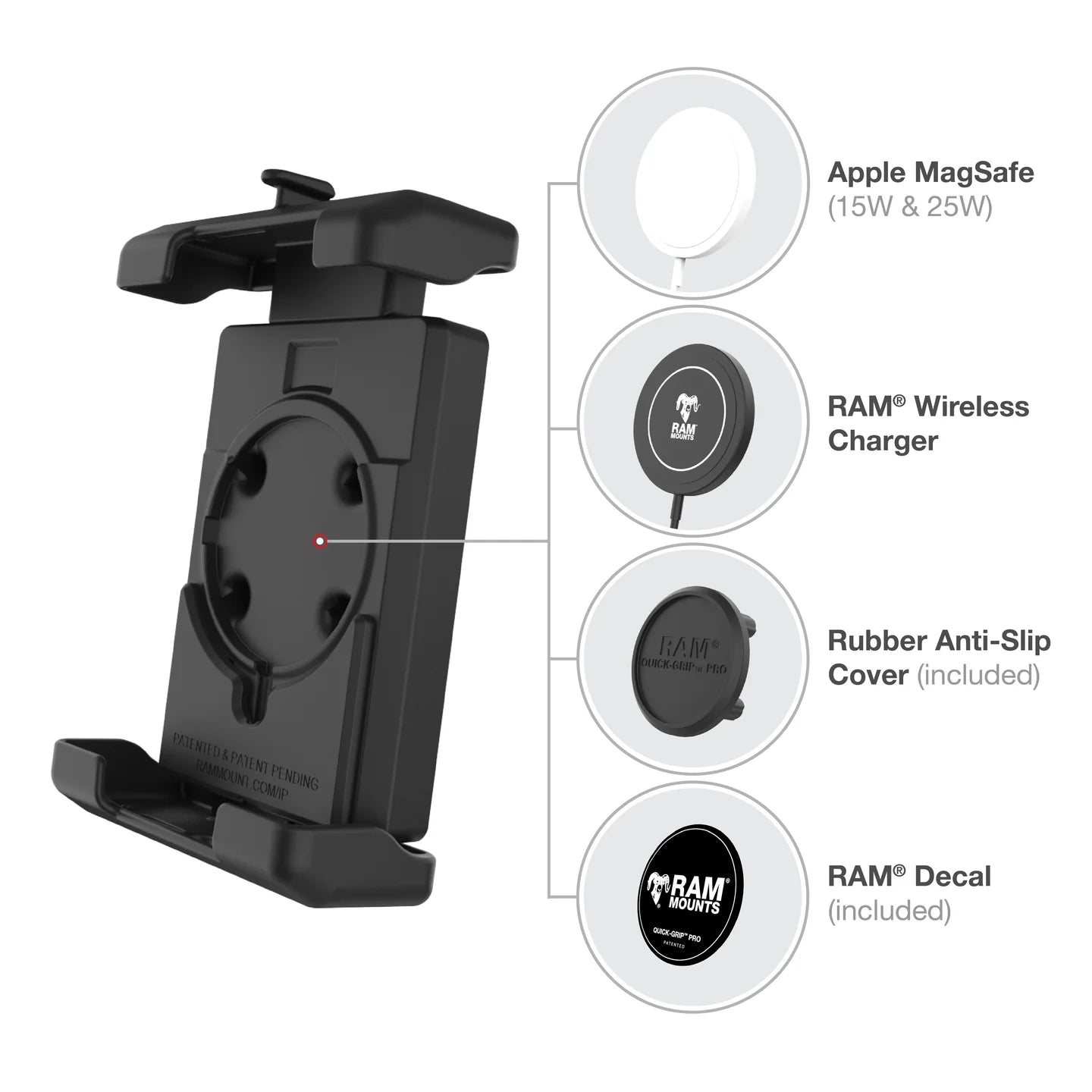

Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included

Comes with optional device tether for open cockpit environments

Backed by a lifetime warranty

Specifications

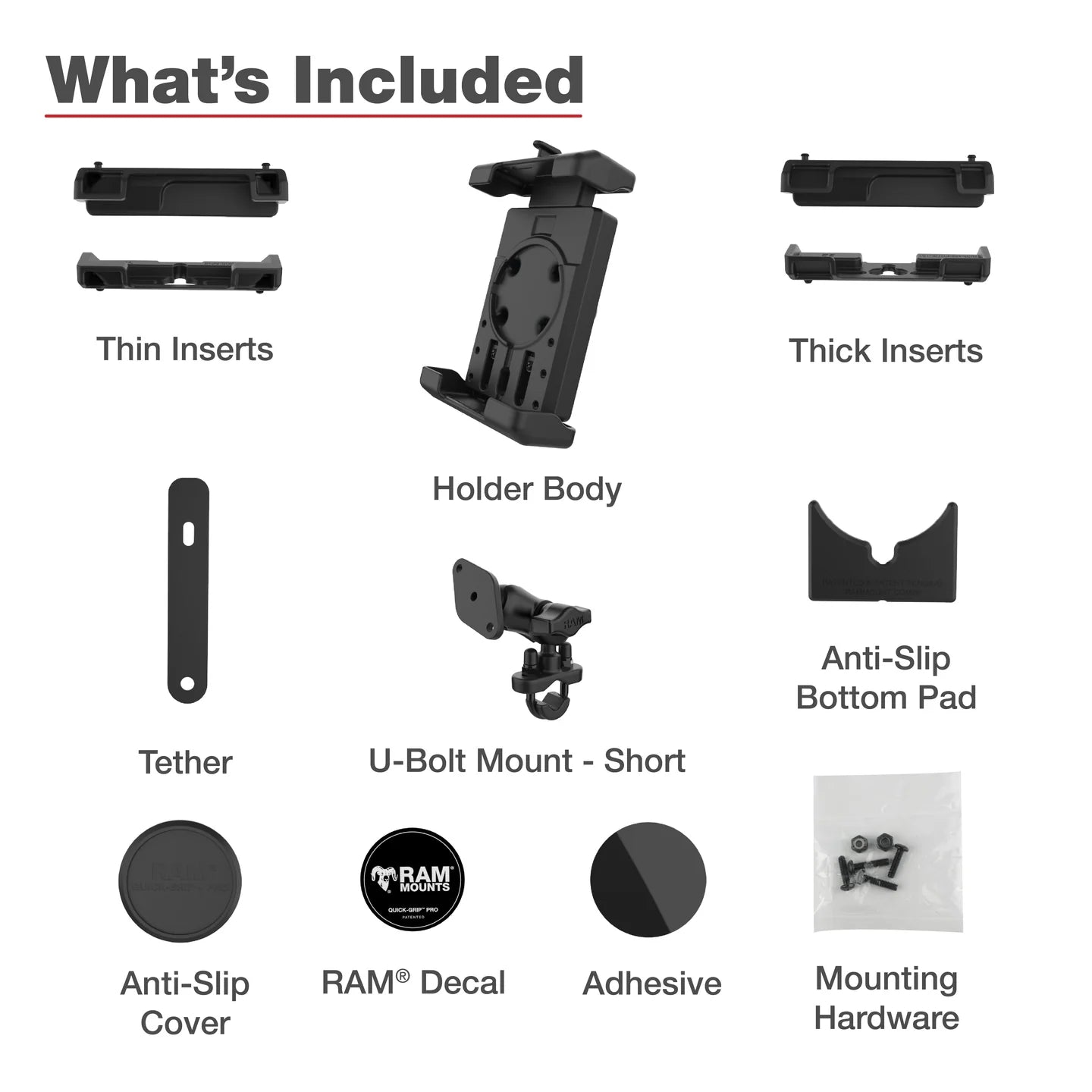

Hardware included:

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Holder dimensions:

Height Range: 5.375" - 7"
Width Range: 2.75" - 3.5"
Max Depth: .75"

Clamp range:

.5" - 1.25" diameter

Socket to socket length:

1.75"

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite

Packaging type:

Poly Bag

Weight:

1.14 lb

Additional Information:

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).

Resources

Instructions

Documents
