RAM MOUNTS |RAM Quick-Grip Pro with Ball & Qi2 15W Wireless Charger
SELECT OPTIONS
Description
Additonal Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Top hook may block front facing camera and facial recognition on select phones.
The included wireless charger will support up to 8mm charging distance between puck and device.

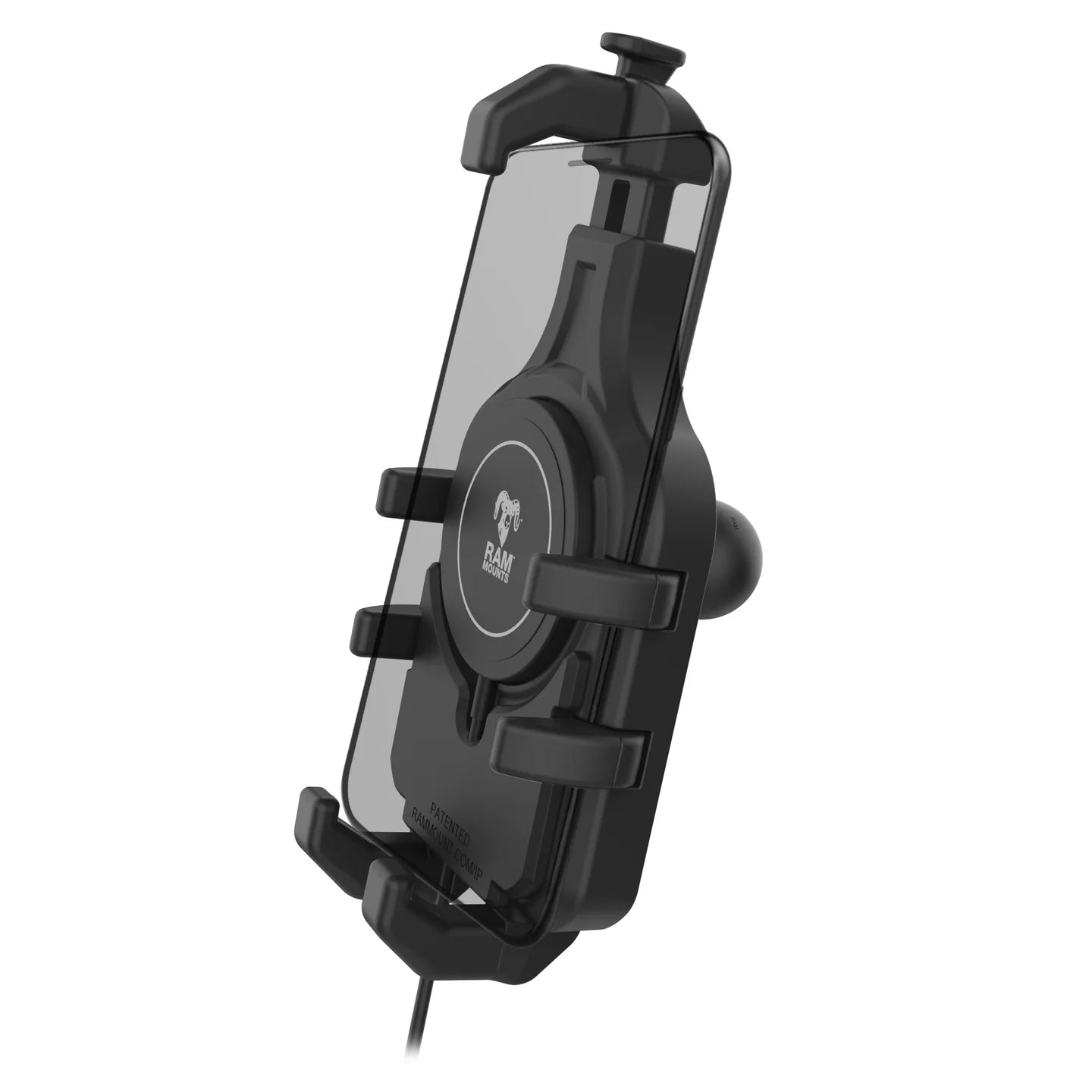

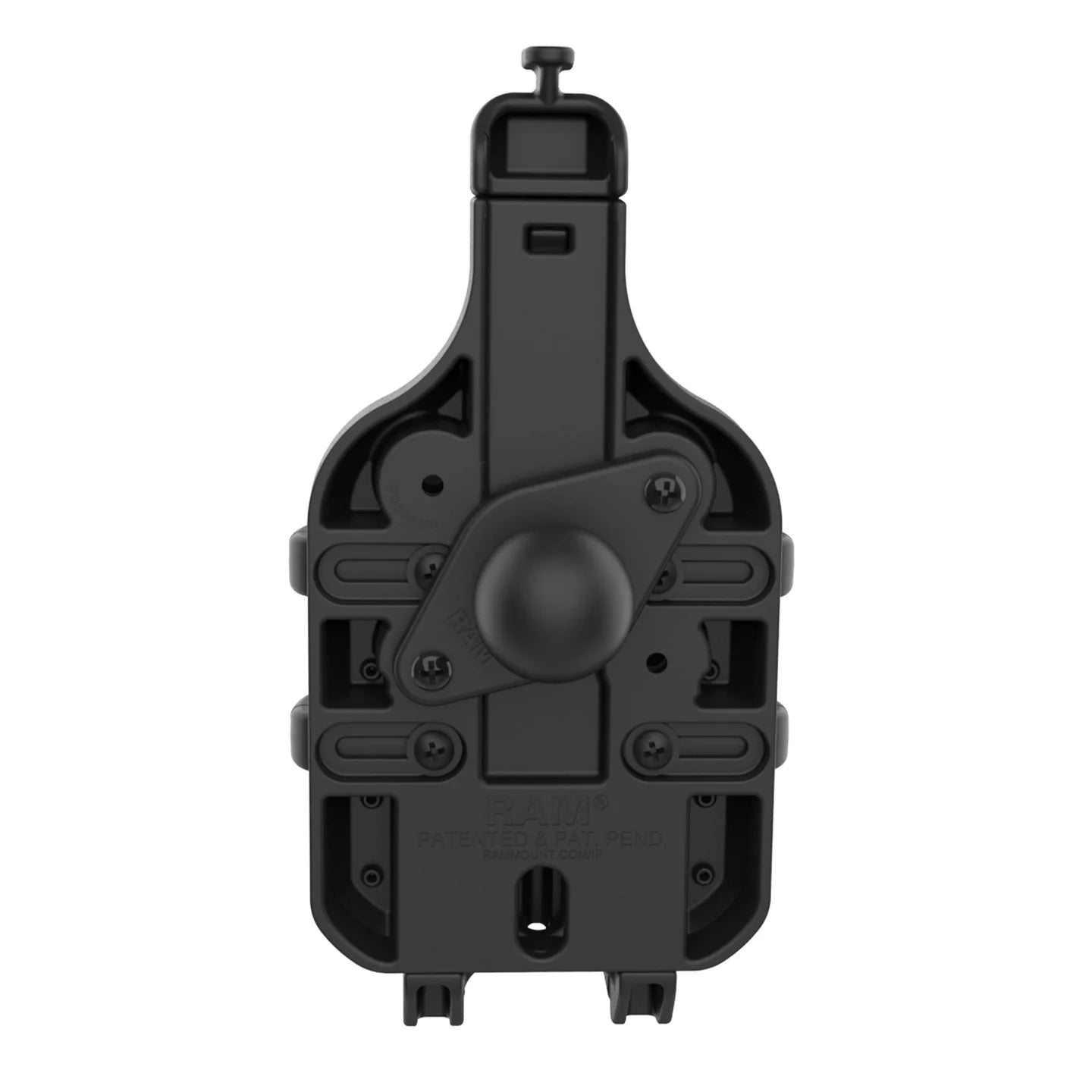

The RAM® Quick-Grip™ Pro with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD5B-W2MU) is the next evolution of the RAM® Quick-Grip™ series. Re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. Complete the solution by building your mount—this holder is RAM® Compatible™ and includes a B size diamond ball to be installed on the 2-hole AMPS pattern. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features

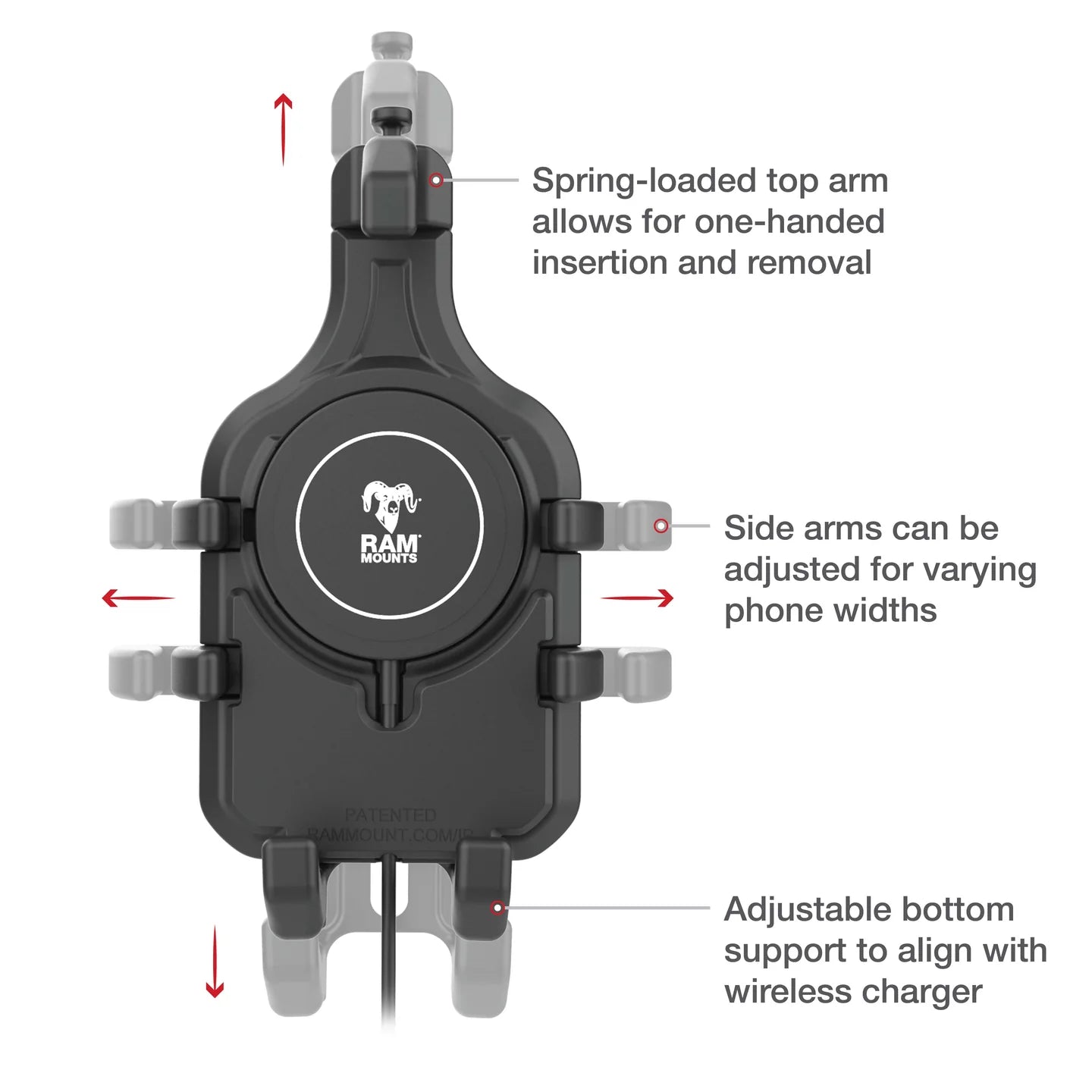

Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand

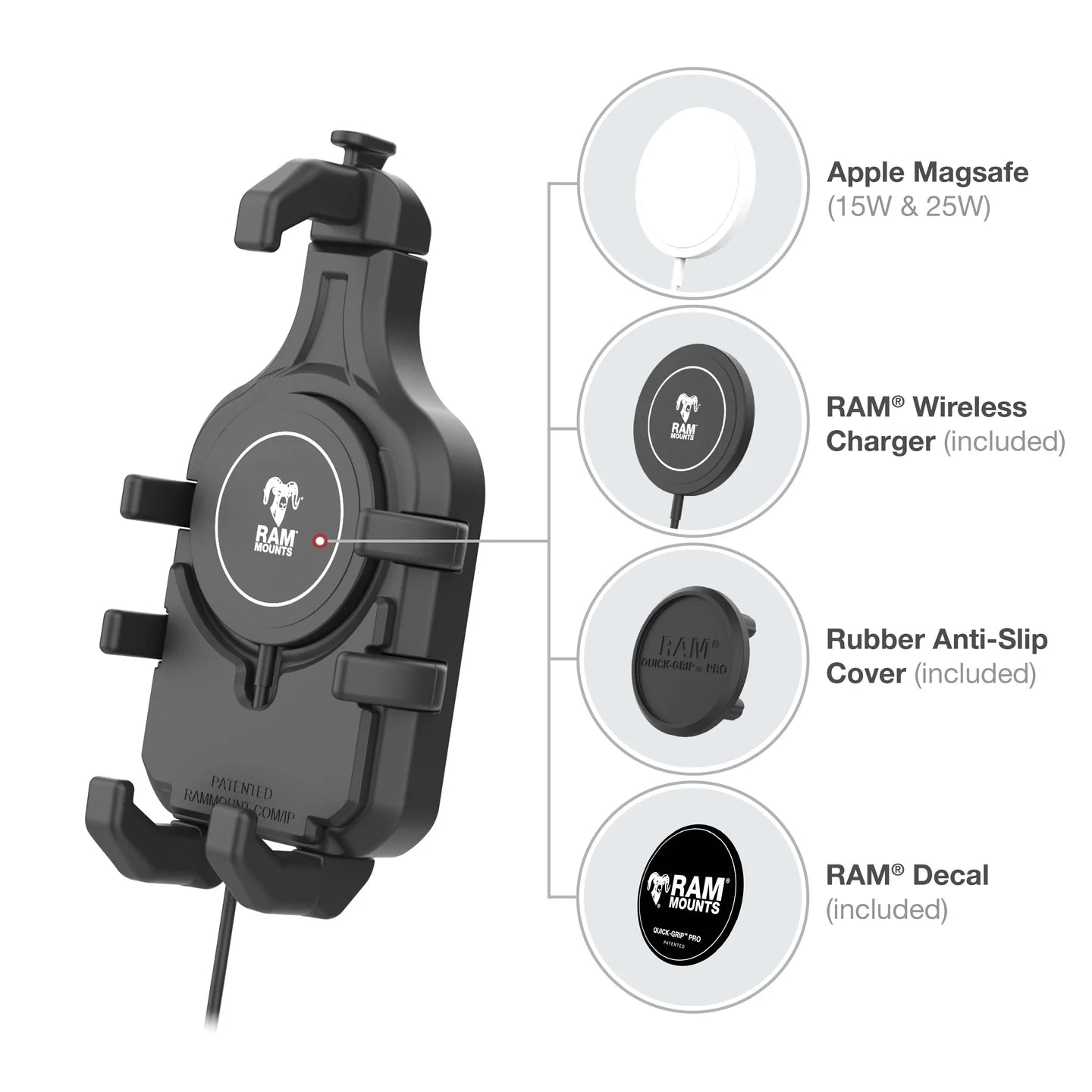

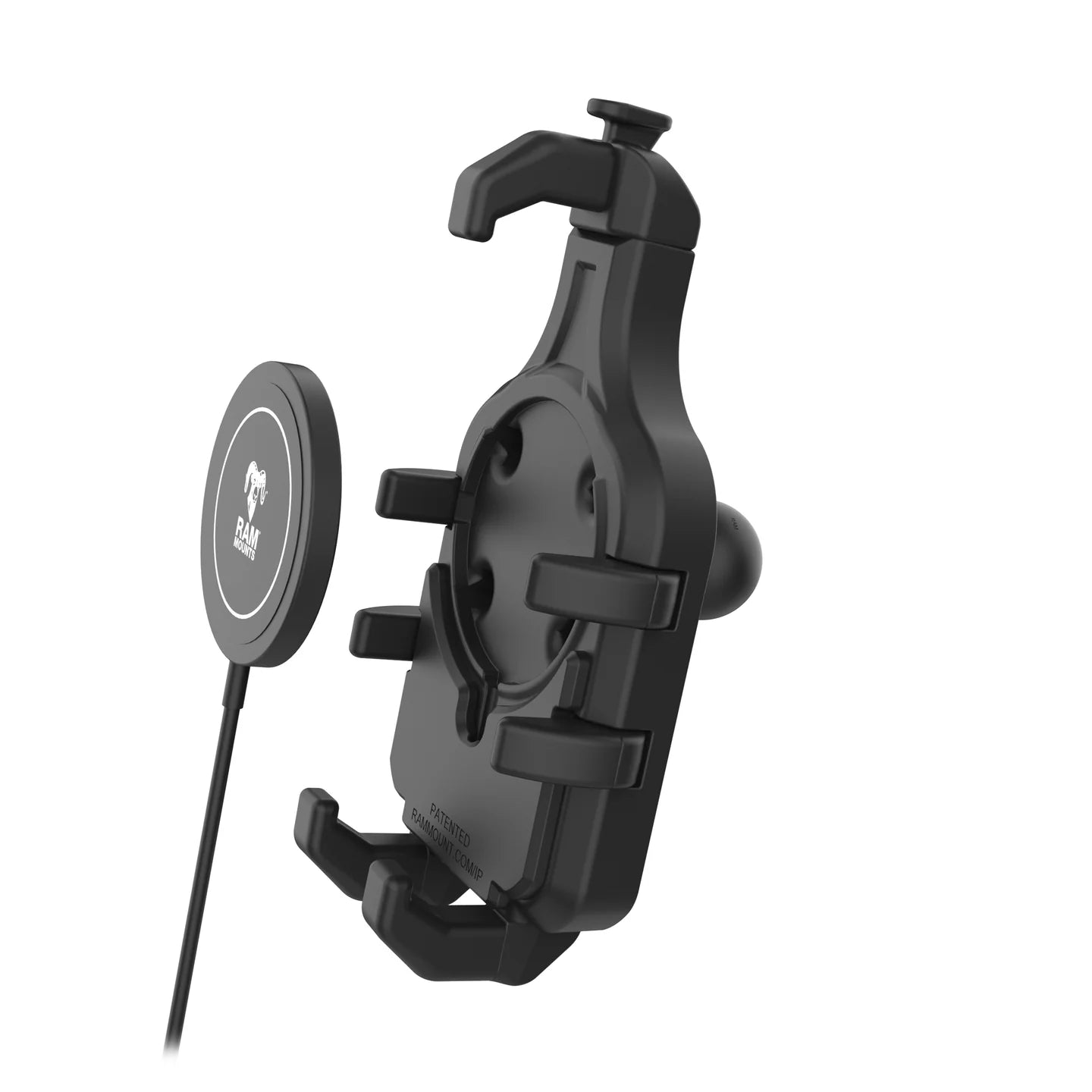

Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
Comes with an optional device tether for open cockpit environments
Made of high-strength composite for durability and reliability in the most demanding environments
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
Specifications

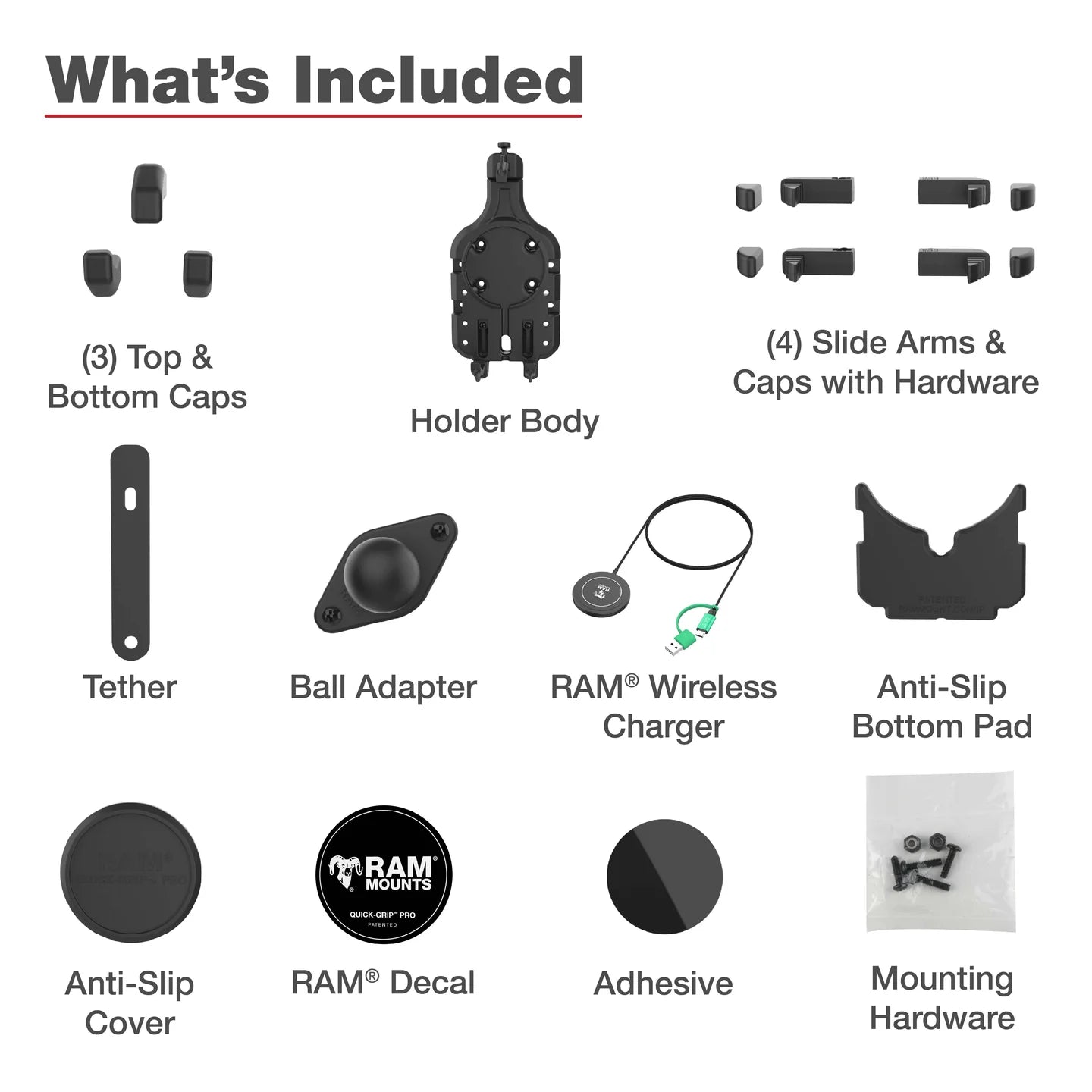

Hardware included:
Assembly Hardware
Holder dimensions:
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
Ball size:
B Size (1")
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
High strength composite
Packaging type:
Poly Bag
Power specifications:
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Input voltage:
USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
Power output:
BPP - 5W
EPP - 7.5W
MPP - 15W
Output connector:
USB Type-C Male with USB-A Adapter
Output cable length:
1 Meter
Operating temperature:
0°C to +40°C
Storage temperature:
-20°C to +80°C
Regulatory:
Over Current Protection
Short Cirtcuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
Certifications:
IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
Top hook may block front facing camera and facial recognition on select phones.
The included wireless charger will support up to 8mm charging distance between puck and device.
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
