RAM MOUNTS | RAM Quick-Grip Pro Suction Cup Mount with Qi2 15W Wireless Charger
SELECT OPTIONS
Description
Additonal Information:
Top hook may block front facing camera and facial recognition on select phones.
The included wireless charger will support up to 8mm charging distance between puck and device.

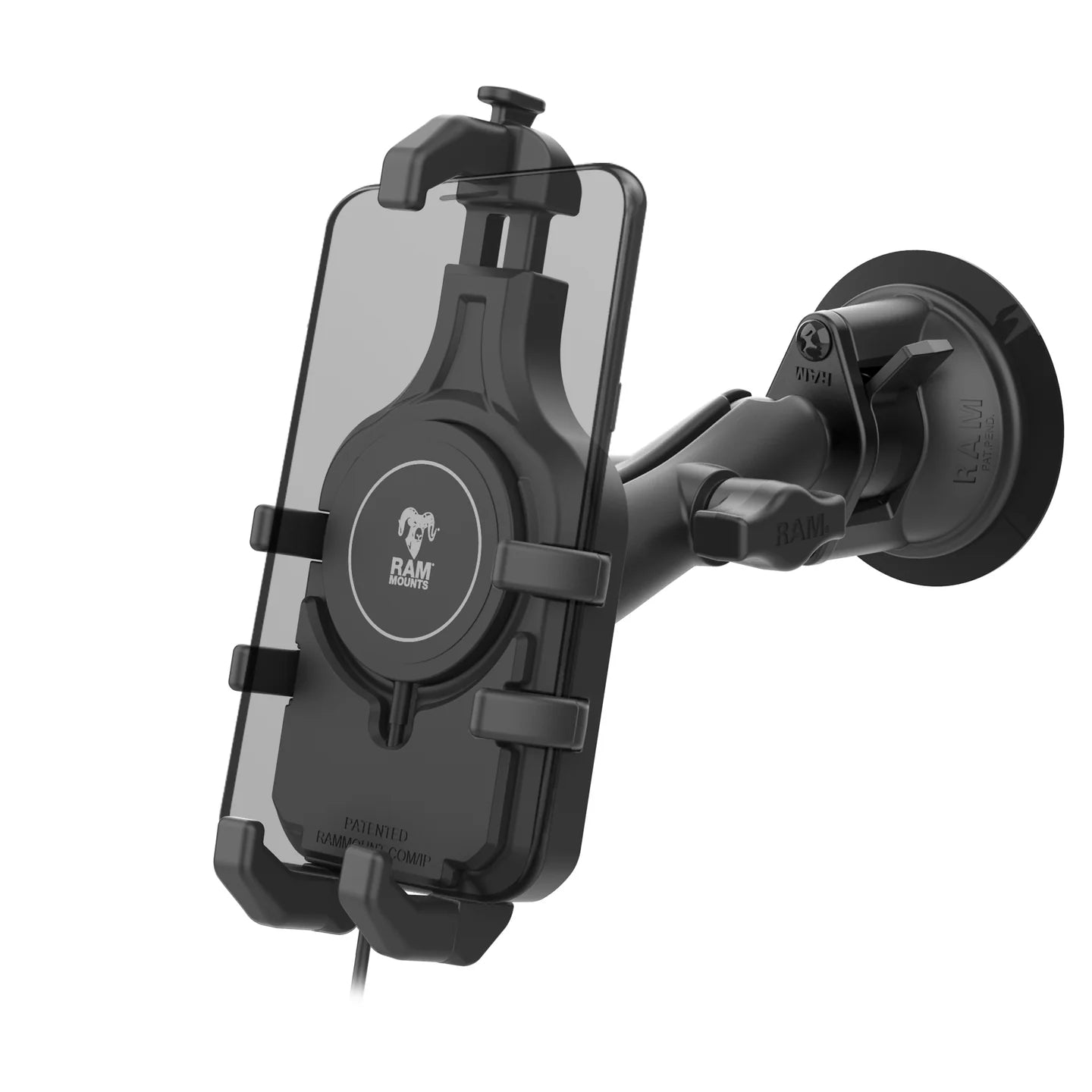

The RAM® Quick-Grip™ Pro Suction Cup Mount with Qi2 15W Wireless Charger (RAM-B-166-PD5-W2MU) is ideal for vehicle windshields and features the next evolution of the RAM® Quick-Grip™ series. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. This kit includes a 3.3" diameter RAM® Twist-Lock™ suction cup base that easily installs onto any non-porous surface. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features

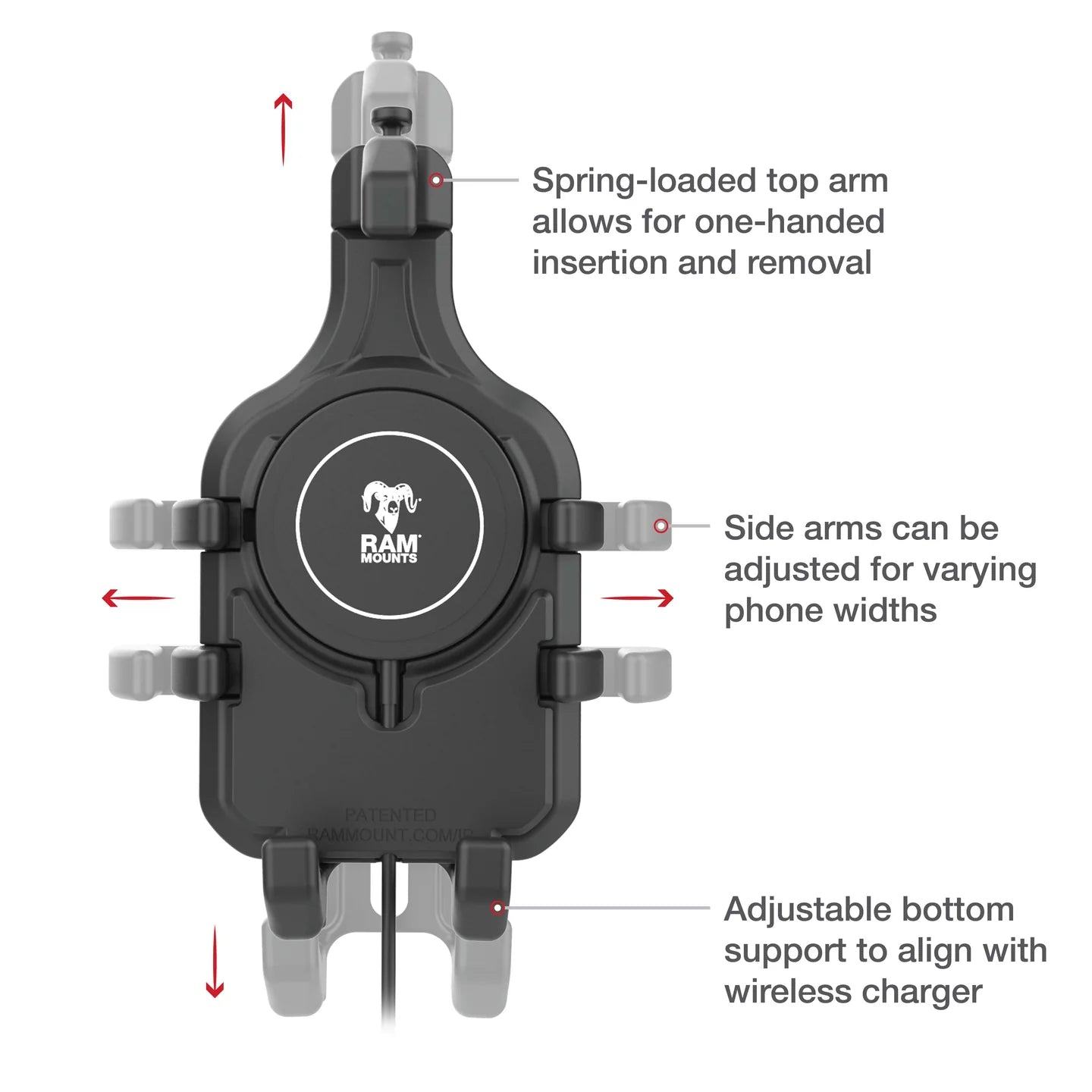

Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand

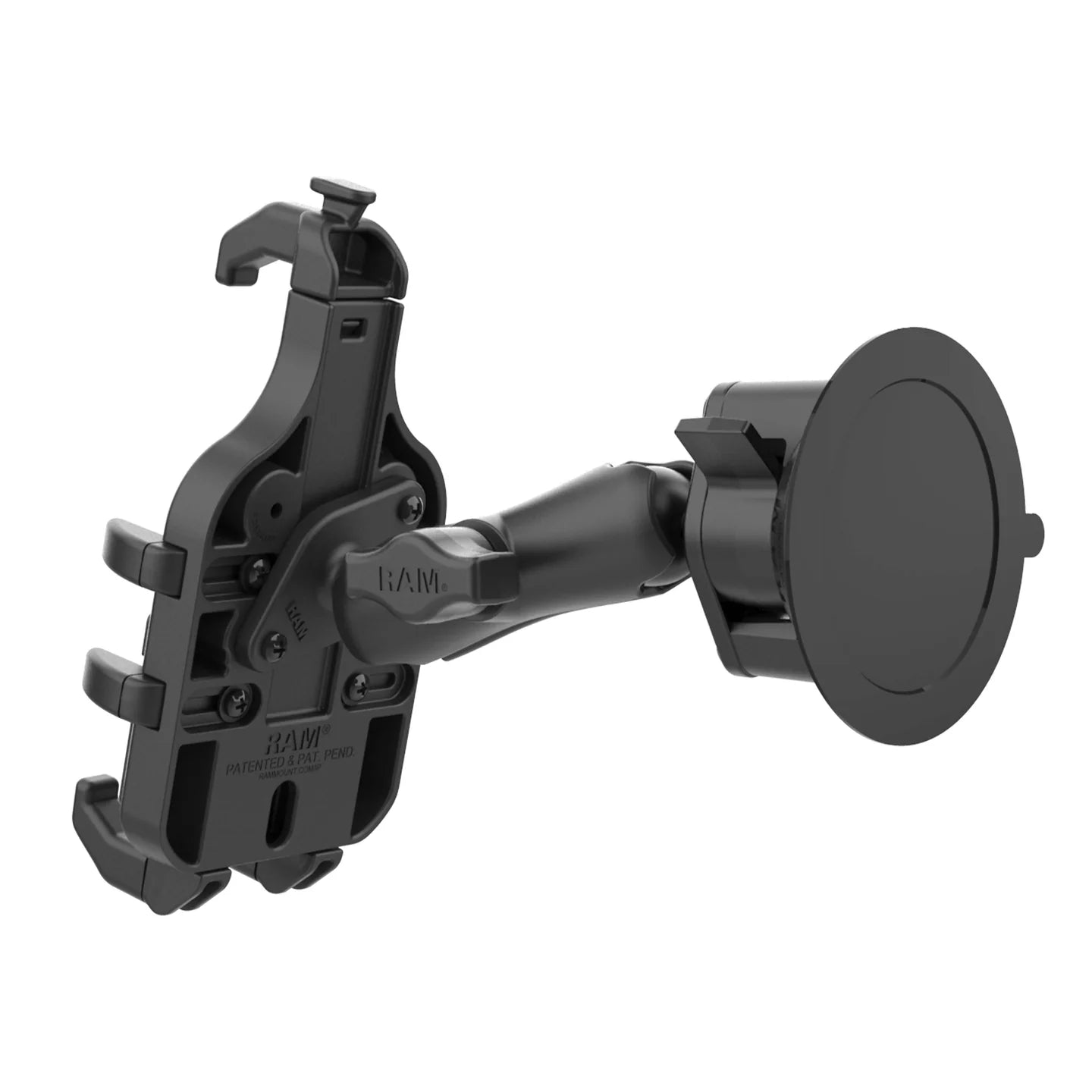

Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

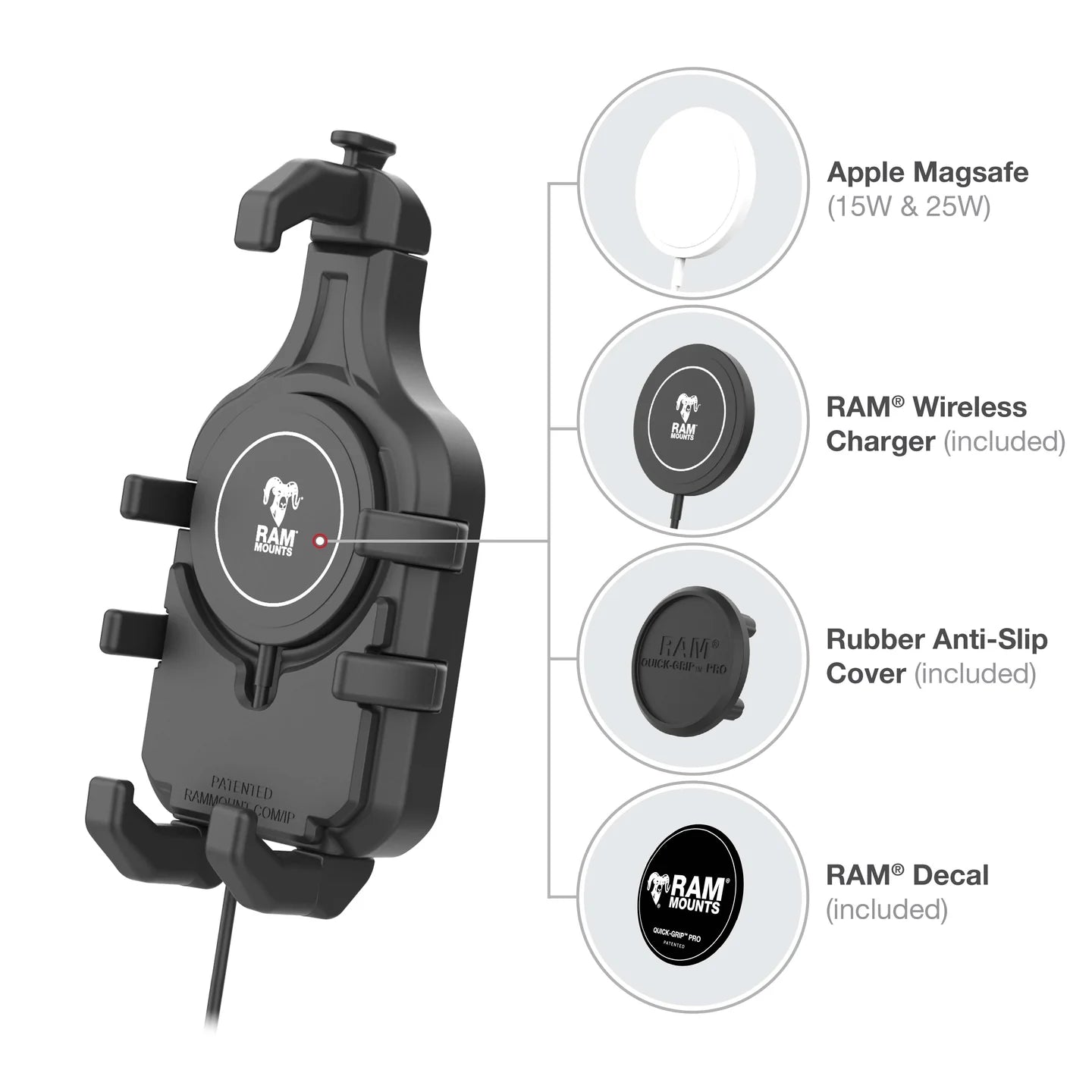

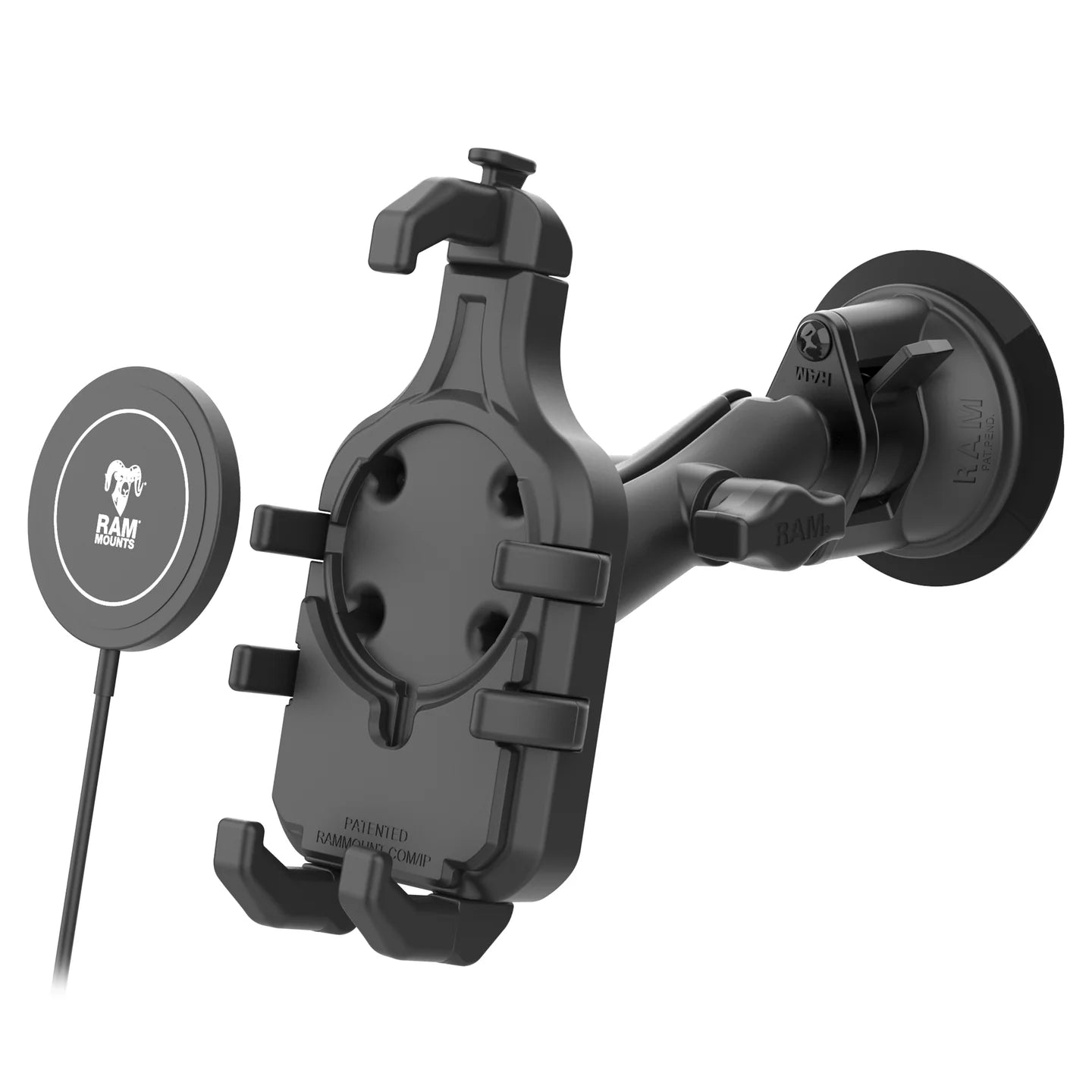

Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
Made of high-strength composite for durability and reliability in the most demanding environments
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
Specifications

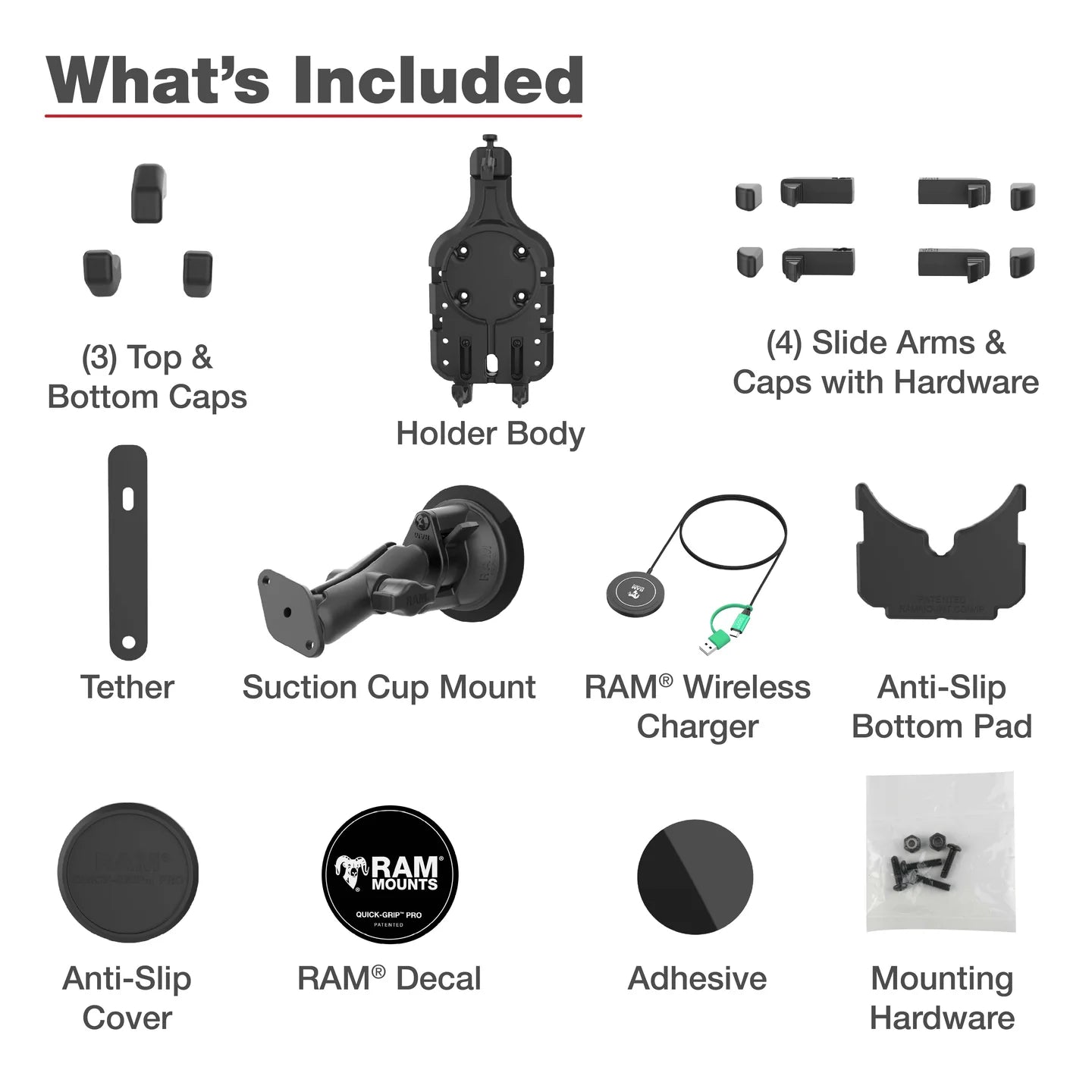

Hardware included:
Assembly Hardware
Holder dimensions:
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
Suction size:
3.3" Diameter
Socket to socket length:
3"
Ball size:
B Size (1")
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Power specifications:
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Input voltage:
USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
Power output:
BPP - 5W
EPP - 7.5W
MPP - 15W
Output connector:
USB Type-C Male with USB-A Adapter
Output cable length:
1 Meter
Operating temperature:
0°C to +40°C
Storage temperature:
-20°C to +80°C
Regulatory:
Over Current Protection
Short Cirtcuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
Certifications:
IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Additional Information:
Top hook may block front facing camera and facial recognition on select phones.
The included wireless charger will support up to 8mm charging distance between puck and device.
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
