RAM MOUNTS | RAM PTT Speaker & Hardwire Bundle for Sonim XP Pro & XP Pro Thermal

Compatibility

Sonim
XP Pro

XP Pro Thermal

Additonal Information:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Description

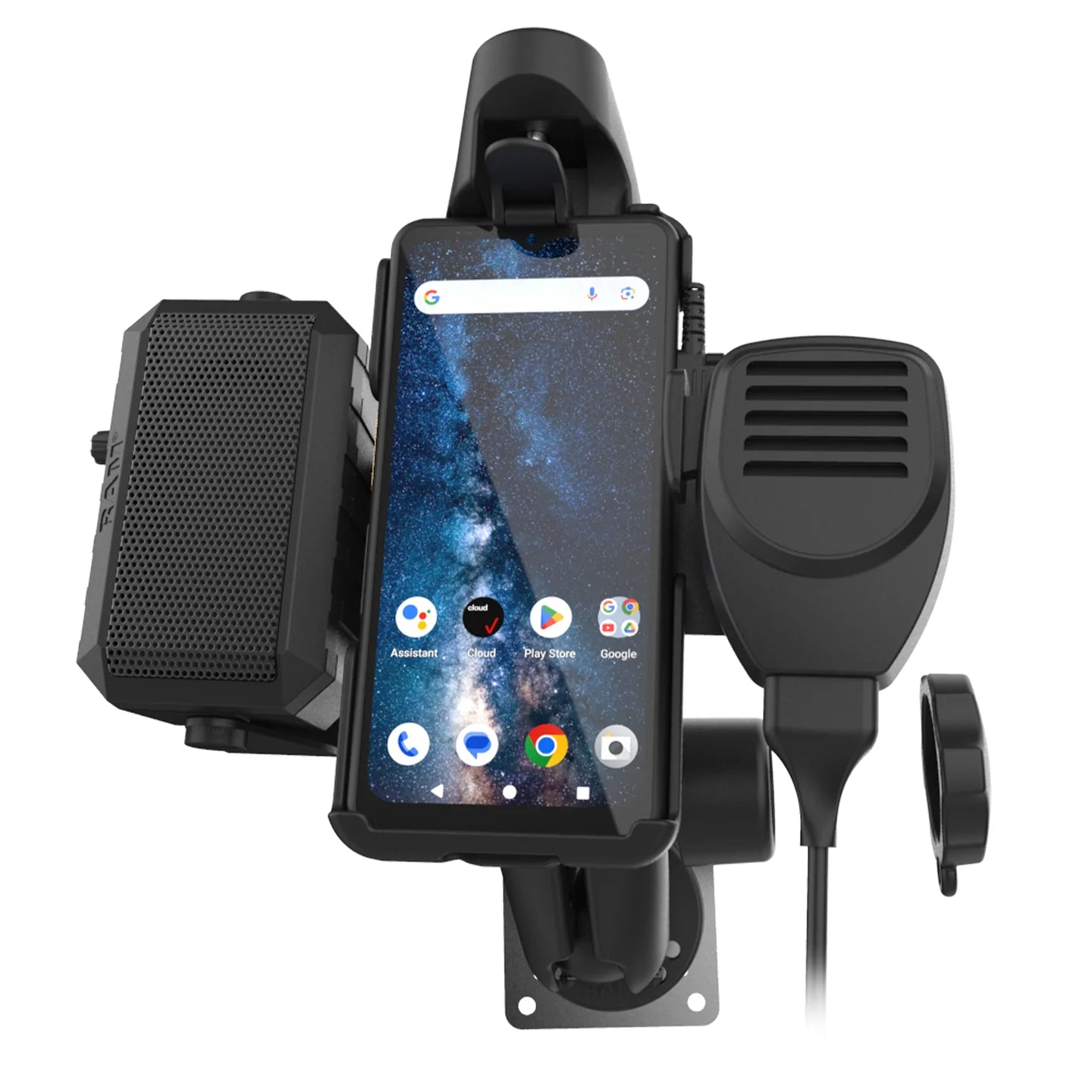

The RAM® Double Ball Mount for Sonim XP Pro & XP Pro Thermal with Speaker & Hardwire Bundle (RAM-138-S-SNM5PL-V7B1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP Pro & XP Pro Thermal, double ball mount with RAM® Pin-Lock™ Security Knob, speaker, microphone, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included USB-C to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger and backing plate hardware

Features

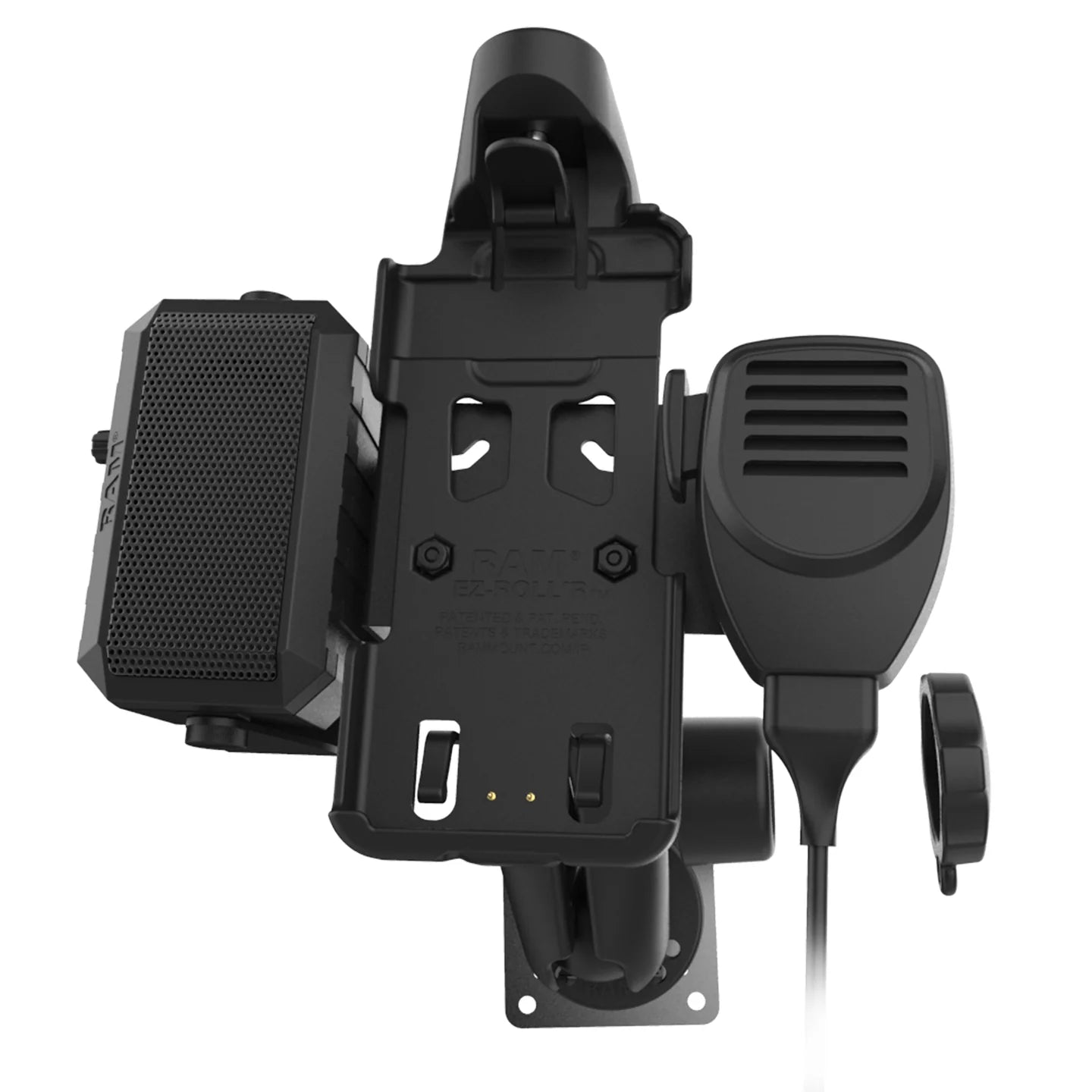

Bundle for Sonim XP Pro & XP Pro Thermal includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication

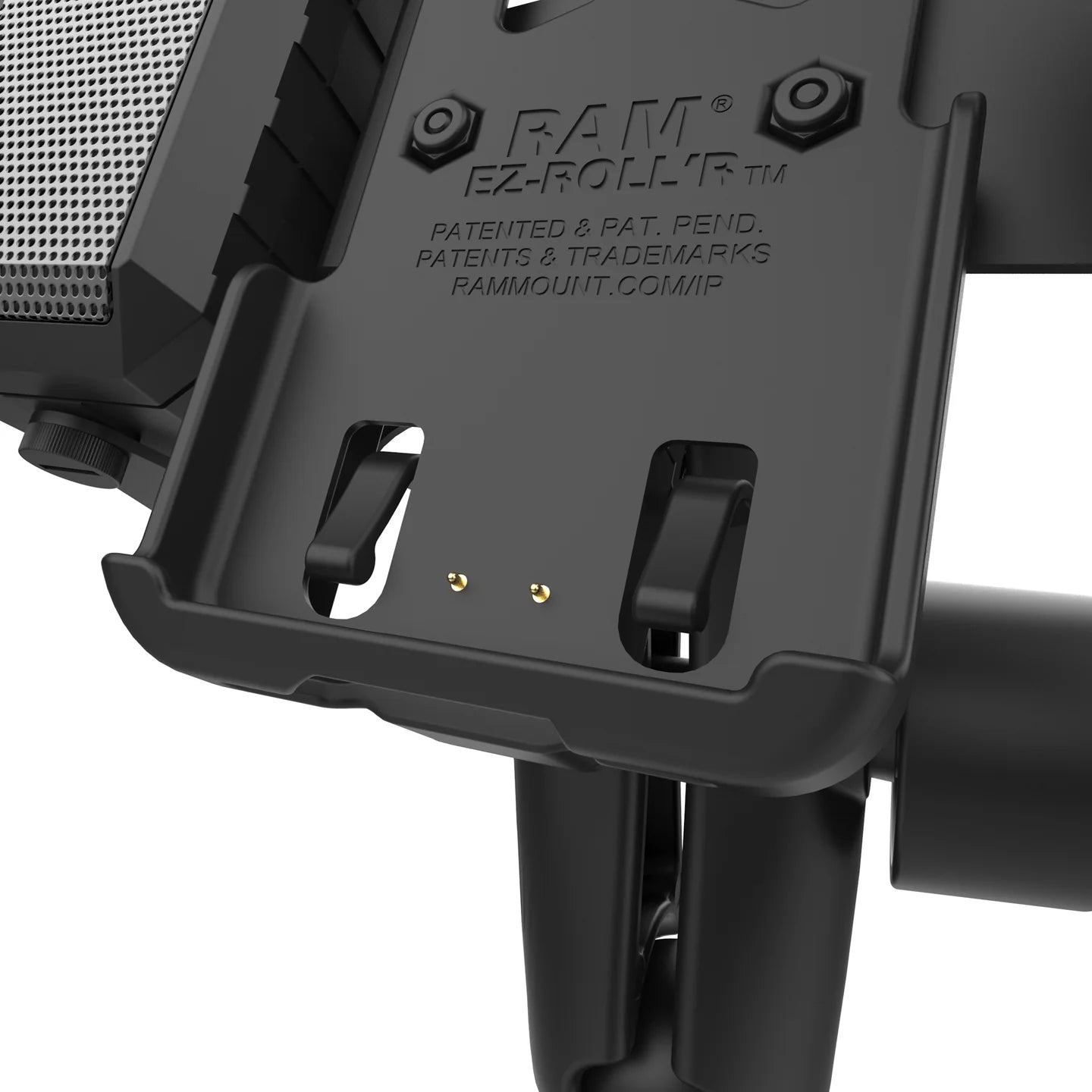

Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP Pro; provides charging through two integrated pogo pins and USB-A cable

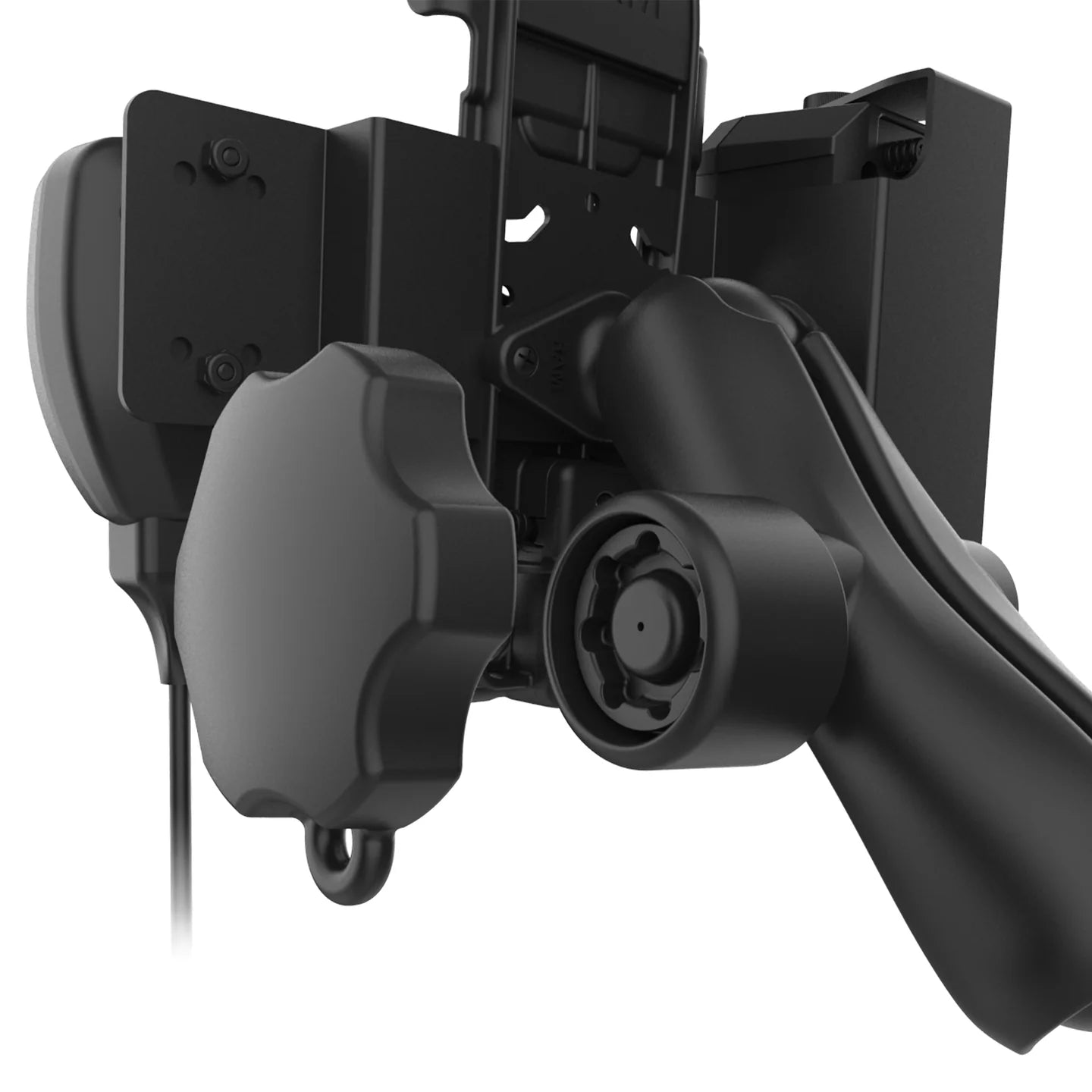

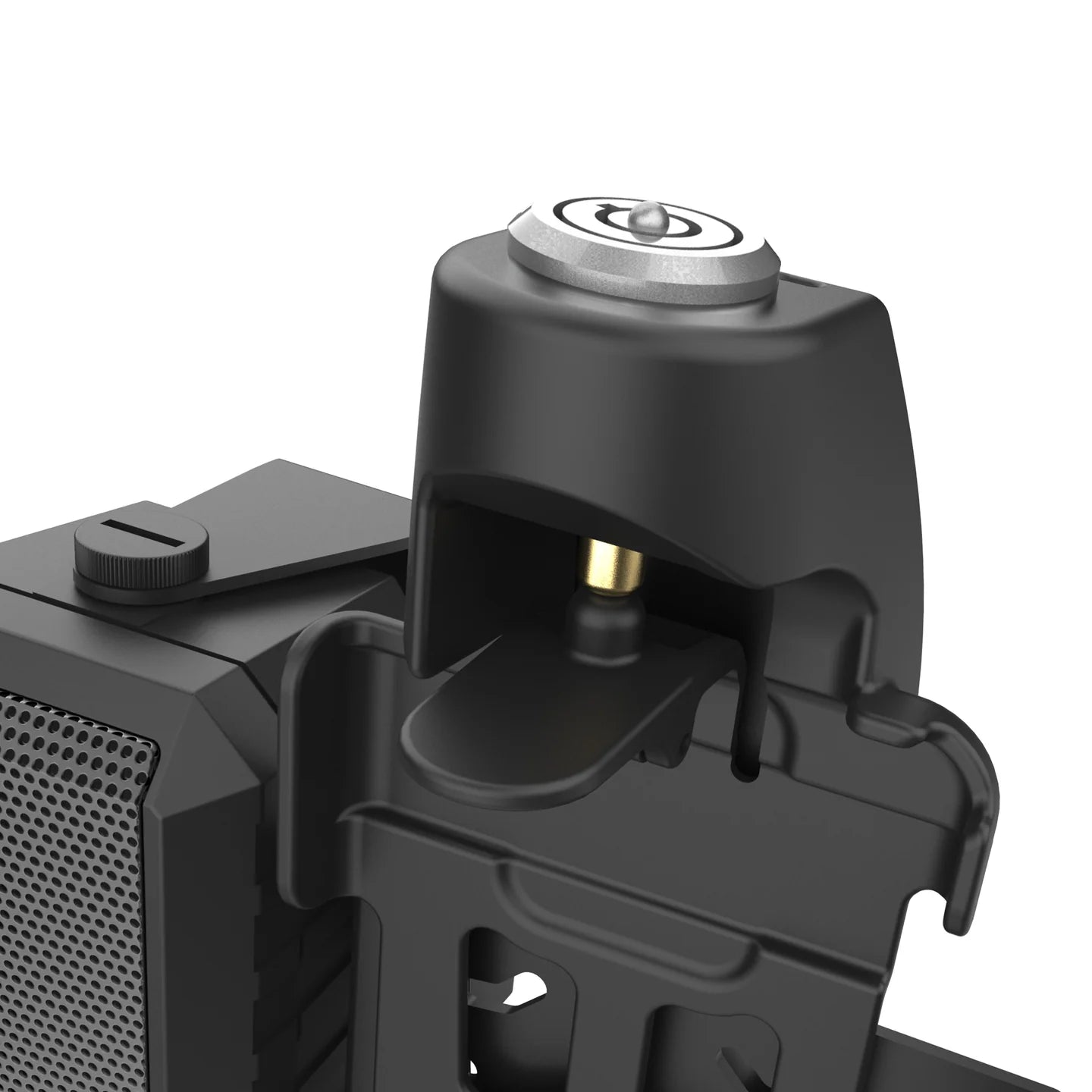

Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence

RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

Specifications

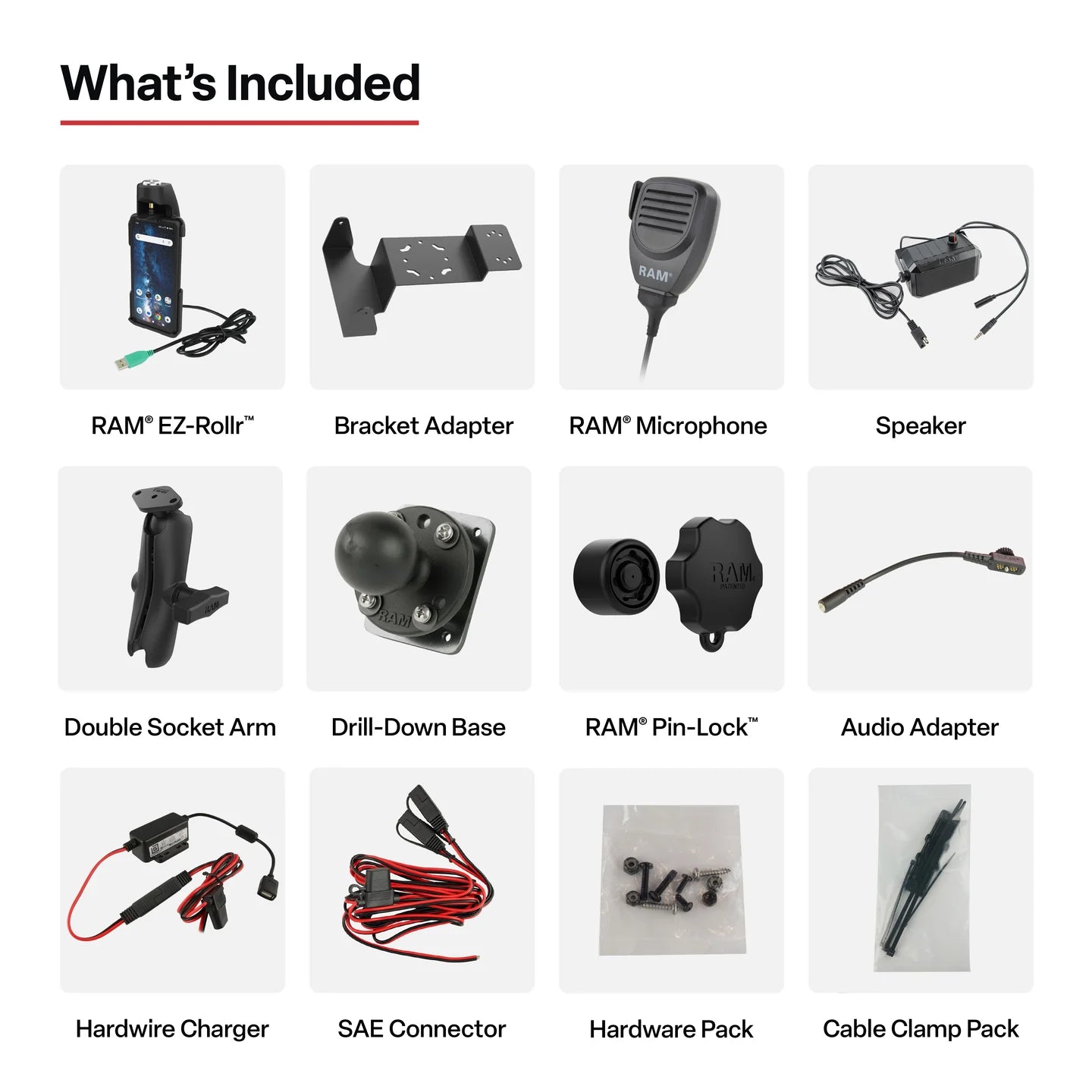

Hardware included:
Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) USB-C to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger

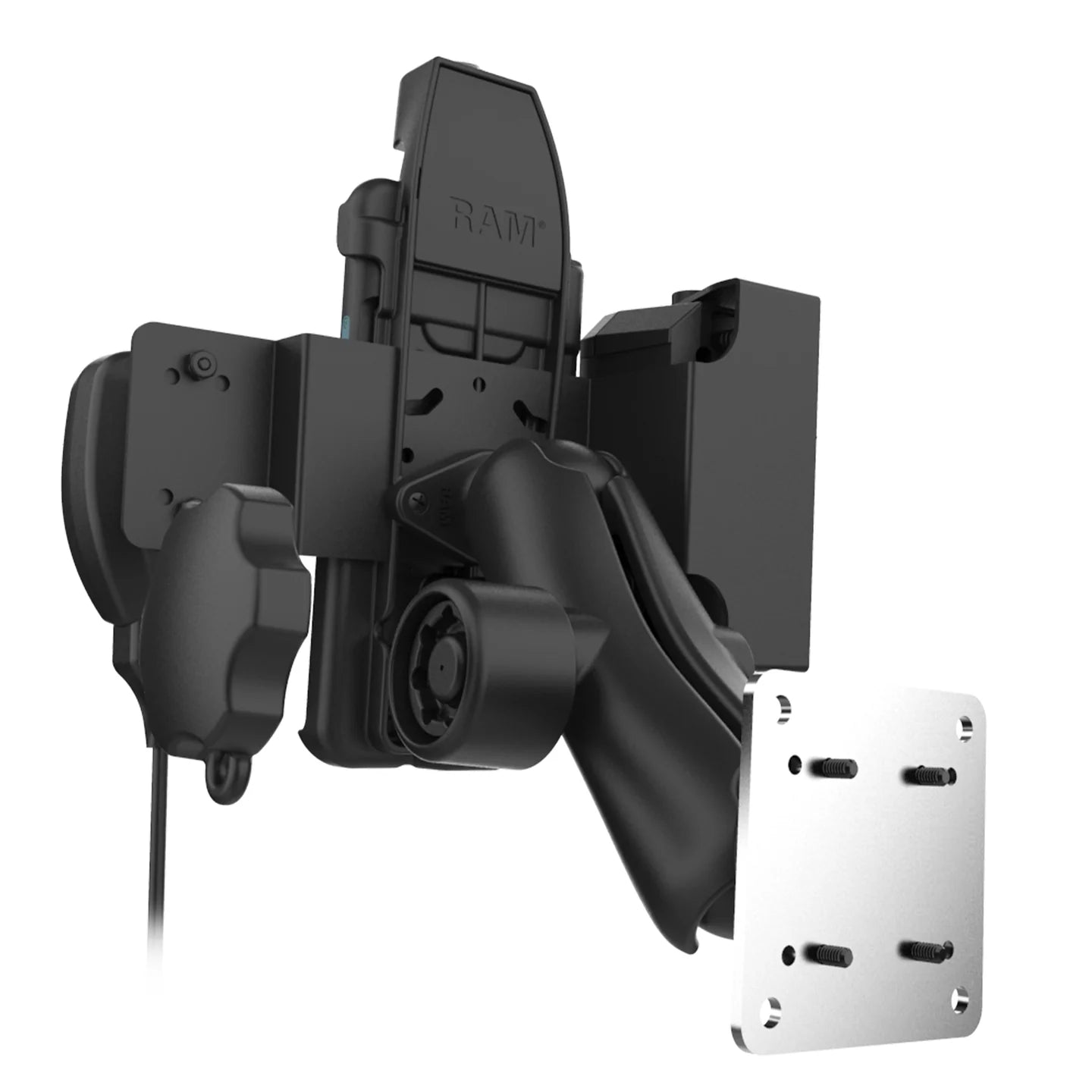

(1) Backing Plate & Hardware Assembly

Speaker specifications:
Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker

Socket to socket length:
4.66"

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate size:
2.5" Diameter

Ball size:
C Size (1.5")

Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials:
Marine-grade aluminum
High strength composite
Powder-Coated Steel

Packaging type:
Poly Bag

Input voltage:
10-30VDC

Output voltage:
5-9VDC*

Output current:
2.5A max

Input connector:
Charger: Female USB Type A

Input cable length:
1.2 Meters including 2 Pole Flat Marine Connector

Output cable length:
.2 Meters

Operating temperature:
-10°C to +70°C

Storage temperature:
-40°C to +70°C

Regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

Certifications:
E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty:
3 year warranty

Weight:
7.45 lb

Additional Information:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
