RAM MOUNTS | RAM Powered Dock & Dashboard Mounting Kit for Zebra EM45

Compatibility

Zebra
EM45

Description

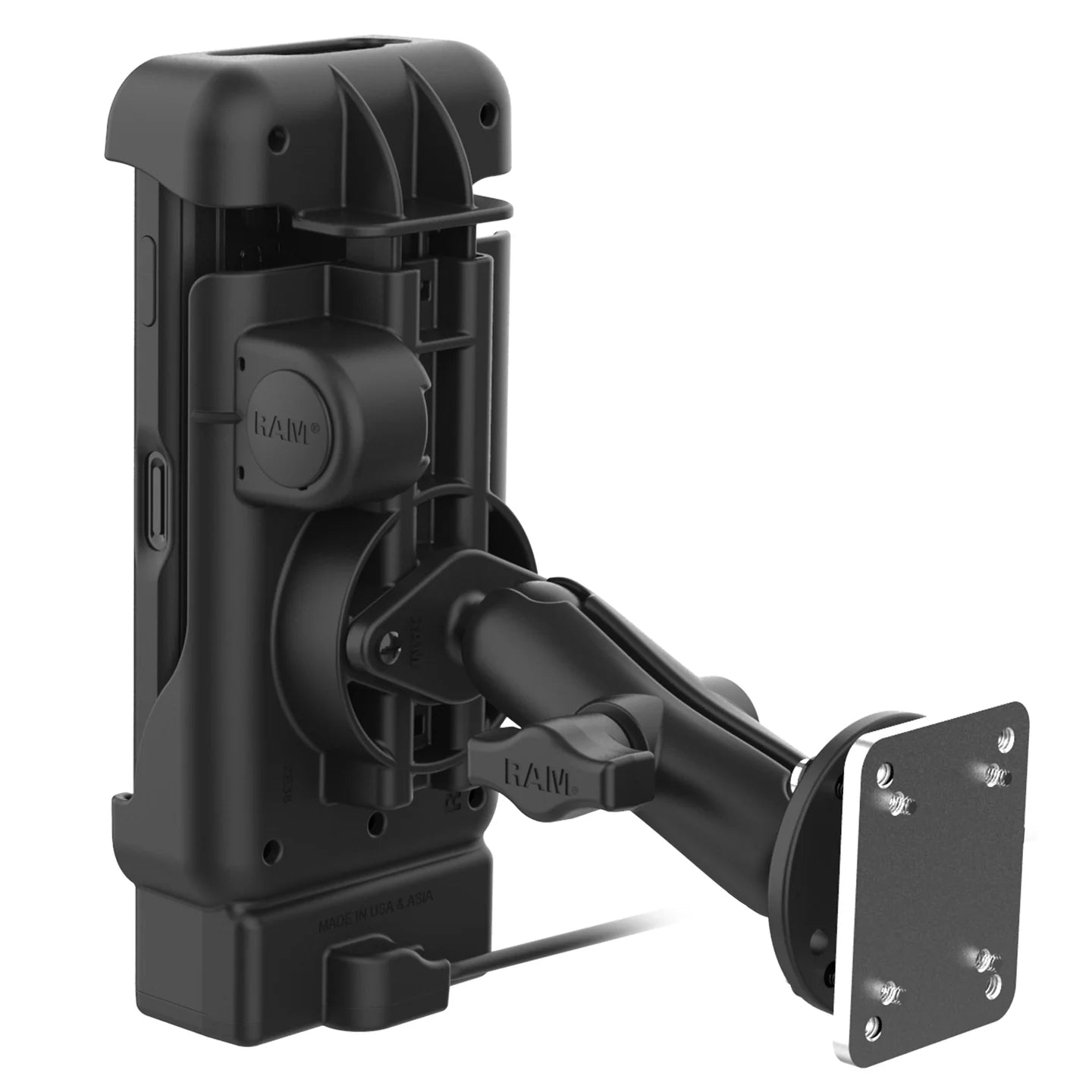

The RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45 (RAM-B-101-225B2-ZE38-V3C-2U) is a comprehensive kit of everything needed to deploy the Zebra EM45 in your fleet. It contains one RAM® Powered Vehicle Dock and double ball mount with backing plate. The dock uses a USB Type-C female power connector and provides power to the device via direct USB-C connection that's tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The RAM® Vehicle Dock is backed by a 3-year warranty.

Features

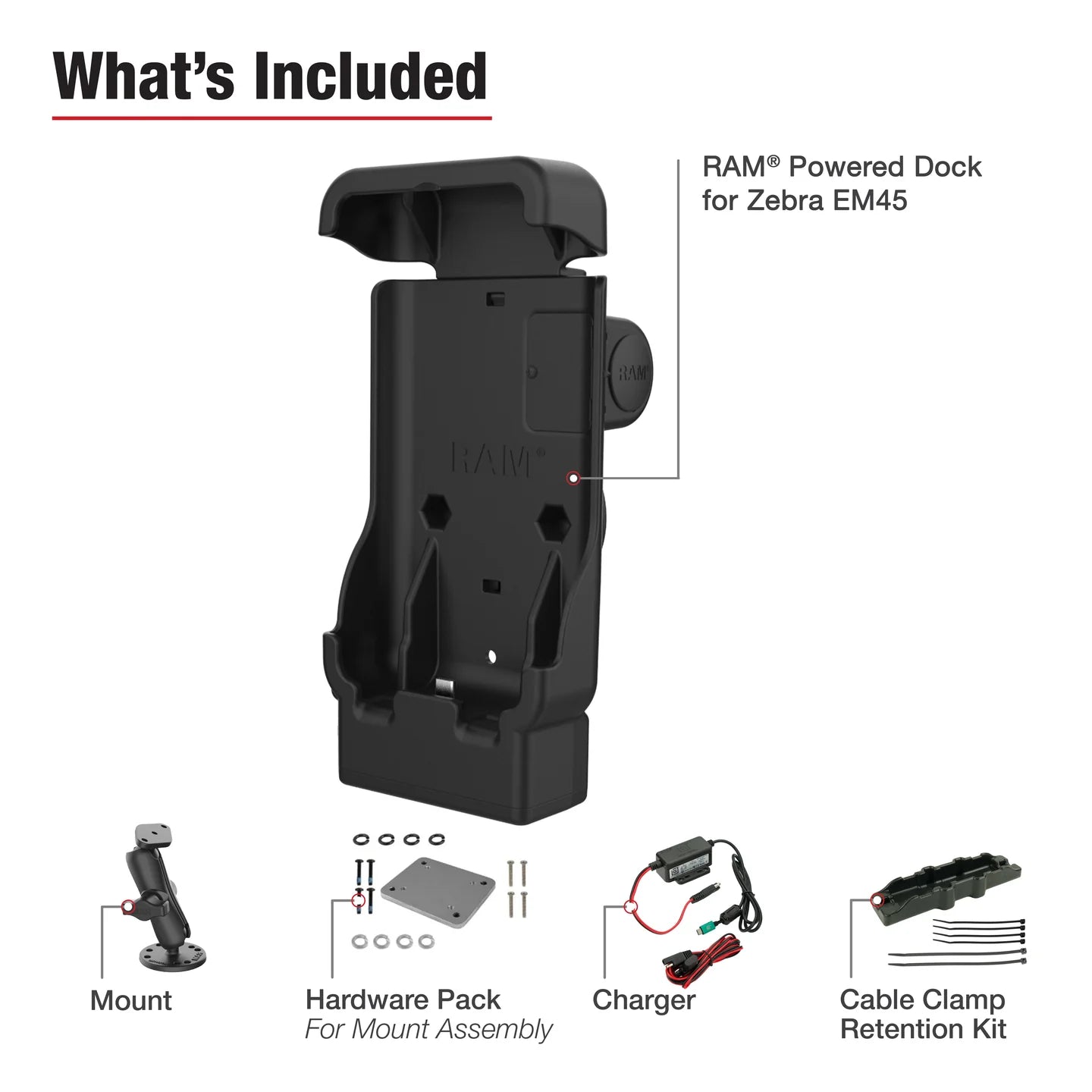

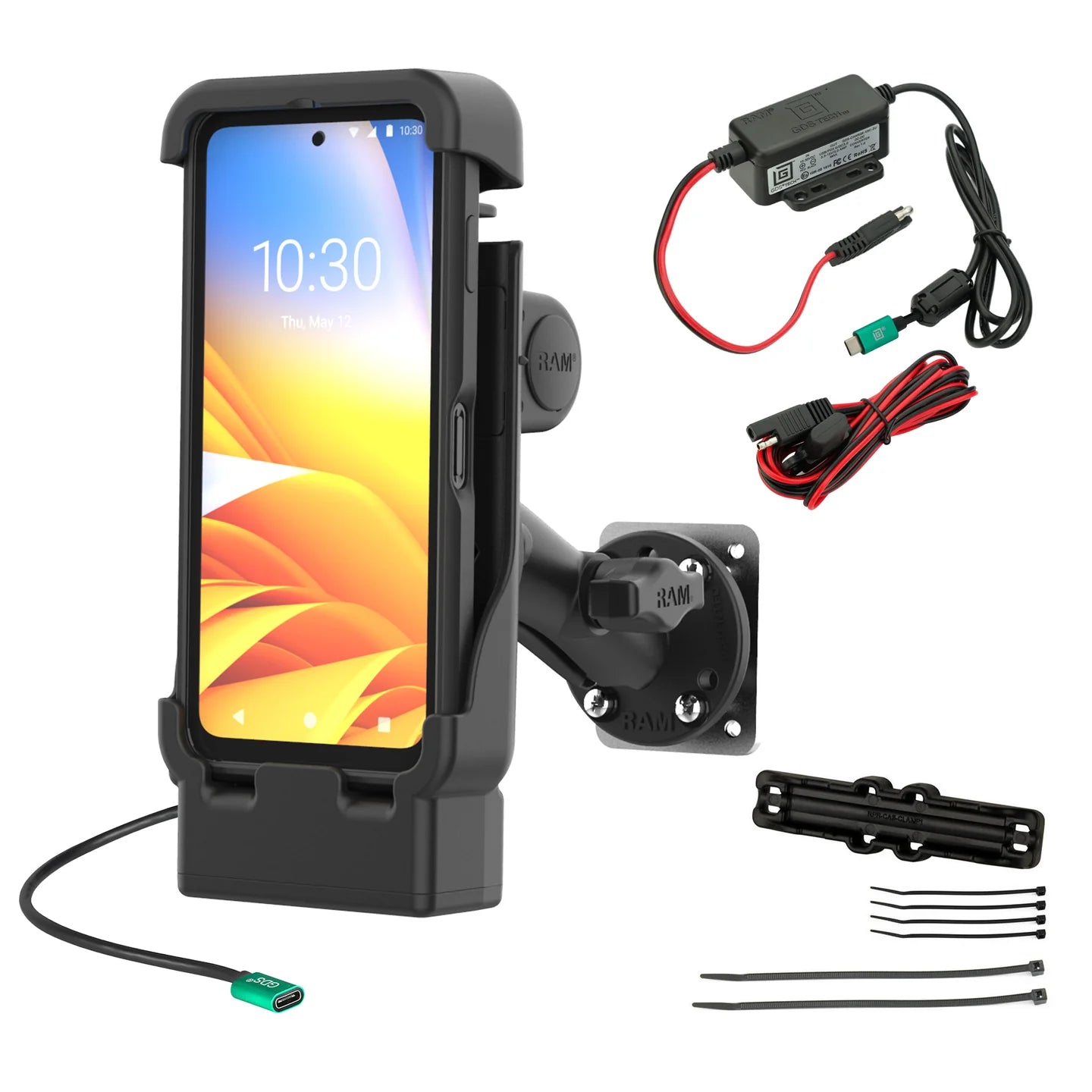

Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, and cable clamp

Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45

Back cavity accommodates OEM ergonomic accessories

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a 3-year warranty

Specifications

Hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

Socket to socket length:
3"

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Steel
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Input voltage:
10-30VDC

Output voltage:
5-15VDC

Output current:
3A max

Input cable length:
1.2 Meters including 2 pole flat marine connector

Operating temperature:
-10°C to +70°C

Storage temperature:
-40°C to +70°C

Regulatory:
Overvoltage/Load Dump Compliance: Meets SAE J-1113

Certifications:
Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, RCM, E-Mark and RoHS Compliant
USB 2.0 BC 1.2 DCP Support

Weight:
2.07 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
