RAM MOUNTS | RAM Power & Dual USB Data Dock for Tab Active5 Pro & 4 Pro

Compatibility

Compatible Devices
Samsung
Galaxy Tab Active5 Pro

Galaxy Tab Active4 Pro

Galaxy Tab Active Pro

Additonal Information:
This holder is intended only for light-duty applications in landscape mode.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro.

Description

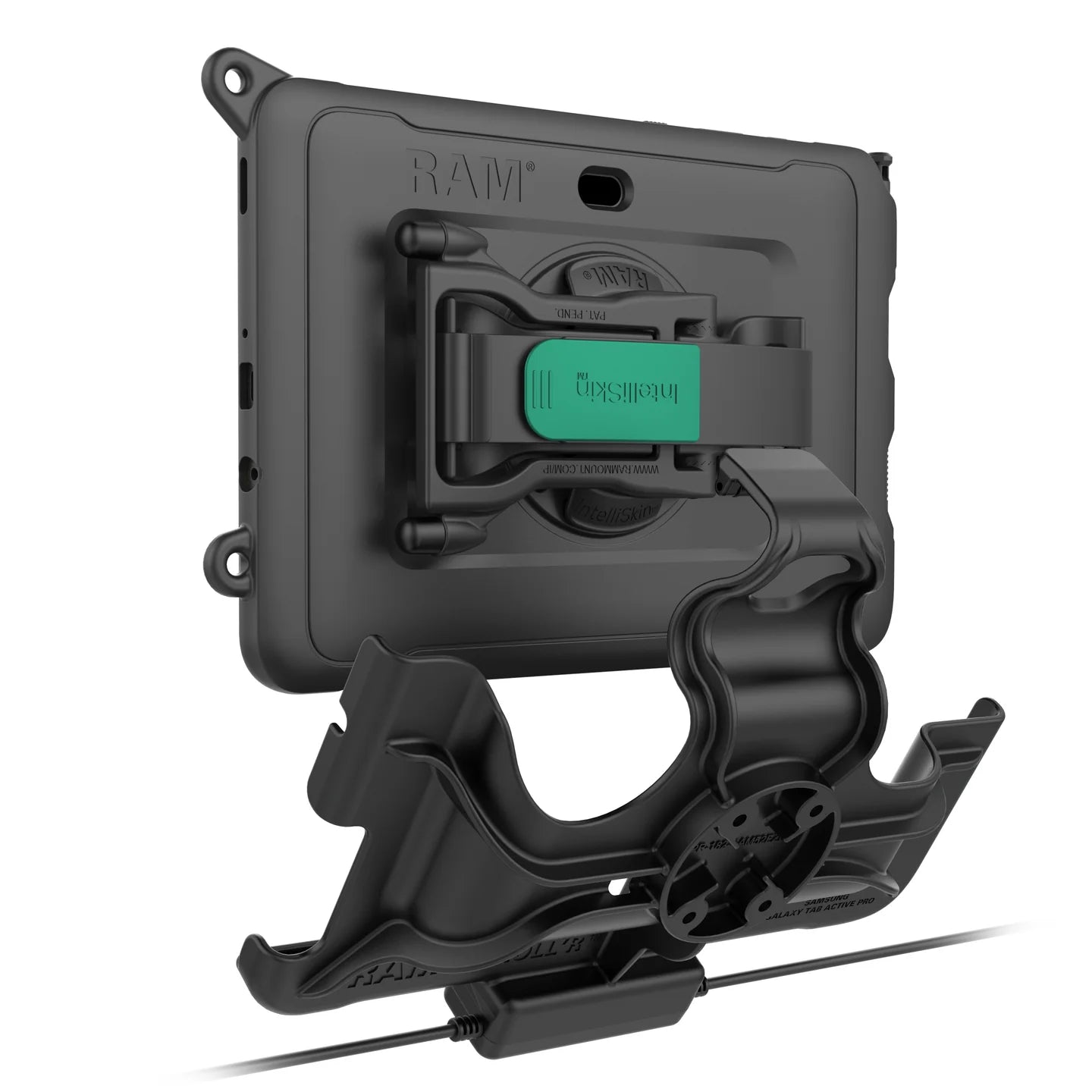

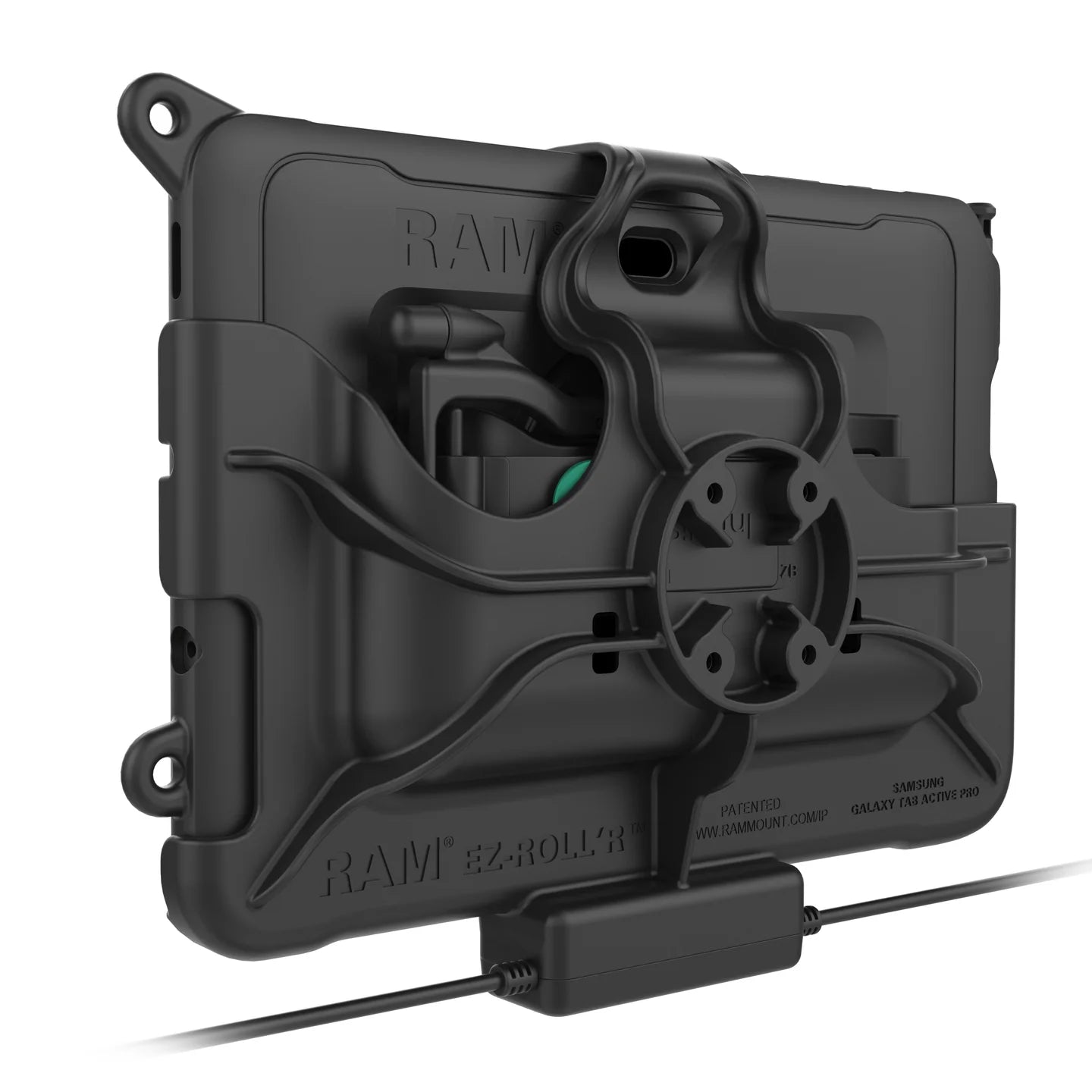

This RAM® EZ-Roll’r™ power cradle for the Samsung Galaxy Tab Active5 Pro, 4 Pro and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Galaxy Tab Active4 Pro and Tab Active Pro from your vehicle, to your person, to your desk with zero hassle.

Features

Powered dock provides charging and data transfer capabilities for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only

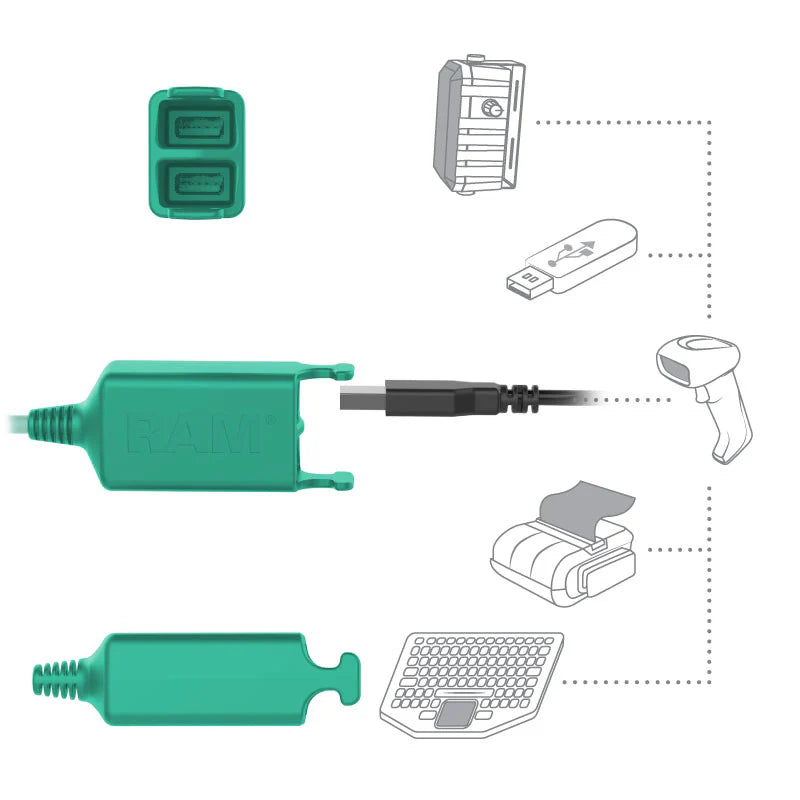

Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector

Extra space in the back of the cradle allows for GDS® Hand-Stand™ compatibility; contains 4-hole AMPS hole pattern for RAM® ball components

Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

Backed by a 3-year warranty

Specifications

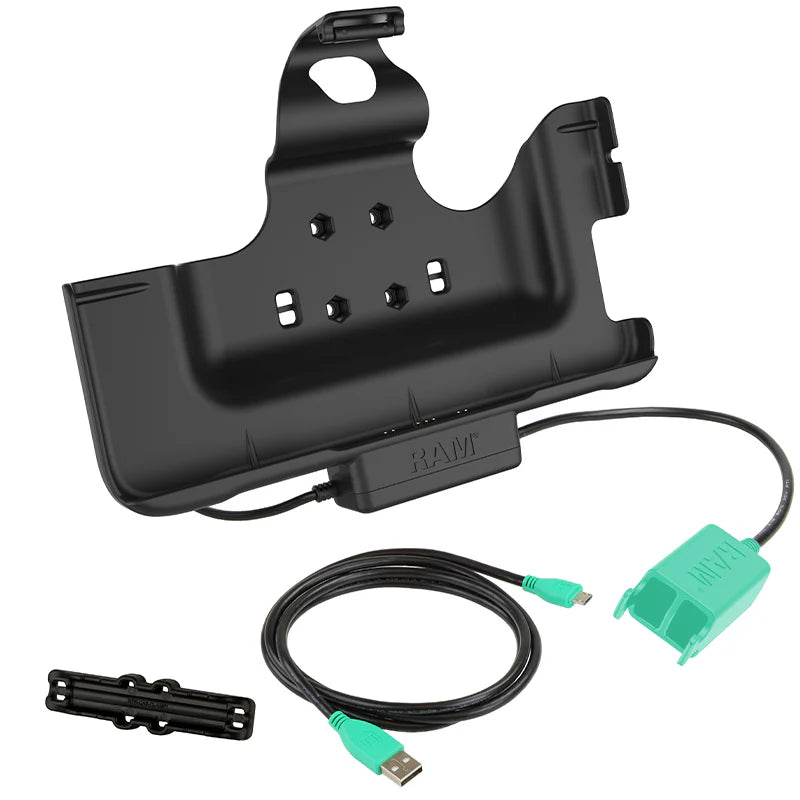

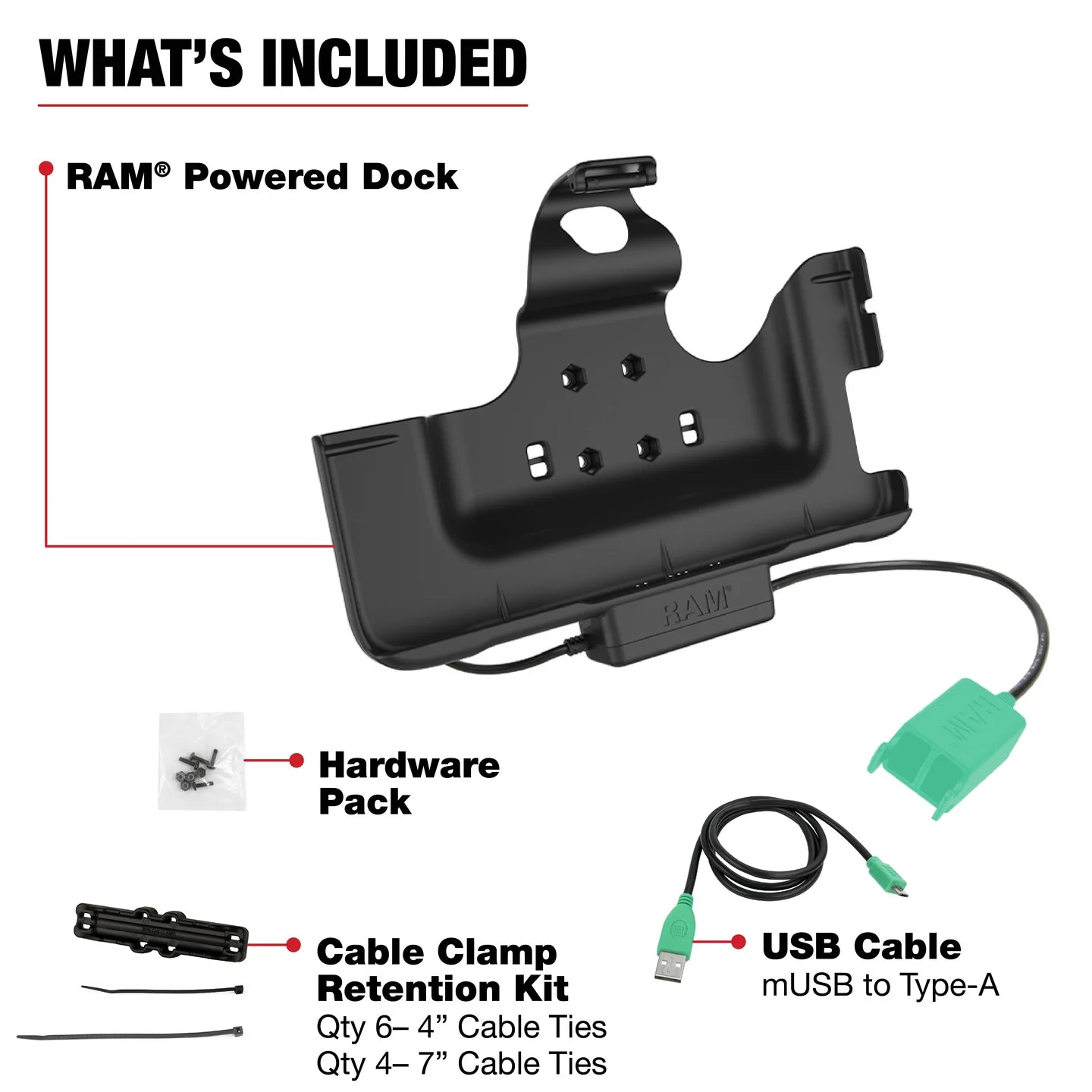

Hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"

Materials:
High strength composite

Packaging type:
Poly Bag

Output cable length:
.22 Meters

Peripheral output:
900mAh (per port)

Warranty:
3 year warranty

Weight:
0.88 lb

Additional Information:
This holder is intended only for light-duty applications in landscape mode.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro.
