RAM MOUNTS | RAM Phone Mount for Wheelchair Armrests with Quick Release & Swivel

Description

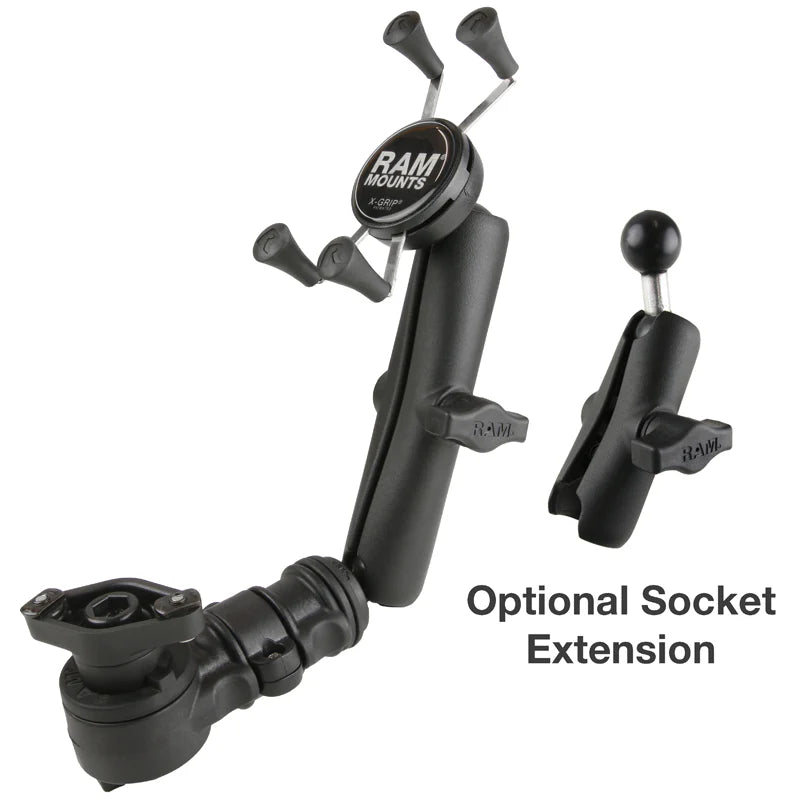

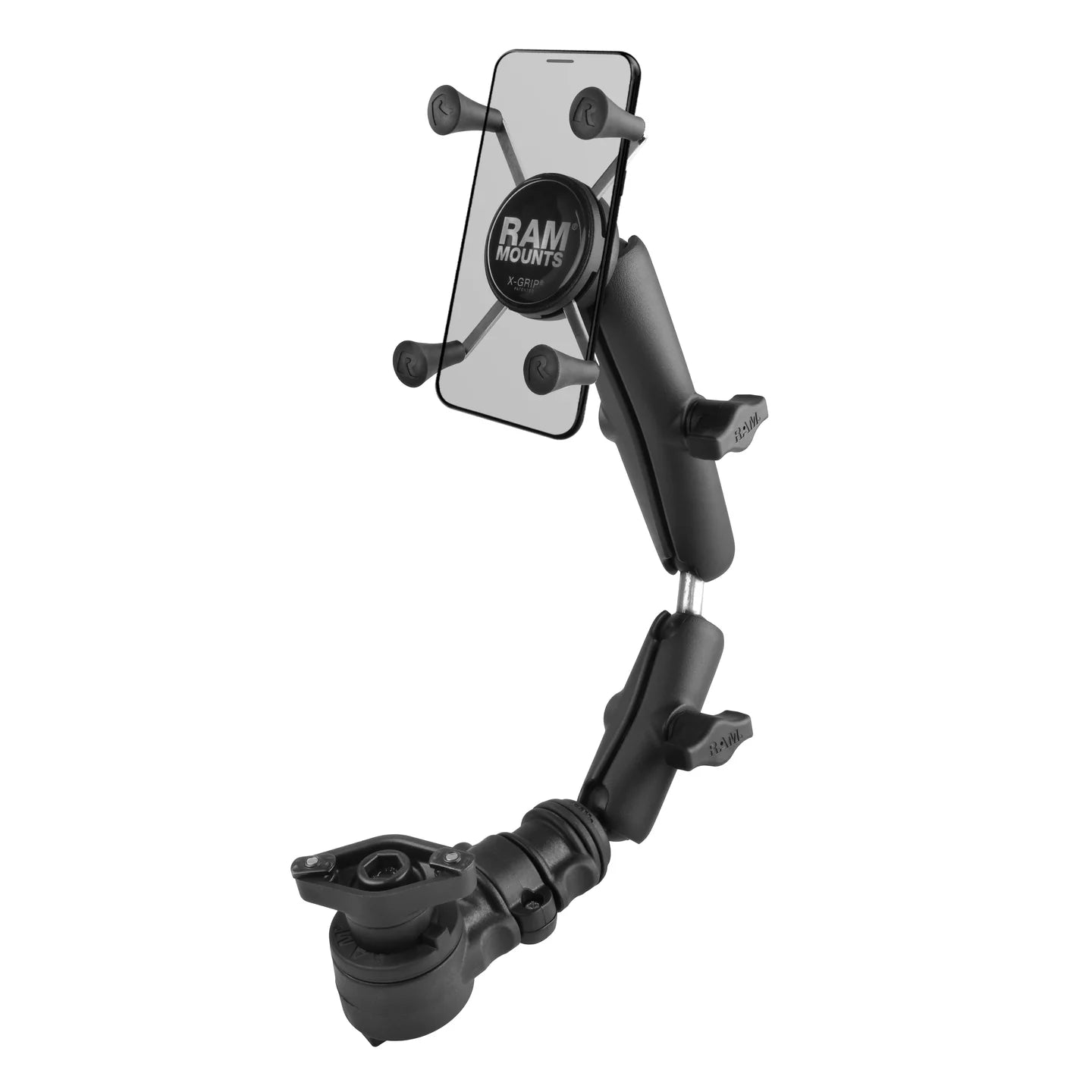

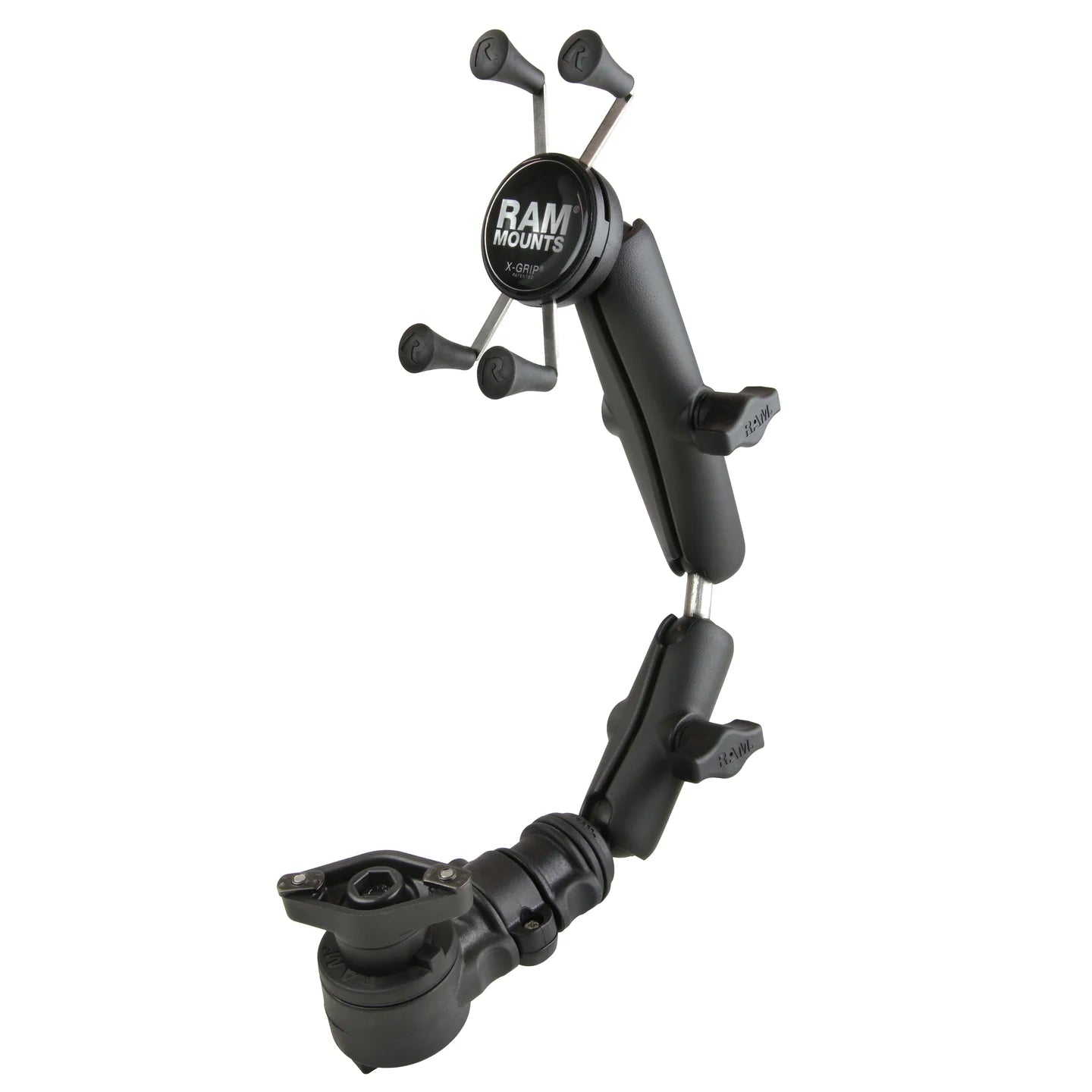

The RAM® Phone Mount with Quick Release & Swivel is the perfect solution for mounting virtually any phone to a wheelchair armrest track or Invacare armrest. The system consists of the RAM® X-Grip® phone holder, double ball & socket extension arms, ball post adapter, and the RAM® Universal Wheelchair Base. The universal base offers a quick disconnect feature of the entire mount without having to adjust any ball and socket components. The base also features an adjustable knob that lets you swivel the mount in and out of position with ease. The compact design of the RAM® Universal Wheelchair mounting system stays within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM® mounting components are backed by a lifetime warranty.

Features

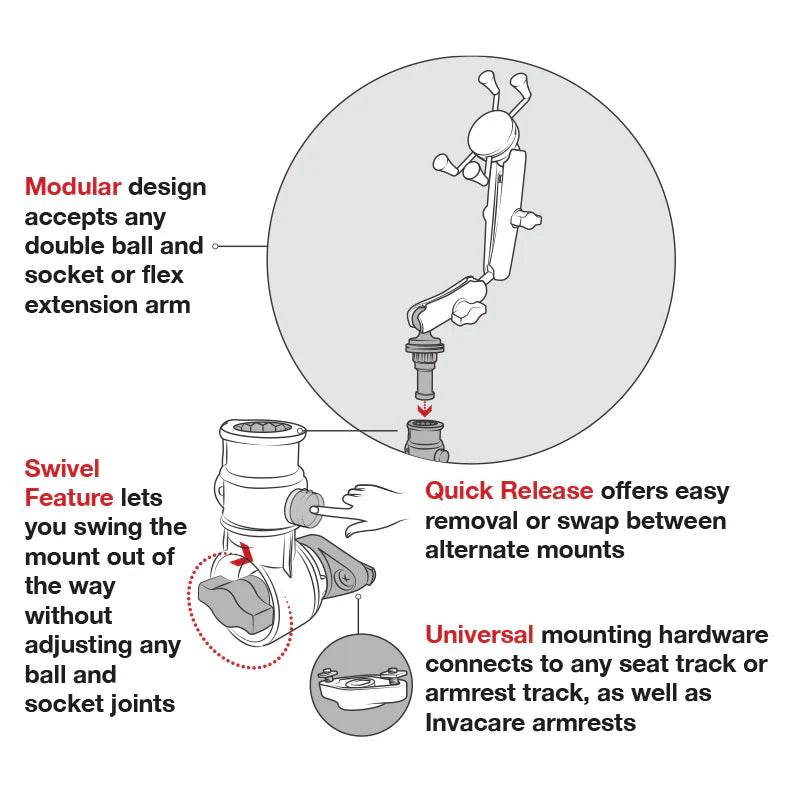

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

Easy swivel and quick release capabilities without changing ball and socket positioning

Compact design keeps mount within armrest width

Supports most any phone with or without a case at virtually any angle with optional ball extension

Backed by a lifetime warranty

Specifications

Hardware included:

Assembly Hardware
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 7/16" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(2) #8 Washers

Holder dimensions:

Width Range: 1.875" - 3.25"
Depth Range: .875" max

T bolt dimensions:

Large: .48" x .95"
Small: .375" x .593"

Hole pattern:

2-Hole AMPS: 1.912"

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite

Packaging type:

Poly Bag

Weight:

1.54 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).

Resources

Instructions
