RAM MOUNTS | RAM EZ Roll'r Dual USB Dock for Samsung Tab Active5 & 3

Compatibility

Samsung
Tab Active5

Tab Active3

Tab Active2

Additonal Information:
This product will not support the "No Battery Mode" function of the Tab Active3.

Description

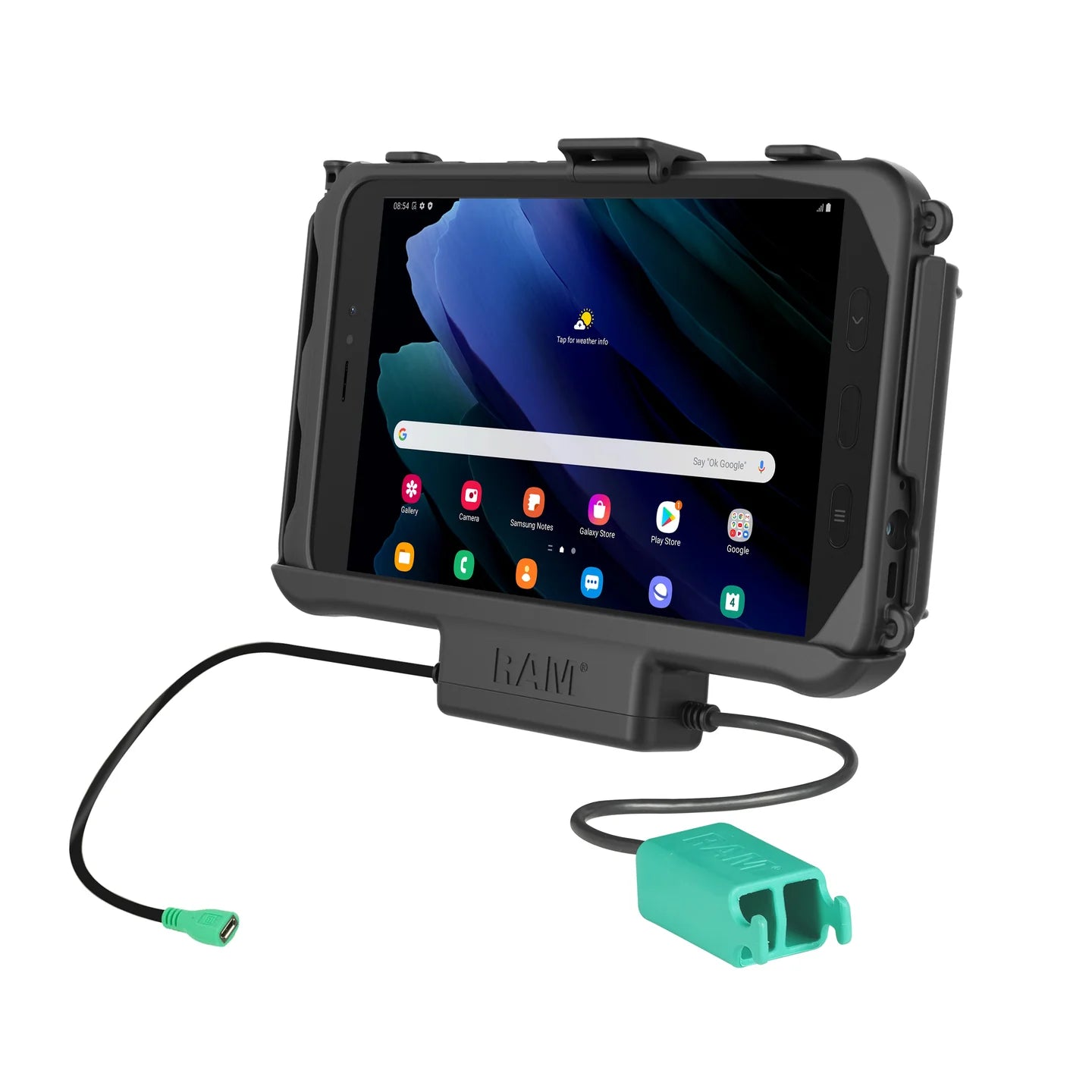

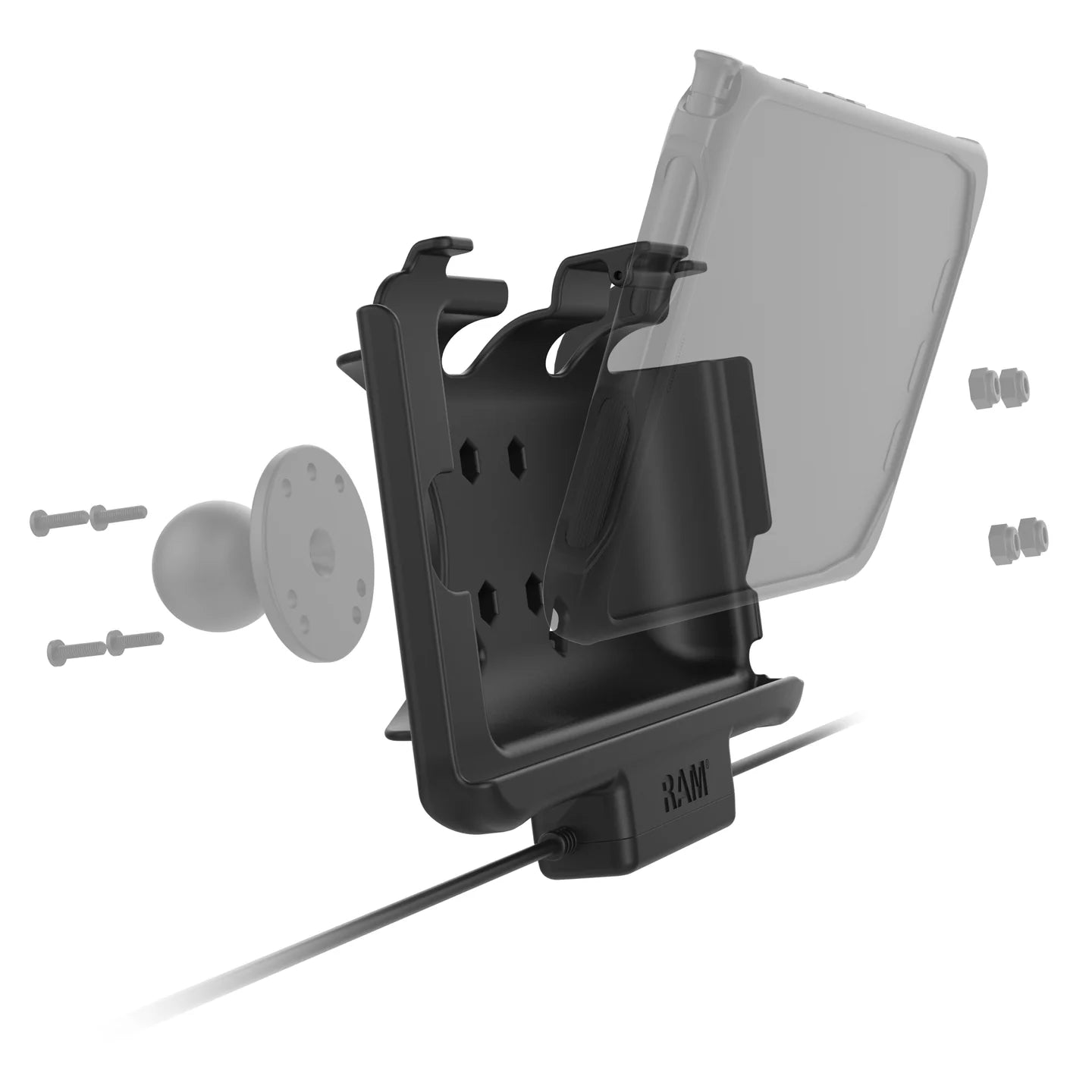

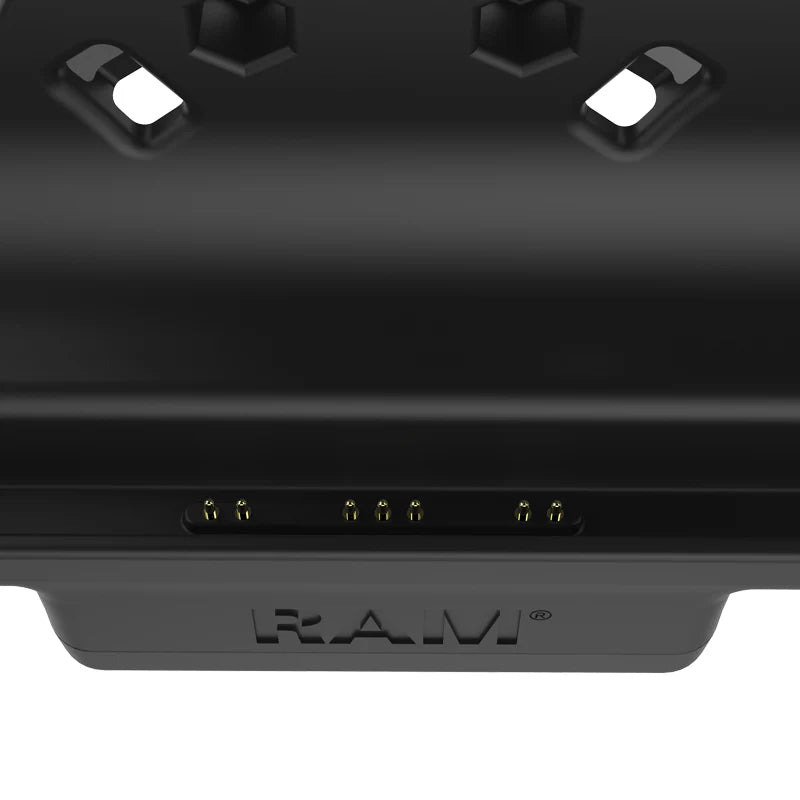

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 and 2 from your vehicle, to your person, to your desk with zero hassle.

Features

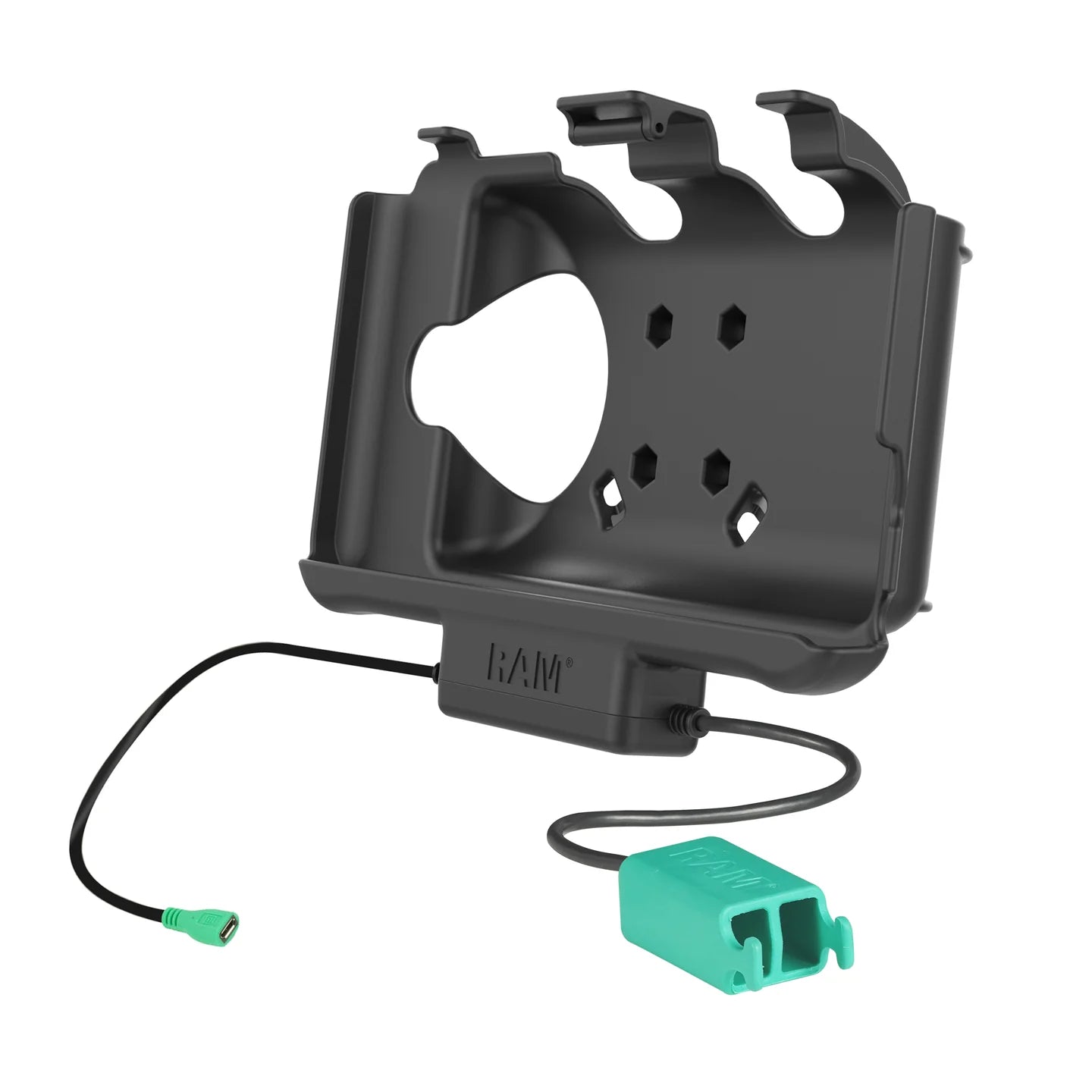

RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects two additional USB peripherals through an integrated pogo pin connector

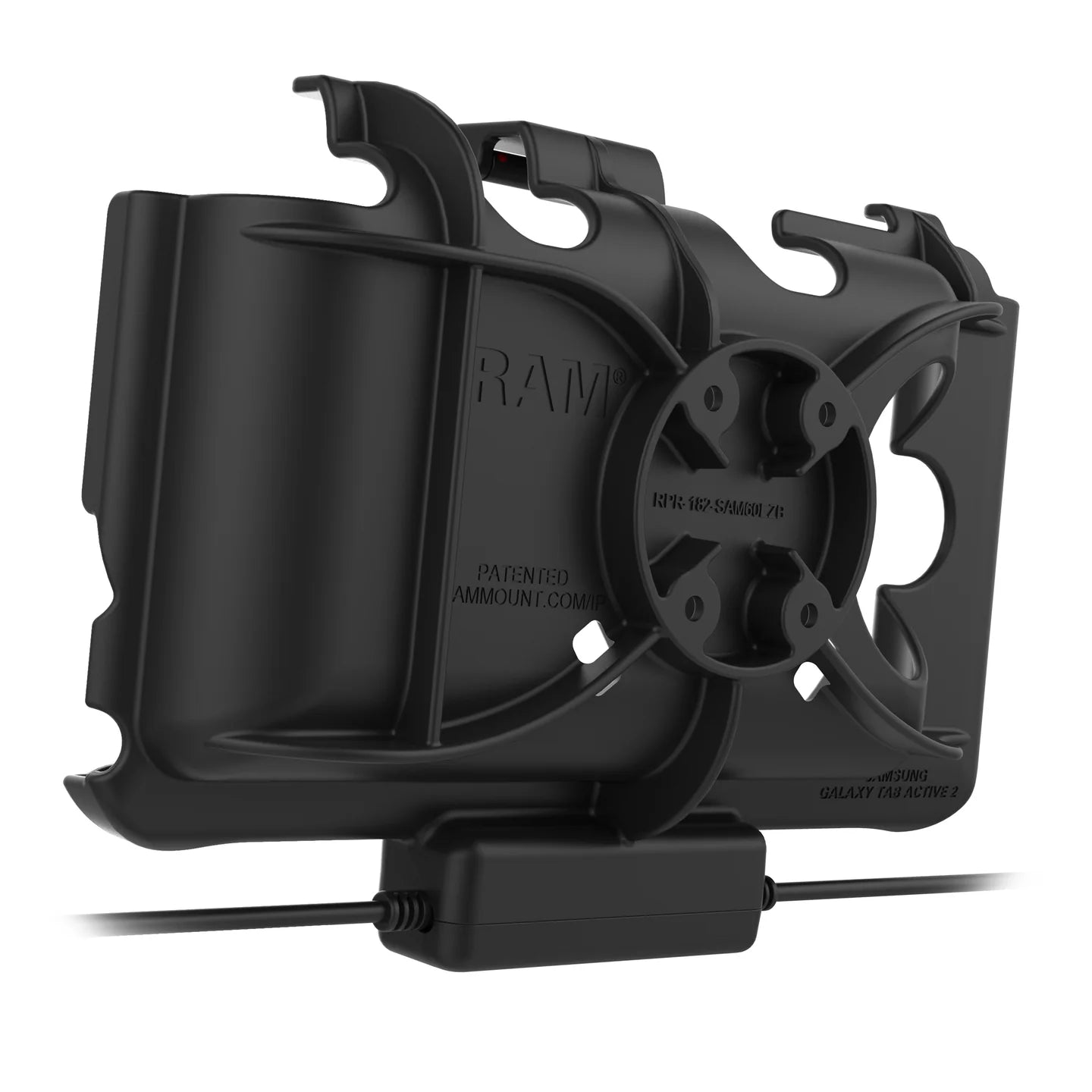

Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility

Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector

Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

Backed by a 3-year warranty

Specifications

Hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties

Product dimensions:
Width: 9.24"
Height: 6.34"
Depth: 2.57"

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"

Materials:
High strength composite

Packaging type:
Poly Bag

Input voltage:
4.4-5.4VDC (USB power source dependent)

Output voltage:
4.4VDC-5.4VDC (USB power source dependent)

Power output:
500mA per USB port

Input connector:
mUSB 2.0 Female

Input cable length:
214mm

Output connector:
(2) USB 1.1 Type A

Output cable length:
217mm

Peripheral output:
900mAh (per port)

Transfer speed:
12Mbps

Warranty:
3 year warranty

Weight:
0.84 lb

Additional Information:
This product will not support the "No Battery Mode" function of the Tab Active3.

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
