RAM MOUNTS | RAM EZ-Roll'r Dock for Samsung XCover7 Pro & 6 Pro Without Case

Compatibility

Samsung

Galaxy XCover7 Pro without case

Galaxy XCover6 Pro without case

Description

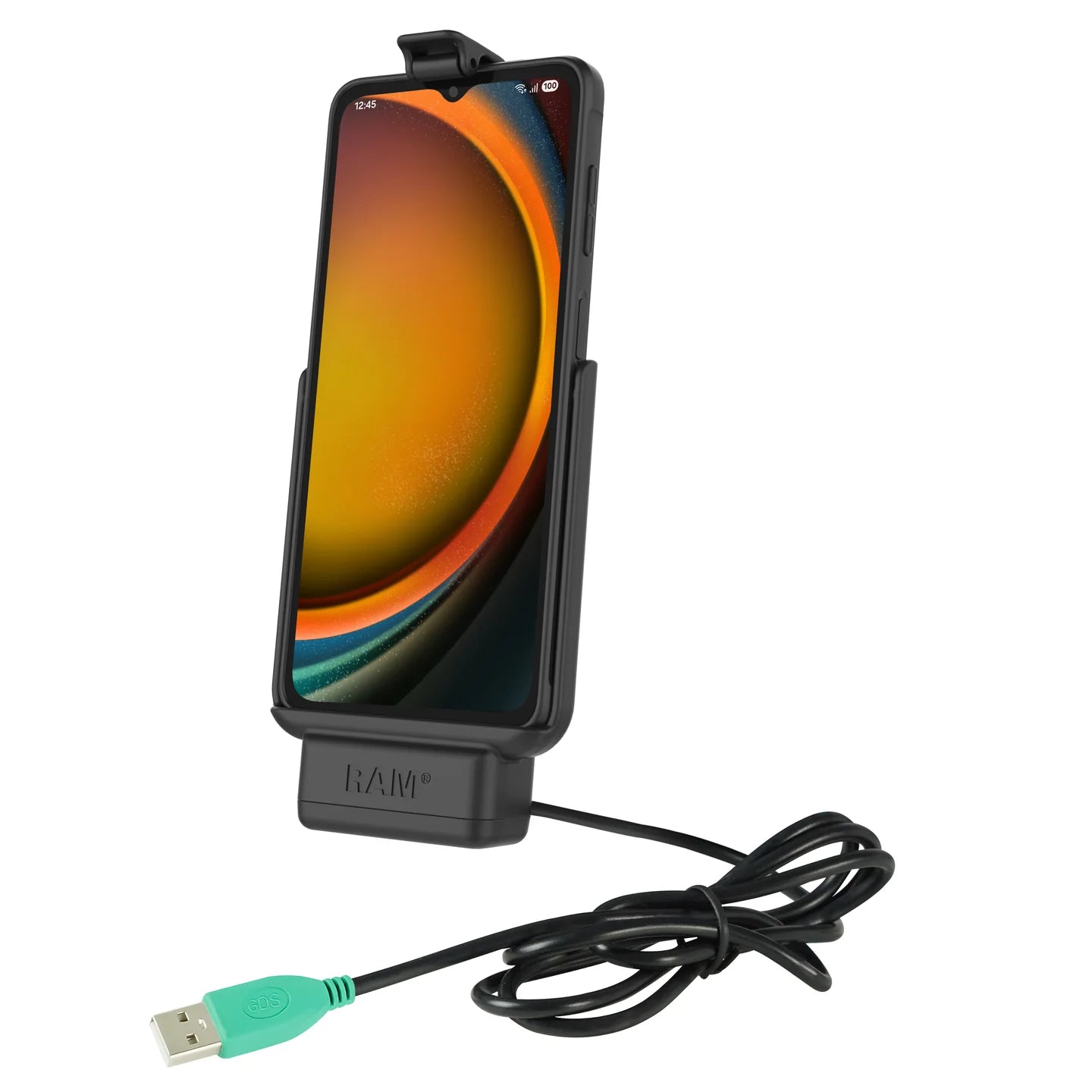

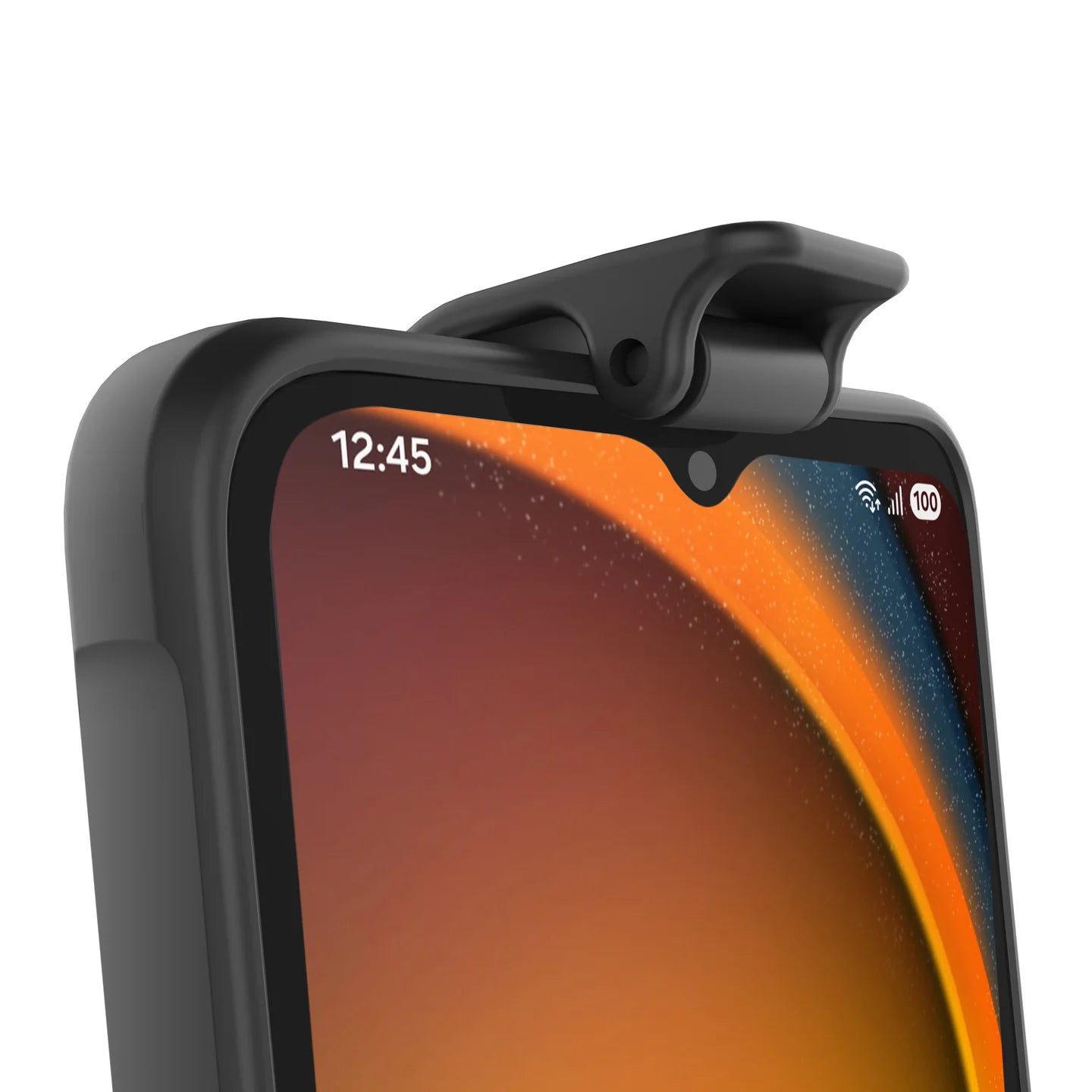

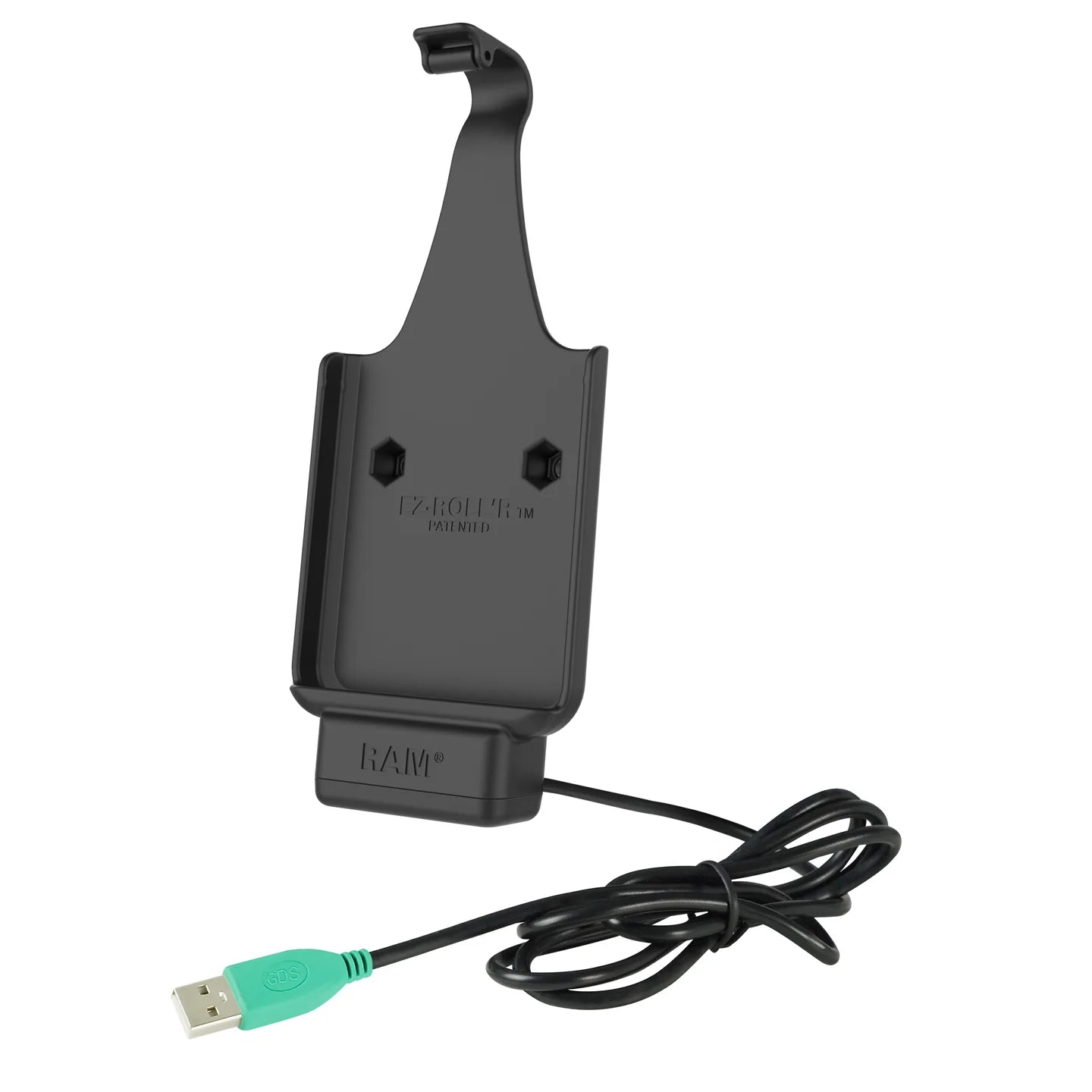

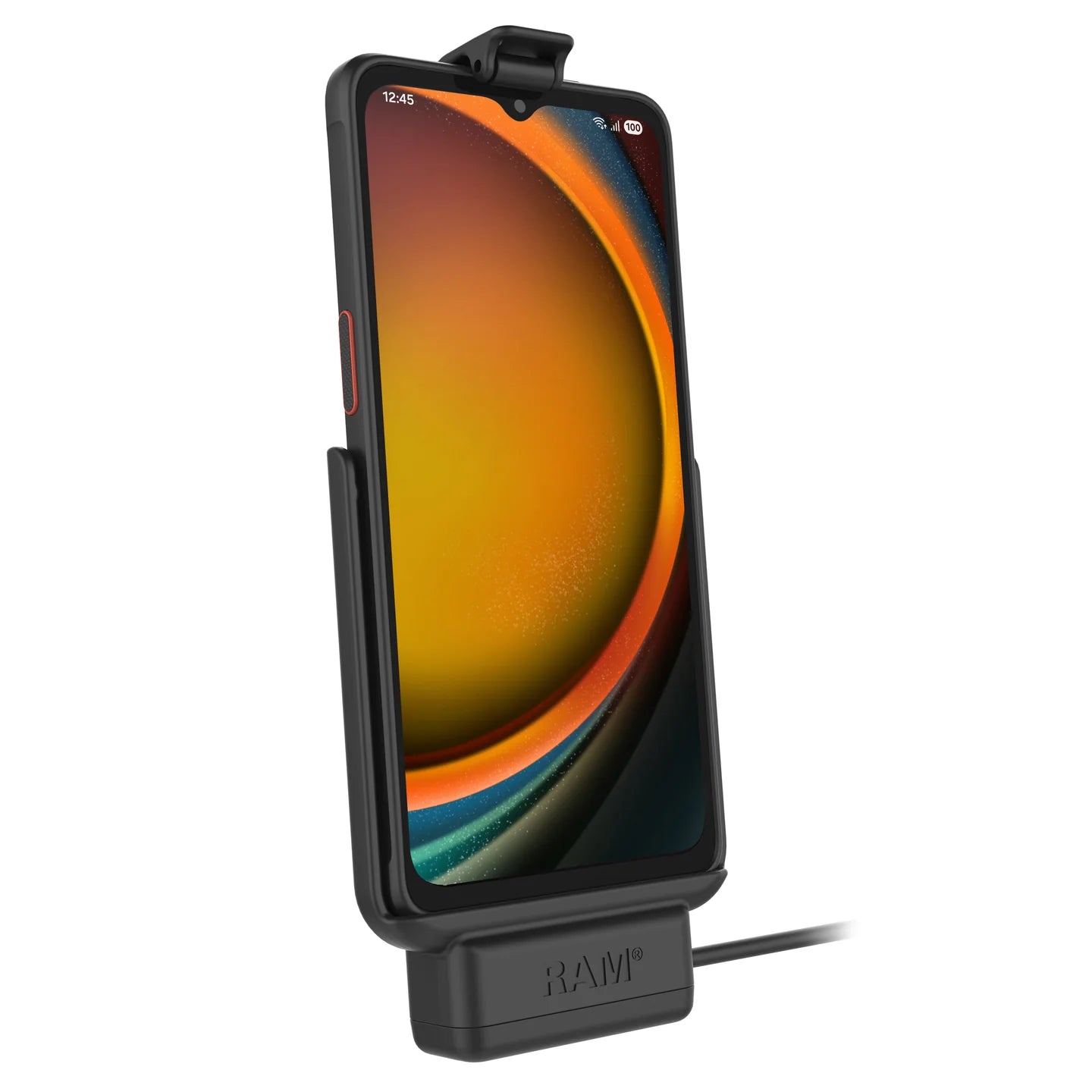

This RAM® EZ-Roll’r™ powered dock is designed specifically for the Samsung Galaxy XCover7 Pro and XCover6 Pro without a case, and features two integrated pogo pins that provide charging capabilities to the device. While keeping the XCover7 Pro secure, the RAM® EZ-Roll’r™ powered dock also leaves the device’s buttons and cameras exposed and usable. For mounting, pair the dock with B or C size RAM® diamond ball bases. This powered dock receives power via USB Type-A male pigtail and is compatible with the GDS® 2-port USB cigarette charger as well as the GDS® modular hardwire charger with USB Type-A female connector.

Features

Powered dock designed specifically for the Samsung Galaxy XCover7 Pro and XCover6 Pro without a protective case

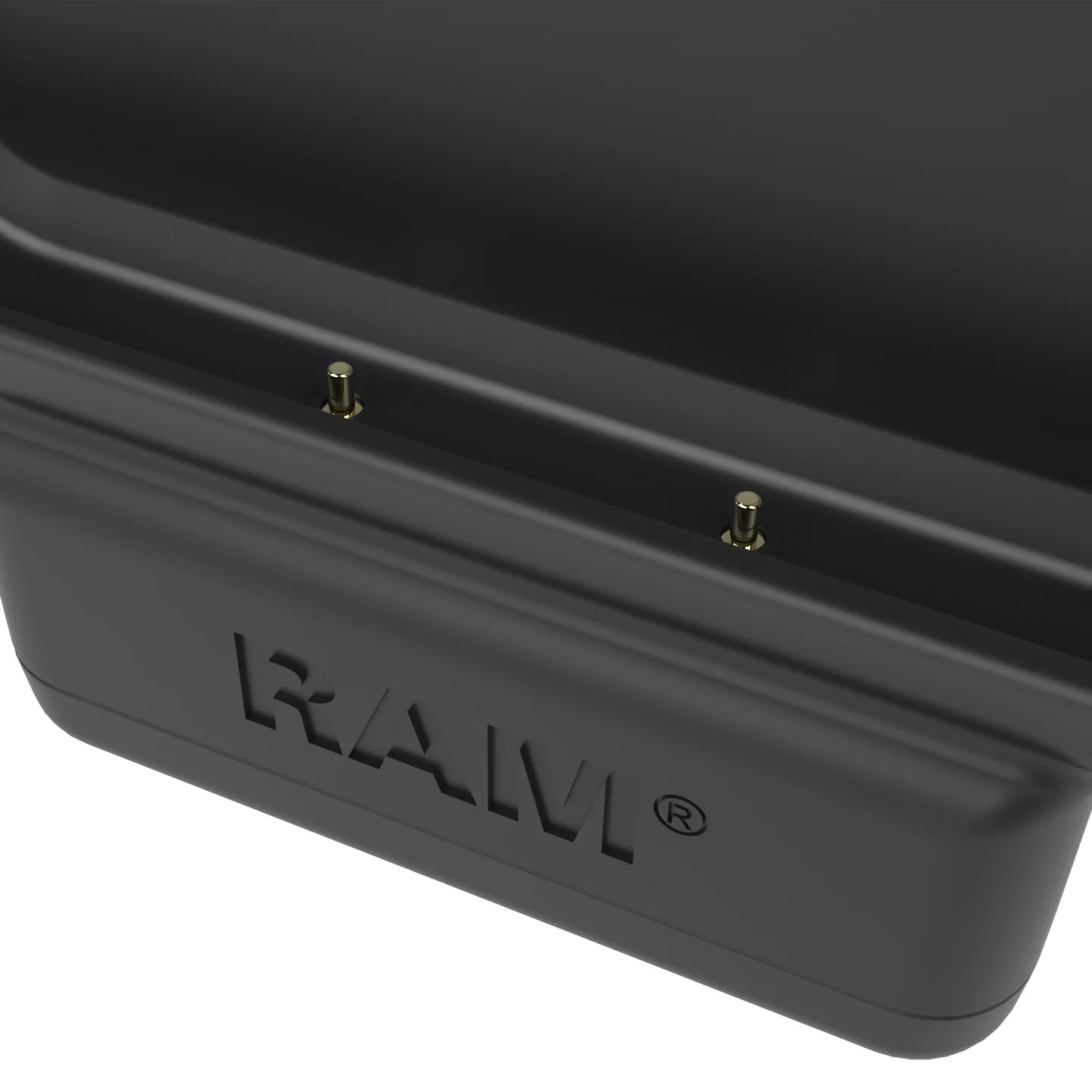

Next gen charging with integrated pogo pin docking contacts that match the XCover6 Pro's pogo pads for a fumble-free charging experience and port-protection

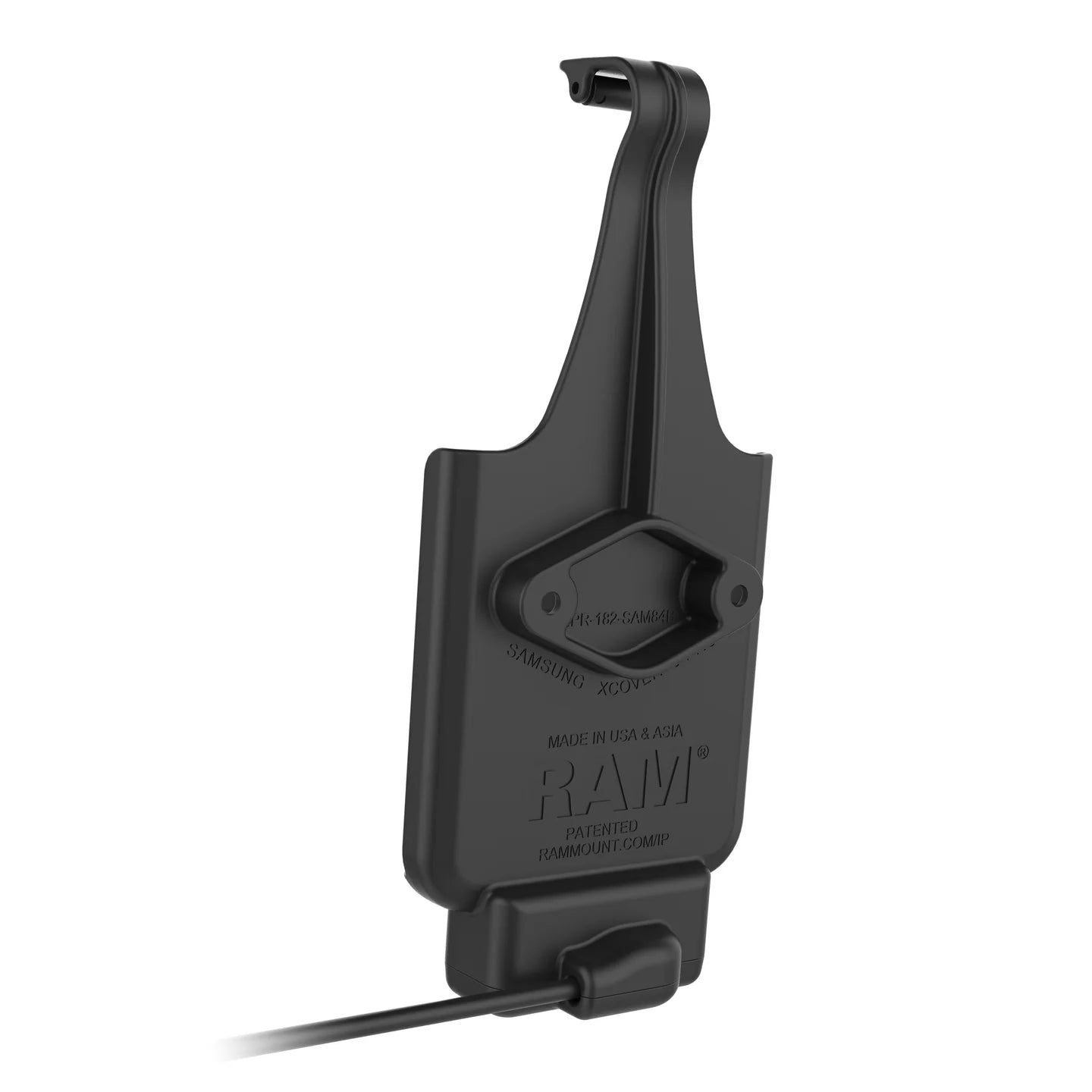

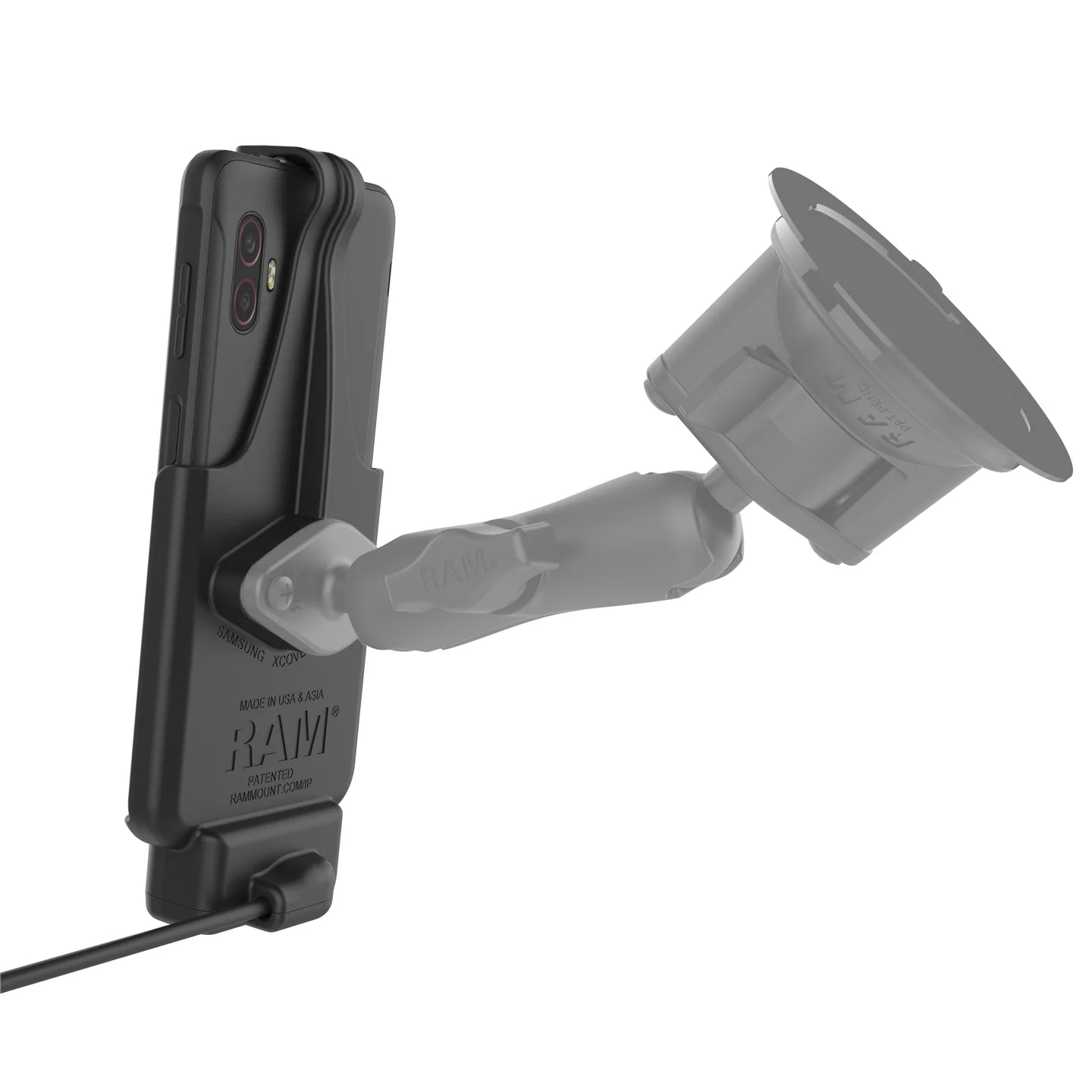

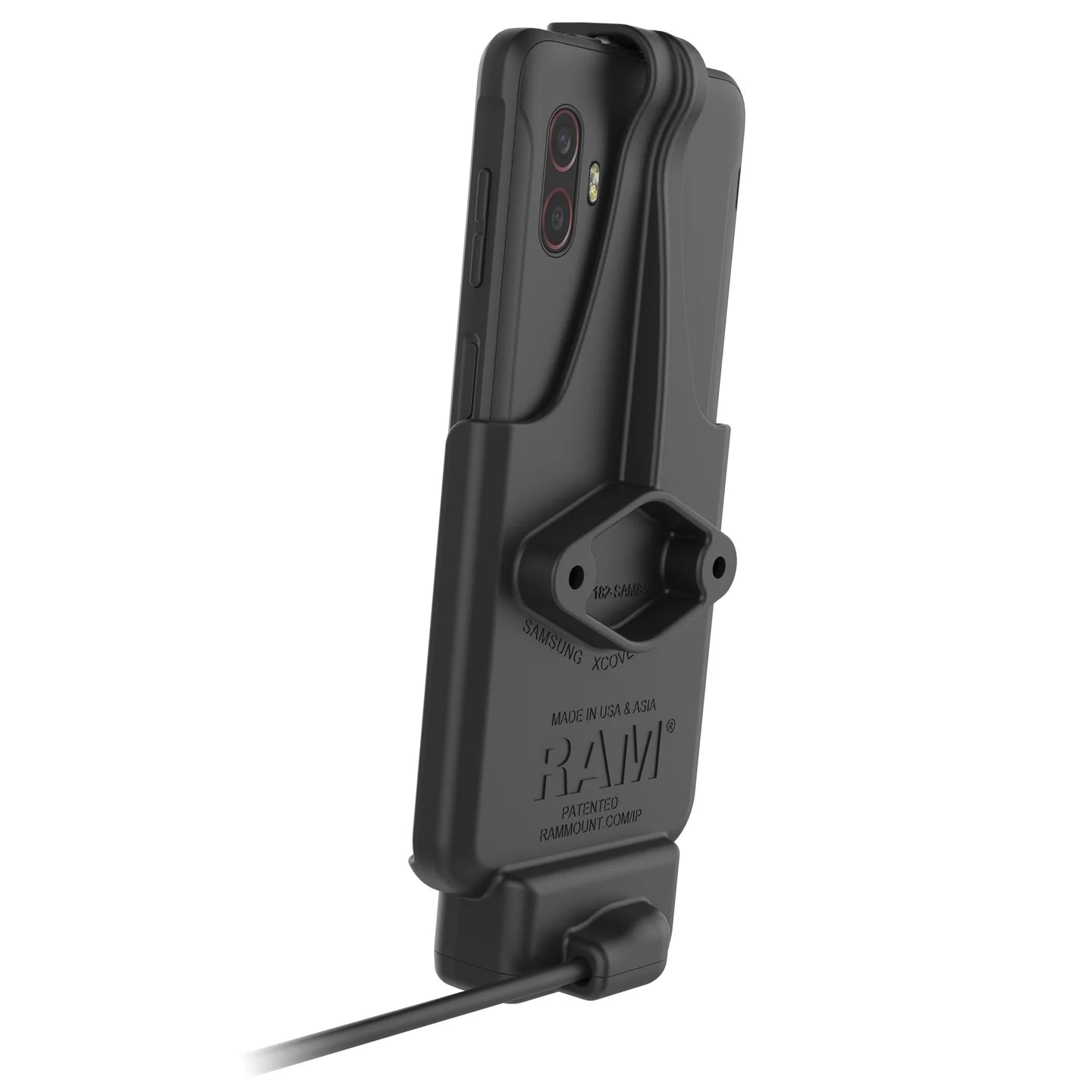

2-hole AMPS hole pattern on the back of the dock to install a B or C Size RAM® diamond ball base

Backed by a 3-year warranty

Specifications

Hardware included:

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

Product dimensions:

Overall Height: 7.75"
Overall Width: 3.38"
Overall Depth: 1.38"

Hole pattern:

2-Hole AMPS: 1.912"

Materials:

High strength composite

Packaging type:

Poly Bag

Input connector:

USB Type A Male

Input cable length:

1.25 Meters

Warranty:

3 year warranty

Weight:

0.29 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
