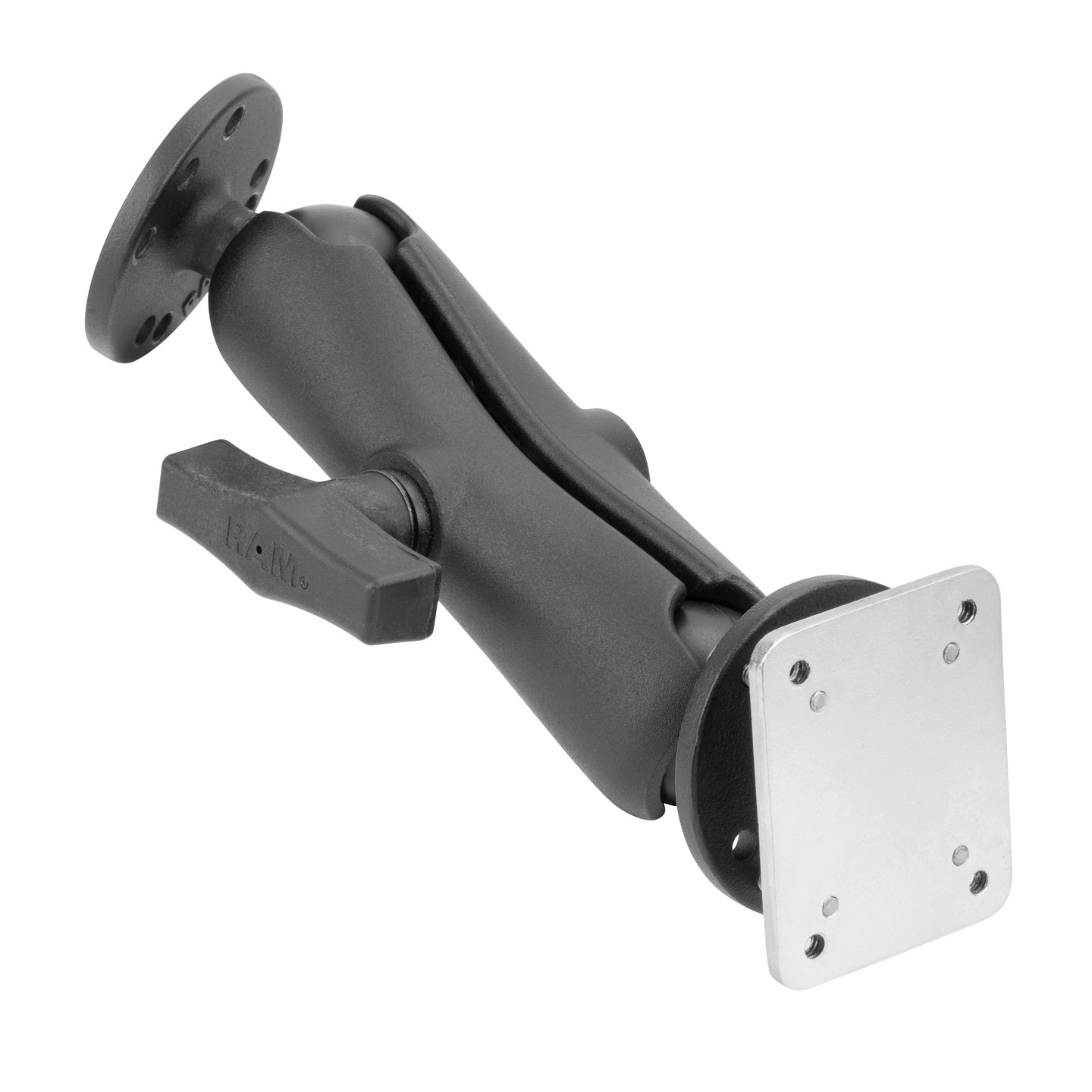

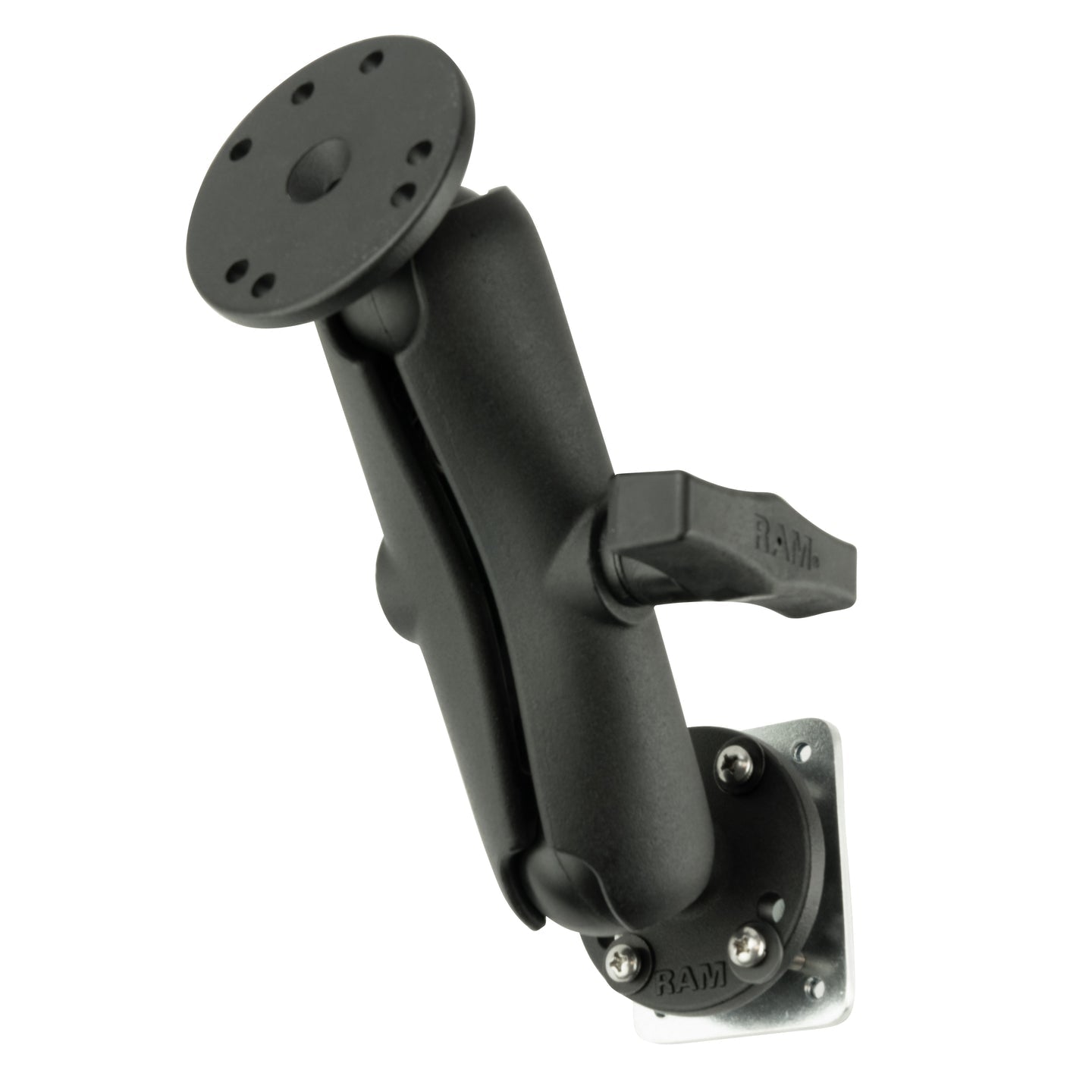

RAM MOUNTS | RAM Drill-Down Dashboard Mount with Backing Plate - C Size Medium

DESCRIPTION: Meet your new go-to mount and component option for pairing any holder or dock with a dashboard drill-down mount. The RAM-101-225B2U consists of a C size medium length double socket arm, two round 2.5" diameter round bases with the universal AMPS hole pattern, and one 2.10” x 2.60” steel backing plate (hardware included). RAM®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.

FEATURES: Drill-down double ball mount with 2.10" x 2.60" steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
Includes C size 1.5" RAM® rubber ball and medium length double socket arm; ball and socket technology allows for near-infinite adjustability
Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments.

HARDWARE INCLUDED: Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Hardwire Charger

PRODUCT DIMENSIONS: Overall Height: 7.35"

SOCKET TO SOCKET LENGTH: 4.66"

HOLE PATTERN: Round Plate
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE: C Size (1.5")

WEIGHT CAPACITY: Standard Use: 4 lbs | Heavy-Duty Use: 3 lbs

MATERIALS: Marine-grade aluminum steel

PACKAGING TYPE: Poly Bag

WEIGHT: 1.4 lb
