RAM MOUNTS | RAM Ball Adapter with RAM Qi2 15W Wireless Charger

Description

Additonal Information:
The included wireless charger will support up to 8mm charging distance between puck and device.

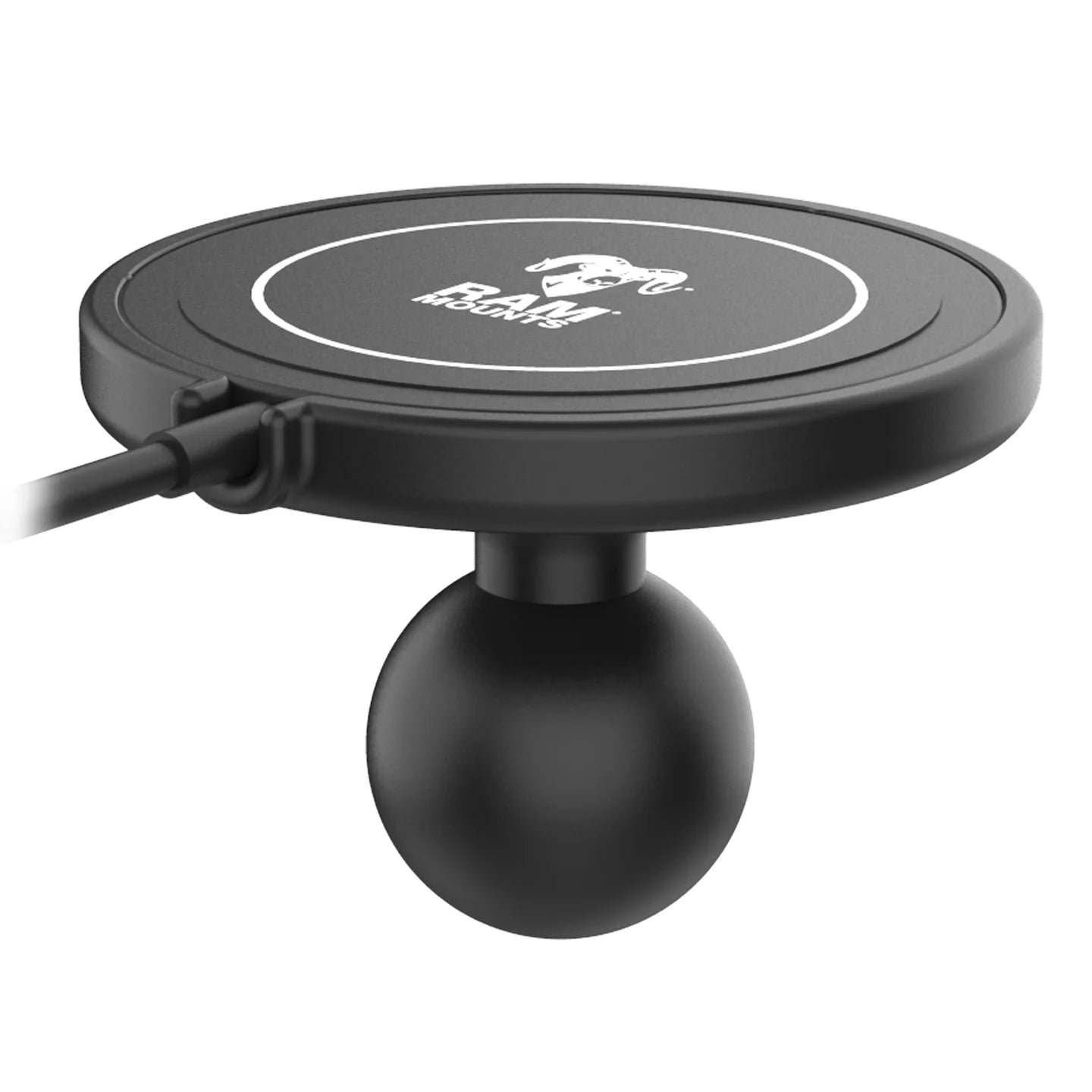

The RAM® Ball Adapter with RAM® Qi2 15W Wireless Charger (RAP-B-202-AP-MAG-1-W2MU) makes it easy to add wireless charging to your existing RAM® Mount setup—or build a custom one from scratch. The ball adapter securely holds the Qi2 15W Wireless Charger, giving your iPhone 12, 13, 14, 15, 16 (Plus, Pro, Pro Max, and later) a snap-on magnetic connection for effortless MagSafe® charging. Compatible with RAM® B size socket arms, this bundle gives you the flexibility to mount your phone in virtually any vehicle location with the right base. A simple, reliable way to keep your device powered while you’re on the move.

Features

Wireless charger and form-fit ball adapter compatible with any RAM® B size ball and socket components

15W Qi2 fast charging for efficient power delivery

Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods

Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

Specifications

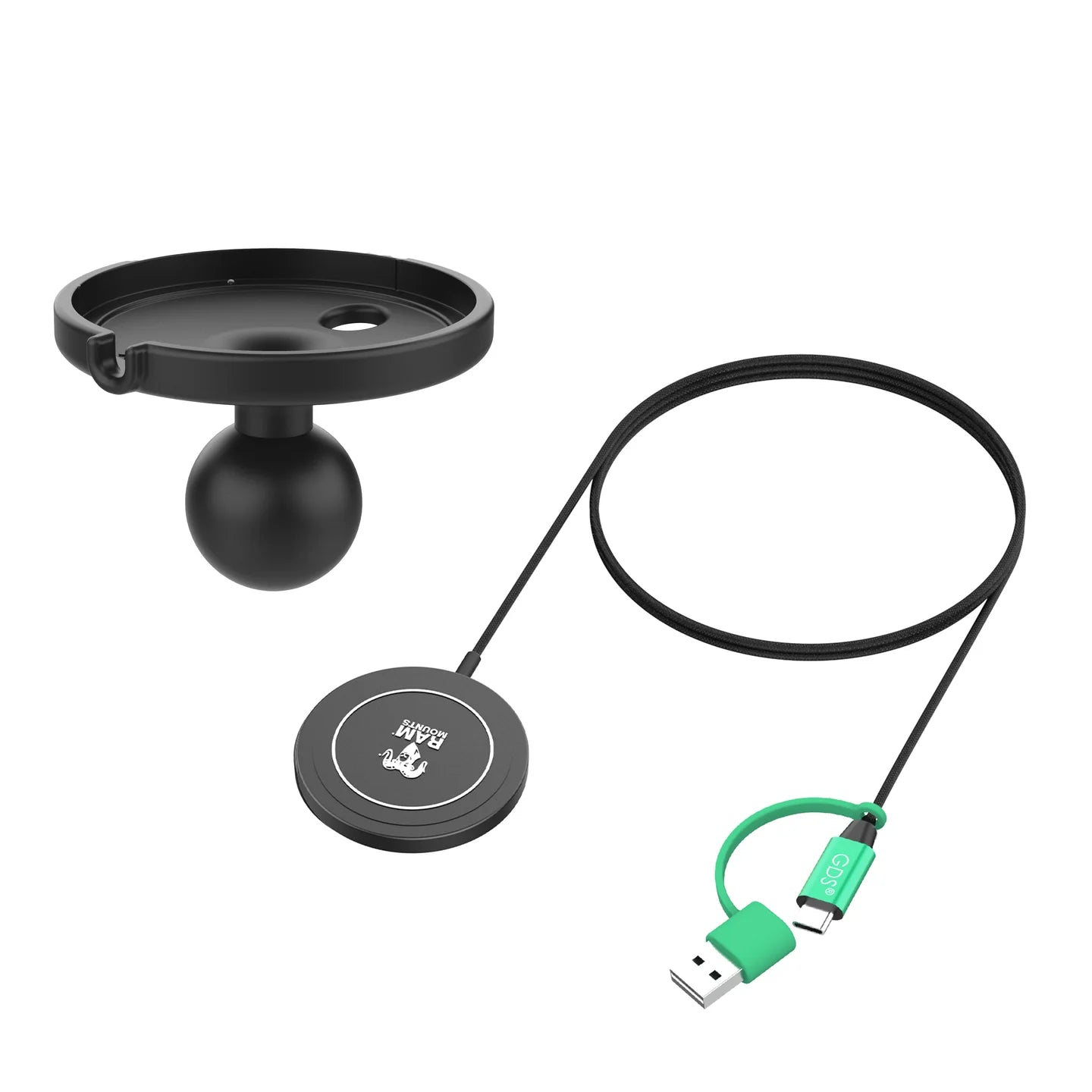

Hardware included:
(1) Ball Adapter
(1) RAM® Qi2 Wireless Charging Puck

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
High strength composite

Packaging type:
Poly Bag

Power specifications:
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

Input voltage:
USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

Power output:
BPP - 5W
EPP - 7.5W
MPP - 15W

Output connector:

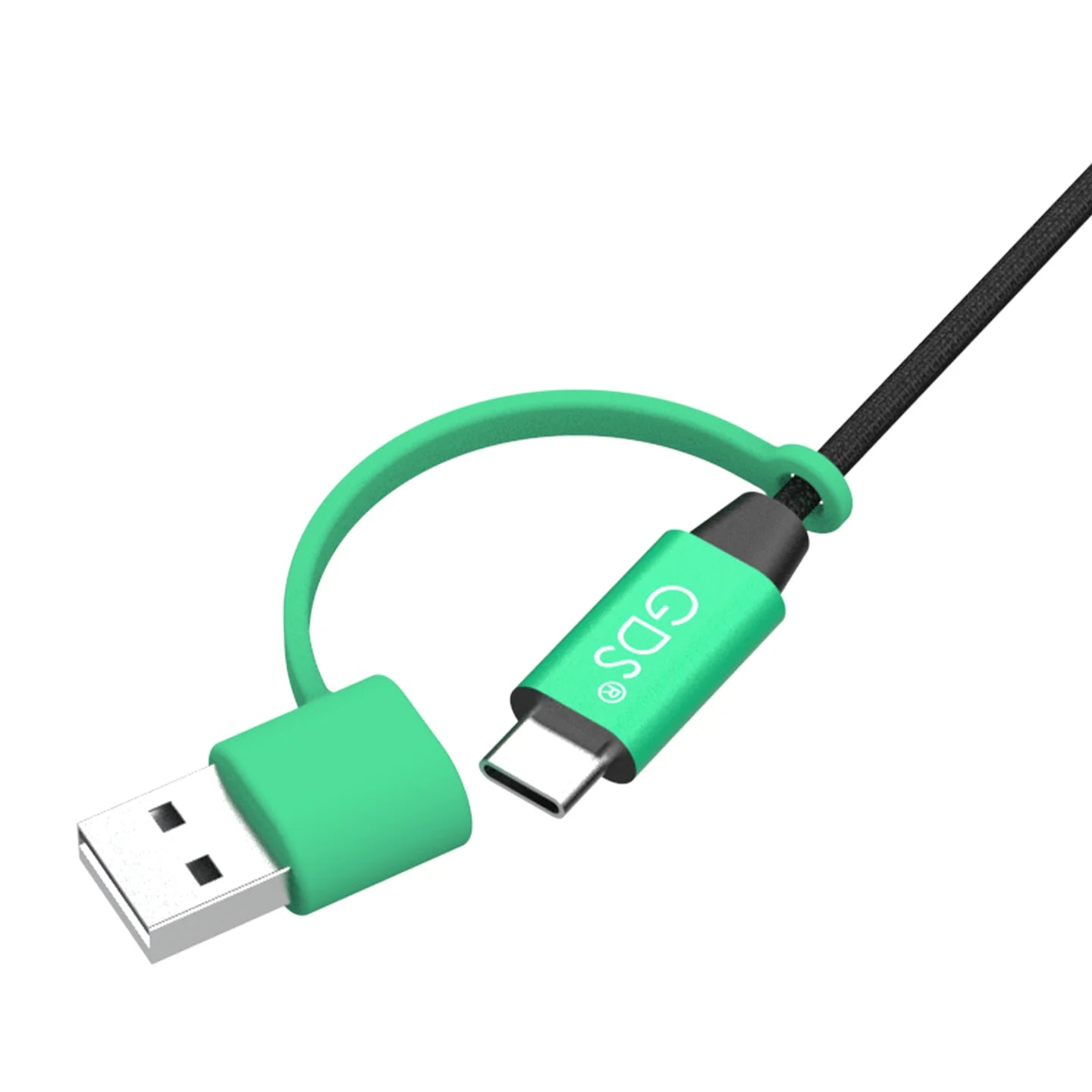

USB Type-C Male with USB-A Adapter

Output cable length:
1 Meter

Operating temperature:
0°C to +40°C

Storage temperature:
-20°C to +80°C

Regulatory:
Over Current Protection
Short Cirtcuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

Certifications:
IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Additional Information:
The included wireless charger will support up to 8mm charging distance between puck and device.
