RAM MOUNTS | RAM Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro

Compatibility

Samsung
Galaxy XCover7 Pro with OEM case or RAM® Skin™

Galaxy XCover6 Pro with OEM case or RAM® Skin™

Description

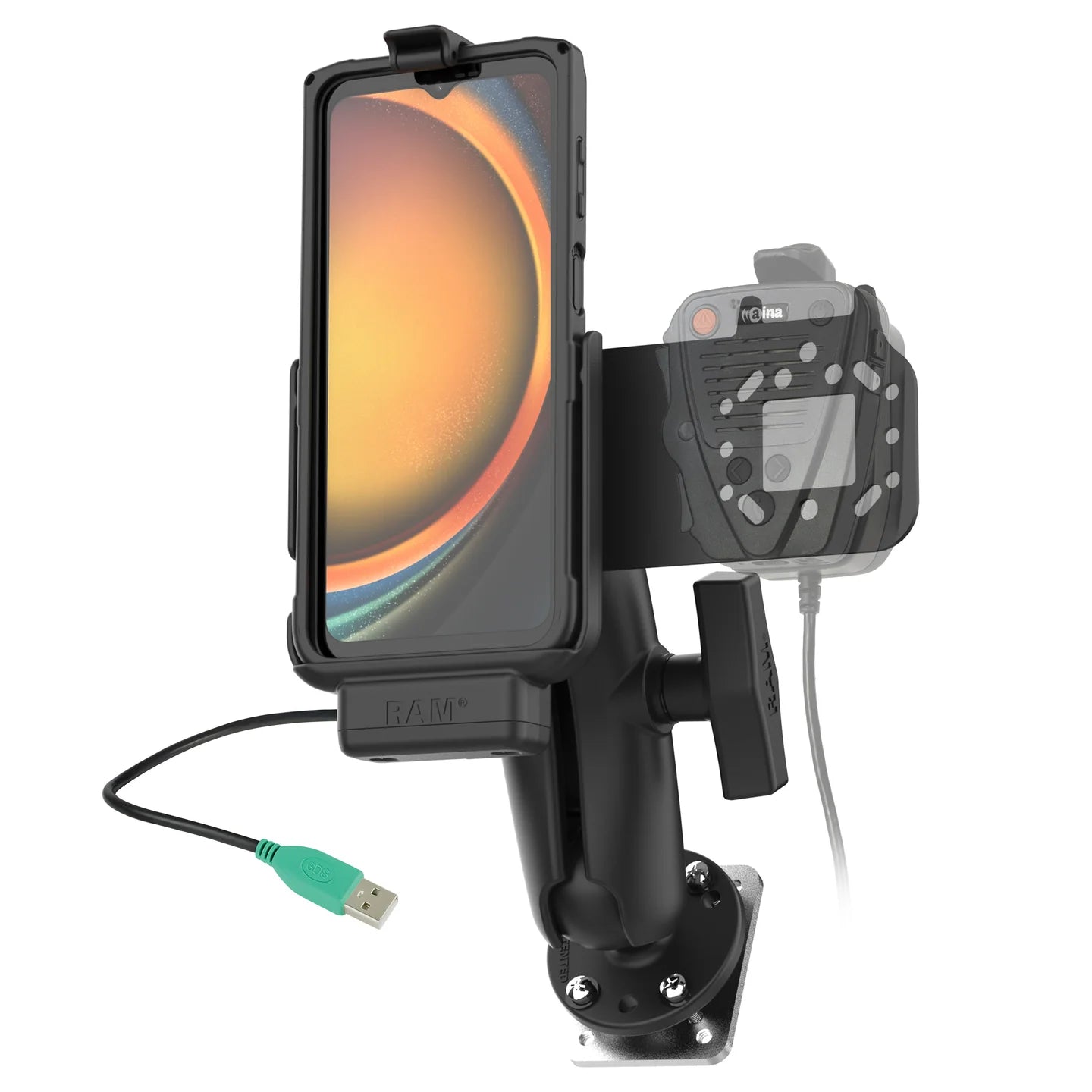

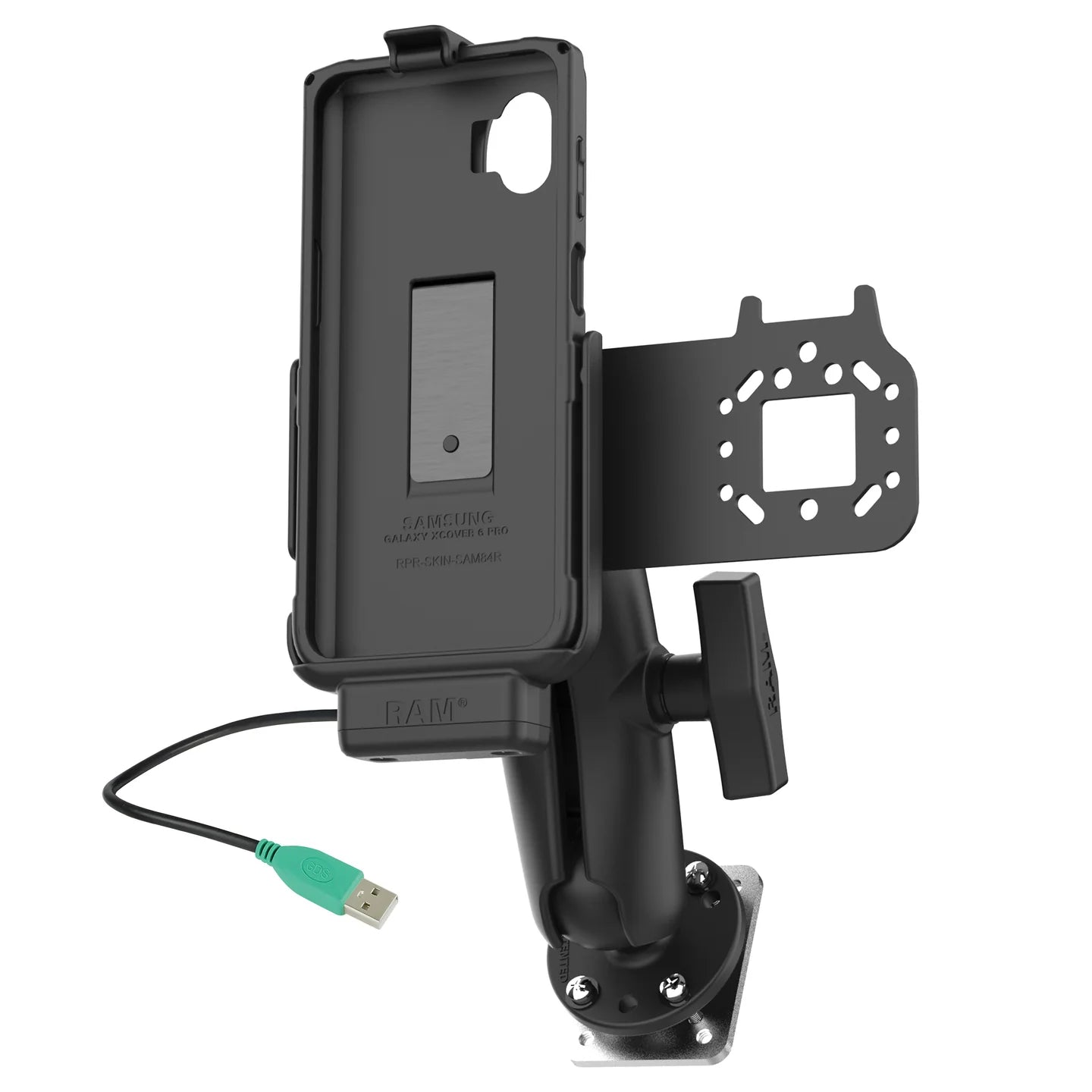

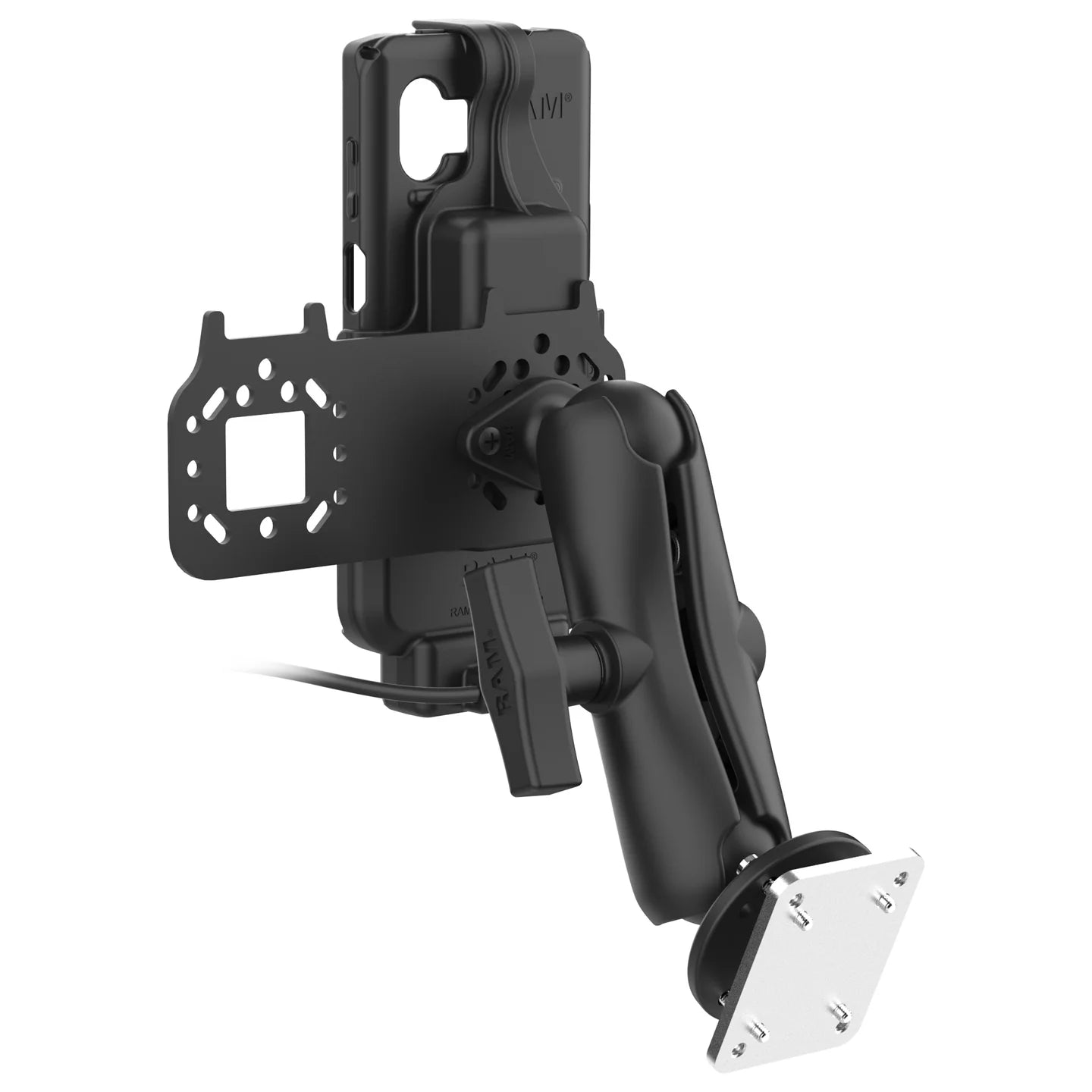

The RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro (RAM-101-SAM84CP-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the XCover7 Pro & 6 Pro into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a RAM® EZ-Roll'r™ Dock, RAM® Skin™, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-A male power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects plugs directly into the second hardwire charger for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide connect directly to the pogo pads integrated on the device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams.

Features

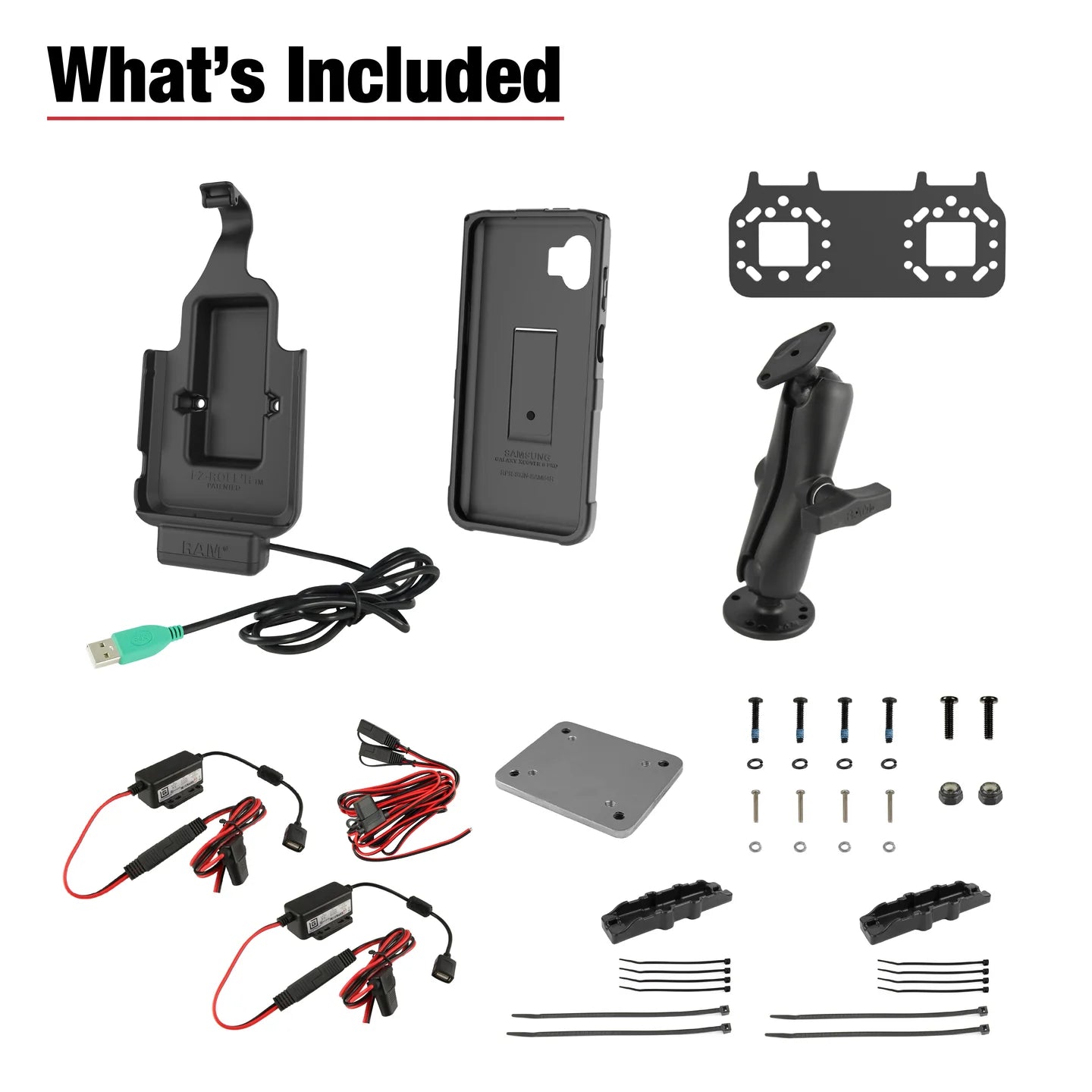

Bundle includes RAM® EZ-Roll'r™ Dock, RAM® Skin™ microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate

Dock's pogo pins align with device's pogo pads for charging capabilities, USB-C port connects to power

AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a 3-year warranty

Specifications

Hardware included:
Assembly Hardware
Mic Bracket
(2) Hardwire Chargers with USB-A Female Connector
SAE Splitter Cable
(2) Cable Clamps
Dashboard Backing Plate with Hardware

Socket to socket length:
4.66"

Hole pattern:
4-Hole AMPS: 1.181" x 1.496"

Ball size:
C Size (1.5")

Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials:
Steel
Marine-grade aluminum
High strength composite

Packaging type:
Box

Input voltage:
10-30VDC (Both Chargers)

Output voltage:
5-9VDC @ 2.5A (Both Chargers)

Input connector:
Bare Wire (via SAE Splitter)

Output connector:
USB-A Female

Regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

Certifications:
E-Mark Certification
RCM Certification
IEC/UL 62368-1

Weight:
4.48 lb

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).

Resources

Instructions

Documents
